MASKO® Automatic Compressed Air Hose Reel

1. Introduction and Safety Information

The MASKO® Automatic Compressed Air Hose Reel is designed to provide a convenient and organized solution for managing compressed air hoses in various environments, including professional workshops, garages, hobby areas, agriculture, and gardens. Its automatic retraction system ensures a tidy workspace and extends the life of your hose.

Important Safety Instructions

• Always read and understand all instructions before operating the hose reel.
• Ensure the hose reel is securely mounted to a stable surface before use.
• Do not exceed the maximum operating pressure specified in the technical specifications.
• Wear appropriate personal protective equipment (PPE) when working with compressed air tools.
• Keep children and unauthorized persons away from the operating area.
• Do not attempt to disassemble or repair the unit yourself. Contact qualified personnel for service.
• Ensure the hose is fully retracted when not in use to prevent tripping hazards.

2. Package Contents

Please verify that all components are present in the package:

• 1 x MASKO® Automatic Compressed Air Hose Reel (with integrated compressed air hose)
• 1 x Removable Wall Mount Bracket
• 1 x User Manual (this document)
• 1 x Hose Connector
• 1 x Plug-in Nipple
• 1 x Hose Brake (pre-installed)
• 1 x Set of Expansion Bolts (for wall mounting)

Figure 2.1: Overview of the MASKO Automatic Compressed Air Hose Reel and included components.

3. Setup and Installation

The MASKO® Automatic Compressed Air Hose Reel is delivered pre-assembled and ready for immediate use after mounting.

3.1 Wall Mounting

1. Choose a suitable location on a solid wall or ceiling that can support the weight of the hose reel and withstand the forces of pulling the hose.
2. Position the removable wall mount bracket at the desired height and mark the drilling points.
3. Drill holes using an appropriate drill bit for the provided expansion bolts.
4. Insert the expansion bolts into the drilled holes.
5. Securely attach the wall mount bracket to the wall using the expansion bolts.
6. Slide the hose reel onto the mounted bracket. Ensure it clicks securely into place.

The hose reel can swivel up to 180° on its wall mount, providing flexible access to your workspace.

Figure 3.1: Wall mounting and application examples.

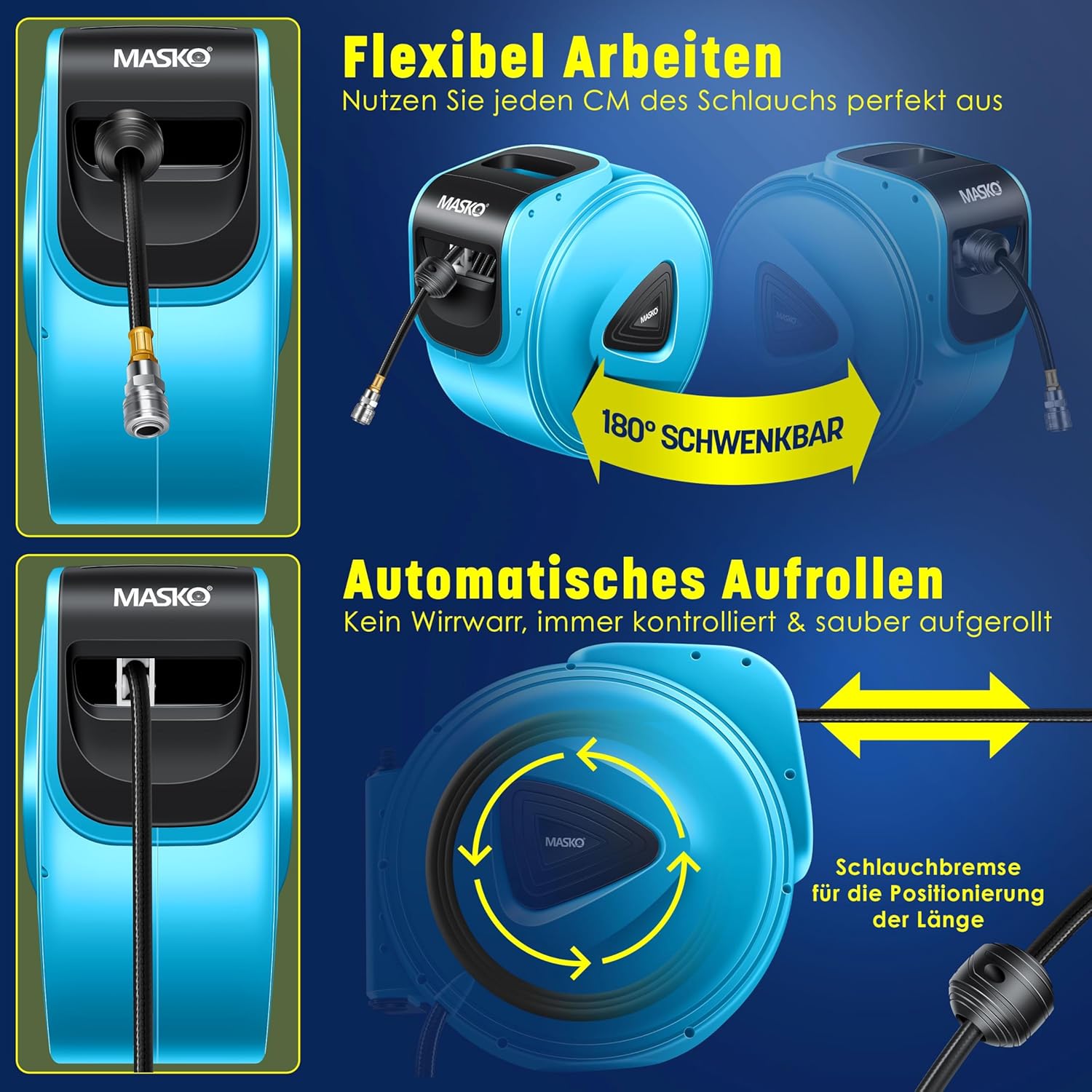

Figure 3.2: 180° Swivel Functionality.

3.2 Connecting to Air Compressor

Connect the input hose of the reel to your compressed air compressor using the provided hose connector and plug-in nipple. Ensure all connections are tight to prevent air leaks.

4. Operating Instructions

4.1 Extending the Hose

To extend the hose, simply pull it out to the desired length. The hose will automatically lock into place after every half turn. You will hear a clicking sound as it locks. This allows you to work without the hose retracting.

4.2 Retracting the Hose

To retract the hose, pull it gently once more until the locking mechanism disengages. The hose will then automatically and smoothly retract into the casing. Guide the hose during retraction to prevent kinks or tangles.

4.3 Adjustable Hose Brake (End Stop)

The hose reel features an adjustable hose brake, also known as an end stop. This allows you to set the desired length of hose that remains outside the casing when fully retracted. To adjust, loosen the hose brake, slide it to the new position, and tighten it securely.

Figure 4.1: Automatic retraction and hose brake functionality.

Figure 4.2: Key features and components of the hose reel.

Figure 4.3: Versatile applications of the hose reel.

5. Maintenance

Regular maintenance ensures the longevity and optimal performance of your MASKO® Automatic Compressed Air Hose Reel.

• Cleaning: Periodically wipe down the plastic casing with a damp cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners.
• Hose Inspection: Regularly inspect the hose for any signs of wear, cracks, or damage. A damaged hose can lead to air leaks and reduced performance. Replace the hose if significant wear is observed.
• UV Resistance: The casing is UV-resistant, protecting the hose from sun exposure and wear. However, storing the unit in a shaded area when not in use can further extend its lifespan.
• Connections: Check all air connections periodically for tightness to prevent leaks.

6. Troubleshooting

If you encounter issues with your hose reel, refer to the following common problems and solutions:

7. Technical Specifications

Figure 7.1: Dimensions and technical specifications overview.

Figure 7.2: Hose construction details.

8. Warranty and Support

MASKO products are manufactured to high-quality standards. For any questions, technical assistance, or warranty claims, please contact your retailer or the MASKO customer support team. Please have your model number (21485_mfn) and purchase information ready when contacting support.

For the most up-to-date warranty information, please refer to the warranty card included with your product or visit the official MASKO website.
