Svago ZGR Newton SV-630 Zero Gravity Recliner Chair User Manual

Introduction

This manual provides essential information for the safe and effective use of your Svago ZGR Newton SV-630 Dual Power Zero Gravity Recliner Chair. Please read all instructions carefully before assembly and operation. Retain this manual for future reference.

Image: Svago ZGR Newton SV-630 Zero Gravity Recliner Chair in gray leather, shown in a reclined position.

Important Safety Information

WARNING: To reduce the risk of injury, read all instructions before using the chair.

• Maximum Weight Capacity: Do not exceed 400 lbs (181 kg).
• Keep fingers, clothing, and loose articles away from moving parts when adjusting the chair's position.
• Ensure the power cord is not pinched or damaged during setup or use.
• Do not allow children or pets to play on or around the chair.
• Always ensure the chair is on a stable, level surface.
• Unplug the chair from the power outlet before cleaning or performing any maintenance.

Setup and Assembly

The Svago ZGR Newton SV-630 chair comes largely pre-assembled. Follow these steps for final setup:

Installation Guide Video

Step-by-Step Assembly

1. Unbox the Chair: The SV-630 comes in one box. Carefully open the box and remove all packaging materials.
2. Position the Chair Base: Place the main chair base on a stable, level surface.
3. Unfold the Backrest Frame: Locate the backrest frame. Unfold it and fix the L-shaped latches on both sides to secure it in the upright position.
4. Connect to Power: Connect the chair's power adapter to the chair and then to a suitable power outlet.
5. Lift Footrest: Use the remote control to lift the footrest of the chair to access the internal wiring.
6. Unwrap and Place Back Pad: Unwrap the back pad from its protective packaging. Carefully place it onto the chair's backrest frame.
7. Connect Internal Wires: Unzip the internal zipper on the seat pad. Connect the corresponding color-coded wires. Ensure all connections are secure.
8. Secure Back Pad: Zip up the internal zipper on the seat pad. Unzip the back of the seat pad and lift it over the chair, then zip it securely to fully attach the back pad.
9. Route Remote: Route the remote control cable through the arm of the chair for convenient access.
10. Test Functionality: Turn on the chair using the remote and check to ensure all functions, including recline, heat, and air massage, are working correctly.

Operating Instructions

Your Svago ZGR Newton SV-630 chair is designed for ease of use with a handheld remote control. Familiarize yourself with the remote's functions:

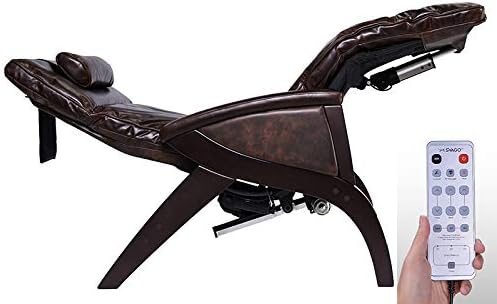

Image: Handheld remote control for the Svago ZGR Newton SV-630 chair, showing various buttons for chair adjustments and massage functions.

Remote Control Functions

• Power Button: Turns the chair on/off.
• Recline/Incline Buttons: Adjust the backrest and footrest to your desired position.
• Zero Gravity Button: Activates the zero gravity position, which elevates your legs above your heart to reduce spinal pressure.
• Heat Function: Activates the heating element for warmth and comfort.
• Air Cell Massage: Engages the five air chambers for a gentle massage. These air cells inflate and deflate to distribute pressure.
• Air Cell Lumbar Support: Inflates and deflates to customize lumbar support, aiding in spinal alignment.
• Memory Positions: Save two preferred seating positions for quick recall.
• Headrest Adjustment: Adjusts the air bladder in the headrest to push your head forward for support. Note: The remote must be on for this adjustment.

Maintenance and Care

Proper care will extend the life and appearance of your Svago ZGR Newton SV-630 chair.

• Cleaning: Wipe clean with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners, especially on leather surfaces.
• Leather Care: For top grain leather, use a specialized leather cleaner and conditioner periodically to maintain its suppleness and prevent cracking.
• Moving Parts: Periodically check all moving parts and connections for tightness. Do not lubricate internal mechanisms unless specified by the manufacturer.
• Power Cord: Inspect the power cord regularly for any signs of damage. If damaged, discontinue use and contact customer support.

Troubleshooting

If you encounter issues with your chair, refer to the following common problems and solutions:

• Chair Not Responding:
  • Ensure the power cord is securely plugged into both the chair and the wall outlet.
  • Check if the remote control is powered on and its cable is properly connected.
  • Verify the wall outlet is functional by plugging in another device.
• Headrest/Lumbar Support Not Holding Position:
  • Ensure the remote is active when adjusting these features. Some functions may require the remote to remain on.
  • If the issue persists, there may be an internal air bladder or pump issue. Contact customer support.
• Unusual Noises During Operation:
  • Minor noises can occur during movement. If the noise is loud or persistent, inspect for any obstructions or loose components.
  • If the noise originates from internal mechanisms, contact customer support.
• Massage/Heat Not Functioning:
  • Ensure the chair is powered on and the specific function is activated via the remote.
  • Check for any visible damage to the chair's upholstery that might affect internal components.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Svago customer support.

Specifications

Image: Technical diagram illustrating the dimensions of the Svago ZGR Newton SV-630 chair in both upright and reclined positions.

Warranty and Support

Warranty Information

The Svago ZGR Newton SV-630 chair comes with a 1-Year In-Home Parts & Labor Service warranty, followed by 2 Years Parts coverage. This warranty covers manufacturing defects and issues arising from normal use. Please retain your proof of purchase for warranty claims.

Customer Support

For technical assistance, warranty claims, or any questions regarding your Svago ZGR Newton SV-630 chair, please contact Svago customer support through their official website or the retailer where the product was purchased.
