HOQO Carburetor Instruction Manual

For Craftsman 16-inch Chainsaw Models: 358-352160, 358.350460, 358.350370, 358352162, 358352161, 545081885

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your new HOQO replacement carburetor. A carburetor is a crucial component in your chainsaw's engine, responsible for mixing air and fuel in the correct proportions for combustion. Proper installation and maintenance ensure optimal engine performance and longevity.

2. Compatibility Information

This HOQO carburetor is designed as a replacement part for various Craftsman 16-inch chainsaw models. Please verify compatibility with your specific chainsaw model before installation. Refer to the model numbers listed on the product packaging and your chainsaw's identification plate.

Important compatibility notice for HQParts carburetor

Image: Important compatibility notice. Always compare product images, models, and OEM part numbers to ensure proper fitment. Contact the seller with photos of your old parts or model number for verification if unsure.

Compatible Models:

  • Craftsman Chainsaw 16" Model# 358-352160
  • Craftsman Chainsaw Model# 358.350460
  • Craftsman Chainsaw Model# 358.350370
  • Craftsman Chainsaw Model# 358352162
  • Craftsman Chainsaw Model# 358352161
  • Craftsman Chainsaw Model# 545081885

3. Package Contents

Please inspect the package contents upon receipt to ensure all components are present and undamaged.

  • 1 x HOQO Carburetor
  • 2 x Mounting Gaskets
  • 1 x Fuel Line (12 pieces)
  • 1 x Spark Plug
  • 1 x Primer Bulb
  • 1 x Fuel Filter

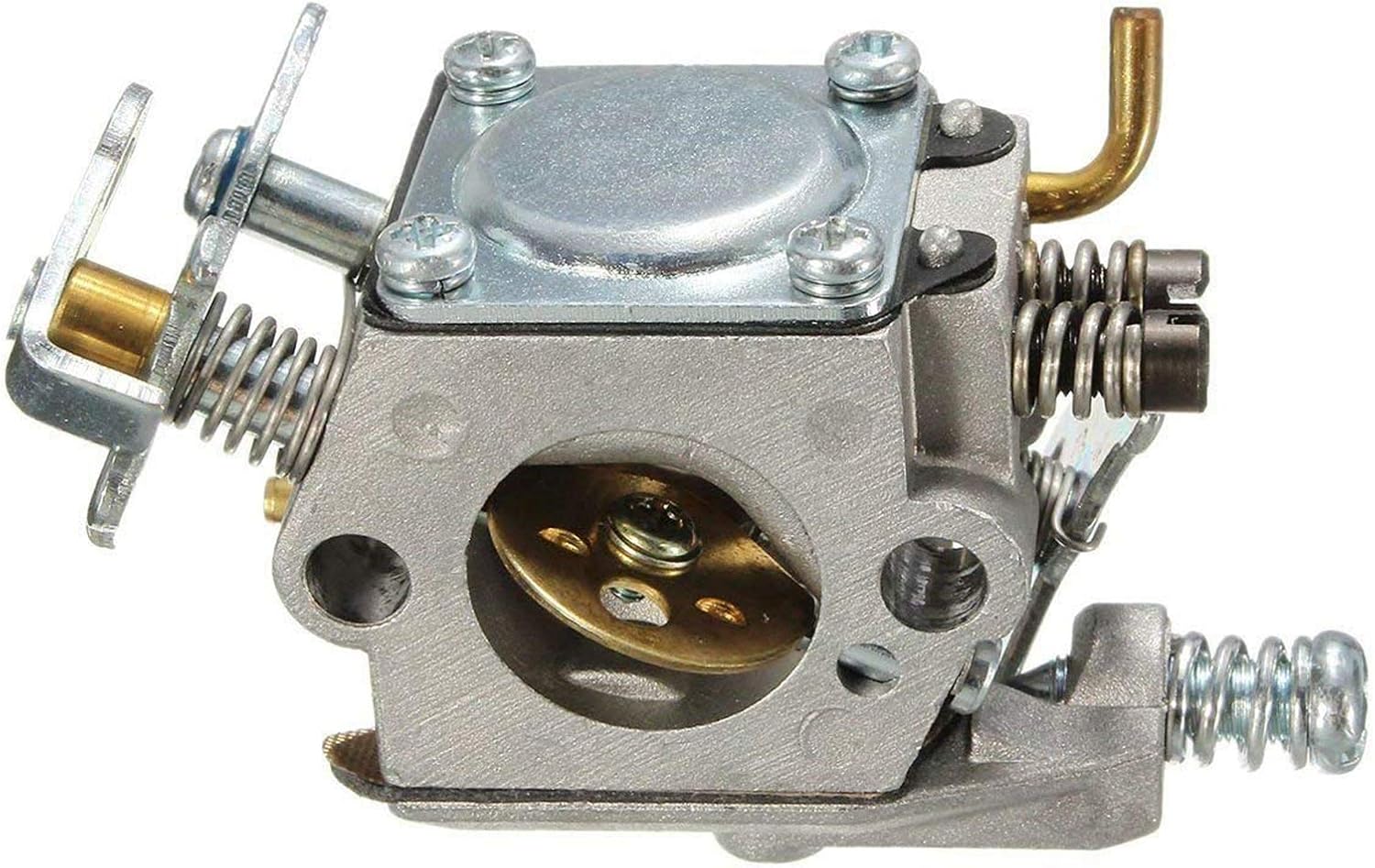

HOQO Carburetor front view

Image: Front view of the HOQO replacement carburetor, showing the air intake and throttle plate.

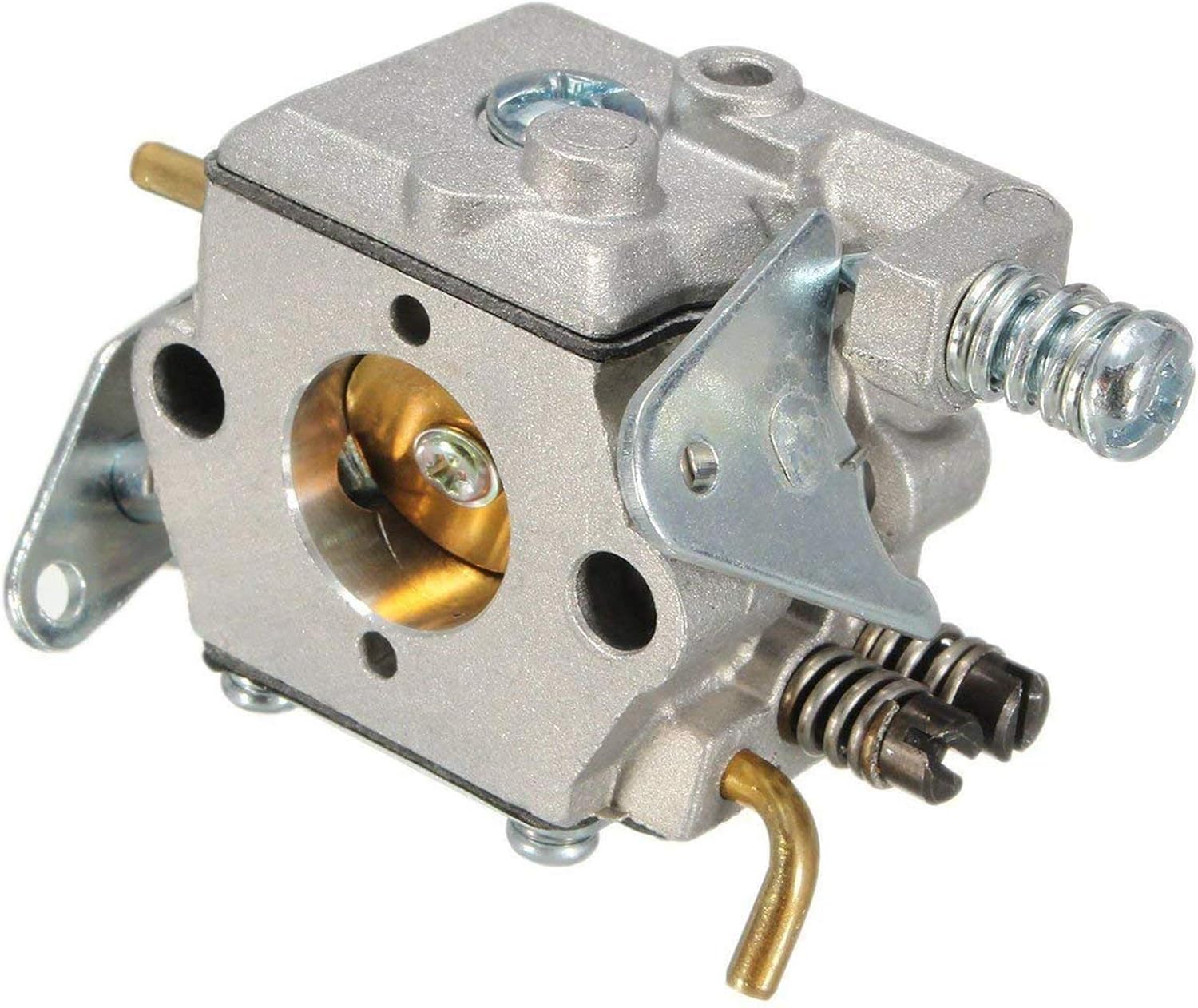

HOQO Carburetor side view

Image: Side view of the HOQO replacement carburetor, highlighting the fuel inlet and adjustment screws.

HOQO Carburetor rear view

Image: Rear view of the HOQO replacement carburetor, showing the choke mechanism and mounting points.

4. Installation (Setup)

Safety First: Before beginning any installation, ensure the chainsaw engine is cool, the spark plug wire is disconnected, and the fuel tank is empty to prevent accidental starting or fuel spills. Wear appropriate safety gear, including gloves and eye protection.

  1. Access the Carburetor: Remove the air filter cover, air filter, and any other components obstructing access to the existing carburetor. This typically involves removing screws or clips.
  2. Disconnect Components: Carefully disconnect the fuel lines, throttle linkage, and choke linkage from the old carburetor. Note their positions for reassembly.
  3. Remove Old Carburetor: Unscrew the mounting bolts or nuts that secure the carburetor to the engine manifold. Remove the old carburetor and its gaskets.
  4. Clean Mounting Area: Clean any debris or old gasket material from the engine manifold and air intake area.
  5. Install New Gaskets: Place the new mounting gaskets provided with your HOQO carburetor onto the manifold, ensuring they align correctly with the bolt holes and ports.
  6. Mount New Carburetor: Position the new HOQO carburetor onto the gaskets and secure it with the mounting bolts or nuts. Tighten them evenly to prevent air leaks, but do not overtighten.
  7. Reconnect Components: Reattach the throttle linkage, choke linkage, and fuel lines to the new carburetor. Ensure all connections are secure and move freely. Replace the fuel filter and fuel lines if necessary, using the included parts.
  8. Install Spark Plug: Replace the old spark plug with the new one provided. Ensure it is tightened correctly.
  9. Reassemble: Reinstall the air filter, air filter cover, and any other components removed earlier.
  10. Initial Start-up: Fill the fuel tank with the correct fuel mixture for your chainsaw. Prime the carburetor using the primer bulb until fuel is visible. Follow your chainsaw's manufacturer instructions for starting the engine.

5. Operation

Once installed, the carburetor functions automatically to regulate the air-fuel mixture. After initial installation, the engine may require minor adjustments to the carburetor's idle speed and mixture screws for optimal performance. Refer to your chainsaw's original instruction manual for specific adjustment procedures. Always allow the engine to warm up before making fine adjustments.

6. Maintenance

Regular maintenance of your carburetor and fuel system is essential for reliable chainsaw operation.

  • Fuel Quality: Always use fresh, clean fuel mixed according to your chainsaw manufacturer's specifications. Stale or contaminated fuel can clog the carburetor.
  • Fuel Filter: Regularly inspect and replace the fuel filter (included in the package) to prevent debris from reaching the carburetor.
  • Air Filter: Keep the air filter clean to ensure proper airflow to the carburetor. A dirty air filter can cause a rich fuel mixture and poor performance.
  • Carburetor Cleaning: If performance issues arise, the carburetor may need cleaning. This typically involves disassembling the carburetor and cleaning its internal passages with carburetor cleaner. This procedure should only be performed by individuals with mechanical experience.
  • Storage: Before long-term storage, drain the fuel tank and run the engine until it stops to clear fuel from the carburetor, or use a fuel stabilizer to prevent gumming.

7. Troubleshooting

If your chainsaw experiences issues after carburetor replacement, consider the following common troubleshooting steps:

  • Engine Not Starting:
    • Check fuel level and ensure fresh fuel mixture.
    • Verify spark plug is clean and producing spark.
    • Ensure primer bulb is functioning and fuel is reaching the carburetor.
    • Check for proper choke and throttle linkage connection.
  • Poor Engine Performance (Stalling, Lack of Power):
    • Inspect air filter for cleanliness.
    • Check fuel filter for clogs.
    • Ensure carburetor mounting bolts are tight and no air leaks are present.
    • Adjust carburetor idle and mixture screws according to your chainsaw's manual.
  • Fuel Leaks:
    • Inspect fuel lines for cracks or loose connections.
    • Ensure gaskets are properly seated and not damaged.
    • Check carburetor float bowl for proper sealing.

If issues persist after troubleshooting, it is recommended to consult a qualified small engine mechanic.

8. Specifications

  • Product Type: Replacement Carburetor Kit
  • Brand: HOQO
  • Compatible Chainsaw Guide Bar Size: 16 inches
  • Country/Region of Manufacture: China
  • Model: H131-5A (Carburetor specific model)

9. Warranty and Support

For any questions regarding installation, compatibility, or product performance, please contact HOQO customer support through your original point of purchase. Keep your purchase receipt for warranty claims, if applicable.
