Introduction
Thank you for choosing the B.K.Licht 3-Light GU10 Ceiling Spotlight Bar. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
Package Contents
Please verify that all components are present before beginning installation:
- 1x B.K.Licht 3-Light GU10 Ceiling Spotlight Bar
- 1x Mounting Bracket
- 2x Screws
- 2x Wall Plugs
- 1x Instruction Manual
Note: GU10 bulbs are not included and must be purchased separately.
Safety Information
For your safety, always follow these precautions:
- Electrical Safety: Installation should only be performed by a qualified electrician or competent person. Always switch off the main power supply at the circuit breaker before installation, maintenance, or bulb replacement.
- Voltage: Ensure the voltage supply matches the fixture's requirements (230 Volts).
- Bulb Type: Use only GU10 LED bulbs with a maximum wattage of 5W. Exceeding this limit may cause damage or fire.
- Indoor Use Only: This fixture is designed for indoor use (IP20 rating). Do not expose to moisture or direct water.
- Heat: Allow bulbs to cool completely before touching or replacing them.
Setup and Installation
Follow these steps for proper installation:
- Turn Off Power: Before starting, ensure the main power supply to the installation area is switched off at the circuit breaker.
- Prepare Mounting Surface: Mark the drilling points for the mounting bracket on the ceiling. The mounting holes are spaced 90 mm apart. Drill holes and insert the provided wall plugs.
- Attach Mounting Bracket: Secure the mounting bracket to the ceiling using the provided screws.
- Connect Wiring: Carefully connect the household electrical wires to the terminal block on the fixture. Ensure correct polarity (Live, Neutral, Earth) according to local electrical codes.
- Mount Fixture: Attach the spotlight bar to the mounting bracket, ensuring it is securely fastened.
- Insert Bulbs: Insert GU10 LED bulbs (not included) into each of the three sockets. Twist to lock them into place.
After installation, restore power at the circuit breaker.
Operating Instructions
The B.K.Licht 3-Light GU10 Ceiling Spotlight Bar is designed for ease of use:
- Power On/Off: Control the light fixture using your standard wall switch.
- Adjusting Spotlights: Each of the three spotlights can be individually rotated and tilted to direct light to specific areas of your room. Gently adjust the spotlight heads to achieve your desired lighting angle.
- Dimming Functionality: This fixture is dimmable, provided you use dimmable GU10 LED bulbs and a compatible dimmer switch (not included).
Maintenance
Regular maintenance ensures optimal performance and longevity of your fixture:
- Cleaning: Always switch off the power supply before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Bulb Replacement: Ensure the power is off and bulbs have cooled before attempting to replace them. Gently twist the old GU10 bulb counter-clockwise to remove it, then insert the new GU10 LED bulb and twist clockwise to secure.
Troubleshooting
If you encounter issues, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply; Faulty bulb; Loose wiring connection | Check circuit breaker; Replace bulb; Verify wiring connections (consult electrician if unsure) |
| Light flickers | Incompatible dimmer; Loose bulb; Faulty bulb | Ensure dimmer is compatible with LED bulbs; Tighten bulb; Replace bulb |
| Spotlight head is stiff to adjust | Normal operation; Dust accumulation | Apply gentle force; Clean around the joint with a dry cloth |
Specifications
Detailed technical specifications for the B.K.Licht 3-Light GU10 Ceiling Spotlight Bar:
| Feature | Detail |
|---|---|
| Brand | B.K.Licht |
| Manufacturer | B.K.Licht |

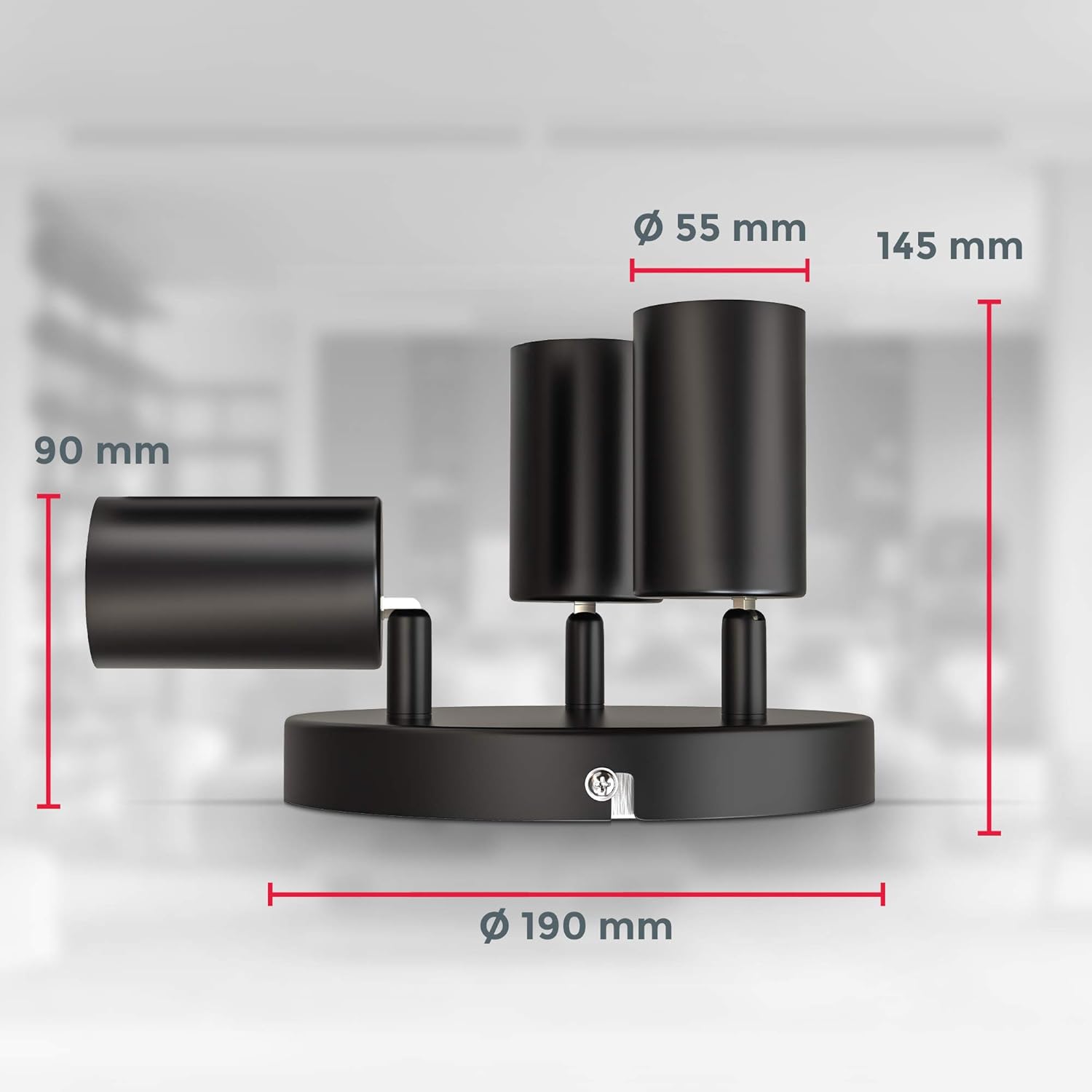

| Product Dimensions (L x W x H) | 19 x 19 x 9 cm |
| Item Weight | 650 grams |
| Reference Number | BKL1447 |
| IP Rating | IP20 |
| Number of Items | 1 |
| Style | Modern |
| Color | Black |
| Shape | Triangular (base) / Projector (fixture) |
| Material | Metal |
| Finish Type | Lacquered |
| Number of Bulbs | 3 |
| Included Components | 1 ceiling spotlight, User manual, Mounting kit |
| Maximum Wattage | 5 Watts (per bulb) |
| Voltage | 230 Volts |
| Specific Uses | Indoor use only |
| Special Features | Dimmable (with compatible bulbs/dimmer) |
| Shade Color | Black |
| Shade Material | Metal |
| Lighting Angle | LED (bulb dependent) |
| Power Source | Corded Electric |
| Switch Style | Pull Chain (Note: Product description implies wall switch control, this might be a generic spec. Confirm with actual product.) |
| Installation Type | Ceiling Mount / Flush Mount |
| Batteries Included | No |
| Batteries Required | No |
| Bulb Type | LED (GU10 socket) |
| Luminous Flux | 1200 lumen (bulb dependent) |
Warranty and Support
B.K.Licht products are manufactured to high-quality standards. For specific warranty information, please refer to the terms and conditions provided at the point of purchase or contact B.K.Licht customer support directly. Keep your proof of purchase for any warranty claims.
For further assistance or technical support, please visit the official B.K.Licht website or contact their customer service department.
