Introduction
This user manual provides comprehensive instructions for the installation, operation, and maintenance of your Nakamichi NQ533BD Car MP3 Radio. Please read this manual thoroughly before using the product to ensure proper and safe operation. Keep this manual for future reference.
Safety Information
- Do not operate the unit in a manner that distracts you from driving. Always prioritize road safety.
- Ensure proper wiring and installation to prevent short circuits or electrical damage. Consult a professional for installation if unsure.
- Do not expose the unit to moisture or extreme temperatures.
- Use only accessories and parts specified by the manufacturer.
- Keep the volume at a level that allows you to hear outside sounds, such as emergency vehicles.
Package Contents
Verify that all items are present in the package:
- 1x Nakamichi NQ533BD Car MP3 Radio Unit
- 1x Remote Control
- 1x Wiring Harness
- Installation Accessories (mounting brackets, screws, etc.)
- 1x User Manual (this document)

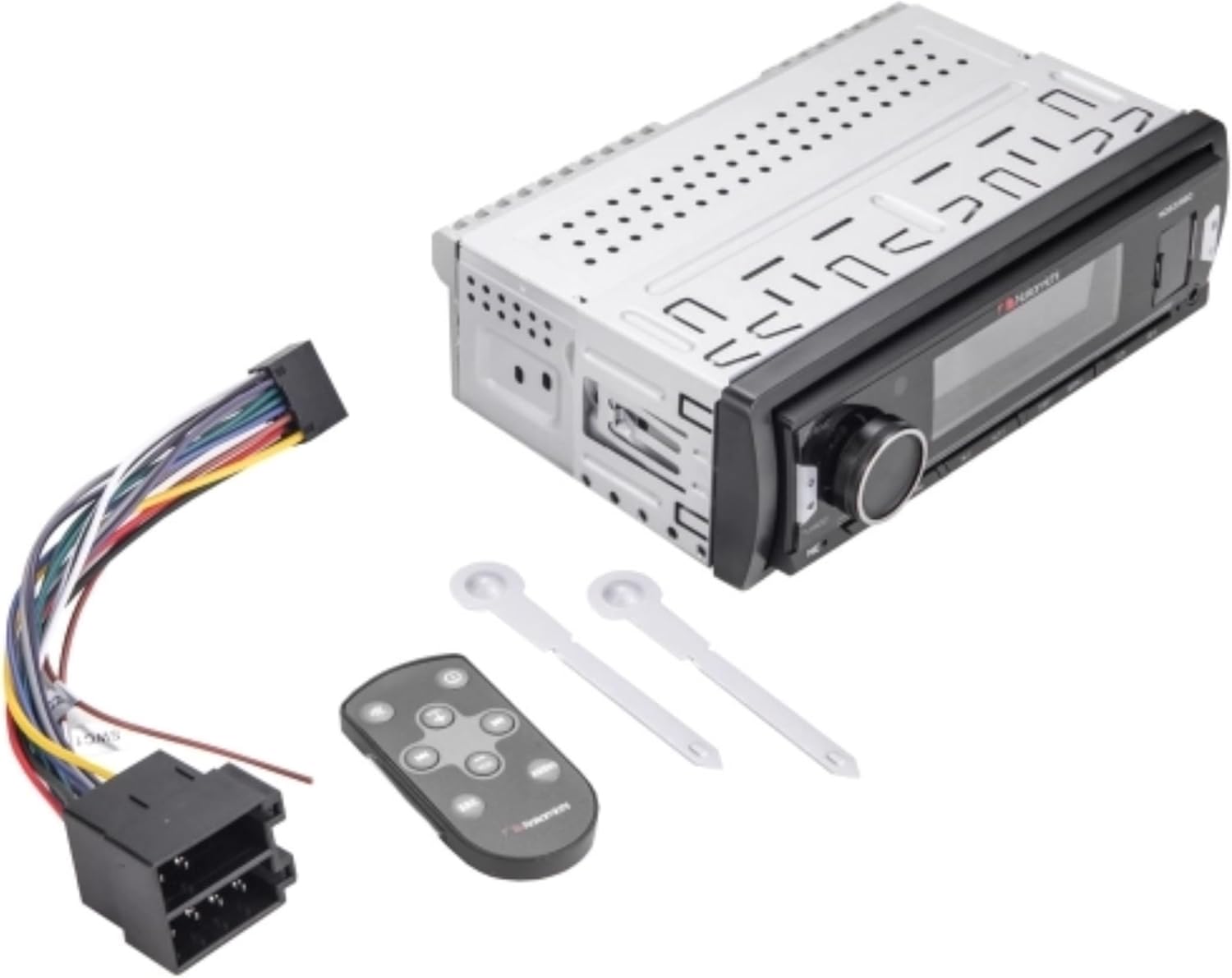

Image: Nakamichi NQ533BD unit with remote control, wiring harness, and installation tools.
Product Overview
Familiarize yourself with the main components of your Nakamichi NQ533BD Car MP3 Radio.
Front Panel
Image: Front view of the Nakamichi NQ533BD Car MP3 Radio with its multi-color LCD display illuminated, showing Bluetooth mode and audio levels. Key controls like the power/mode button, volume knob, and USB port are visible.
The front panel features the 2-line LCD display, multi-color illumination, a rotary volume knob, power/mode button, USB port, SD card slot, and various control buttons for playback and navigation.
Rear Connections
Image: Rear view of the Nakamichi NQ533BD Car MP3 Radio, highlighting the 7 RCA pre-amplified outputs (CH1-CH7), antenna input, external microphone input, and the main wiring harness connector.
The rear panel includes the main power and speaker wiring harness connector, antenna input, external microphone input, and 7 RCA pre-amplified outputs (4V) for connecting external amplifiers and subwoofers.
Remote Control
Image: Close-up view of the Nakamichi NQ533BD remote control, showing buttons for power, volume, track navigation, source selection, and audio settings.
The included IR remote control allows for convenient operation of the unit from a distance, controlling functions such as power, volume, source, and track selection.
Installation
Proper installation is crucial for optimal performance and safety. It is highly recommended to have the unit installed by a qualified professional.
Wiring Connections
- Power Connection: Connect the yellow wire to the constant 12V power supply, the red wire to the accessory (switched 12V) power supply, and the black wire to a good chassis ground.
- Speaker Connections: Connect the speaker wires from the unit to your vehicle's speakers, ensuring correct polarity for each speaker. The unit supports 4-8 Ohm speaker impedance.
- RCA Outputs: Use the 7 RCA pre-amplified outputs (4V) to connect to external amplifiers for front, rear, and subwoofer channels if desired.
- Antenna: Connect your vehicle's AM/FM antenna to the antenna input on the rear of the unit.
- External Microphone: Connect an external microphone (if included or purchased separately) to the dedicated input for improved call quality.
- Steering Wheel Control Input: Connect your vehicle's steering wheel control interface (if applicable) to the designated input for integrated control.
Mounting the Unit
Secure the unit in your vehicle's dashboard using the provided mounting brackets and screws. Ensure adequate ventilation around the unit.
Basic Operation
- Power On/Off: Press the PWR/MODE button to turn the unit on or off.
- Volume Control: Rotate the large central knob to adjust the volume level.
- Source Selection: Press the MODE button repeatedly to cycle through available sources (Radio, Bluetooth, USB, SD).
- Mute: Briefly press the volume knob to mute or unmute the audio.
- Display: The 2-line LCD display shows current source, track information, radio frequency, and other relevant data.
Advanced Features
Bluetooth Connectivity (Version 5.0)
- Pairing: Enable Bluetooth on your mobile device and search for "NQ533BD". Select it to pair. A confirmation tone will sound upon successful pairing.
- Audio Streaming (A2DP): Once paired, you can stream audio from your device to the car radio. Use the unit's controls or your device to play/pause and skip tracks.
- Hands-Free Calling (HFP1.6): Make and receive calls through the unit. Use the built-in microphone or an external microphone for clear communication. The unit supports Push to Talk for voice commands.
- Bluetooth Range: Approximately 10 meters (line of sight).
Digital Sound Processor (DSP) and Audio Customization
The NQ533BD features a powerful DSP for advanced audio tuning:
- 30-Band Equalizer: Access the equalizer settings to fine-tune the audio frequency response. Adjust individual bands to match your listening preferences.
- DSP/XBass/XOver/Surround: Utilize these features to enhance bass, manage crossover frequencies for speakers, and create a surround sound effect.
- Subwoofer Control: Individual gain and frequency control for the subwoofer output. Subwoofer phase inversion is also available.
- Time Alignment and Phase Adjustment: Optimize the soundstage by adjusting the time delay and phase for each speaker.
USB and SD Card Playback
- USB Ports: The unit features a front USB 1.1 port for data and charging, and a rear USB 2.0 port for fast charging (5V/1A).
- SD Card Slot: Insert an SD card into the dedicated slot for media playback.
- Supported Audio Formats: MP3, WMA, APE, FLAC, AAC, M4A, WAV.
- Playback: Once a USB drive or SD card is inserted, the unit will automatically switch to the USB/SD source and begin playback. Use the track navigation buttons to skip songs.
Radio Operation
- Band Selection: Press the BAND button to switch between FM1, FM2, FM3, AM1, and AM2 bands.
- Tuning: Use the SEEK buttons (forward/backward arrows) to automatically search for the next strong station.
- Manual Tuning: Press and hold the SEEK buttons for manual frequency adjustment.
- Preset Stations: The unit allows for 18 FM and 12 AM preset stations. To save a station, tune to the desired frequency, then press and hold one of the numeric preset buttons (1-6) until you hear a beep. To recall a station, simply press the corresponding numeric button.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power | Blown fuse; Incorrect wiring; Loose connection. | Check and replace fuse (10A red); Verify power and ground connections; Ensure all wires are securely connected. |
| No sound | Volume too low; Mute activated; Incorrect speaker wiring; Amplifier issues (if connected). | Increase volume; Deactivate mute; Check speaker connections and polarity; Verify external amplifier is powered and connected correctly. |
| Bluetooth not connecting | Unit not in pairing mode; Device Bluetooth off; Interference; Already connected to another device. | Ensure unit is in Bluetooth mode; Turn Bluetooth on your device; Move closer to the unit; Disconnect from other devices. |
| USB/SD not playing | Unsupported file format; Corrupted files; USB/SD not inserted correctly; Drive capacity too large. | Ensure files are MP3/WMA/APE/FLAC/AAC/M4A/WAV; Reformat or use different drive; Reinsert USB/SD; Check maximum supported capacity (refer to full specifications if available). |
| Poor radio reception | Antenna not connected; Damaged antenna; Weak signal area. | Check antenna connection; Inspect antenna for damage; Try tuning in a different location. |
Specifications
| Feature | Specification |
|---|---|
| Brand | Nakamichi |
| Model | NQ533BD |
| Operating Voltage | 14.4 V (10.8 V allowed) |
| Maximum Current | 10A |
| Maximum Output Power | 50W x 4 channels |
| Speaker Impedance | 4-8 Ohms |
| Pre-output Level | 4V (7 RCA outputs) |
| Fuse | 10A (Red) |
| Dimensions (W×H×D) | 182 mm × 53 mm × 115 mm |
| Net Weight | 500g |
| USB Audio Formats | MP3/WMA/APE/FLAC/AAC/M4A/WAV |
| Front USB Port | 1.1 (Charging & Data) |
| Rear USB Port | 2.0 (Fast Charging 5V/1A) |
| Bluetooth Version | 5.0 |
| Bluetooth Profile Support | HPF1.6/A2DP/AVR/SPP |
| Bluetooth Frequency Range | 2.4 GHz |
| Bluetooth Communication Range | Up to 10 meters |
| AM Frequency Range | 522 KHz - 1710 KHz |
| FM Frequency Range | 87.5 MHz - 108.0 MHz |
| Preset Stations | 18 FM - 12 AM |
Maintenance
- Cleaning: Use a soft, dry cloth to clean the unit's surface. Do not use abrasive cleaners or solvents.
- Fuse Replacement: If the unit does not power on, check the 10A fuse located on the rear wiring harness. Replace it with a fuse of the same rating if blown.
- General Care: Avoid exposing the unit to direct sunlight for prolonged periods or extreme temperatures.
Warranty and Support
Your Nakamichi NQ533BD Car MP3 Radio comes with a 1-year manufacturer's warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
For technical support, warranty claims, or service inquiries, please contact Nakamichi customer support or your authorized dealer. Keep your proof of purchase for warranty validation.
