Beaquicy W10518394 Dishwasher Heating Element Instruction Manual

1. Introduction

This manual provides essential information for the installation, operation, and maintenance of your Beaquicy W10518394 Dishwasher Heating Element. This component is designed to heat water during the wash cycle and assist in drying dishes at the end of the cycle. Proper installation and care will ensure optimal performance and longevity.

Figure 1: Beaquicy W10518394 Dishwasher Heating Element.

2. Safety Information

Always disconnect power to the dishwasher before attempting any installation, maintenance, or repair. Failure to do so may result in electric shock or injury. Wear appropriate personal protective equipment, such as gloves and safety glasses, during installation. If you are unsure about any step, consult a qualified technician.

3. Package Contents

Verify that all items are present in the package:

• 1 x Dishwasher Heating Element (W10134009)
• 2 x Heater Fasteners

4. Specifications

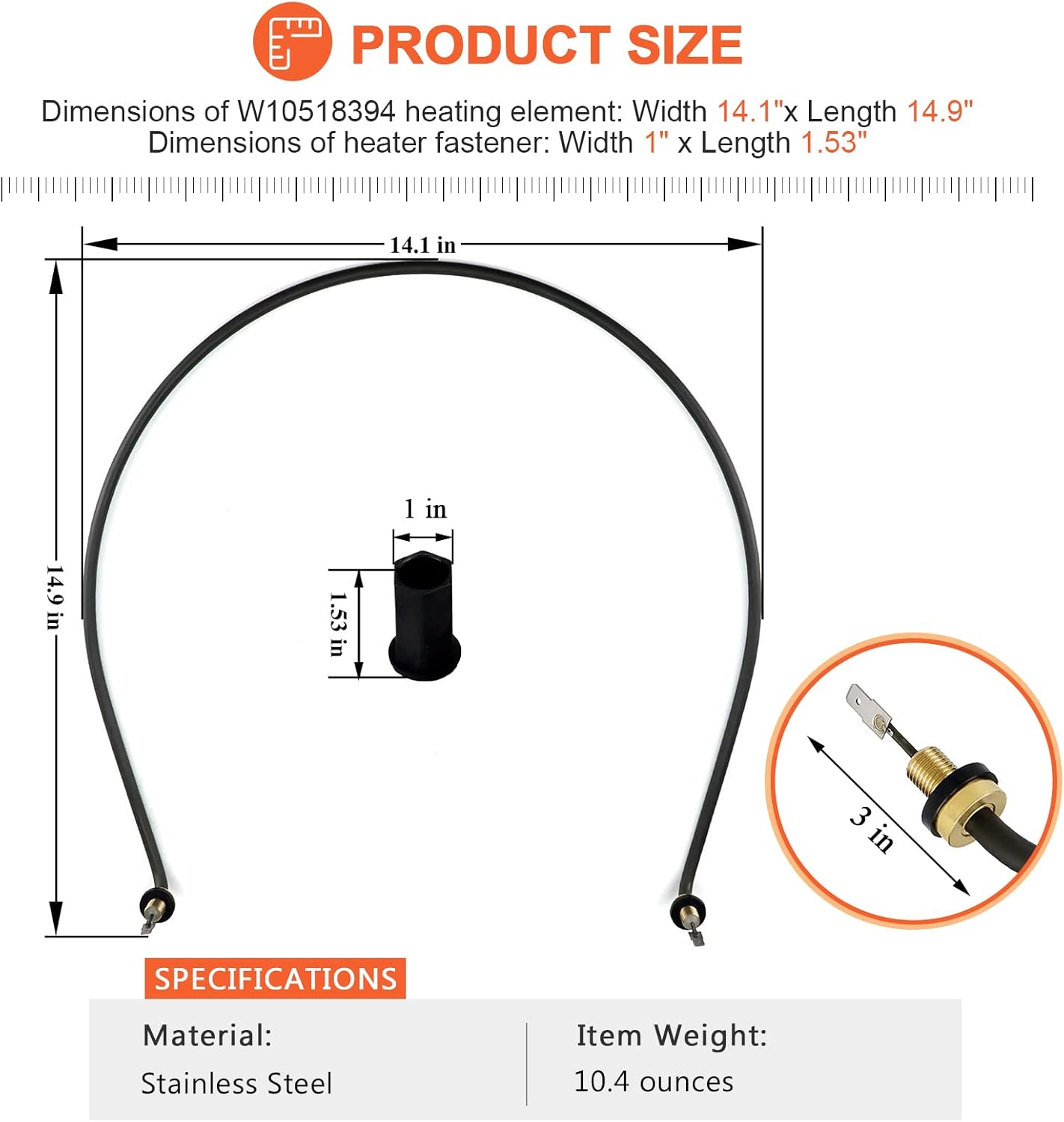

Figure 2: Detailed dimensions of the heating element and fasteners.

Figure 3: Product details highlighting the nickel-chromium alloy material, high temperature resistance, and protected element tips.

5. Compatibility

The W10518394 Dishwasher Heating Element is compatible with various dishwasher models from Whirlpool, Crosley, Estate, Kenmore, KitchenAid, and Maytag. It replaces part numbers including 8194250, 8563007, 8572861, W10134009, W10441445, W10518394VP, 2977737, AP5690151, PS8260087, and EAP8260087.

Compatible Models include:

• 66512413N412, 66513002N510, 66513003N510
• WDF120PAFT0, WDF120PAFW0, WDF121PAFB0, WDF121PAFW0
• WDF130PAHB0, WDF130PAHS0, WDF130PAHT0, WDF130PAHW0
• WDF320PADB2, WDF320PADD2, WDF320PADS2, WDF320PADT2, WDF320PADW2
• WDF330PAHB0, WDF330PAHD0, WDF330PAHS00

Figure 4: Partial list of compatible dishwasher models.

6. Installation Instructions

This heating element is designed for straightforward installation. Tools required typically include an adjustable wrench, screwdriver, and needle-nose pliers.

Step-by-Step Installation:

1. Disconnect Power: Before beginning, ensure the dishwasher's power supply is completely disconnected.
2. Access the Element: It is recommended to remove the entire dishwasher from its cabinet to access the heating element from underneath.
3. Remove Old Element: Carefully remove the old heating element. Pay attention to the order of parts for easier reassembly.
4. Install New Element: Replace with the new W10518394 heating element. Ensure the distance between the heating element and the bottom of the dishwasher is correct. You may need to gently bend and adjust the metal clamps that support the element to maintain the correct height and ensure it is level and away from the dishwasher tub.
5. Tighten Fasteners: Securely tighten the heater fasteners.
6. Connect Power and Test: Reconnect the power supply and perform a test cycle to ensure proper function.

Figure 5: Visual guide for the 4-step installation process.

7. Operating Principles

The W10518394 heating element is crucial for two primary functions in your dishwasher:

• Water Heating: It heats the water to the optimal temperature required for effective cleaning during the wash cycles.
• Dish Drying: During the drying cycle, the element generates heat to evaporate residual water, ensuring dishes come out dry.

The element is made of high-quality nickel-chromium alloy, designed for uniform heat distribution and high-temperature resistance, contributing to efficient operation.

8. Maintenance

To prolong the life of your dishwasher and its heating element, consider the following:

• Regularly clean the dishwasher filter and spray arms to prevent debris buildup.
• Ensure proper loading of dishes to avoid contact with the heating element, which can cause damage.
• Use appropriate dishwasher detergents and rinse aids as recommended by your dishwasher manufacturer.

9. Troubleshooting

If your dishwasher exhibits any of the following symptoms, the heating element may need replacement:

• Dishes are not drying properly after a cycle.
• The cleaning light on the dishwasher control panel flashes.
• The water in the dishwasher is not hot during the wash cycle.
• Dishwasher doesn't start (in some cases, a faulty heating element can prevent the cycle from initiating).
• Dishwasher leaks (a damaged element can sometimes lead to leaks if the seal is compromised).

Figure 6: Common symptoms indicating a potential issue with the heating element.

If you suspect the heating element is faulty, it is advisable to test its resistance with a multimeter. Consult a professional if you are uncomfortable performing electrical tests.

10. Warranty and Support

The Beaquicy W10518394 Dishwasher Heating Element comes with a 365-day warranty. During this period, if you encounter any quality issues or have questions regarding the product, please contact Beaquicy customer support. We are committed to providing timely assistance and will address your concerns within 24 hours, offering unconditional after-sales service.

For further assistance, please refer to the contact information provided with your purchase or visit the official Beaquicy store online.
