1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of the DYRABREST MS-490 Industrial Motor Driven Siren. The MS-490 is a robust warning device designed for various applications requiring a high-volume audible alert.
2. Safety Information
WARNING: This device produces extremely loud sound (up to 140dB) which can cause permanent hearing damage. Always wear appropriate hearing protection when operating or testing the siren. Ensure proper electrical installation by a qualified professional. Do not operate in hazardous environments without proper certification. Disconnect power before any installation, maintenance, or inspection.
- Ensure the siren is securely mounted to a stable surface to prevent accidental dislodgement during operation.
- Verify that the power supply matches the siren's voltage requirements (110V / 60Hz).
- Keep hands and foreign objects away from moving parts during operation.
- Do not expose the siren to excessive moisture or extreme temperatures beyond its operational limits.
3. Product Overview
The DYRABREST MS-490 is a motor-driven siren constructed with a durable iron shell and coated in red paint for visibility and protection. It features metal mesh covers over the sound outlets to protect the internal motor and components. The siren is designed for industrial applications requiring a powerful and continuous alarm signal.
Figure 3.1: Front-side view of the DYRABREST MS-490 Industrial Motor Driven Siren. The siren is red with a cylindrical body and a sturdy base for mounting.
Figure 3.2: Rear view of the DYRABREST MS-490 siren, showing the electrical wiring connection point and the product label with model number MS-490 and voltage AC110V.
4. Specifications
| Feature | Specification |
|---|---|
| Model | MS-490 |
| Brand | DYRABREST |
| Voltage | 110V / 60Hz |
| Noise Level | 140 dB |
| Power Source | Corded Electric |
| Motor Power | 400W (Pure Copper Motor) |
| Motor Speed | 1000 rev/sec |
| Continuous Working Time | Less than 3 minutes |
| Product Dimensions (L x W x H) | 8" x 4.5" x 6.5" |
| Mounting Type | Tabletop Mount (via pre-drilled holes) |
| Material | Iron shell with red paint coating |
| UPC | 738635599933 |

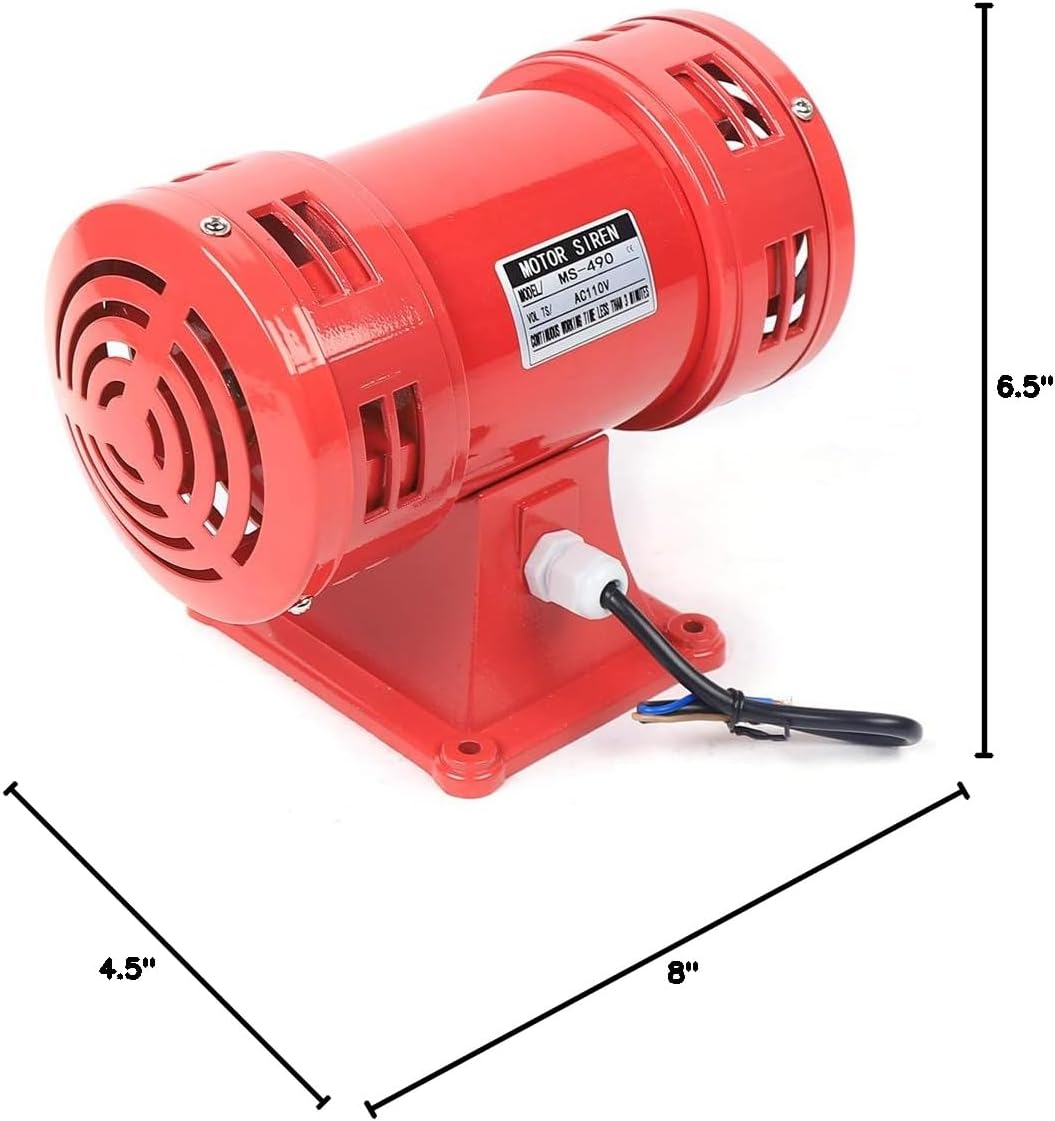

Figure 4.1: Dimensions of the DYRABREST MS-490 siren, indicating approximate measurements of 8 inches (length), 4.5 inches (width), and 6.5 inches (height).
5. Setup and Installation
- Mounting Location: Select a stable, flat surface capable of supporting the siren's weight and vibration during operation. Ensure the location allows for optimal sound propagation and is clear of obstructions.
- Secure Mounting: The siren's base features four pre-drilled holes. Use appropriate fasteners (not included) to securely attach the siren to the chosen surface. Ensure all fasteners are tightened to prevent movement.
- Electrical Connection:
- Ensure the power source is OFF before making any electrical connections.
- Connect the siren's power wires to a 110V / 60Hz AC power supply. It is highly recommended that electrical connections be performed by a qualified electrician to ensure compliance with local electrical codes and safety standards.
- Ensure all connections are secure and properly insulated.
Once securely mounted and electrically connected, the siren is ready for operation.
6. Operating Instructions
The DYRABREST MS-490 siren operates by direct electrical connection. There are no external controls on the unit itself; activation is achieved by applying power to the device.
- Power On: Once the siren is properly installed and wired, apply 110V / 60Hz AC power to the connected circuit. The siren will activate immediately upon receiving power.
- Power Off: To deactivate the siren, disconnect the power supply from the connected circuit.
- Continuous Operation Limit: The MS-490 is designed for intermittent use. Its continuous working time should be less than 3 minutes to prevent overheating and potential damage to the motor. Allow sufficient cooling time between operations.
7. Maintenance
Regular maintenance helps ensure the longevity and reliable operation of your DYRABREST MS-490 siren.
- Cleaning: Periodically clean the exterior of the siren with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure the metal mesh covers are free from dust, debris, or obstructions.
- Inspection: Regularly inspect the siren for any signs of physical damage, loose connections, or corrosion. Check the mounting bolts for tightness.
- Electrical Check: Annually, or as required by local regulations, have a qualified electrician inspect the wiring and connections to ensure they remain safe and secure.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Siren does not activate | No power supply Incorrect voltage Loose wiring connection | Verify power is supplied to the circuit. Ensure power supply is 110V / 60Hz. Check all electrical connections for tightness. Consult a qualified electrician if necessary. |
| Weak or intermittent sound | Obstruction in sound outlets Motor issue Insufficient power | Clear any debris from the metal mesh covers. Ensure the siren is receiving full 110V power. If the issue persists, professional service may be required. |
| Siren overheats | Exceeded continuous working time | Ensure operation is limited to less than 3 minutes continuously. Allow adequate cooling time between uses. |
9. Warranty and Support
For warranty information, please refer to the terms and conditions provided at the time of purchase or contact your seller directly. Specific warranty details are not provided in this manual.
For technical support or service inquiries, please contact the manufacturer, SenceTech, or your product retailer. Please have your model number (MS-490) and UPC (738635599933) available when contacting support.
