MisterChef Air Fryer Instruction Manual

Introduction

Thank you for choosing the MisterChef Air Fryer. This appliance utilizes a rapid air circulation system to cook your favorite foods with little to no oil, offering a healthier alternative to traditional frying. Please read this manual thoroughly before first use to ensure safe and optimal operation of your air fryer. Keep this manual for future reference.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface.
• Do not block any ventilation openings.

Product Overview

Components

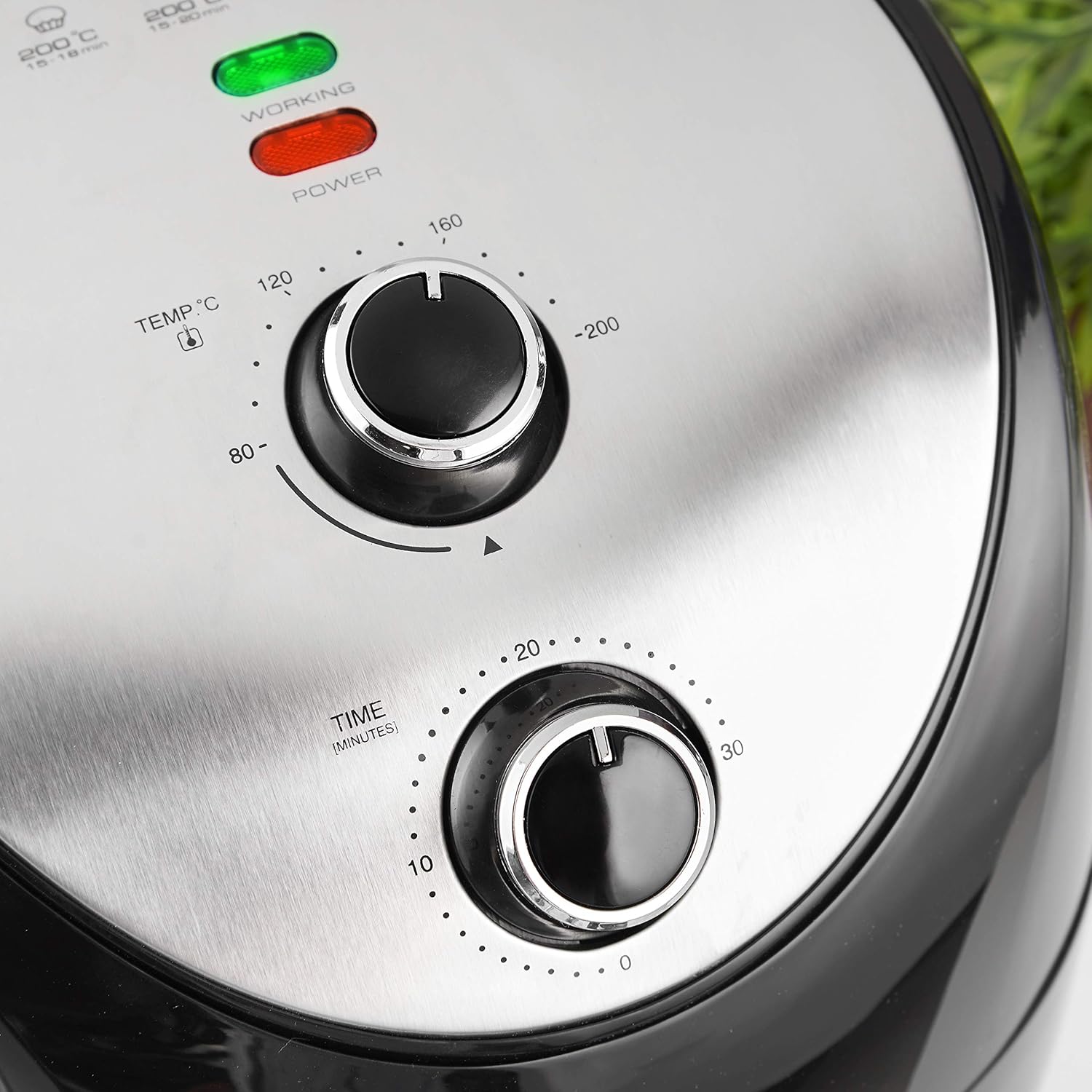

• Temperature Control Dial: Used to set the desired cooking temperature (80°C to 200°C).
• Timer Dial: Used to set the cooking time (up to 30 minutes).
• Power Indicator Light: Illuminates when the appliance is powered on.
• Working Indicator Light: Illuminates when the heating element is active.
• Removable Frying Basket: Non-stick coated basket for holding food.
• Basket Handle: For safe removal and insertion of the frying basket.
• Air Inlet/Outlet Vents: For proper air circulation during operation.

Setup and First Use

1. Unpacking: Remove all packaging materials, stickers, and labels from the appliance.
2. Cleaning: Wash the frying basket and cooking pot thoroughly with hot water, dish soap, and a non-abrasive sponge. Wipe the inside and outside of the appliance with a damp cloth. Ensure all parts are completely dry before use.
3. Placement: Place the air fryer on a stable, horizontal, and heat-resistant surface. Ensure there is at least 10 cm (4 inches) of free space on the back and sides, and 10 cm (4 inches) above the appliance to allow for proper air circulation.
4. Preheating (Optional but Recommended): For best results, preheat the air fryer for 3-5 minutes at the desired cooking temperature before adding food. This helps achieve even cooking and crispiness.

Operating Instructions

Basic Operation

1. Plug the main power cord into a grounded wall outlet. The Power indicator light will illuminate.
2. Carefully pull the frying basket out of the air fryer.
3. Place the ingredients into the frying basket. Do not exceed the MAX fill line or overload the basket, as this can affect cooking performance.
4. Slide the frying basket back into the air fryer. Ensure it clicks securely into place.
5. Turn the Temperature Control Dial to your desired temperature setting (80°C - 200°C).
6. Turn the Timer Dial to the required cooking time. The Working indicator light will illuminate, and the air fryer will begin heating.
7. During cooking, some ingredients may require shaking or tossing halfway through the cooking time. To do this, pull out the basket, shake it gently, and then slide it back in. The air fryer will resume cooking automatically.
8. When the timer reaches zero, a bell will ring, indicating that the cooking process is complete. The Working indicator light will turn off.
9. Carefully pull out the basket and place it on a heat-resistant surface.
10. Empty the food from the basket into a serving dish. Use tongs to remove larger items.
11. Unplug the appliance from the wall outlet after use.

Cooking Examples and Guidelines

The following table provides general guidelines for cooking various types of food. Times and temperatures may vary based on food quantity, size, and desired crispiness.

Maintenance and Cleaning

Clean the air fryer after every use. Always unplug the appliance and allow it to cool down completely before cleaning.

• Frying Basket and Pot: The frying basket and cooking pot have a non-stick coating. Clean them with hot water, dish soap, and a non-abrasive sponge. For stubborn food residue, soak the basket and pot in hot water with some dish soap for about 10 minutes. Note: These parts are NOT dishwasher safe.
• Interior: Wipe the interior of the appliance with a damp cloth. If necessary, use a mild detergent.
• Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not use harsh abrasive cleaners or scouring pads, as they may damage the surface.
• Heating Element: Use a cleaning brush to remove any food residue from the heating element.
• Storage: Ensure all parts are clean and dry before storing the appliance. Store the air fryer in a cool, dry place.

Troubleshooting

If you encounter issues with your MisterChef Air Fryer, please refer to the following common problems and solutions:

Specifications

Warranty and Support

MisterChef products are manufactured to high-quality standards. For warranty information, technical support, or any product-related inquiries, please refer to the contact information provided with your purchase or visit the official MisterChef website. Keep your proof of purchase for warranty claims.
