TOMOON DC97-05280W Washer Suspension Rod Kit
TOMOON Washer Suspension Rods User Manual
Model: DC97-05280W Washer Suspension Rod Kit
1. Product Overview
The TOMOON Washer Suspension Rods are designed as a replacement for worn-out shock absorbers in Samsung top-load washers. This 4-pack kit helps to resolve common issues such as wobbling, shaking, banging noises, and "DC" error codes, ensuring stable and quiet operation of your washing machine.

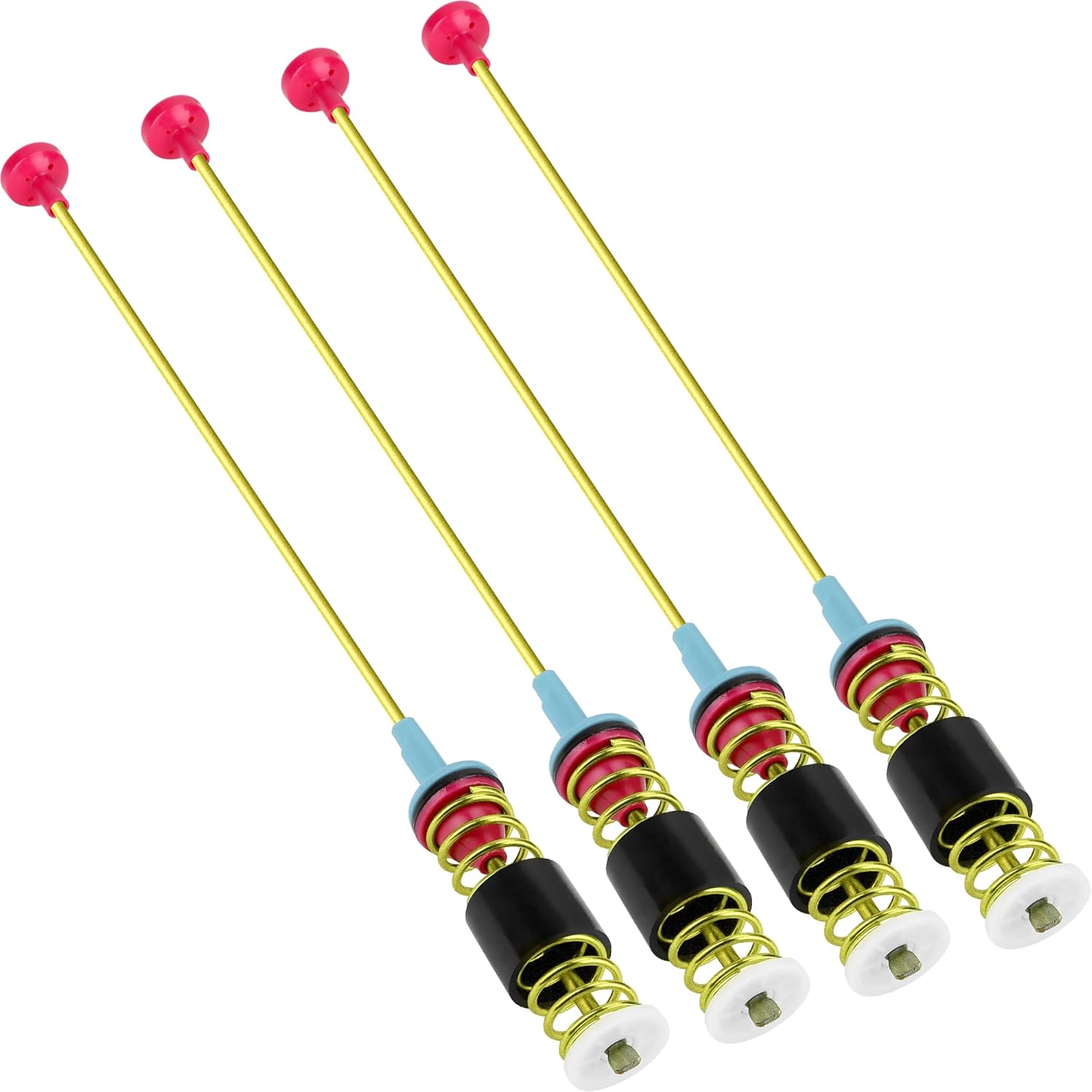

Image 1.1: Four TOMOON washer suspension rods, showing their full assembly with springs and caps.
2. Specifications
| Attribute | Value |
|---|---|
| Manufacturer | wsh supplier (TOMOON) |
| Part Number | DC97-05280W |
| Item Weight | 2.29 pounds |
| Package Dimensions | 27 x 3.5 x 3.5 inches |
| Item Model Number | DC97-05280W Washer Suspension Rod Kit |
| Included Components | 4 * WA50R5200AW/US WA45T3200AW/A4 WA45N3050AW/A4 Samsung washer suspension rods |
| Rod Length | Approximately 26.18 inches |
| Material | Heavy-duty stainless steel (rods), High toughness spring steel (springs), ABS material (plastic cap) |
Image 2.1: Product dimensions, highlighting the 26.1 inch length and other component sizes.
Image 2.2: List of compatible part numbers and Samsung washer series (WA400, WA456, WA45H, WA40J, WA45M).
3. Installation and Setup
Replacing the suspension rods is a straightforward process that can be completed by following detailed instructions. It is crucial to prioritize safety during installation.
3.1 Safety Precautions
- Disconnect Power: Always unplug the washing machine from the electrical outlet before beginning any repair or maintenance.
- Turn Off Water Supply: Close the hot and cold water supply valves connected to the washer.
- Drain Water: Ensure the washer tub is empty of water.
3.2 Installation Steps (General Guidance)
While specific steps may vary slightly by washer model, the general procedure involves:
- Accessing the washer's internal components, typically by removing the top panel.
- Locating the existing suspension rods, usually four in total, positioned at each corner of the washer tub.
- Carefully removing the old rods.
- Installing the new TOMOON suspension rods, ensuring they are securely seated. It is recommended to replace all four rods simultaneously to maintain balance.
- Reassembling the washer and reconnecting power and water supplies.
For a detailed visual guide, a repair video can often be found on video-sharing platforms. The installation typically takes 20-30 minutes.
Image 3.1: Components of the suspension rod, highlighting the thickened metal boom, spring steel, rubber tubing, and ABS plastic cap for durability and noise reduction.
Image 3.2: Visual representation of suspension rods installed in a washing machine, emphasizing their role in stability and performance.
4. Operating Principles
The suspension rods are critical components in a top-load washing machine, acting as shock absorbers. They support the washer's inner drum and dampen its movement, especially during high-speed spin cycles. When functioning correctly, they ensure the drum remains balanced and stable, preventing excessive vibration and noise.
4.1 Key Features
- Enhanced Durability: Crafted from heavy-duty stainless steel, these rods are thicker than standard rods, offering increased wear resistance and minimizing deformation or breakage.
- High-Performance Springs: Engineered to ensure stability even at high spin speeds, reducing vibrations and noise.
- Noise Reduction: Components are designed to absorb vibration and reduce operational noise.
Image 4.1: Comparison highlighting the 1.5x thicker design of TOMOON rods for improved durability and stability.
5. Maintenance
While the suspension rods are designed for long-lasting performance, proper maintenance of your washing machine can extend the life of all its components, including the suspension system.
- Balanced Loads: Always ensure laundry loads are balanced to prevent excessive strain on the suspension system during agitation and spin cycles.
- Avoid Overloading: Do not overload the washing machine, as this can put undue stress on the suspension rods and lead to premature wear.
- Regular Inspection: If you notice any signs of imbalance, excessive noise, or vibration, inspect the suspension rods for signs of wear or damage. Replacing all four rods simultaneously is recommended if one or more show signs of failure.
6. Troubleshooting
The TOMOON Washer Suspension Rods are designed to address several common issues in Samsung top-load washers. If your washer exhibits any of the following symptoms, replacing the suspension rods may resolve the problem:
- Wobbling & Shaking: If the washer dances across the floor or vibrates excessively, it often indicates an unbalanced tub due to worn suspension rods.
- Spinning Errors: Issues with the spin cycle, such as incomplete spinning or error messages during spin, can be caused by a compromised suspension system.
- Banging Noises: Loud banging or thumping sounds during operation, especially during the spin cycle, suggest the tub is hitting the washer's frame due to inadequate dampening.
- "DC" Error Code: This error code often indicates an unbalanced load or a problem with the washer's balance detection system, which can be triggered by failing suspension rods. Other related error codes like "UB" or "UR" may also be resolved.
Image 6.1: Visual guide to common washer issues resolved by replacing suspension rods.
7. Warranty and Support
TOMOON stands by the quality of its products. These suspension rods come with a generous 5-year return and exchange policy, providing peace of mind for your purchase.
7.1 Contacting Support
For any questions, concerns, or assistance, please refer to the contact information provided with your purchase or visit the official TOMOON store on Amazon:
