Piececool USS Enterprise CVN-65 3D Metal Puzzle Model Instruction Manual

1. Product Overview

The Piececool USS Enterprise CVN-65 is a highly detailed 3D metal puzzle model kit designed for enthusiasts aged 16 and up. This kit allows you to construct a replica of the iconic USS Enterprise aircraft carrier using precision-cut metal sheets. No glue or solder is required for assembly, as parts connect using tabs and slots.

The completed model serves as an exquisite display piece, showcasing intricate details of the legendary vessel.

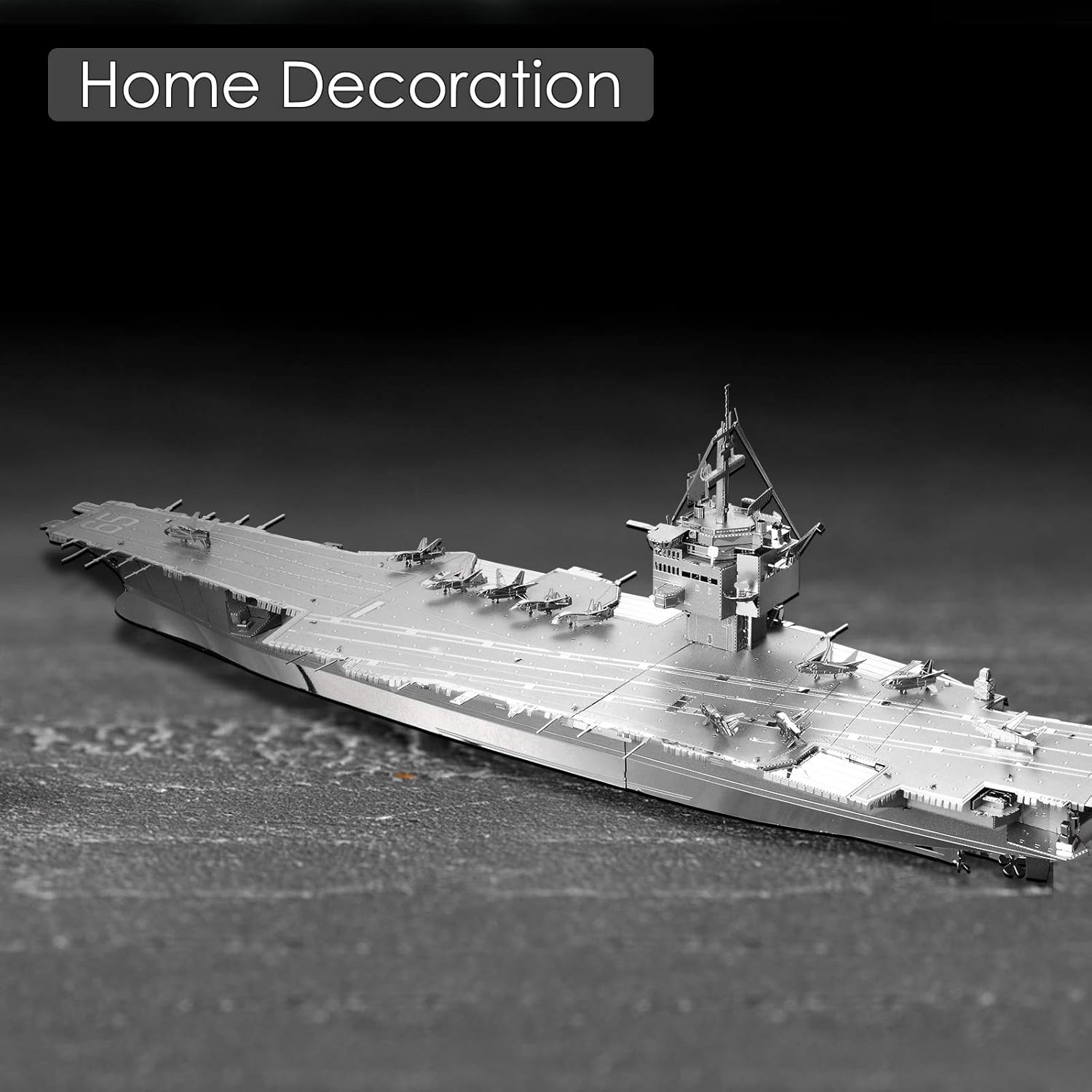

Image: The fully assembled Piececool USS Enterprise CVN-65 model, highlighting its detailed structure and scale.

2. Safety Information

• Recommended Age: This product is intended for individuals aged 16 years and older due to the complexity and small parts involved.
• Sharp Edges: Metal sheets contain sharp edges. Handle with care to avoid cuts.
• Small Parts: The kit contains many small parts which may pose a choking hazard. Keep out of reach of young children.
• Ventilation: Assemble in a well-lit and well-ventilated area.

3. Package Contents

Your Piececool USS Enterprise CVN-65 model kit includes:

• Multiple sheets of precision-cut metal parts (approximately 130 pieces).
• One detailed English instruction manual.

Image: The kit's contents, including the packaging, metal sheets, and a visual representation of the instruction manual.

4. Tools Required (Not Included)

While no glue or solder is needed, specific tools are highly recommended for optimal assembly and to prevent damage to the delicate metal parts:

• Clipper: For carefully detaching parts from the metal sheets.
• Needle Nose Pliers: Essential for bending and twisting the small connection tabs accurately.
• Tweezers: Useful for handling very small parts and precise placement.

A specialized Piececool tool kit is available and recommended for the best building experience.

Image: Demonstration of using a clipper to remove parts from the metal sheet, with recommended pliers.

5. Assembly Instructions

Follow the included English instruction manual carefully for step-by-step guidance. The assembly process typically involves:

1. Preparation: Identify all metal sheets and the corresponding parts for each step.
2. Detaching Parts: Use a clipper to carefully detach each part from its metal sheet. Avoid bending or twisting parts before they are ready for assembly.
3. Bending Tabs: According to the instructions, bend the small tabs on the parts to the specified angles (e.g., 90 degrees). Use needle nose pliers for precision.
4. Connecting Parts: Insert the bent tabs into the corresponding slots and twist them to secure the connection. Ensure connections are firm but avoid excessive force.
5. Sequential Building: Follow the numerical sequence in the manual. Some parts are delicate; assemble them last if possible, as suggested by experienced builders, to prevent accidental damage during the main construction.

The assembly can be challenging and may take several hours. Patience and attention to detail are key to a successful build.

Image: Visual guide illustrating the model's dimensions and key assembly features like piece count and no-glue design.

6. Operating the Model

The Piececool USS Enterprise CVN-65 is a static display model. It does not feature any operational or moving parts once assembled. Its purpose is for display and appreciation of its intricate design.

7. Maintenance

To maintain the appearance of your assembled model:

• Cleaning: Gently dust the model with a soft, dry brush or cloth. Avoid using abrasive cleaners or liquids, which may damage the metal finish.
• Storage/Display: Keep the model in a dry environment, away from direct sunlight and excessive humidity, to prevent tarnishing or corrosion of the metal.

Image: The finished model displayed as a decorative item, emphasizing its aesthetic value.

8. Troubleshooting

If you encounter difficulties during assembly:

• Parts Not Fitting: Double-check the instruction manual to ensure the correct parts are being used and that tabs are bent to the precise angles. Sometimes, slight adjustments with pliers are needed.
• Broken Tabs: If a tab breaks, it may be possible to secure the part using a tiny amount of model adhesive, though this is generally not recommended for the primary connections. Proceed with caution.
• Missing or Defective Parts: In the event of missing or significantly defective parts, please contact Piececool customer support for assistance.

9. Specifications

10. Warranty and Support

For any questions, concerns, or support regarding your Piececool 3D metal puzzle, please contact the manufacturer directly. Information on how to reach Piececool customer service can typically be found on the product packaging or through their official website.

You can also visit the official Piececool store for more information: Piececool Store on Amazon.
