Fitel S943B Battery User Manual

1. Introduction

This manual provides essential information for the safe and effective use of your Fitel S943B OEM Lithium-ion Battery Pack. This battery is designed for use with various Fitel splicer models, including S121A, S121M4, S122A, S122C, S122M8, S122M12, S123C, S123M4, S123M8, S123M12, S153A, S177A, and Fusion 178A splicers.

Please read this manual thoroughly before using the battery to ensure proper operation and longevity.

2. Safety Information

WARNING: Please read the instruction manual before use. Improper handling can lead to fire, explosion, or other hazards.

• Do not use this battery for anything except specified models.
• Do not disassemble, crush, puncture, or short-circuit the battery.
• Do not expose the battery to high temperatures (above 60°C / 140°F) or direct sunlight.
• Do not immerse the battery in water or other liquids.
• Keep out of reach of children.
• Dispose of the battery according to local regulations.

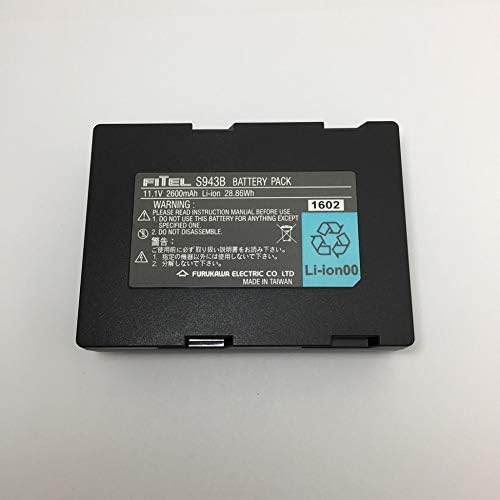

Figure 2.1: Rear view of the Fitel S943B battery showing warning labels and recycling information. The label indicates 11.1V, 2600mAh, 28.86Wh, and a warning to read the instruction manual before use and not to disassemble.

3. Product Features

• Capacity: 2600 mAh, 28.86 Wh
• Type: OEM Fitel Lithium-ion Battery Pack
• Condition: New, never used
• Compatibility: Specifically designed for Fitel S121A, S121M4, S122A, S122C, S122M8, S122M12, S123C, S123M4, S123M8, S123M12, S153A, S177A, and Fusion 178A splicers.

Figure 3.1: Front view of the Fitel S943B battery pack, showing the Fitel logo, model number S943B, "Li-ion BATTERY PACK" text, and an "Insert" arrow indicating insertion direction.

4. Setup and Installation

Follow these steps to properly install the Fitel S943B battery into your compatible Fitel splicer:

1. Ensure the splicer is powered off and disconnected from any external power sources.
2. Locate the battery compartment on your Fitel splicer. Refer to your splicer's specific user manual for exact location and opening instructions.
3. Carefully insert the S943B battery into the compartment, aligning it with the "Insert" arrow on the battery and the corresponding slot in the splicer.
4. Gently push the battery until it clicks into place, ensuring a secure connection.
5. Close the battery compartment cover.

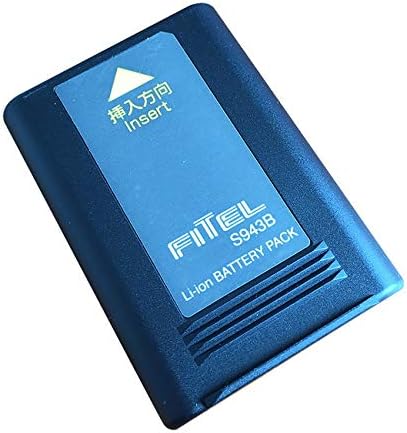

Figure 4.1: Angled view of the Fitel S943B battery, highlighting the "Insert" arrow and the Fitel branding, crucial for correct installation.

5. Operating the Battery

5.1 Charging

• Use only the original Fitel charger or a charger specifically approved for your splicer model and the S943B battery.
• Connect the charger to the splicer and a power outlet. The splicer's indicator light will typically show charging status.
• Do not overcharge the battery. Disconnect the charger once the battery is fully charged.

5.2 Discharging and Usage

• The battery will power the splicer during operation. Monitor the battery level indicator on your splicer.
• Avoid completely draining the battery frequently, as this can reduce its lifespan.
• If the splicer is not in use for an extended period, it is recommended to store the battery with a partial charge (around 50%).

6. Maintenance and Storage

• Keep the battery clean and dry. Wipe with a soft, dry cloth if necessary.
• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• For long-term storage, charge the battery to approximately 50% every 3-6 months to prevent deep discharge.
• Do not store the battery with metal objects that could cause a short circuit.

Figure 6.1: A collection of Fitel S943B batteries, illustrating their compact and uniform design, suitable for organized storage.

7. Troubleshooting

7.1 Battery Not Charging

• Ensure the charger is properly connected to both the splicer and the power outlet.
• Verify that the power outlet is functional.
• Check for any visible damage to the battery or charger.
• Try cleaning the battery contacts on both the battery and the splicer with a dry, soft cloth.

7.2 Short Operating Time

• The battery may not be fully charged. Ensure it is charged until the splicer indicates a full charge.
• Battery lifespan naturally decreases over time and with usage cycles. Consider replacing the battery if it's old or has been heavily used.
• Ensure the splicer is operating within its specified temperature range. Extreme temperatures can affect battery performance.

8. Specifications

9. Warranty and Support

Specific warranty information for this OEM Fitel S943B battery is not provided in the product details. Please refer to the original purchase documentation or contact your vendor for warranty terms and conditions.

For technical support or further inquiries, please contact the manufacturer, Furukawa, or your product supplier.
