SHINEAR 5000mAh 18V Li-ion Battery Replacement for Stanley FMC625D2 FMC687L User Manual

1. Introduction

Thank you for choosing the SHINEAR 5000mAh 18V Lithium-ion battery. This manual provides essential information for the safe and effective use, maintenance, and storage of your new battery. Please read these instructions carefully before first use and retain them for future reference.

2. Safety Information

WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Charging: Use only chargers specified by the manufacturer for this battery type. Using an incompatible charger may create a risk of fire.
• Storage: Store the battery away from metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Handling: Do not open, crush, heat above 100°C (212°F), or incinerate the battery. Do not expose the battery to rain or wet conditions.
• Disposal: Dispose of used batteries according to local regulations. Do not dispose of batteries in household waste or fire.
• Damage: If the battery is damaged, do not use it. Contact customer support for assistance.

This battery is certified with CE, ISO9001, RoHS, and MSDS standards, ensuring quality and safety compliance.

3. Product Overview

The SHINEAR CS-SFM687PX is a high-capacity 18V Lithium-ion battery designed as a replacement for Stanley FMC625D2 and FMC687L power tools. It provides reliable and long-lasting power for your applications.

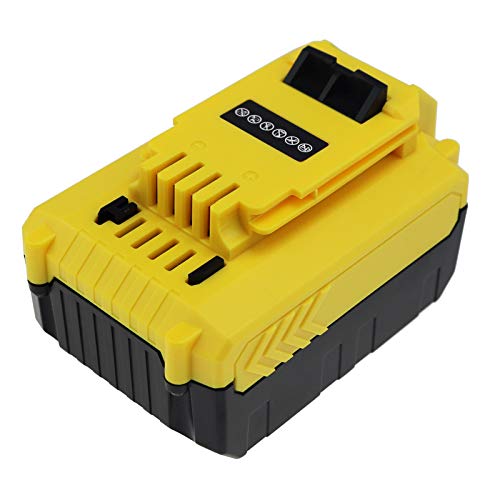

Figure 1: Top view of the SHINEAR 18V 5000mAh Li-ion Battery. The battery features a yellow and black casing with ventilation slots and connection terminals visible.

Key Features:

• Voltage: 18.0V
• Battery Type: Li-ion (Lithium-ion)
• Capacity: 5000mAh (90.0Wh)
• Compatibility: Designed for Stanley FMC625D2 and FMC687L power tools.

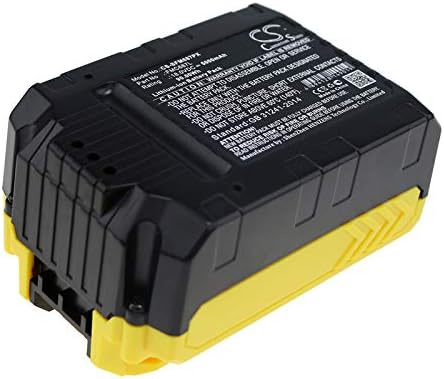

Figure 2: Side view of the SHINEAR 18V 5000mAh Li-ion Battery, showing the product label with model number CS-SFM687PX and safety warnings.

4. Setup

Initial Charging:

1. Upon receiving your new battery, it is recommended to fully charge it before first use.
2. Insert the battery into a compatible 18V Lithium-ion charger (not included). Ensure the battery is securely seated.
3. Allow the battery to charge until the charger's indicator light signals a full charge. Refer to your charger's manual for specific charging indicators.

Installation into Tool:

1. Ensure the power tool is turned off and disconnected from any power source.
2. Align the battery with the battery slot on your Stanley FMC625D2 or FMC687L tool.
3. Slide the battery into the slot until it clicks securely into place. Do not force the battery.
4. To remove the battery, press the release button(s) on the battery or tool and slide the battery out.

5. Operating Instructions

Once the battery is fully charged and installed in a compatible tool, the tool is ready for operation. Always refer to your power tool's instruction manual for specific operating procedures and safety guidelines.

Charging Procedures:

• Charge the battery in a well-ventilated area, away from flammable materials.
• Do not charge batteries in temperatures below 0°C (32°F) or above 40°C (104°F).
• Unplug the charger from the power source when not in use and remove the battery once fully charged.
• Avoid deep discharge. Recharge the battery when you notice a significant decrease in tool performance.

6. Maintenance

Cleaning:

• Keep the battery terminals clean and free from dirt or debris. Use a clean, dry cloth to wipe them if necessary.
• Do not use water or chemical cleaning agents on the battery.

Storage:

• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• For long-term storage, it is recommended to store the battery at approximately 50% charge. Recharge every 3-6 months to prevent over-discharge.
• Keep the battery away from children and pets.

7. Troubleshooting

Battery Not Charging:

• Ensure the charger is properly plugged into a working power outlet.
• Verify that the battery is correctly inserted into the charger.
• Check for any visible damage to the battery or charger. If damaged, do not use.
• Ensure the charging environment temperature is within the recommended range (0°C to 40°C).

Tool Not Powering On:

• Confirm the battery is fully charged.
• Ensure the battery is securely installed in the tool.
• Check the tool's own power switch and safety mechanisms.

If issues persist after following these steps, please contact customer support.

8. Specifications

9. Warranty and Support

This SHINEAR battery comes with a 60-day warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, abuse, unauthorized modification, or improper storage.

For warranty claims, technical support, or any questions regarding your battery, please contact the seller or SHINEAR customer service through the platform where the purchase was made. Please have your purchase details and model number (CS-SFM687PX) ready when contacting support.
