1. Product Overview
The EG TL2001-8WW is an energy-saving under cabinet light designed to illuminate kitchen countertops and other areas where overhead lighting may not reach effectively. This fixture can be linked with other compatible units to create longer light segments. It features a matte, prismatic cover for the light source and a durable plastic body.
Image 1.1: Overview of the EG TL2001-8WW under cabinet light, showing its components, dimensions, and key electrical specifications.
- Model: TL2001-8WW
- Power: 8W / 230V
- Light Source: White LED
- Body Material: Plastic
- Key Feature: Linkable design for extended lighting.
2. Safety Instructions
- Ensure the power supply is disconnected before installation, maintenance, or cleaning.
- This product is designed for indoor use only (IP20 rating). Do not expose to moisture or direct water spray.
- Installation should be performed by a qualified electrician if you are unsure about electrical wiring.
- Do not attempt to modify the fixture.
- Keep out of reach of children.
3. Setup and Installation
Follow these steps for proper installation of your EG TL2001-8WW under cabinet light.
3.1 Package Contents
- EG TL2001-8WW Under Cabinet Light fixture
- Power connection cable (approx. 1.75m)
- Mounting hardware (screws, clips - typically included)
- Connecting cable for linking multiple units (if applicable)
3.2 Mounting the Fixture
- Determine the desired mounting location under your cabinet or furniture. Ensure there is sufficient space for the fixture (dimensions: 22mm H x 42mm W x 343mm L).
- Mark the positions for the mounting clips or screws. Refer to the dimensional drawing for precise measurements.
- Secure the mounting clips or screws to the surface.
- Snap the light fixture into the mounted clips or attach it using the screws.
Image 3.1: Dimensional drawing of the EG TL2001-8WW fixture, showing front, top, and side views with measurements in millimeters.
3.3 Electrical Connection
- Ensure the main power supply is OFF before connecting the light.
- Connect the power cable to the fixture. The fixture operates on 220-240V AC, 50/60 Hz.
- Plug the power cable into a suitable wall outlet.
3.4 Linking Multiple Units
The TL2001-8WW can be linked in series. Up to 18 units of the 8W model (TL2001-8WW) or up to 11 units of the 13W model (TL2001-13W) can be connected to a single power source. Use the provided connecting cables (EG PP 65719 or similar compatible connectors) to link the fixtures end-to-end.
4. Operating Instructions
The EG TL2001-8WW under cabinet light is equipped with a physical ON/OFF switch for easy control.
- After successful installation and power connection, locate the ON/OFF switch on the fixture.
- Toggle the switch to the 'ON' position to illuminate the light.
- Toggle the switch to the 'OFF' position to turn off the light.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your under cabinet light.
- Cleaning: Disconnect power before cleaning. Use a soft, dry, or slightly damp cloth to wipe the surface of the fixture. Do not use abrasive cleaners or solvents.
- Light Source: The LED light source is integrated and not user-replaceable. If the light source fails, the entire fixture may need replacement.
- Inspection: Periodically check the power cable and connections for any signs of damage.
6. Troubleshooting
If you encounter issues with your EG TL2001-8WW light, refer to the following common troubleshooting steps:
- Light does not turn on:
- Check if the power cable is securely plugged into the wall outlet and the fixture.
- Verify that the wall outlet has power by testing it with another device.
- Ensure the ON/OFF switch on the fixture is in the 'ON' position.
- Light flickers:
- Check for loose connections in the power cable or between linked units.
- Ensure the voltage supply is stable and within the specified range (220-240V AC).
- Only some linked lights work:
- Inspect the connecting cables between the non-working units and the working units.
- Ensure you have not exceeded the maximum number of linkable units (18 for 8W models).
If these steps do not resolve the issue, please contact customer support.
7. Specifications
| Brand | EG |
| Model | TL2001-8WW |
| Rated Voltage | 220-240 V AC |
| Rated Frequency | 50/60 Hz |
| Wattage | 8 W |
| Light Type | LED |
| Light Color | White |
| Dimensions (HxWxL) | 22 x 42 x 343 mm |
| Body Material | Plastic |
| Socket Type | G5 |
| IP Rating | IP20 (Indoor Use Only) |
| Control Method | Physical ON/OFF Switch |
| Power Cable Length | 1.75 m |
| Operating Temperature | 5°C to 25°C |
| Linkable Units (8W) | Up to 18 units |

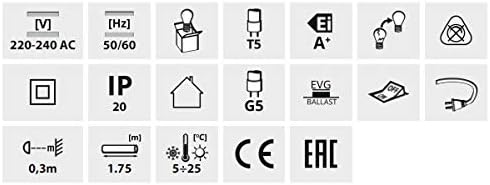

Image 7.1: Technical icons illustrating various specifications such as voltage, frequency, IP rating, and operating temperature.
8. Warranty and Support
Specific warranty details are not provided in the product information. For any questions, technical assistance, or warranty claims, please contact your retailer or the manufacturer directly.
Contact: Refer to the contact information provided with your purchase or on the manufacturer's official website.
