Introduction
This user manual provides detailed instructions for the safe and efficient operation, installation, and maintenance of your LivSLåga Gas Hob. Please read this manual thoroughly before using the appliance and keep it for future reference.
For any questions or assistance, please refer to the troubleshooting section or contact customer support.
Important Safety Information
WARNING: Improper installation, adjustment, alteration, service, or maintenance can cause property damage, injury, or death. Read the installation, operating, and maintenance instructions thoroughly before installing or servicing this equipment.
- Ensure proper ventilation when operating gas appliances.
- Do not store flammable materials near the appliance.
- Always supervise cooking.
- Keep children and pets away from the appliance during operation.
- Disconnect power and gas supply before cleaning or servicing.
Product Overview
The LivSLåga Gas Hob is a modern cooking appliance designed for efficient and precise cooking. It features multiple burners with individual controls and robust cast iron pan supports.

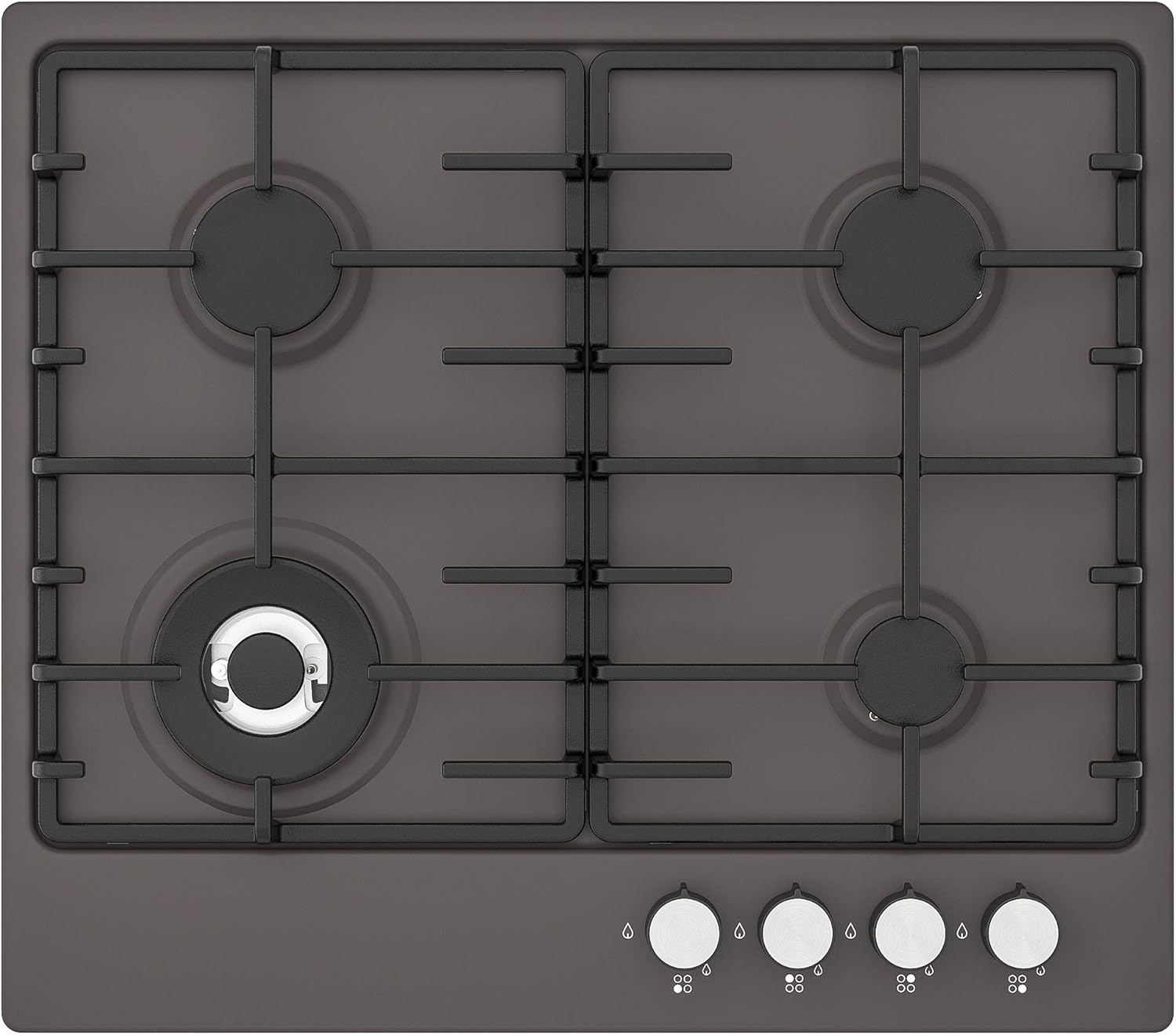

Figure 1: Top-down view of the LivSLåga gas hob, showing the four burners and front-mounted control knobs.
Key Features:
- Integrated ignition: Burners ignite by simply pressing the control knobs.
- Precise flame control for accurate cooking.
- Durable cast iron pan supports for stability.
- Front-mounted control knobs for easy access and adjustment.
Dimensions:
- Width: 58 cm
- Depth: 51 cm
- Height: 5.1 cm
Setup and Installation
Installation of this gas hob should only be performed by a qualified and certified technician in accordance with local regulations and standards.
Unpacking
- Carefully remove the appliance from its packaging.
- Inspect for any damage during transit. Report any damage to your supplier immediately.
- Ensure all components are present: gas hob unit, cast iron grates, burner caps.
Location Requirements
- Install in a well-ventilated area.
- Ensure sufficient clearance from combustible materials.
- The countertop opening must match the hob's dimensions.
Gas and Electrical Connection
Refer to the detailed installation diagram provided with the product for specific connection points. All connections must comply with local gas and electrical codes.
Figure 2: The LivSLåga gas hob integrated into a kitchen countertop, demonstrating a typical installation scenario.
Operating Instructions
Igniting a Burner
- Place a suitable cooking vessel on the desired burner's grate.
- Push down the corresponding control knob and turn it counter-clockwise to the maximum flame setting (large flame symbol).
- Hold the knob down for a few seconds until the flame ignites and stabilizes. Release the knob.
- Adjust the flame size by turning the knob between the maximum (large flame) and minimum (small flame) settings.
- To turn off the burner, turn the knob clockwise to the "OFF" position (dot symbol).
Figure 3: A user adjusting the flame on the LivSLåga gas hob, illustrating the ignition and control process.
Cooking Tips
- Use pots and pans with flat bottoms that match the size of the burner for optimal heat distribution and energy efficiency.
- Always use lids to reduce cooking time and save energy.
- Avoid leaving empty pots or pans on hot burners.
Care and Maintenance
Regular cleaning and maintenance will ensure the longevity and optimal performance of your gas hob.
Daily Cleaning
- Ensure the hob is cool before cleaning.
- Remove pan supports and burner caps.
- Wipe the hob surface with a damp cloth and mild detergent.
- Dry thoroughly with a soft cloth.

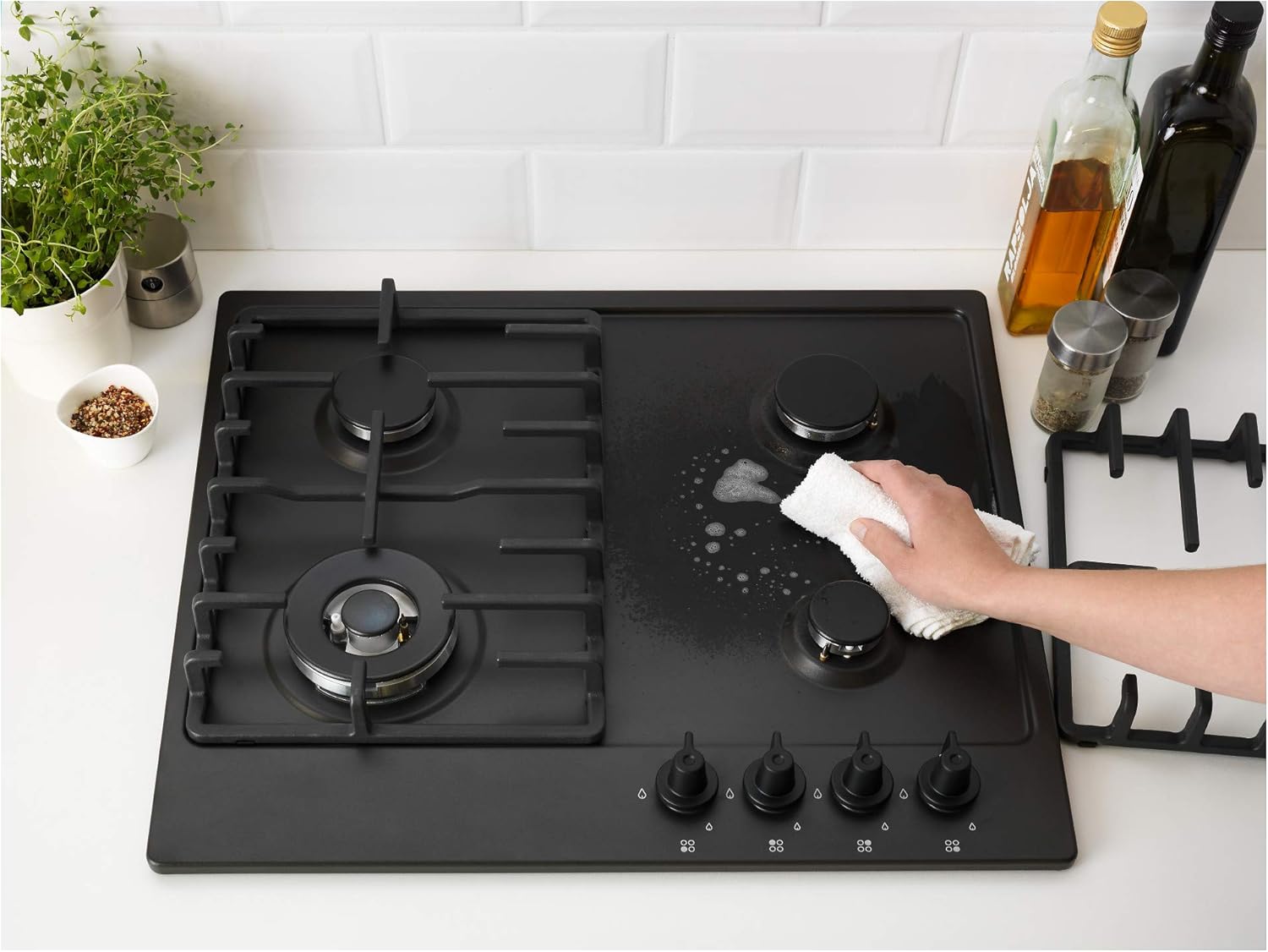

Figure 4: Demonstrating the cleaning process for the LivSLåga gas hob surface.
Cleaning Burner Components
- The cast iron grates and burner caps can be washed with warm soapy water.
- For stubborn stains, use a non-abrasive cleaner.
- Ensure all components are completely dry before reassembling them on the hob.
Do Not Use:
- Abrasive cleaners or scouring pads.
- Steam cleaners.
- Flammable cleaning agents.
Troubleshooting
Before contacting customer service, please refer to the following table for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite. | No gas supply. Burner components are wet or clogged. Power supply issue (for ignition). | Check gas valve. Clean and dry burner caps and rings. Check power cord and circuit breaker. |
| Flame is uneven or yellow. | Burner ports are clogged. Incorrect gas pressure. | Clean burner ports with a small brush. Contact a qualified technician to check gas pressure. |
| Gas smell. | Gas leak. | Immediately turn off gas supply, open windows, do not operate electrical switches, and contact emergency services or a qualified technician. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | IK.302.780.82 |
| Brand | Protuning |
| Dimensions (W x D x H) | 58 cm x 51 cm x 5.1 cm |
| Fuel Type | Natural Gas |
| Control Type | Push-button |
| Surface Material | Cast Iron |
| Included Components | Cast iron grates and burner covers |
Warranty and Support
This product comes with a 5-year warranty. Please refer to the warranty brochure included with your purchase for detailed terms and conditions.
For technical support, spare parts, or warranty claims, please contact your retailer or the manufacturer directly. Ensure you have your model number and purchase date available when contacting support.
Manufacturer: IKEA
Brand: Protuning
