GODMORGON LED Wall Lamp User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your GODMORGON LED Wall Lamp. Please read these instructions carefully before installation and operation, and retain them for future reference.

The GODMORGON LED Wall Lamp is designed to provide uniform illumination, ideal for areas around mirrors and sinks. Its versatile design allows for mounting directly on the wall as a shelf or above a bathroom cabinet. Featuring an energy-efficient LED light source, it consumes significantly less energy and offers a longer lifespan compared to traditional incandescent bulbs.

2. Safety Information

Warning: This product is designed for wall mounting only and supports a maximum load of 2 kg per shelf. Always handle electrical components with extreme caution. Refer to the assembly instructions provided with the product for detailed and safe installation procedures.

Ensure the power supply is disconnected before any installation, maintenance, or cleaning. Do not attempt to modify the product in any way not described in this manual. Keep out of reach of children.

3. Product Overview

Figure 3.1: Front view of the GODMORGON LED Wall Lamp, showcasing its sleek, white design and integrated LED strip.

Figure 3.2: Close-up view of the lamp's end cap, highlighting the quality finish and construction.

4. Setup and Installation

The GODMORGON LED Wall Lamp is designed for easy wall mounting. For detailed installation steps, please refer to the separate assembly instructions included with your product package. Below are general guidelines:

1. Preparation: Ensure the mounting surface is clean, dry, and capable of supporting the lamp's weight (2 kg). Turn off the main power supply at the circuit breaker before beginning installation.
2. Mounting Options: The lamp can be mounted directly on the wall or positioned above a bathroom cabinet. Choose the location that best suits your lighting needs.
3. Secure Fastening: Use appropriate screws and wall plugs for your wall type to ensure the lamp is securely fastened. The product includes necessary hardware.
4. Electrical Connection: Connect the lamp to the electrical supply according to local electrical codes and the provided wiring diagram. If unsure, consult a qualified electrician.

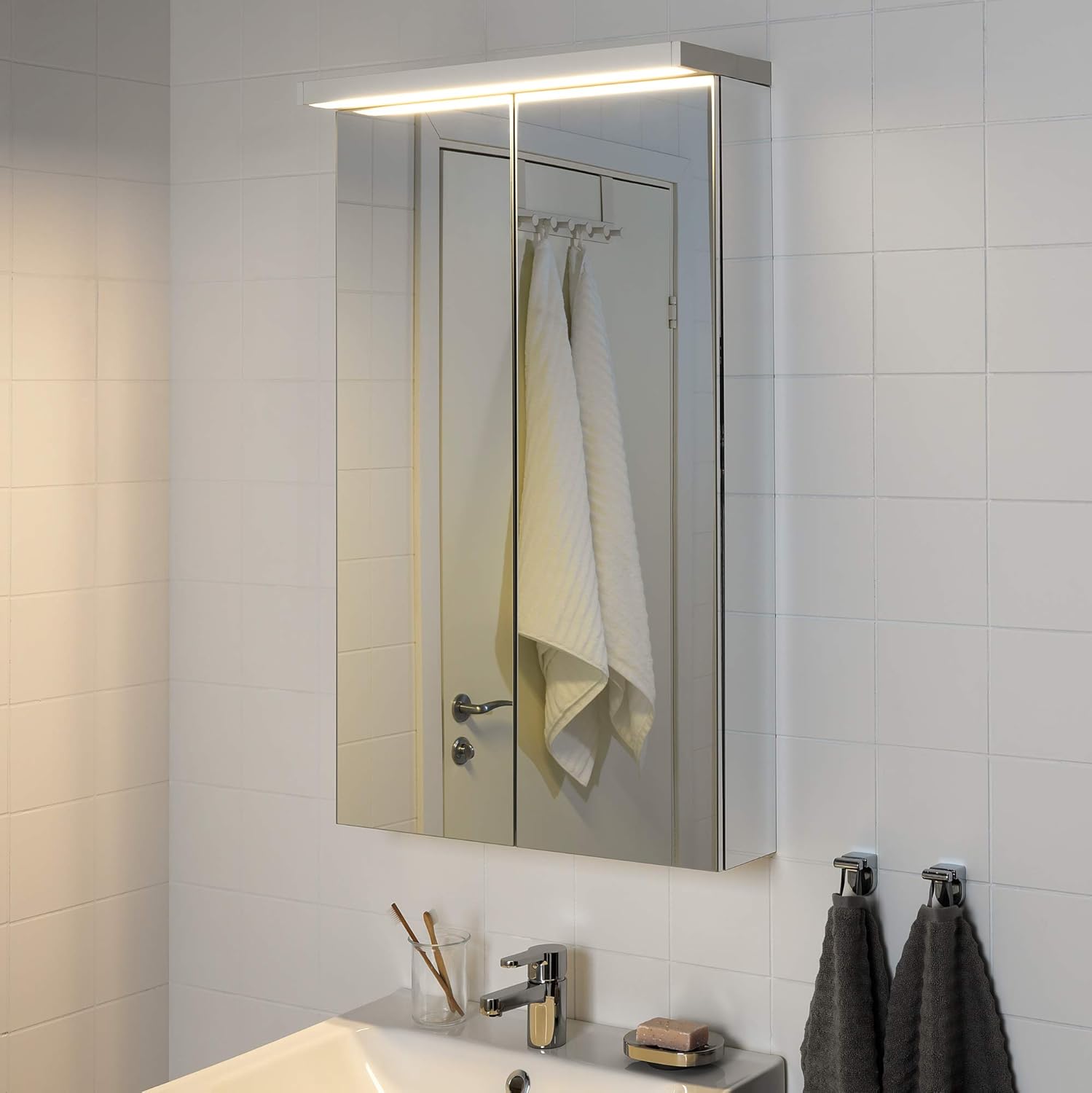

Figure 4.1: Example installation of the lamp above a mirror cabinet, providing overhead illumination.

Figure 4.2: Example installation of the lamp functioning as a wall-mounted shelf with integrated lighting.

5. Operating Instructions

The GODMORGON LED Wall Lamp is designed for simple operation once installed.

• Power On/Off: The lamp is typically controlled by a wall switch connected to its power supply. Flip the switch to turn the light on or off.
• Light Output: The integrated LED provides a uniform light output of 350 lumens, suitable for general illumination in bathrooms or similar spaces.
• Energy Efficiency: The LED light source is highly energy-efficient, consuming 85% less energy than traditional incandescent bulbs.

6. Maintenance and Care

To ensure the longevity and optimal performance of your GODMORGON LED Wall Lamp, follow these maintenance guidelines:

• Cleaning: Disconnect power before cleaning. Wipe the lamp with a soft, damp cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish or electrical components.
• Bulb Replacement: The LED light source is integrated and designed for a long lifespan (20 times longer than incandescent bulbs). It is not user-replaceable. If the LED fails, the entire unit may need to be replaced.
• Recycling: For information on how to recycle your bulbs and electronic waste, please consult local recycling guidelines or visit relevant recycling information resources.

7. Troubleshooting

If you encounter issues with your GODMORGON LED Wall Lamp, refer to the following common troubleshooting steps:

• Lamp does not light up:
  • Check if the power supply is connected and the wall switch is in the "ON" position.
  • Verify that the circuit breaker for the lighting circuit has not tripped.
  • Ensure all electrical connections were made correctly during installation. If unsure, consult a qualified electrician.
• Light is flickering or dim:
  • Ensure stable power supply.
  • This product uses integrated LEDs; if flickering persists, the unit may require professional inspection or replacement.
• Physical damage:
  • If the lamp or its components are physically damaged, discontinue use immediately and contact customer support.

For issues not covered here, please contact Protuning customer support.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation provided with your purchase or contact Protuning directly. Keep your proof of purchase for any warranty claims.

For further assistance, visit the official Protuning website or contact their customer service department.
