Warehouse of Tiffany RL4804FAB Round Satin Crystal Chandelier User Manual

Product Overview

This document provides instructions for the safe installation, operation, and maintenance of your Warehouse of Tiffany RL4804FAB Round Satin Crystal Chandelier. This chandelier features a sleek chrome finish, a black fabric shade, and beautifully cut crystals, designed for indoor use.

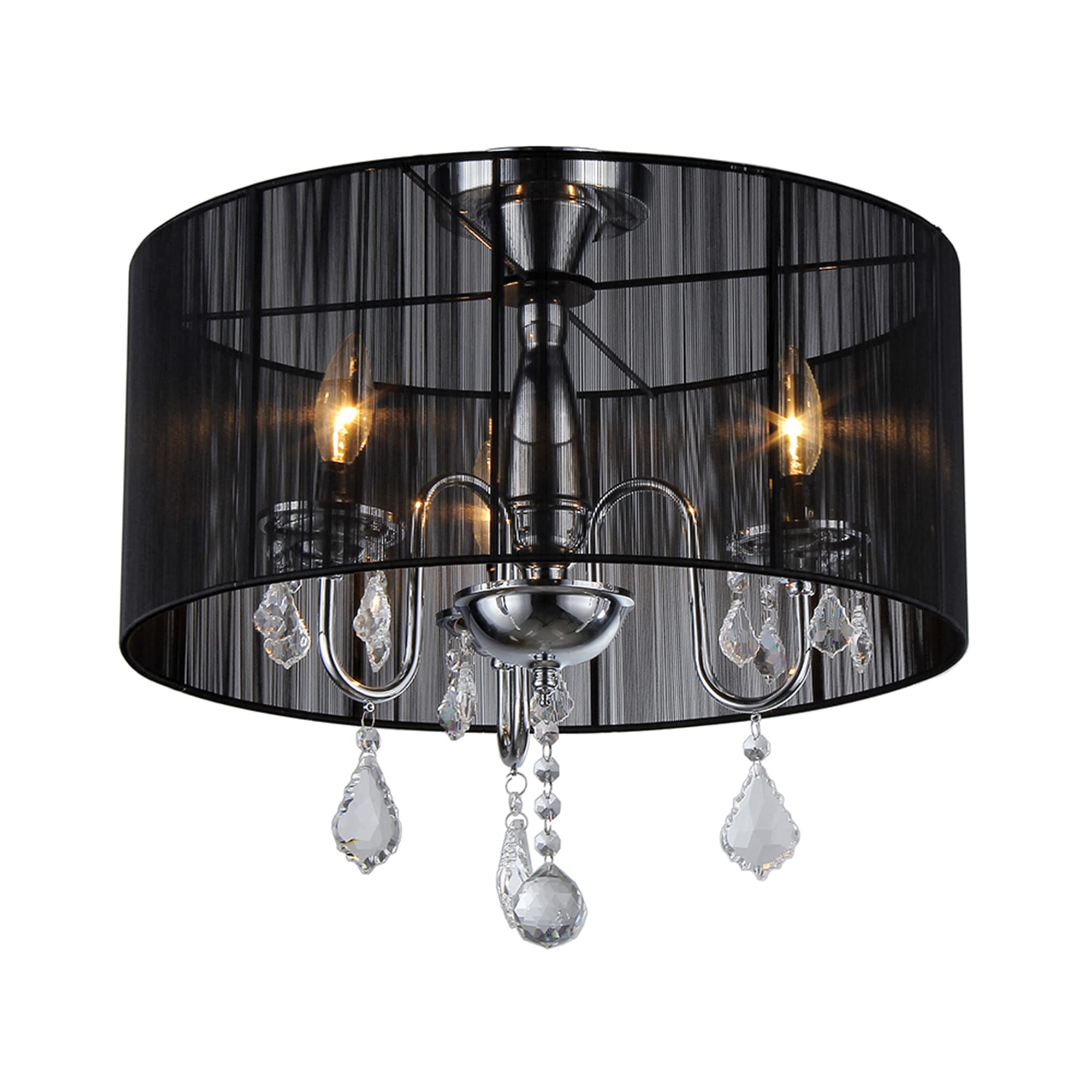

Figure 1: Front view of the RL4804FAB Round Satin Crystal Chandelier, showcasing its black fabric shade, chrome frame, and dangling crystals.

Setup and Installation

Important Safety Information: Before beginning any installation, ensure the electrical power to the circuit is turned off at the circuit breaker or fuse box. Consult a qualified electrician if you are not familiar with electrical wiring installation.

Required Tools (Not Included):

• Screwdriver (Phillips and/or Flathead)
• Wire Strippers
• Pliers
• Electrical Tape
• Ladder
• Safety Glasses

Installation Steps:

1. Unpack Components: Carefully remove all parts from the packaging. Lay them out on a clean, soft surface to prevent scratches. Verify all components are present against the parts list (not provided in this manual, refer to product packaging).
2. Mounting Bracket Installation: Secure the mounting bracket to the junction box in the ceiling using the provided screws. Ensure the bracket is firmly attached and can support the weight of the chandelier.
3. Electrical Wiring: Connect the chandelier's wires to the household electrical wires according to standard electrical codes. Typically, connect the black wire from the fixture to the black (live) wire from the ceiling, the white wire from the fixture to the white (neutral) wire from the ceiling, and the ground wire from the fixture to the ground wire from the ceiling. Secure connections with wire nuts and electrical tape.
4. Fixture Attachment: Carefully lift the chandelier and attach it to the mounting bracket. Secure it with the canopy screws or nuts, ensuring it is flush against the ceiling.
5. Crystal Assembly: Attach the individual crystal strands and pendants to the designated hooks on the chandelier frame. Refer to the product diagram for correct placement.
6. Bulb Installation: Install three (3) E26 Medium base, 40-watt maximum bulbs (not included) into the sockets. Do not exceed the maximum wattage.
7. Restore Power: Once installation is complete and all connections are secure, restore power at the circuit breaker.

Figure 2: The chandelier installed, showing its semi-flush mount design and how it appears in a room setting.

Operating Instructions

The Warehouse of Tiffany RL4804FAB Chandelier is designed for simple operation via a standard wall switch. Ensure appropriate bulbs are installed before operation.

Turning On/Off:

• Flip the connected wall switch to the 'ON' position to illuminate the chandelier.
• Flip the connected wall switch to the 'OFF' position to turn off the chandelier.

Note on Control Method: While product specifications may list 'Touch' as a control method, this typically refers to compatibility with a touch-sensitive wall switch (not included) rather than a touch feature on the fixture itself. The chandelier operates with any standard wall switch.

Maintenance

Regular maintenance will help preserve the appearance and functionality of your chandelier.

Cleaning:

• Always turn off power to the fixture at the circuit breaker before cleaning.
• For the metal and fabric components, use a soft, dry cloth to gently wipe away dust. Do not use abrasive cleaners or solvents, as they may damage the finish.
• For the crystals, a soft, lint-free cloth dampened with distilled water or a mild glass cleaner can be used. Ensure no liquid drips into the electrical components. Dry immediately with a clean, dry cloth.

Bulb Replacement:

• Turn off power to the fixture at the circuit breaker and allow bulbs to cool completely before attempting to replace them.
• Carefully unscrew the old bulb from its socket.
• Screw in a new E26 Medium base, 40-watt maximum bulb.
• Restore power at the circuit breaker.

Figure 3: Detailed view of the chandelier's internal components, including bulb sockets and crystal attachments, useful for maintenance.

Troubleshooting

If you encounter issues with your chandelier, refer to the following common problems and solutions:

Light Does Not Turn On:

• Check Power: Ensure the wall switch is in the 'ON' position and that power is supplied to the circuit breaker.
• Check Bulbs: Verify that bulbs are securely screwed into their sockets and are not burnt out. Replace any faulty bulbs.
• Check Wiring: If you recently installed the fixture, ensure all electrical connections are secure and correctly wired (black to black, white to white, ground to ground). If unsure, consult a qualified electrician.

Light Flickers:

• Check Bulbs: Ensure bulbs are fully tightened. Loose bulbs can cause flickering.
• Bulb Compatibility: If using LED bulbs, ensure they are compatible with your dimmer switch (if applicable).
• Wiring: Loose wiring connections can cause flickering. Turn off power and re-check connections.

Product Specifications

Warranty Information

This product is sold without a manufacturer's warranty. Please refer to your retailer's return policy for any issues or concerns.

Customer Support

For further assistance or inquiries regarding your Warehouse of Tiffany RL4804FAB Chandelier, please contact the retailer where the product was purchased. When contacting support, please have your model number (RL4804FAB) and purchase information readily available.

You may also visit the Warehouse of Tiffany Store on Amazon for more product information.
