1. Safety Information
Read all instructions carefully before using the appliance. Failure to follow these instructions may result in fire, explosion, property damage, personal injury, or death.
- Gas Connection: Ensure the cooktop is installed by a qualified technician and connected to the correct gas supply (Natural Gas or LPG, depending on the model and local regulations). Verify all connections are secure and leak-free.
- Ventilation: Always use the cooktop in a well-ventilated area. Do not obstruct ventilation openings.
- Flammable Materials: Keep flammable materials, such as curtains, paper, and aerosols, away from the cooktop during operation.
- Children and Pets: Keep children and pets away from the cooktop during operation and while it is cooling down.
- Hot Surfaces: The cooktop surface, grates, and burners become hot during use. Use oven mitts or pot holders when handling hot cookware.
- Safety Valves: Each control knob is equipped with a safety valve. To ignite, you must press and turn the knob. This prevents accidental gas flow.
- Power Outage: In case of a power outage, the manual ignition system can still be used with a match or lighter.
2. Product Overview
The DISA HOME PARR-GAS-04 is a compact and efficient 4-burner gas cooktop designed for tabletop use. It features manual ignition and individual flame control for each burner.

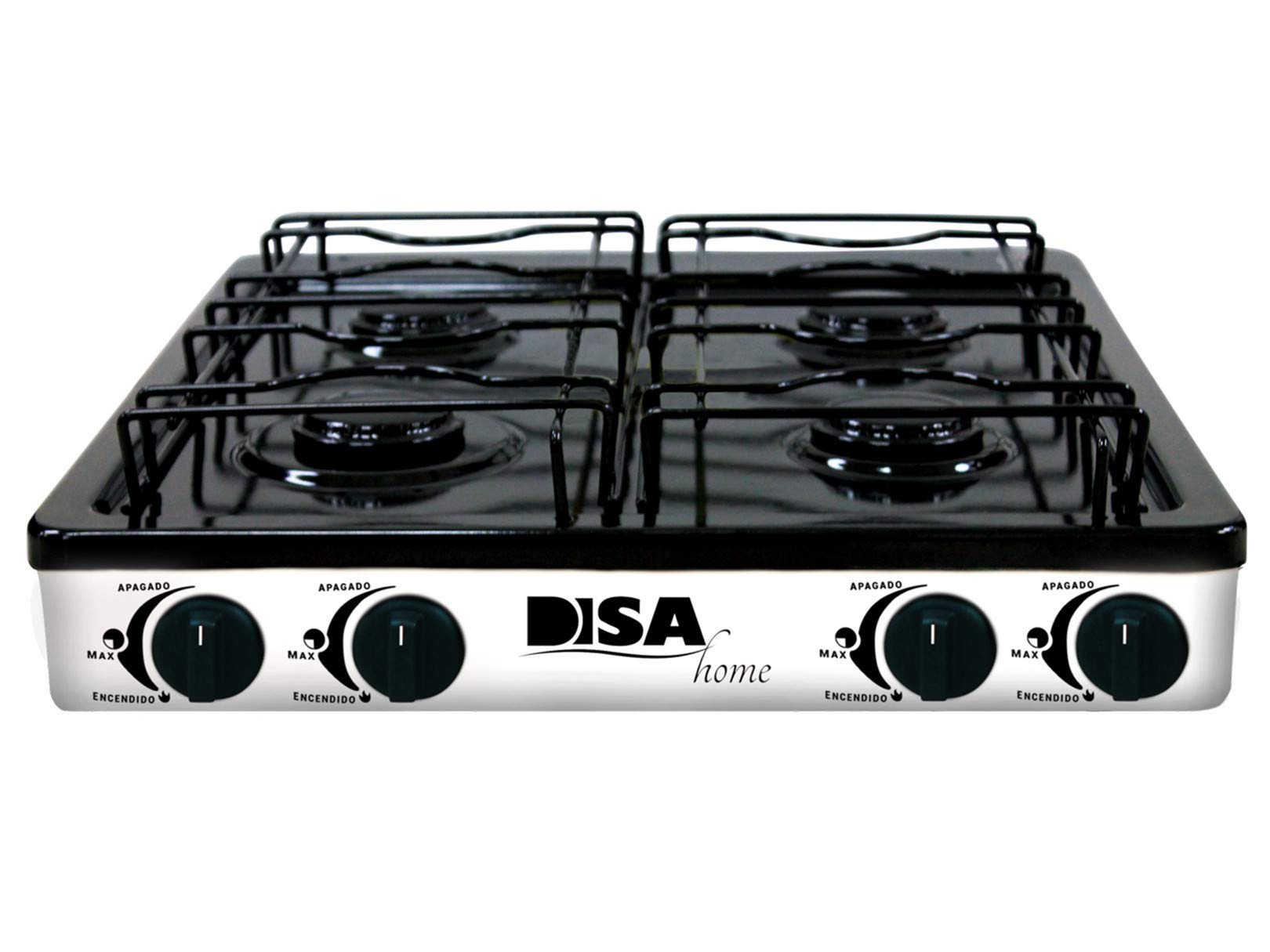

The image displays the DISA HOME PARR-GAS-04 4-Burner Gas Cooktop. It features a black porcelainized steel surface with four gas burners, each covered by a removable wire grate. The front panel is white and includes four control knobs, one for each burner. Each knob is labeled 'APAGADO' (OFF), 'MAX', and 'ENCENDIDO' (IGNITION), indicating manual ignition and flame control. The 'DISA home' logo is centrally located on the front panel.
Components:
- Burners: Four porcelainized gas burners for cooking.
- Grates: Four removable wire grates provide a stable surface for cookware and are designed for easy cleaning.
- Control Knobs: Four individual control knobs for manual ignition and flame adjustment for each burner. Each knob has positions for 'APAGADO' (OFF), 'MAX' (Maximum flame), and 'ENCENDIDO' (Ignition).
- Cooktop Surface: High-efficiency thermal design with a porcelainized steel cover.
3. Setup
Proper installation is essential for safe and efficient operation.
- Unpacking: Carefully remove the cooktop from its packaging. Retain packaging materials for future transport or storage.
- Placement: Place the cooktop on a stable, level, heat-resistant surface, such as a countertop or table. Ensure there is adequate clearance from walls and overhead cabinets for ventilation and safety.
- Gas Connection: This appliance requires connection to a gas supply. It is recommended that a qualified technician perform the gas connection. A 3/8" x 3/8" bell nipple or connection (not included) may be required. Ensure the gas type matches the appliance's specifications (Natural Gas or LPG).
- Leak Test: After connecting the gas supply, perform a leak test using a soapy water solution on all connections. Bubbles indicate a leak. Do not use an open flame to check for leaks.
- Ventilation: Ensure the area is well-ventilated. Consider installing an extractor fan if not already present.
4. Operating Instructions
Follow these steps for safe and effective use of your gas cooktop.
- Before First Use: Clean the cooktop surface and grates with a damp cloth to remove any manufacturing residues.
- Igniting a Burner:
- Place your cookware on the grate above the desired burner.
- Press down the corresponding control knob firmly.
- While pressing, turn the knob counter-clockwise to the 'ENCENDIDO' (Ignition) position. You will hear the gas flowing.
- Immediately apply a flame from a match or lighter to the burner head.
- Once the burner ignites, continue to hold the knob down for a few seconds to allow the thermocouple (safety device) to heat up.
- Release the knob. If the flame extinguishes, repeat the process.
- Adjusting the Flame: Once ignited, turn the knob between 'MAX' (Maximum flame) and the lowest setting to achieve the desired heat level.
- Turning Off a Burner: Turn the control knob clockwise until it clicks into the 'APAGADO' (OFF) position. Ensure the flame is completely extinguished.
5. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your cooktop.
- Always ensure the cooktop is cool and the gas supply is turned off before cleaning.
- Removable Grates: The wire grates are detachable for easy cleaning. Wash them with warm soapy water and a non-abrasive sponge. Rinse thoroughly and dry completely before placing them back on the cooktop.
- Cooktop Surface: Wipe the porcelainized steel surface with a damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner specifically designed for cooktops. Avoid abrasive pads or harsh chemicals that can damage the finish.
- Burner Heads: Periodically remove the burner caps and heads. Clean any food debris or blockages from the burner ports using a soft brush or toothpick. Ensure all parts are dry before reassembling.
- Control Knobs: The control knobs can be pulled off for cleaning. Wash them with warm soapy water and dry thoroughly.
- Spills: Clean up spills immediately to prevent them from baking onto the surface, which can make them harder to remove later.
6. Troubleshooting
If you encounter issues with your cooktop, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not ignite | No gas supply Knob not pressed down sufficiently Burner ports blocked | Check gas valve is open Ensure knob is pressed firmly while turning Clean burner ports |
| Flame is weak or uneven | Low gas pressure Burner ports partially blocked Burner components not seated correctly | Contact gas supplier or qualified technician Clean burner ports Ensure burner caps and heads are correctly positioned |
| Gas smell detected | Gas leak | Immediately turn off gas supply. Open windows and doors. Do not operate electrical switches. Contact gas supplier or emergency services. |
| Knob is stiff or hard to turn | Food debris or grease buildup | Remove and clean the knob and surrounding area. |
If the problem persists after attempting these solutions, contact customer support or a qualified service technician.
7. Specifications
- Manufacturer: DISA HOME
- Model Number: 02-02-0-107 (PARR-GAS-04)
- Color: White
- Material: Stainless steel (cooktop body), Porcelainized steel (cover), Wire (grates)
- Power Source: Gas
- Fuel Type: Natural Gas (verify compatibility with LPG if using bottled gas)
- Installation Method: Tabletop / Countertop Placement
- Components Included: Cooktop unit only
- Batteries Required: No
- Dimensions (L x W x H): 47.5 cm x 47.5 cm x 10 cm (18.7 x 18.7 x 3.9 inches)
- Weight: 7.5 kg (16.5 lbs)
8. Warranty and Support
DISA HOME offers a satisfaction guarantee for this product.
- Warranty: If the product fails or breaks down within the first year from the date of purchase, it will be replaced with an equivalent or similar model. Please retain your proof of purchase for warranty claims.
- Customer Support: For technical assistance, warranty claims, or any questions regarding your DISA HOME cooktop, please refer to the contact information provided with your purchase or visit the official DISA HOME website.
