DNYSYSJ Smokeless Indoor Electric Grill 2800-Watt Instruction Manual

1. Introduction

Thank you for purchasing the DNYSYSJ Smokeless Indoor Electric Grill. This appliance is designed for convenient indoor grilling, offering a smokeless cooking experience for various foods such as meats, seafood, steak, and pancakes. Please read this manual thoroughly before operating the grill to ensure safe and efficient use. Keep this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before using the grill.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the appliance body in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.

3. Product Overview and Components

The DNYSYSJ Smokeless Indoor Electric Grill features a robust design for efficient and clean grilling. Key components include a plated non-stick finish grill grate, a heating element, a temperature control knob, and a grease collection tray.

This image illustrates the plated non-stick finish of the grill grate, designed for easy food release and cleaning, and the four non-slip feet that ensure stable placement during operation.

This image highlights the heating light and power light indicators, which provide visual feedback on the grill's operational status.

The grill is constructed from 201 Stainless Steel, offering rust-resistant, corrosion-resistant, and heat-resistant properties for durability and longevity.

This diagram illustrates the multi-layered construction of the grill, featuring a steel base layer, a rustproof outer layer, and a tough steel outer layer, all made from 201 Stainless Steel for enhanced durability.

4. Setup and First Use

1. Unpacking: Carefully remove all packaging materials and inspect the grill for any damage. Ensure all components are present: grill unit, grill grate, and grease collection tray.
2. Cleaning Before First Use: Before initial use, wash the grill grate and grease collection tray with warm, soapy water. Wipe the main unit with a damp cloth. Dry all parts thoroughly.
3. Placement: Place the grill on a stable, heat-resistant, and level surface. Ensure there is adequate clearance around the grill for ventilation. The non-slip feet will help secure the unit.
4. Install Grease Tray: Slide the grease collection tray into its designated slot at the bottom of the grill unit. Ensure it is fully inserted to catch any drippings during cooking.
5. Install Grill Grate: Place the grill grate securely over the heating element.
6. Power Connection: Plug the power cord into a grounded electrical outlet. The power light will illuminate.

5. Operating Instructions

5.1 Powering On and Temperature Control

To begin cooking, ensure the grill is properly set up and plugged in. The grill features a rotation adjustable temperature control knob for precise heat settings.

This image displays the rotation adjustable temperature control knob, allowing users to select temperatures from 122°F to 572°F for different food types. Suggested temperatures for vegetables, fish, chicken, and steak are indicated.

• Turn the temperature control knob clockwise to your desired heat setting. The heating light will illuminate, indicating that the grill is preheating.
• Allow the grill to preheat for 5-10 minutes to reach the selected temperature. The heating light may cycle on and off as the grill maintains the temperature.

5.2 Cooking Guidelines

The grill utilizes a thickened U-shaped stainless steel heating tube for uniform and fast heat transfer, ensuring efficient cooking.

This image demonstrates the 1800W high-power heating element, highlighting its U-shaped design for uniform heating and fast heat transfer across the grilling surface.

Suggested temperatures for common foods:

• Vegetables: Approximately 220°F (104°C)
• Fish: Approximately 320°F (160°C)
• Chicken: Approximately 400°F (204°C)
• Steak: Approximately 572°F (300°C)

Adjust cooking times based on food thickness and desired doneness. Always use heat-resistant utensils.

5.3 Smokeless Grilling Feature

This grill is designed for smokeless indoor use. The integrated grease catcher tray collects excess oil and drippings, preventing them from burning and producing smoke.

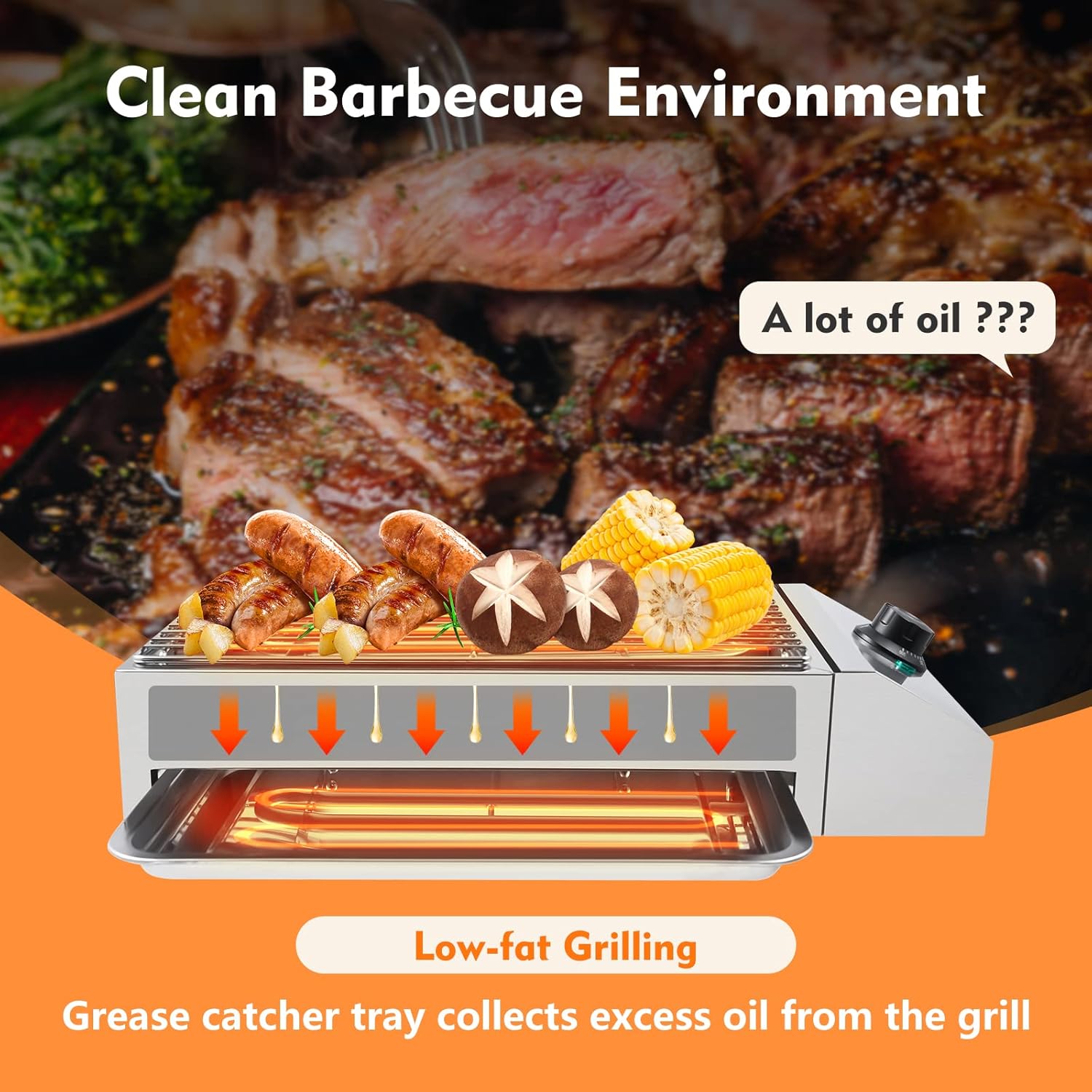

This diagram illustrates the low-fat grilling process, where excess oil from food drips into the grease catcher tray, contributing to a cleaner and healthier cooking environment.

The design minimizes the release of carbon dioxide and other harmful gases, offering a healthier and less polluting grilling experience compared to traditional charcoal grills.

This image contrasts the healthy, smokeless electric grilling method with traditional charcoal grilling, highlighting the environmental and health benefits of the electric grill.

5.4 After Cooking

• Once cooking is complete, turn the temperature control knob to the 'OFF' position.
• Unplug the appliance from the wall outlet.
• Allow the grill to cool completely before cleaning or storing.

6. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your grill.

1. Always Unplug and Cool: Before cleaning, always ensure the grill is unplugged from the power outlet and has cooled down completely.
2. Clean Grill Grate: The plated non-stick finish grill grate can be removed and washed by hand with warm, soapy water and a non-abrasive sponge. For stubborn food residue, soak the grate in warm water before cleaning.
3. Clean Grease Collection Tray: Remove the grease collection tray and empty any accumulated grease. Wash it with warm, soapy water.
4. Clean Heating Element: Gently wipe the heating element with a damp cloth. Do not immerse the heating element or the main unit in water.
5. Clean Main Unit: Wipe the exterior of the grill unit with a damp cloth. Do not use abrasive cleaners or scouring pads, as they may damage the finish.
6. Drying and Storage: Ensure all parts are thoroughly dry before reassembling or storing the grill. Store the grill in a cool, dry place.

7. Troubleshooting

8. Specifications

This image provides a visual representation of the grill's dimensions: 11.02 inches deep, 21.26 inches wide, and 5.12 inches high.

9. Warranty and Customer Support

This product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and coverage details. For technical assistance, troubleshooting, or to inquire about warranty claims, please contact DNYSYSJ customer support through the retailer where the product was purchased or visit the official DNYSYSJ website for contact information.

Please have your model number (B08MF5KJ2M) and purchase date available when contacting support.
