1. Product Overview
The ZTUOAUMA Fuel Pump Kit D1600.04.03.02.00 is designed as a replacement electric fuel pump for various vehicle models. This kit ensures proper fuel delivery to the engine, maintaining optimal performance.
Compatibility: This fuel pump is compatible with the following models:
- Joyner 800cc / 1100cc Trooper R2, R4
- Joyner Sand Viper 800 R2, R4
- Joyner 800 Viper SV1100, TR1100, T2, T4
- Chery SQR372, SQR472 Engines

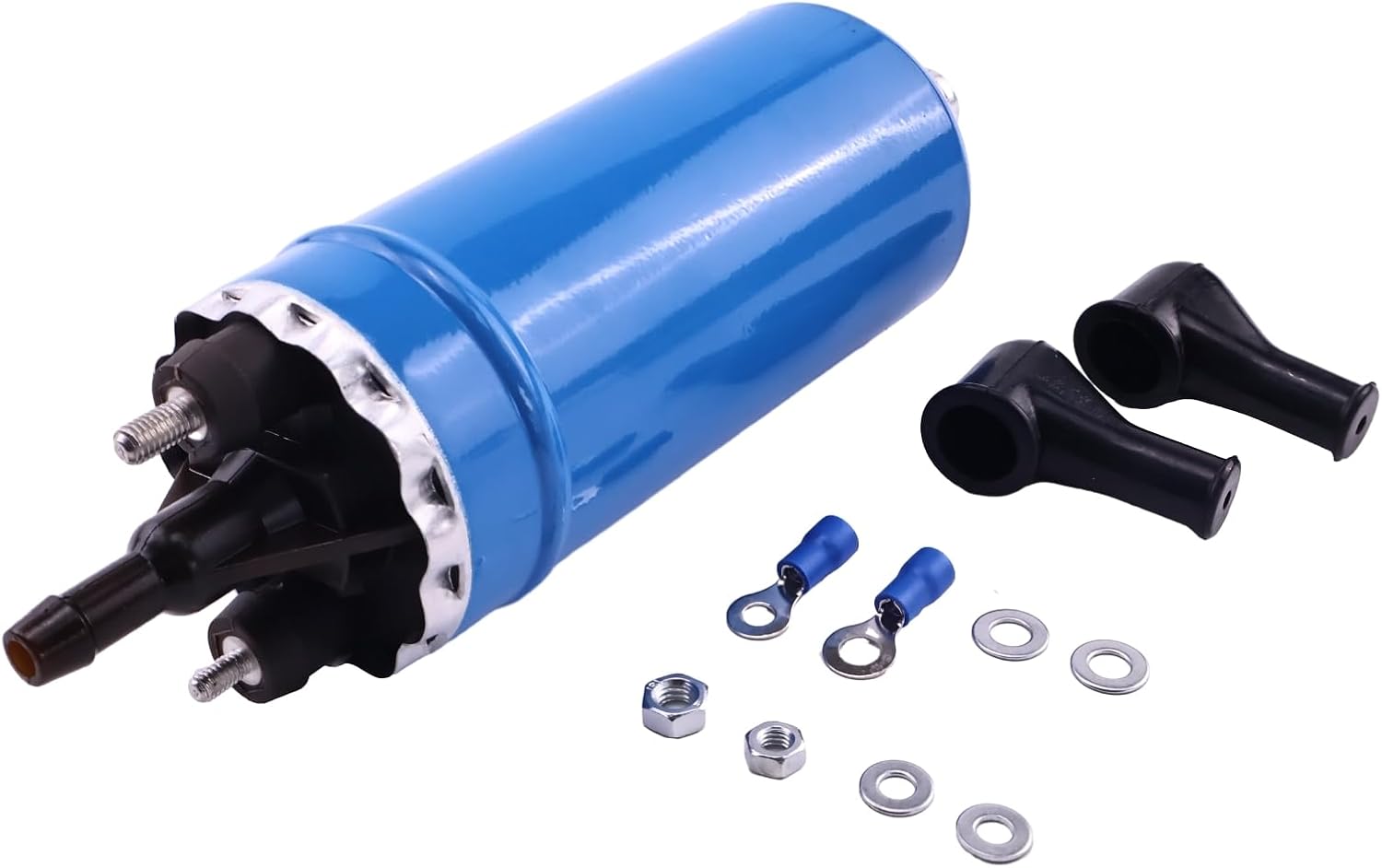

Figure 1: ZTUOAUMA Fuel Pump Kit D1600.04.03.02.00. This image shows the complete fuel pump kit, including the blue cylindrical pump body, electrical connectors, nuts, and washers.
2. Safety Information
WARNING: Fuel system work can be hazardous. Always disconnect the vehicle's battery before beginning any work on the fuel system. Ensure adequate ventilation and have a fire extinguisher readily available. Fuel is highly flammable. It is recommended that installation be performed by a qualified mechanic.
- Wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the engine is cool before starting work.
- Relieve fuel system pressure before disconnecting any fuel lines.
- Dispose of old fuel and components according to local regulations.
3. Installation (Setup)
This section provides general guidelines for installing the fuel pump. Specific steps may vary depending on your vehicle model. Refer to your vehicle's service manual for detailed instructions.
- Preparation:
- Park the vehicle on a level surface and engage the parking brake.
- Disconnect the negative terminal of the vehicle's battery.
- Relieve fuel system pressure. Consult your vehicle's service manual for the correct procedure.
- Locate the existing fuel pump. This pump is designed for tank mount applications.
- Removal of Old Pump:
- Carefully disconnect electrical connectors and fuel lines from the old pump. Be prepared for residual fuel leakage.
- Remove mounting hardware securing the old fuel pump.
- Extract the old fuel pump from its mounting location.
- Installation of New Pump:
- Ensure the new ZTUOAUMA fuel pump matches the specifications and connections of the original pump.
- Install the new fuel pump into the tank mount.
- Connect the fuel lines to the threaded inlet and outlet connections. Ensure all connections are secure and free of leaks.
- Connect the electrical wiring using the provided terminals and protective boots. Ensure correct polarity (positive to positive, negative to negative).
- Secure the pump with appropriate mounting hardware.
- Post-Installation:
- Reconnect the vehicle's battery.
- Turn the ignition key to the "ON" position (without starting the engine) for a few seconds to allow the fuel pump to prime the system. Repeat this step several times.
- Check for any fuel leaks around the pump and connections.
- Start the engine and check for proper operation and any warning lights.
Figure 2: Fuel pump showing the electrical terminals and outlet. This view highlights the connections for power and fuel output, along with the included protective boots and ring terminals.
4. Operating Instructions
Once correctly installed, the ZTUOAUMA Fuel Pump operates automatically to deliver fuel from the tank to the engine's fuel system. It is an electric pump designed for gasoline applications.
- The pump activates when the ignition is turned on, building pressure in the fuel lines.
- It maintains a consistent fuel pressure (3 Bar operating pressure, 6 Bar shut-off pressure) to ensure efficient engine operation.
- The pump is designed for continuous operation during vehicle use.
5. Maintenance
Proper maintenance of your vehicle's fuel system components, including the fuel pump, is crucial for longevity and performance.
- Fuel Filter: Regularly inspect and replace your vehicle's fuel filter according to the manufacturer's recommendations. A clogged fuel filter can put excessive strain on the fuel pump, leading to premature failure.
- Fuel Quality: Use clean, high-quality gasoline. Contaminants in fuel can damage the pump's internal components.
- System Leaks: Periodically check fuel lines and connections for any signs of leaks or damage. Address any issues promptly.
- Electrical Connections: Ensure electrical connections to the fuel pump remain clean, tight, and free from corrosion.
Figure 3: Fuel pump showing the inlet side. This image displays the threaded inlet connection where fuel enters the pump, along with the included hardware.
6. Troubleshooting
If you experience issues with your fuel pump, consider the following troubleshooting steps:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Engine cranks but does not start | No fuel pressure, faulty electrical connection, clogged fuel filter. | Check fuel pressure. Inspect electrical connections for tightness and corrosion. Replace fuel filter. Verify pump is receiving 12V. |
| Engine misfires or runs rough | Insufficient fuel pressure, inconsistent fuel delivery. | Check fuel pressure. Inspect fuel lines for kinks or blockages. Ensure proper filtration. |
| Fuel pump is noisy | Low fuel level, contaminated fuel, air in the fuel system, pump nearing end of life. | Ensure adequate fuel level. Check fuel quality. Bleed air from the system if applicable. Consider pump replacement if noise persists and performance is affected. |
| Incorrect fitting size / Difficulty adapting | Vehicle-specific variations, minor design differences. | If fittings are not an exact match, do not force them. Custom adaptation with appropriate brass fittings may be required. Ensure secure, leak-free connections. Important: Consider placing the pump before the fuel filter or adding a second filter to protect the pump from debris. |
If troubleshooting steps do not resolve the issue, consult a qualified automotive technician.
7. Specifications
| Feature | Detail |
|---|---|
| Part Number | D1600.04.03.02.00 |
| Operating Pressure | 3 Bar |
| Shut-Off Pressure | 6 Bar |
| Voltage | 12V |
| Material | Metal, Plastic |
| Item Weight | 1.61 pounds |
| Package Dimensions | 9.45 x 2.99 x 2.91 inches |
| Mounting Type | Tank Mount |
| Operation Mode | Automatic |
| Gas Type | Gasoline |
| Inlet Connection Type | Threaded |
| Outlet Connection Type | Threaded |
8. Warranty and Support
Warranty Information: This ZTUOAUMA Fuel Pump Kit is returnable for 6 months and changeable for 1 year (return and change for free) from the date of purchase. Please retain your proof of purchase for warranty claims.
Customer Support: For technical assistance, installation questions, or warranty claims, please contact ZTUOAUMA customer service through the retailer where the product was purchased or visit the official ZTUOAUMA store page on Amazon: ZTUOAUMA Store.
