X-Sense Smoke Alarm Instruction Manual

1. Introduction

This manual provides essential information for the X-Sense SD2J0AX Smoke Alarm, a standalone unit designed for reliable smoke detection and long-term peace of mind. This device is equipped with advanced features to ensure your safety.

Key Features:

• 10-Year Battery: Features an energy-efficient, eco-friendly lithium battery with low power consumption, providing an incredible lifetime of 10 years without frequent changes.
• Sensitive & Accurate: Built with an advanced photoelectric sensor and intelligent ST chipset for quick and accurate detection of dangerous smoke levels from smoldering fires.
• Smart Auto-Check: Manifold self-inspection parameters with clear notifications for malfunctions or low battery.
• Easy Installation: Simple, stable, and wireless installation with provided screws or optional magnetic adhesive pads.
• Premium Quality: Made with upgraded fire-retardant, high-temperature resistant, and corrosion-resistant ABS plastic housing.

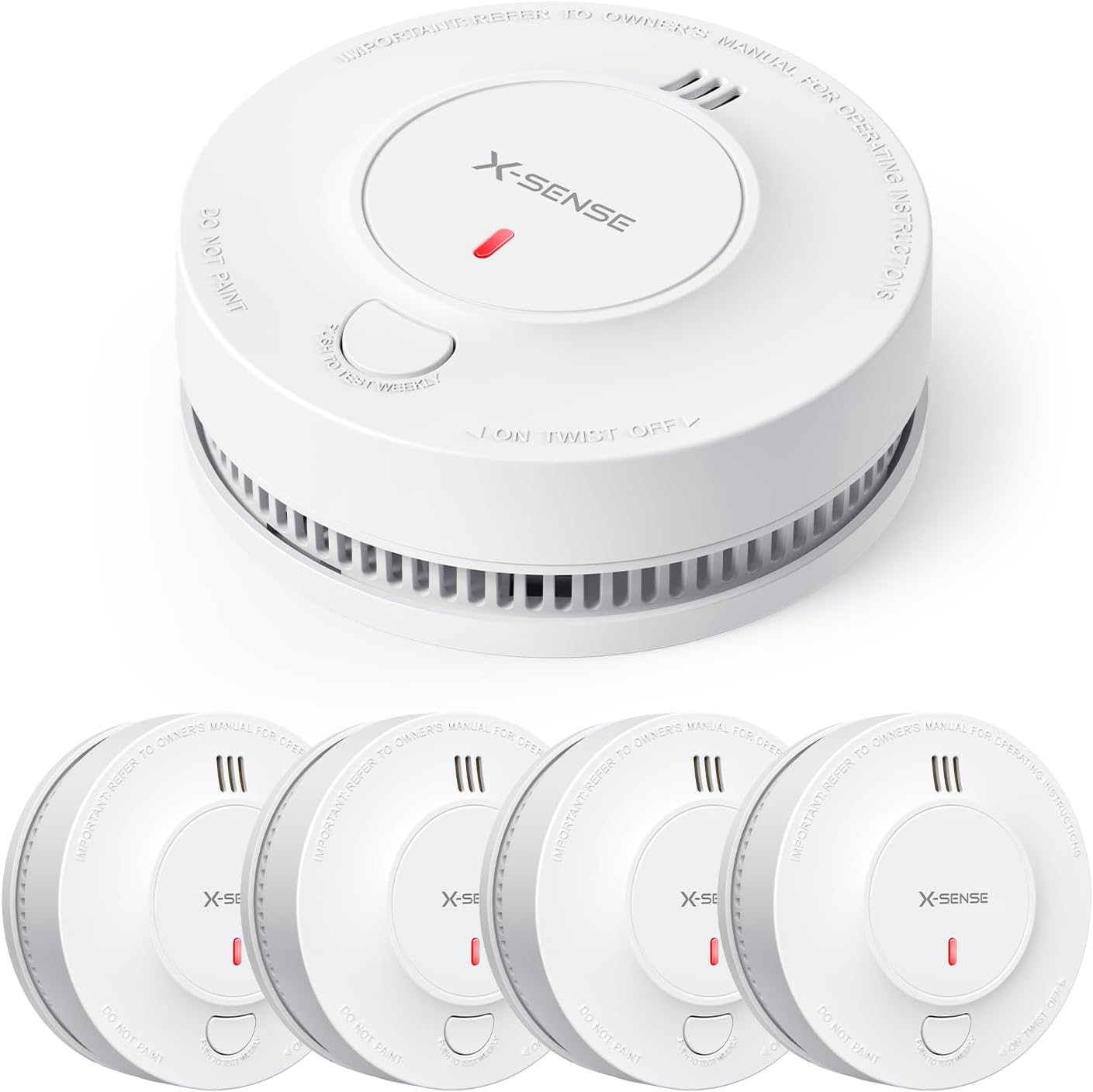

Figure 1: X-Sense SD2J0AX Smoke Alarm (5-Pack)

Figure 2: Illustration of the 10-Year Sealed Lithium Battery

2. Setup and Installation

The X-Sense SD2J0AX smoke alarm is designed for simple, wireless installation. Follow these steps for proper mounting:

1. Choose an appropriate location on the ceiling or wall, away from corners and dead air spaces. Refer to the installation guide image below for optimal placement.
2. Use the provided screws and anchor plugs to securely mount the alarm's base. Alternatively, you may use Ø 2.8 inch magnetic adhesive pads (not included) for quick installation.
3. Twist the smoke alarm unit onto the mounted base until it clicks securely into place. The device will automatically activate upon full mounting.

Figure 3: Smoke Alarm unit and included installation hardware

Figure 4: Recommended installation locations for smoke alarms

3. Operating Instructions

The X-Sense SD2J0AX smoke alarm is designed for user-friendly operation with its integrated test/silence button and intelligent monitoring.

• Testing the Alarm: Press the large button on the front of the alarm to perform a weekly test. The alarm will sound, and the LED indicator will flash red, confirming proper operation.
• Silencing Nuisance Alarms: If the alarm sounds due to non-emergency smoke (e.g., cooking fumes), press the test/silence button to temporarily silence the alarm for approximately 9 minutes. The alarm will reactivate if smoke levels remain high after the silence period.
• LED Indicator: A red LED indicator light is visible on the front of the alarm. It flashes to indicate normal operation, alarm status, or other notifications.

Figure 5: Easy Test/Silence Button for operation and muting

4. Maintenance

The X-Sense SD2J0AX smoke alarm requires minimal maintenance due to its sealed battery and self-monitoring capabilities.

• Battery Life: The sealed 10-year lithium battery eliminates the need for battery replacement throughout the device's lifespan.
• Self-Test Feature: The alarm runs a self-test every 60 seconds to ensure reliable performance.
• Dust-Proof Design: An internal dust-proof isolating plate helps maintain detection sensitivity by preventing dust accumulation.
• Cleaning: Periodically clean the exterior of the alarm with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.

Figure 6: The smoke alarm performs a self-test every 60 seconds

Figure 7: The photoelectric sensor takes 3 air samples every 10 seconds

5. Troubleshooting

The X-Sense SD2J0AX Smoke Alarm is designed to be highly reliable. In the event of an issue, the smart auto-check system will provide immediate notifications.

• Malfunction/Low Battery Notification: If the device malfunctions or the battery is low, you will be notified immediately. This allows for quick identification and resolution of the problem.
• Nuisance Alarms: If the alarm sounds without an apparent fire, ensure there are no sources of smoke or steam (e.g., cooking, hot showers) nearby. Use the silence button to temporarily mute the alarm.
• Persistent Issues: For any persistent issues or detailed troubleshooting steps not covered here, please refer to the comprehensive user manual (PDF) linked in the Warranty & Support section.

6. Specifications

7. Warranty and Support

The X-Sense SD2J0AX Smoke Alarm is backed by comprehensive support and warranty coverage:

• Warranty: Includes a 60-day money-back guarantee and a 5-year quality warranty.
• Technical Support: Lifetime technical support is provided for your convenience.

For detailed operating instructions, troubleshooting, and safety information, please refer to the official User Manual (PDF):

Download User Manual (PDF)
