MSW Sous Vide Machine User Manual

1. Introduction

Thank you for choosing the MSW Sous Vide Machine, Model SJ-S016. This precision cooker is designed to help you achieve perfectly cooked meals with consistent results by maintaining a precise water temperature. Please read this manual thoroughly before operating the device to ensure safe and efficient use.

2. Important Safety Information

WARNING: To reduce the risk of fire, electric shock, or injury, always follow these basic safety precautions:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the main body of the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the water level is always between the MIN and MAX marks on the device.

3. Product Overview and Components

Familiarize yourself with the different parts of your MSW Sous Vide Machine:

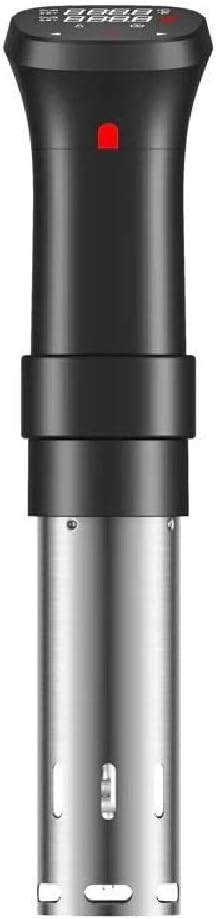

Figure 3.1: Front view of the MSW Sous Vide Machine, showing its sleek black and stainless steel design.

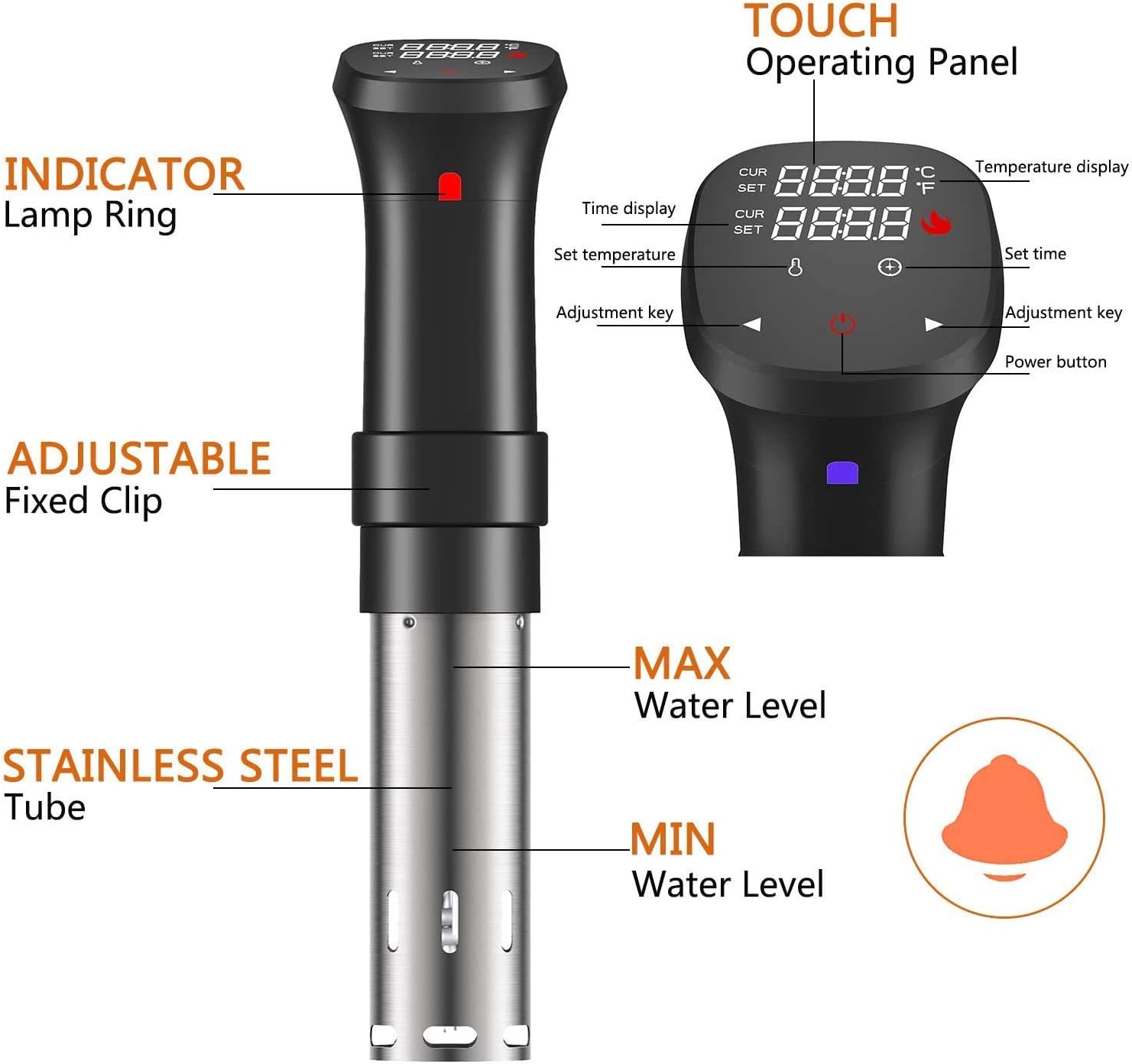

Figure 3.2: Detailed diagram of the MSW Sous Vide Machine, highlighting key components such as the Touch Operating Panel, Indicator Lamp Ring, Adjustable Fixed Clip, Stainless Steel Tube, and MIN/MAX Water Level indicators.

• A. Touch Operating Panel: Digital display for temperature and time settings, with touch controls for adjustment and power.
• B. Indicator Lamp Ring: Light ring that indicates the status of the device (e.g., heating, set temperature reached, set time reached).
• C. Adjustable Fixed Clip: Securely attaches the sous vide machine to the side of your cooking pot.
• D. Stainless Steel Tube: Houses the heating element and circulator pump.
• E. MIN/MAX Water Level Indicators: Markings on the stainless steel tube indicating the minimum and maximum water levels required for safe operation.

4. Setup

1. Attach to Pot: Securely attach the adjustable fixed clip of the sous vide machine to the side of a heat-safe pot or container. Ensure the clip is firmly in place.
2. Add Water: Fill the pot with water. Ensure the water level is between the MIN and MAX marks indicated on the stainless steel tube of the device. Do not overfill or underfill.
3. Place Food: Place your vacuum-sealed food item(s) into the water bath. Ensure the food is fully submerged.
4. Connect Power: Plug the power cord into a standard 120V AC electrical outlet. The display will illuminate.

5. Operating Instructions

The MSW Sous Vide Machine features an intuitive touch control panel for easy operation.

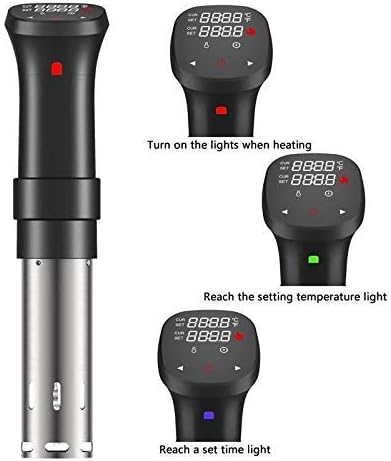

Figure 5.1: Illustration of the indicator lamp ring changing colors based on the device's status: red for heating, green for set temperature reached, and blue for set time reached.

1. Power On: Press the power button (Ⓘ) on the touch panel to turn on the device. The display will show the current water temperature.
2. Set Temperature:
   • Press the "SET" button (often indicated by a gear icon or similar).
   • Use the up (▲) and down (▼) arrows to adjust the desired cooking temperature. The temperature range is 25-95°C (77-203°F).
   • Press "SET" again to confirm the temperature.
3. Set Time:
   • After setting the temperature, the time setting will become active.
   • Use the up (▲) and down (▼) arrows to adjust the desired cooking time.
   • Press "SET" again to confirm the time and start the cooking process.
4. Heating Process: The indicator lamp ring will glow red while the water is heating up to the set temperature. The display will show the current water temperature.
5. Temperature Reached: Once the water reaches the set temperature, the indicator lamp ring will turn green, and the timer will begin counting down.
6. Cooking Complete: When the set time has elapsed, the indicator lamp ring will turn blue, and the device may emit an audible alert.
7. Power Off: Press and hold the power button (Ⓘ) to turn off the device. Unplug from the outlet.

Example Cooking Times and Temperatures:

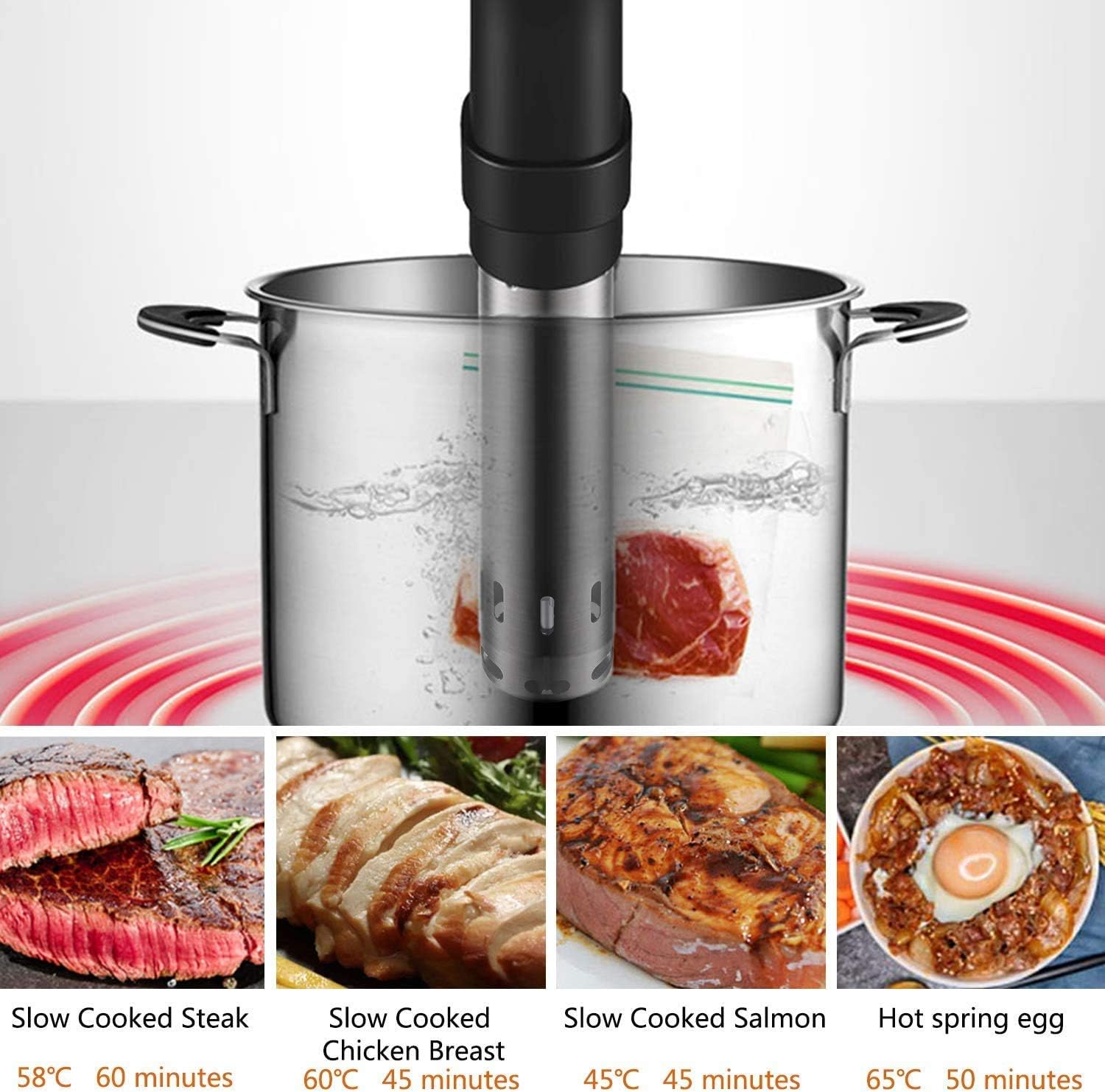

Figure 5.2: Visual guide for typical sous vide cooking parameters: Slow Cooked Steak (58°C, 60 minutes), Slow Cooked Chicken Breast (60°C, 45 minutes), Slow Cooked Salmon (45°C, 45 minutes), and Hot Spring Egg (65°C, 50 minutes).

Note: These are general guidelines. Adjust times and temperatures based on thickness of food and desired doneness. Always ensure food is properly sealed.

6. Maintenance and Cleaning

Proper maintenance ensures the longevity and performance of your MSW Sous Vide Machine.

Cleaning the Device:

1. Unplug and Cool: Always unplug the device from the power outlet and allow it to cool completely before cleaning.
2. Exterior Cleaning: Wipe the exterior of the device, including the control panel, with a soft, damp cloth. Do not use abrasive cleaners or immerse the top part of the device in water.
3. Stainless Steel Tube: For the stainless steel tube, you can use a soft brush or sponge to gently clean any residue. If mineral deposits (limescale) build up, you can fill the pot with water, add a small amount of white vinegar (e.g., 1/4 cup per gallon), and run the device at 60°C (140°F) for 30 minutes. Then, unplug, cool, and rinse thoroughly.
4. Drying: Ensure all parts are thoroughly dry before storing or next use.

Storage:

Store the sous vide machine in a clean, dry place, away from direct sunlight and extreme temperatures.

7. Troubleshooting

If you encounter issues with your MSW Sous Vide Machine, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact MSW Customer Support for further assistance.

8. Specifications

Technical details for the MSW Sous Vide Machine SJ-S016:

Figure 8.1: Image detailing the technical parameters of the MSW Sous Vide Machine SJ-S016, including dimensions, power, voltage, and temperature range.

Note: Some specifications may vary slightly based on production batch or regional standards.

9. Warranty and Support

MSW stands behind the quality of its products. For warranty information, product registration, or technical support, please contact MSW Customer Service.

Please retain your proof of purchase for any warranty claims.

For the most up-to-date support information, visit the official MSW website or contact their customer service department directly.
