Commercial Electric 3in. LED Dimmable Color Changing Brushed Nickel Recessed Kit

Product Overview

The Commercial Electric 3in. LED Dimmable Color Changing Brushed Nickel Recessed Kit offers a versatile and efficient lighting solution. This all-in-one kit features a 40-degree spot pattern, ideal for task lighting or sloped ceilings. Users can select from five different white color options, ranging from warm white (2700K) to daylight (5000K), to suit various application needs and personal preferences. The innovative can-less design eliminates the need for traditional housing, simplifying installation. It is also dimmable with standard wall switch dimmers and is wet location rated for both indoor and outdoor use.

Key Features:

• Versatile Lighting: Adjustable 5000K - 2700K color temperature for task or ambient lighting.
• Easy Installation: Flush mount design with included hardware, no separate can/housing needed.
• Dimmable & Control: Compatible with wall switch dimmers for personalized lighting.
• Durable & Weatherproof: Wet location rated for indoor/outdoor use.
• High Efficiency: Energy-saving LED with high ceiling output up to 15 ft.

Setup and Installation

This recessed LED kit is designed for straightforward installation without the need for a traditional recessed can or housing. Always ensure power is turned off at the circuit breaker before beginning any electrical work.

Installation Steps:

1. Prepare the Opening: Cut a 3-inch diameter hole in the ceiling at the desired location. Ensure there are no obstructions such as joists or wiring within the ceiling space.
2. Wiring Connections: Open the junction box cover on the fixture. Connect the household electrical wires to the corresponding wires on the fixture using the included quick connectors. Typically, black to black (live), white to white (neutral), and bare copper or green to green (ground). Secure all connections.
3. Secure the Junction Box: Close the junction box cover and tuck the wires neatly inside.
4. Insert Fixture: Gently push the fixture into the ceiling opening. The spring clips on the sides of the fixture will automatically secure it to the ceiling.
5. Adjust Color Temperature (Optional): Before final installation or after, use the switch on the side of the fixture to select the desired color temperature (2700K, 3000K, 3500K, 4000K, or 5000K).

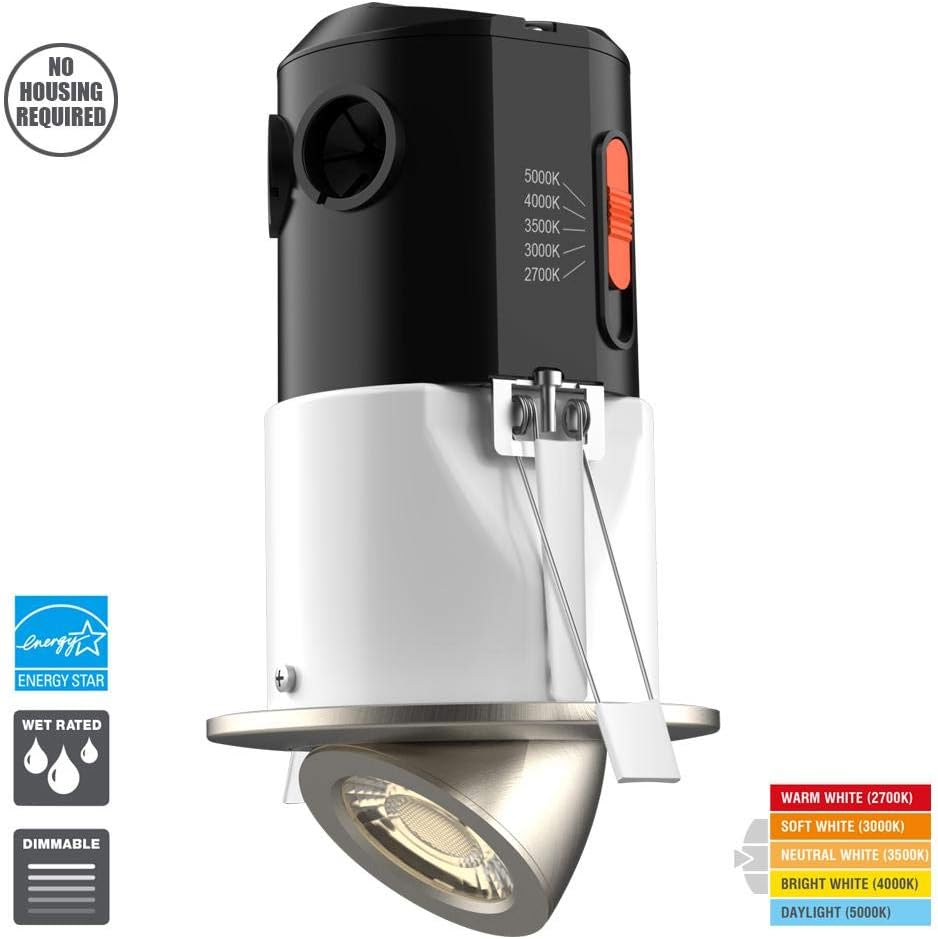

Image: The recessed LED kit showing the "No Housing Required" label and the color temperature selection switch (2700K-5000K).

Image: Product packaging highlighting the easy installation steps: Cut Hole, Wire Using Quick Connects, and Install Fixture Using Spring Clips.

Image: The recessed LED kit shown alongside its packaging, illustrating the product's appearance and key features.

Operating Instructions

Once installed, the Commercial Electric LED Recessed Kit is simple to operate.

Color Temperature Adjustment:

The fixture features a selectable color temperature switch, allowing you to choose between five different white light options:

• 2700K: Warm White (soft, yellowish light)
• 3000K: Soft White (slightly less yellow than 2700K)
• 3500K: Neutral White (balanced, natural light)
• 4000K: Bright White (cooler, more energetic light)
• 5000K: Daylight (coolest, bluish-white light)

This switch is located on the side of the fixture's main body. Adjust it to your preferred setting before or after installation, as needed.

Image: Close-up view of the recessed LED fixture, highlighting the orange switch used to select the desired color temperature from 2700K to 5000K.

Dimming Functionality:

This LED recessed kit is compatible with most standard wall switch dimmers. Ensure your dimmer is rated for LED lighting to achieve optimal performance and avoid flickering. Simply use your existing wall dimmer to adjust the brightness level of the light.

Directional Lighting:

The fixture features a gimbal design, allowing for directional lighting. The LED spot light can be tilted vertically up to 40 degrees and rotated horizontally up to 350 degrees. Gently adjust the inner light housing to direct the light beam as desired for task lighting or accentuating specific areas.

Image: Top-down view of the recessed light, illustrating the adjustable inner gimbal that allows for directional light control.

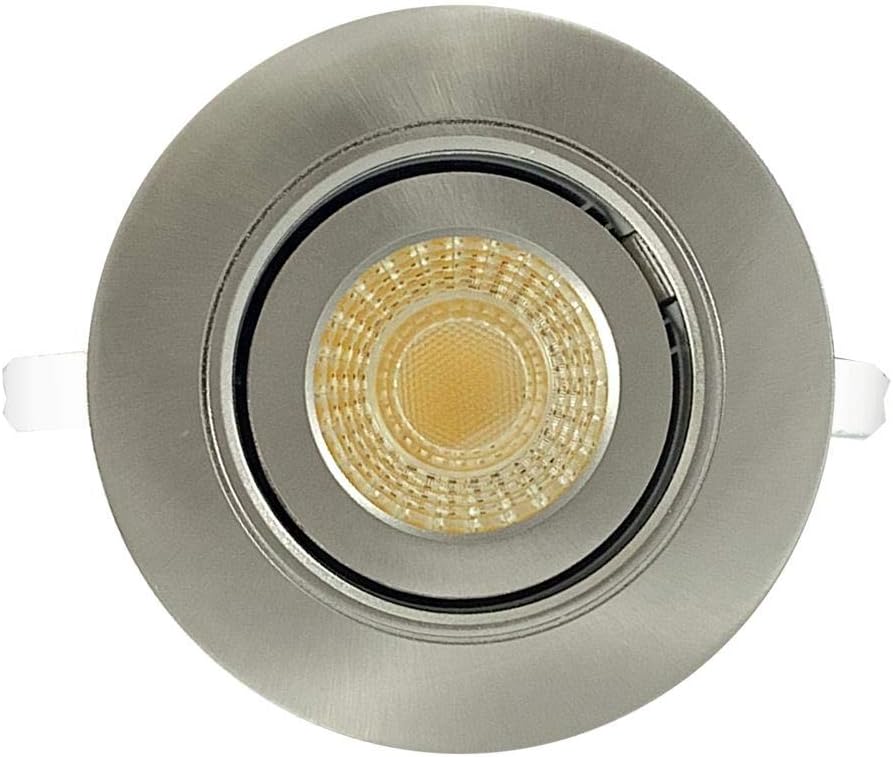

Image: View of the recessed light from directly below, showing the LED light source and its brushed nickel trim.

Maintenance

The Commercial Electric LED Recessed Kit is designed for long-lasting, maintenance-free operation. LEDs have a significantly longer lifespan than traditional bulbs, reducing the need for frequent replacements.

Cleaning:

• Ensure power is turned off at the circuit breaker before cleaning the fixture.
• Wipe the fixture with a soft, dry, or slightly damp cloth.
• Do not use abrasive cleaners, solvents, or polishes, as these can damage the finish or electrical components.

General Care:

• Periodically check the fixture for any loose connections or signs of wear, especially if installed in a wet location.
• Do not attempt to disassemble the LED module, as it is an integrated, non-replaceable component.

Troubleshooting

If you encounter issues with your Commercial Electric LED Recessed Kit, refer to the following common problems and solutions:

Product Specifications

Image: Lighting performance label detailing Light Output (650 Lumens), Watts (10.5), Lumens Per Watt (62), Color Accuracy (CRI 90), and Light Appearance (CCT) range from 2700K to 5000K.

Warranty Information

Specific warranty details for this product are not provided in the available information. Please refer to the product packaging or the manufacturer's official website for the most accurate and up-to-date warranty policy. Typically, LED lighting products come with a limited warranty covering defects in materials and workmanship.

Customer Support

For technical assistance, troubleshooting beyond this guide, or warranty claims, please contact Commercial Electric customer support. Contact information can usually be found on the product packaging, the manufacturer's official website, or through the retailer where the product was purchased.

When contacting support, please have your product model number (cc8e1cd2-1187-444b-868e-efffbc7da6e5) and purchase date ready.
