1. Safety Information
Read all instructions before assembly and use. Failure to follow these instructions may result in injury or product damage.
- Secure the Base: Always use a weighted base (not included, search XN4150) to prevent the umbrella from tipping over. Ensure the base is adequately filled with sand or water as per its instructions.
- Wind Conditions: Close the patio umbrella in case of strong winds, heavy rain, or severe weather conditions to prevent damage to the umbrella and potential hazards.
- Assembly: Assembly may require two adults due to the size and weight of components.
- Clearance: Ensure adequate clearance around the umbrella when rotating or tilting to avoid obstructions or collisions.
- Children and Pets: Keep children and pets away from the umbrella during operation to prevent accidents.
- Maintenance: Regularly inspect all bolts and connections to ensure they are tight and secure.
2. Setup Instructions
Follow these steps to correctly assemble your PURPLE LEAF Cantilever Patio Umbrella.
- Unpack Components: Carefully remove all parts from the packaging. Verify all components are present according to the packing list.
- Assemble the Base: If using a fillable base (not included), assemble it according to its specific instructions and fill it with the recommended material (e.g., sand or water) to ensure stability.
- Attach Pole to Base: Securely attach the main aluminum pole to the assembled weighted base using the provided hardware. Ensure all bolts are tightened.
- Mount the Umbrella Canopy: Carefully lift and slide the umbrella canopy assembly onto the top of the main pole. This step may require two people due to the size and weight.
- Remove Packing Material: Remove any remaining protective packing materials from the umbrella ribs and frame.
- Initial Opening: Slowly open the umbrella using the crank system to ensure smooth operation and proper alignment.
Image: The PURPLE LEAF 12 FT Square Cantilever Patio Umbrella fully open, providing shade over a patio seating area.
Image: A close-up view of the underside of the umbrella canopy, showing the robust aluminum ribs and frame structure.
3. Operating Instructions
Your PURPLE LEAF Cantilever Patio Umbrella is designed for easy and flexible use.
3.1 Opening and Closing the Umbrella
- To Open: Locate the crank handle on the main pole. Rotate the crank clockwise to extend the canopy until it is fully open.
- To Close: Rotate the crank handle counter-clockwise to retract the canopy until it is fully closed. Secure the canopy with the attached strap if available.
Image: A detailed view of the easy-grip handle and crank mechanism used for opening and closing the umbrella canopy.
3.2 360-Degree Rotation
The umbrella features a 360-degree rotation mechanism for optimal shade positioning.
- To Rotate: Locate the foot pedal or rotation handle at the base of the main pole. Depress or unlock the mechanism and gently rotate the umbrella canopy to the desired position. Release the pedal/lock to secure it.
Image: The umbrella demonstrating its 360-degree rotation capability, allowing for flexible shade coverage.
3.3 Height and Angle Adjustment
Adjust the height and angle of the canopy to suit your shading needs.
- To Adjust Height/Angle: Use the handle design and crank system on the main pole to select from 5 available height and angle positions. Push the handle to release the lock and adjust the umbrella to your preferred height and tilt. Release the handle to lock it in place.
Image: A visual guide showing the various height and angle adjustments possible with the umbrella's mechanism.
3.4 Official Product Videos
Video: This video demonstrates the features of the PURPLE LEAF Large Deluxe Cantilever Umbrella, including its size and ease of use.
Video: This video highlights the single-hand operation for opening and closing the PURPLE LEAF large patio umbrella.
Video: This video showcases the senior-friendly 360-degree rotation feature of the umbrella, emphasizing ease of use.
Video: This video demonstrates the sun protection and oversized canopy of the PURPLE LEAF outdoor umbrella.
Video: This video highlights the wind-resistant features of the PURPLE LEAF large patio umbrella.
Video: This video showcases the PURPLE LEAF large patio umbrella, emphasizing its ability to provide ultimate shade.
4. Maintenance
Proper maintenance will extend the life and appearance of your umbrella.
- Cleaning the Canopy: Clean the polyester fabric canopy with mild soap and water. Rinse thoroughly and allow to air dry completely before closing or storing. Do not use harsh chemicals or abrasive cleaners.
- Frame Care: Wipe the aluminum frame with a damp cloth. For stubborn dirt, use mild soap and water. Ensure the frame is dry to prevent water spots.
- Lubrication: Periodically lubricate moving parts of the crank and rotation mechanisms with a silicone-based spray to ensure smooth operation.
- Storage: When not in use for extended periods or during off-season, close the umbrella, secure it with the strap, and cover it with a protective cover (not included) to shield it from elements. Store in a dry, sheltered area if possible.
- Inspection: Regularly check all nuts, bolts, and connections to ensure they remain tight. Tighten as necessary.

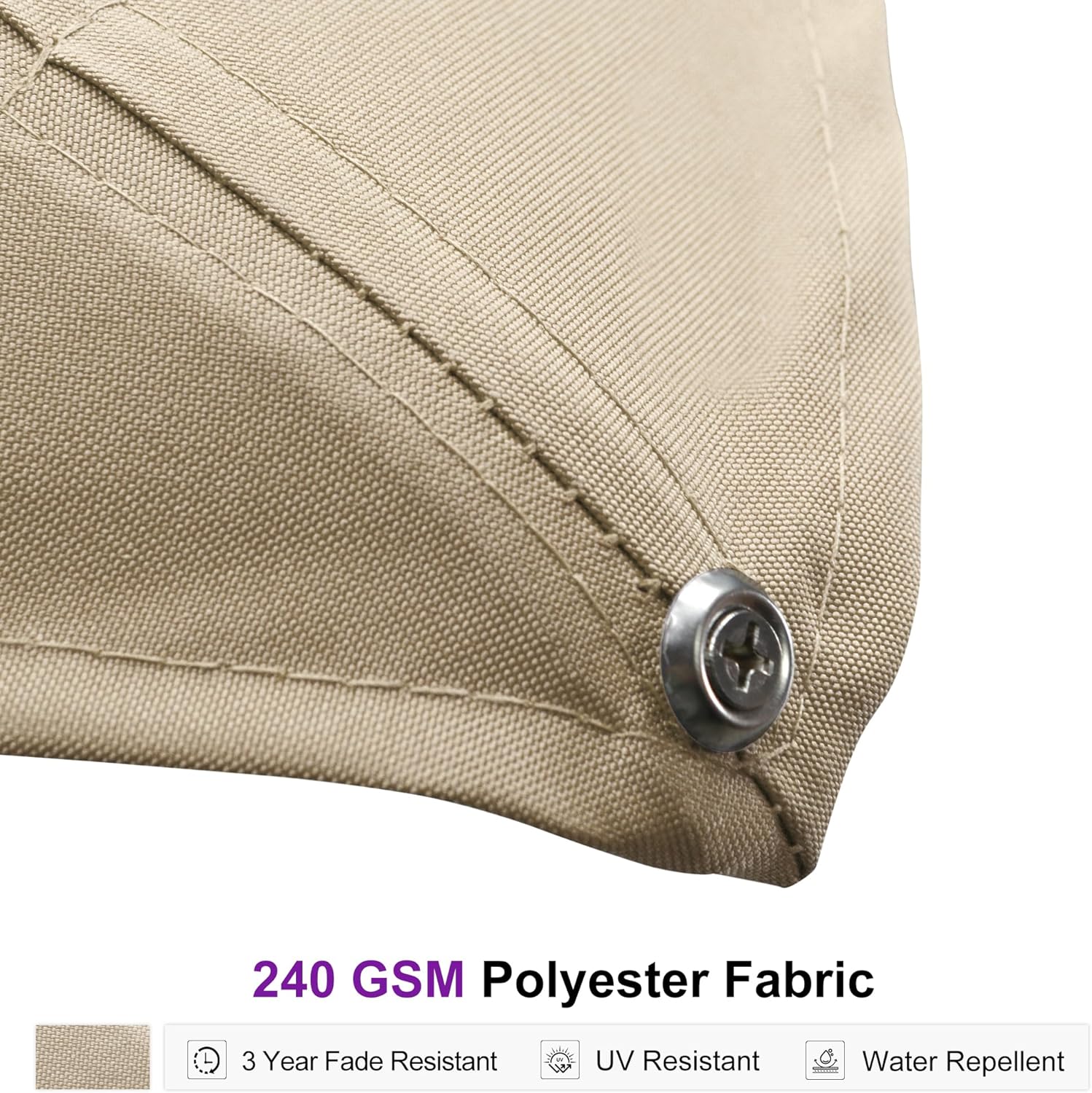

Image: A close-up of the 240 GSM polyester fabric, showing its texture and quality, which is UV resistant and water-repellent.
5. Troubleshooting
If you encounter any issues with your umbrella, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Umbrella will not open/close smoothly. | Mechanism is dry or obstructed. | Apply silicone lubricant to the crank and sliding parts. Check for any debris or fabric caught in the mechanism. |
| Umbrella is unstable or tips over. | Base is not adequately weighted or secured. | Ensure the weighted base is fully filled with sand or water. Verify all connections to the base are tight. Close the umbrella in windy conditions. |
| Canopy fabric appears faded or stained. | Prolonged exposure to sun/elements or dirt accumulation. | Clean the canopy with mild soap and water. While the fabric is UV resistant, prolonged extreme exposure can cause minimal fading over time. Use a protective cover when not in use. |
| Rotation mechanism is stiff. | Lack of lubrication or debris in the base. | Lubricate the rotation mechanism at the base. Clear any debris from around the base. |
6. Specifications
| Feature | Detail |
|---|---|
| Brand | PURPLE LEAF |
| Model | 12 FT Square Single Top Cantilever Umbrella (B08LCZCHSM) |
| Canopy Size | 12' x 12' (Square) |
| Canopy Material | 240/gsm Yarn Dyed Polyester Fabric |
| Canopy Features | UV Resistant, Water-Repellent, Fadeless |
| Pole Material | Powder-Coated Aluminum |
| Pole Diameter | 4 inches |
| Ribs | 8 Heavy-Duty Aluminum Ribs |
| Opening Mechanism | Crank System with Unique Handle Design |
| Rotation | 360-Degree Rotation |
| Tilt Adjustment | 5 Height and Angle Options |
| Recommended Use | Patio, Garden, Deck, Backyard, Pool (Commercial or Residential) |
| Base | Weighted base NOT included (search XN4150 for compatible base) |
Image: A close-up of the 4-inch diameter aluminum pole, emphasizing its sturdy construction.
Image: A comparison illustrating the ultra-stable weighted base tube design of PURPLE LEAF (13.22 lbs) versus other brands (3.7 lbs), contributing to wind resistance.

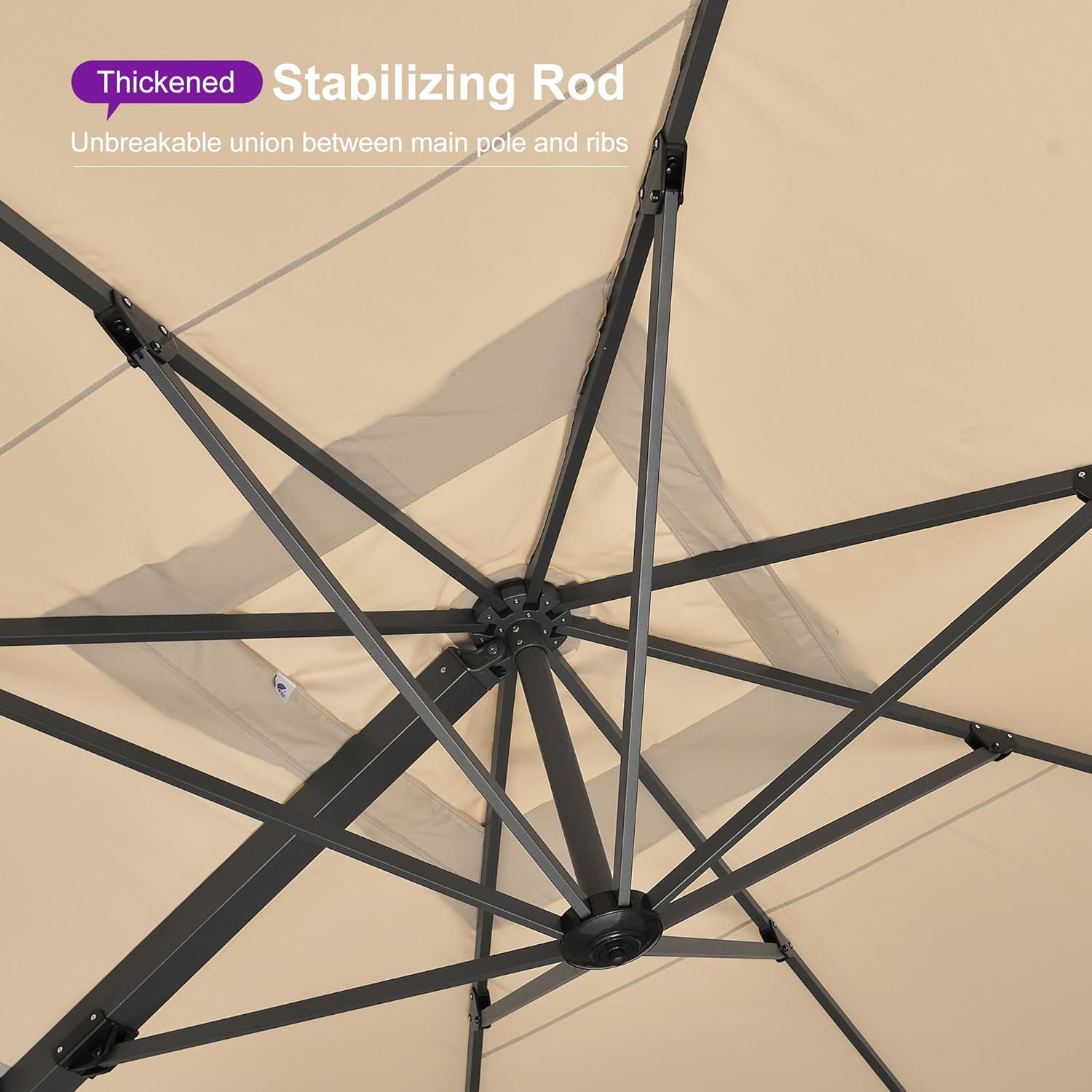

Image: A detailed view of the thickened stabilizing rod, which forms a strong union between the main pole and the umbrella ribs for enhanced durability.
7. Warranty & Support
For warranty information and customer support, please refer to the following details:
- Warranty: This product is covered by a manufacturer's warranty. Please retain your proof of purchase for any warranty claims. Specific warranty details may be found on the product packaging or by contacting customer support.
- Returns: The product is eligible for 30-day easy returns.
- Customer Support: For any questions, assistance, or to report issues, please contact PURPLE LEAF customer support. You can typically find contact information on the brand's official website or through your purchase platform.
- Online Resources: Visit the PURPLE LEAF Store on Amazon for additional product information and accessories.
