1. Introduction
Thank you for choosing the Klighten 7W IP65 LED Up/Down Wall Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions carefully before installation and retain them for future reference.
This modern wall light is designed for both indoor and outdoor applications, featuring a durable aluminum construction and IP65 waterproofing for reliable performance in various environments. It emits a warm white light, creating a comfortable ambiance.
2. Safety Instructions
- Electrical Safety: Installation must be performed by a qualified electrician or competent person in accordance with local electrical codes and regulations.
- Power Disconnection: Always disconnect the main power supply before attempting any installation, maintenance, or repair.
- Voltage Compatibility: Ensure the power supply voltage matches the fixture's requirements (220V).
- Grounding: Ensure the fixture is properly grounded to prevent electric shock.
- Handling: Handle the product with care. Avoid dropping or subjecting it to strong impacts.
- Heat: Do not cover the fixture with insulating material. Ensure adequate ventilation around the light.
- Cleaning: Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
3. Package Contents
Verify that all components are present and undamaged before proceeding with installation.
- Klighten 7W IP65 LED Up/Down Wall Light (2 units)
- Mounting hardware (screws, wall plugs)
- Instruction Manual
4. Specifications
| Parameter | Value |
|---|---|
| Model Number | GW022 |
| Dimensions (L x W x H) | 9 x 7.5 x 4.1 cm |
| Weight | 800 grams (per unit) |
| Material | Aluminum |
| Color | White |
| Power Consumption | 7 Watts |
| Voltage | 220 Volts |
| Light Source | SMD LED |
| Color Temperature | 3000 Kelvin (Warm White) |
| Luminous Flux | 500 Lumens |
| Beam Angle | Up/Down Light (2 x 120°) |
| IP Rating | IP65 (Waterproof) |
| Energy Efficiency Class | G |
| Assembly Required | Yes |
For detailed product information, refer to the official product information sheet:
EU EPREL Product Information Sheet
Image: Product dimensions and key specifications.
Image: English Product Information Sheet with detailed technical data.
Image: EU Energy Label for the Klighten GW022 LED wall light, showing class G.
5. Setup and Installation
The installation process involves electrical wiring. If you are not confident in performing electrical work, please consult a qualified electrician.
Required Tools (Not Included):
- Screwdriver (Phillips and/or Flathead)
- Drill with appropriate drill bit for wall plugs
- Wire strippers
- Voltage tester
- Pencil and measuring tape
Installation Steps:
- Turn Off Power: Locate the circuit breaker controlling the light fixture's location and turn off the power. Verify with a voltage tester that the power is off.
- Prepare Mounting Surface: Mark the desired mounting position on the wall. Use the fixture's mounting bracket as a template to mark drill holes.
- Mount Bracket: Drill holes at the marked positions. Insert wall plugs (if necessary) and secure the mounting bracket to the wall using the provided screws.
- Wire Connections: Connect the electrical wires from the wall to the fixture's wires. Typically, this involves connecting Live (L), Neutral (N), and Ground (E) wires. Ensure connections are secure and insulated. Refer to local wiring color codes.
Image: Internal view of the LED driver and wiring connections.
- Attach Fixture: Carefully align the light fixture with the mounted bracket and secure it using the provided screws. Ensure a tight seal, especially for outdoor installations, to maintain IP65 rating.
- Restore Power: Once the fixture is securely installed and all connections are checked, restore power at the circuit breaker. Test the light.

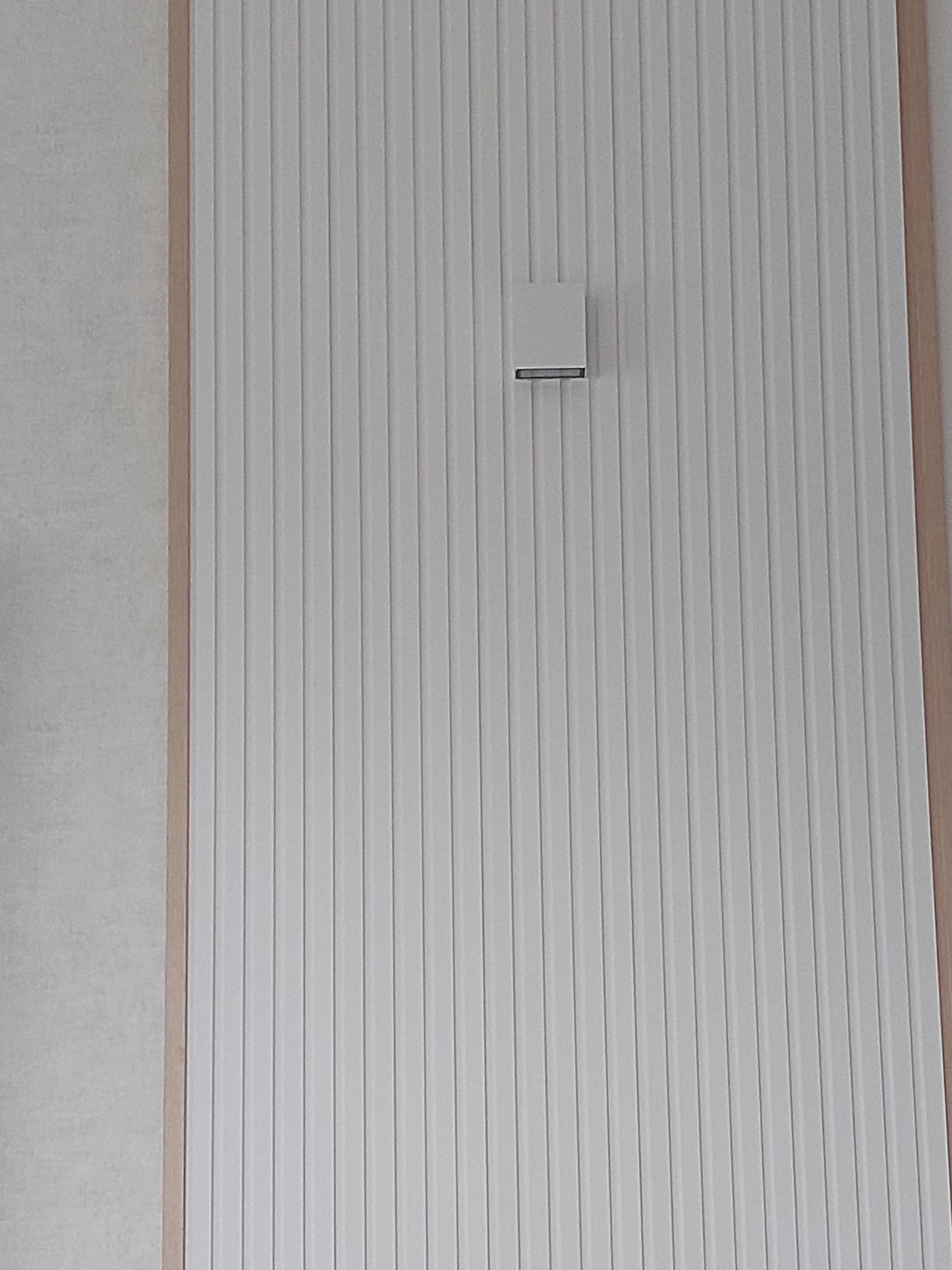

Usage Examples:
6. Operating Instructions
The Klighten 7W IP65 LED Up/Down Wall Light operates via a standard wall switch connected to your electrical circuit. Once installed and powered, simply use the connected switch to turn the light on or off.
- Turning On/Off: Use the wall switch to control the light.
- Light Output: The fixture provides a fixed warm white light (3000K) with 500 lumens output. It is not dimmable unless connected to a compatible dimming system (not included and requires professional installation).
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your wall light.
- Cleaning: Disconnect power before cleaning. Wipe the fixture with a soft, slightly damp cloth. Do not use harsh chemicals, abrasive cleaners, or solvents, as these can damage the finish or electrical components.
- Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
- LED Replacement: The integrated LED light source is designed for long-term use and is not user-replaceable. If the LED fails, the entire fixture may need replacement.
8. Troubleshooting
If you encounter issues with your Klighten wall light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. Loose wiring connection. Faulty switch. Faulty LED driver/fixture. | Check circuit breaker. Ensure all wire connections are secure (with power off). Test the switch. If other solutions fail, contact support or a qualified electrician. |
| Light flickers. | Unstable power supply. Loose wiring. Incompatible dimmer (if used). | Ensure stable power. Check wiring connections (with power off). Remove dimmer or replace with LED-compatible dimmer. |
| Water inside fixture (for outdoor use). | Improper installation/sealing. Damaged seal. | Ensure fixture is correctly sealed to the wall. Inspect the IP65 seal ring for damage and replace if necessary. |
If the problem persists after attempting these solutions, please contact Klighten customer support.
9. Warranty and Support
Klighten products are designed for quality and durability. This product comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase or contact Klighten customer service for specific warranty terms and conditions.
Customer Support:
For technical assistance, troubleshooting, or warranty claims, please contact Klighten customer support through the retailer where you purchased the product or visit the official Klighten website for contact information.
