Fuego F36S-B-NG Built-in Gas Grill User Manual
Model: F36S-B-NG | Brand: Fuego
Introduction
This manual provides essential information for the safe and efficient operation, installation, maintenance, and troubleshooting of your Fuego F36S-B-NG Built-in Gas Grill. Please read this manual thoroughly before installation and use, and retain it for future reference.
The Fuego F36S-B-NG is a high-performance built-in gas grill featuring 304 stainless steel construction, triple U-shaped burners, and a large grilling area. It is designed for outdoor use and operates on natural gas.

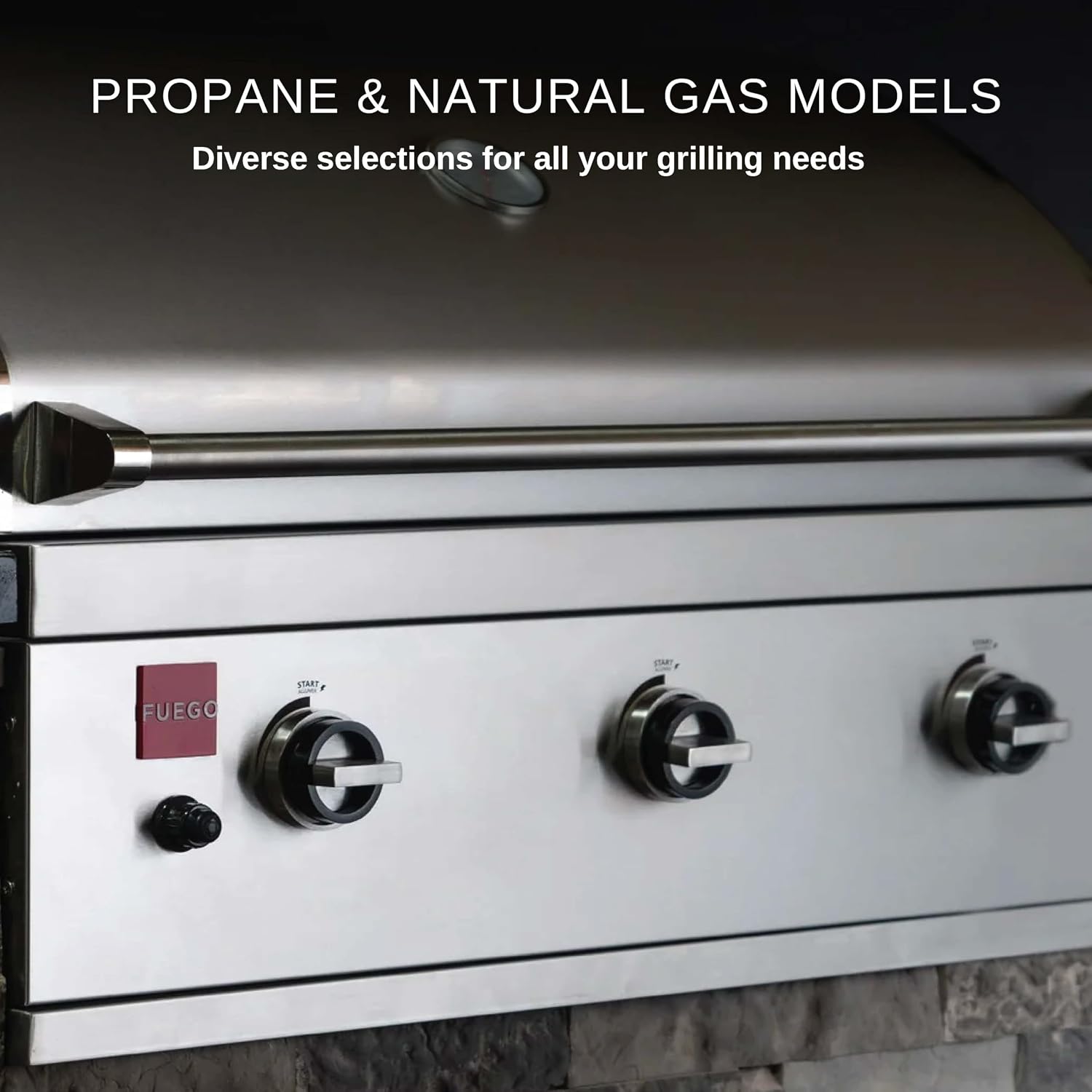

Figure 1: Front view of the Fuego F36S-B-NG Built-in Gas Grill.
Important Safety Information
WARNING:
- For outdoor use only. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- If you smell gas:
- Shut off gas to the appliance.
- Extinguish any open flame.
- Open lid.
- If odor continues, keep away from the appliance and immediately call your gas supplier or fire department.
- Do not store an extra LP cylinder under or near this appliance.
- Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.
DANGER:
- Never operate this appliance unattended.
- Never operate this appliance within 10 feet (3.05 m) of any structure, combustible material or other gas cylinder.
- Never operate this appliance within 25 feet (7.62 m) of any flammable liquid.
- Do not operate this appliance under an overhead combustible construction.
- Hot liquids remain at scalding temperatures long after cooking. Never place grill in an area where hot liquids may be encountered accidentally by children or pets.
Setup and Installation
The Fuego F36S-B-NG is designed for built-in installation. Ensure your outdoor kitchen island or counter is prepared with the correct opening dimensions for a secure fit.
Unpacking and Inspection
Carefully remove the grill from its packaging. Inspect for any shipping damage. Report any damage to your retailer immediately. Retain all packaging materials until the unit is confirmed to be in working order.
Required Opening Dimensions
For proper installation, the opening in your counter must meet the following specifications:
- Width: 36 3/8 inches (92.4 cm)
- Depth: 23 7/8 inches (60.6 cm)
- Height: 11 1/8 inches (28.3 cm)
Figure 2: Grill and opening dimensions for built-in installation.
Gas Connection (Natural Gas)
This grill is configured for natural gas (NG) operation. All gas connections must be performed by a qualified gas technician in accordance with local codes and ordinances. Ensure the gas supply line is properly sized and has an accessible shut-off valve.
Mounting
The grill features a sleek design with an easy install mounting bracket system. Carefully lower the grill into the prepared opening. Secure it using the provided mounting brackets to ensure stability.
Figure 3: Smart mounting brackets facilitate easy installation.
Operating Instructions
Pre-Operation Checklist
- Ensure all gas connections are secure and leak-free.
- Verify the grill lid is open before lighting.
- Confirm the residue tray is properly installed.
Lighting the Grill
The Fuego F36S-B-NG features an electronic ignition system and LED backlit control knobs.
- Open the grill lid.
- Ensure all control knobs are in the "OFF" position.
- Slowly turn on the gas supply at the source.
- Push in and turn one control knob counter-clockwise to the "START" position. You should hear a clicking sound as the igniter sparks.
- Hold the knob in for a few seconds until the burner ignites. The LED backlight will illuminate.
- If the burner does not light within 5 seconds, turn the knob to "OFF", wait 5 minutes for gas to dissipate, and repeat the lighting procedure.
- Once one burner is lit, you can light additional burners by simply turning their respective knobs to the "START" position.
Figure 4: Control knob with LED backlight indicating operation.
Temperature Control
The grill features three independent 20,000 BTU/hr U-shaped burners, providing a total output of 60,000 BTU/hr. This allows for precise temperature control across the grilling surface, ranging from 250°F to 700°F. The grill can reach 500°F in just 5 minutes.
Figure 5: Triple U-shaped burners ensure balanced heat distribution.
Grilling Area
The F36S-B-NG offers a total grilling area of 865 sq. inches, comprising 685 sq. inches for the main cooking surface and 180 sq. inches for the warming rack. The 8mm solid 304SS grates are designed for excellent searing.
Figure 6: Spacious grilling surface with main grates and warming rack.
Shutting Down the Grill
When finished cooking, turn all control knobs to the "OFF" position. Then, turn off the gas supply at the source valve.
Maintenance and Care
Regular cleaning and maintenance will extend the life of your Fuego grill and ensure optimal performance.
Cleaning the Cooking Grates
After each use, while the grill is still warm, use a grill brush to remove any food residue from the 304SS cooking grates. For deeper cleaning, the grates can be removed and washed with warm soapy water.
Residue Tray System
The grill features an easy-to-clean drop-through residue tray system. Regularly remove and empty the residue tray to prevent grease buildup and potential flare-ups. The tray can be washed with warm soapy water.
Figure 7: The hidden, easy-to-clean residue tray for convenient maintenance.
Exterior Cleaning
Clean the stainless steel exterior with a soft cloth and a stainless steel cleaner. Always wipe in the direction of the grain to avoid scratching. Avoid abrasive cleaners or pads.
Burner Maintenance
Periodically inspect the U-shaped burners for any blockages or damage. Clean burner ports with a wire brush if necessary. Ensure the burner tubes are free of insect nests or debris.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Burner does not light with igniter. | No gas supply; clogged burner port; faulty igniter electrode; low battery for LED/igniter. | Check gas supply valve. Clean burner ports. Check igniter wire connection. Replace battery for LED backlit knobs. |
| Uneven heating. | Clogged burner ports; grease buildup on flame tamers. | Clean burner ports. Clean flame tamers and residue tray. |
| Flare-ups. | Excessive grease buildup; high heat setting for fatty foods. | Clean residue tray and cooking grates regularly. Reduce heat setting. Trim excess fat from food. |
| Gas odor. | Gas leak. | Immediately shut off gas supply. Do not operate. Refer to safety information and contact a qualified technician or gas supplier. |
For issues not listed here, or if solutions do not resolve the problem, please contact Fuego customer support.
Specifications
| Feature | Detail |
|---|---|
| Model Number | F36S-B-NG |
| Fuel Type | Natural Gas (NG) |
| Material | All 304 Stainless Steel |
| Total BTU/hr | 60,000 BTU/hr (3 x 20,000 BTU/hr U-shaped burners) |
| Total Grilling Area | 865 sq. inches |
| Main Grilling Area | 685 sq. inches |
| Warming Rack Area | 180 sq. inches |
| Grates Material | 8mm Solid 304SS |
| Temperature Range | 250°F - 700°F |
| Heat-up Time (to 500°F) | 5 minutes |
| Product Dimensions (Lid Closed) | 36"W x 24"D x 11"H |
| Product Dimensions (Lid Open) | 36"W x 29"D x 11"H |
| Opening Dimensions Required | 36 3/8"W x 23 7/8"D x 11 1/8"H |
| Item Weight | 132 pounds |
| Special Features | Rust Resistant, LED Backlit Control Knobs, Electronic Ignition System, Easy-Clean Residue Tray |
Warranty Information
The Fuego F36S-B-NG Built-in Gas Grill comes with a Limited Lifetime Warranty on all 304 Stainless Steel components. For specific terms and conditions, including coverage details and exclusions, please refer to the warranty card included with your product or visit the official Fuego Grills website.
Retain your proof of purchase for warranty claims.
Customer Support
For technical assistance, parts, or warranty inquiries, please contact Fuego Grills customer support.
- Website: www.fuegoliving.com
- Email: Refer to website for contact form or email address.
- Phone: Refer to website for phone number.
When contacting support, please have your model number (F36S-B-NG) and proof of purchase readily available.
