1. Introduction
This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of the Hanicks Grundfos UPM3 Auto 25-70 H130 High Efficiency Pump. This pump is designed for use in underfloor heating manifold systems. Please read this manual thoroughly before installation and operation to ensure proper function and longevity of the product.
2. Safety Information
Always observe local regulations and safety standards during installation and maintenance. Incorrect installation or operation can lead to serious injury or damage to the equipment.
- Installation and service must be performed by qualified personnel only.
- Ensure the power supply is disconnected before any installation, maintenance, or repair work.
- The pump operates with electrical current. Avoid contact with water and live electrical components.
- Wear appropriate personal protective equipment (PPE) during installation and maintenance.
- Do not operate the pump if it is damaged or if any electrical connections are exposed.

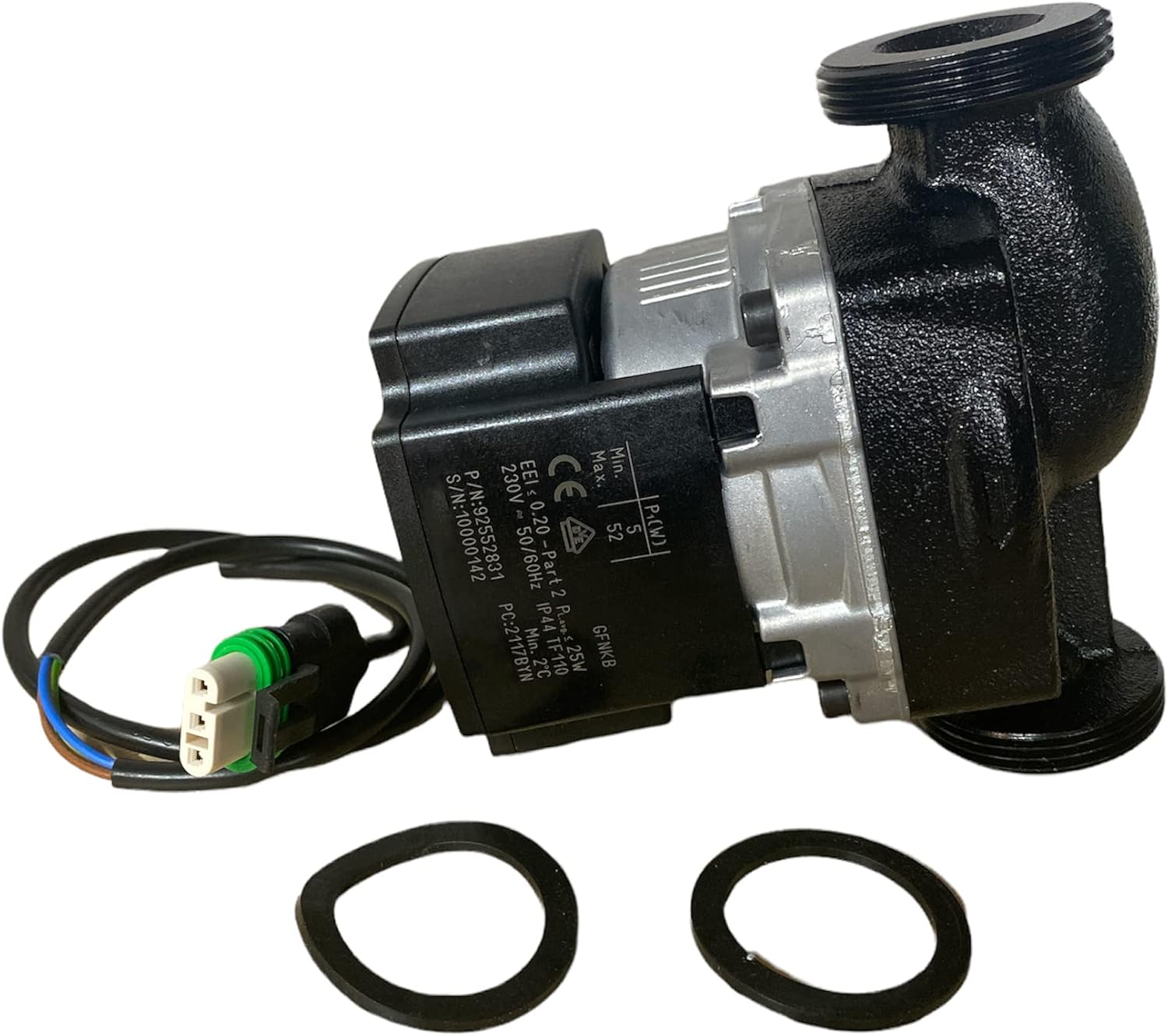

3. Product Overview
The Grundfos UPM3 Auto 25-70 H130 is a high-efficiency circulation pump specifically designed for integration into underfloor heating systems. It features automatic control for optimal performance and energy saving.
4. Specifications
| Specification | Detail |
|---|---|
| Manufacturer | Grundfos UK |
| Part Number | UPM3 Auto L 25-70 130 ZZZ |
| Product Dimensions | 12 x 8.5 x 13 cm |
| Item Model Number | 1.5” UPM3 Auto 25-70 H130 |
| Colour | Black |
| Material | Metal, Plastic |
| Item Package Quantity | 1 |
| Included Components | 1x UPM3 Auto L 25-70 130 ZZZ |
| Item Weight | 2.5 kg |
5. Installation
The Grundfos UPM3 Auto 25-70 H130 pump is designed for easy integration into existing or new underfloor heating manifold systems. Professional installation is highly recommended.
5.1 Pre-Installation Checks
- Verify that the pump specifications match your system requirements (e.g., pipe size, voltage).
- Ensure the installation area is clean, dry, and provides adequate ventilation.
- Confirm that all necessary tools and fittings are available.
5.2 Mounting the Pump
- Turn off the main power supply to the heating system.
- Drain the heating system to prevent water spillage.
- Position the pump in the designated location on the underfloor heating manifold. Ensure the flow direction arrow on the pump aligns with the system's flow.
- Use the provided gaskets and appropriate pipe fittings to connect the pump to the manifold. Tighten connections securely to prevent leaks.
5.3 Electrical Connection
- Ensure the power supply is still disconnected.
- Connect the pump's electrical cable to the system's power supply according to the wiring diagram provided with your underfloor heating manifold or by a qualified electrician.
- Ensure all electrical connections are secure and properly insulated.

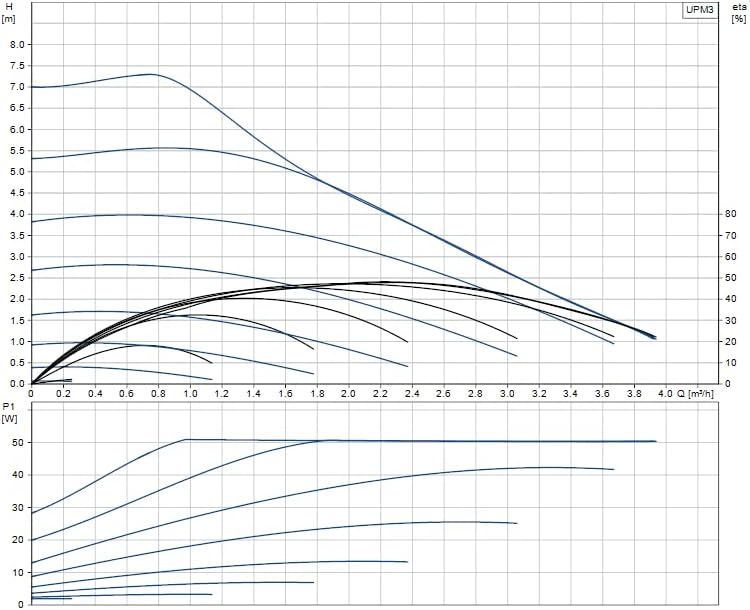

6. Operation
The Grundfos UPM3 Auto 25-70 H130 pump features automatic control, adjusting its performance to meet the system's demands. Once installed and powered, the pump will typically begin operation automatically.
6.1 Initial Start-up
- After installation, refill the heating system and bleed any air from the system.
- Restore power to the heating system. The pump should initiate operation.
- Observe the pump for any unusual noises or leaks.
6.2 Automatic Control
The pump's auto function continuously monitors the system's pressure and flow requirements, adjusting its speed to maintain optimal circulation and energy efficiency. No manual adjustments are typically required for standard operation.
7. Maintenance
The Grundfos UPM3 Auto 25-70 H130 pump is designed for minimal maintenance. Regular checks can help ensure its long-term reliability.
- Annual Inspection: Periodically check for any signs of leaks around the pump connections.
- Noise Check: Listen for any unusual noises during operation, which could indicate a problem.
- System Flushing: Ensure the heating system is flushed as per manufacturer recommendations to prevent debris buildup that could affect pump performance.
- Power Disconnection: Always disconnect power before attempting any maintenance or cleaning.
8. Troubleshooting
If you encounter issues with your pump, refer to the following common problems and solutions. For complex issues, contact a qualified technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump not running | No power supply; Air in pump; Blockage | Check power connections and circuit breaker; Bleed air from the pump/system; Check for obstructions in the pipework. |
| Pump making unusual noise | Air in system; Debris in pump; Worn bearings | Bleed air from the system; Flush the system; Contact a technician for inspection. |
| Insufficient flow/heating | Air in system; Incorrect pump setting (if applicable); System blockage | Bleed air; Ensure pump is operating correctly (auto mode); Check for blockages in pipes or manifold. |
| Leakage from pump | Loose connections; Damaged gaskets; Cracked housing | Tighten connections; Replace gaskets; Contact a technician for repair or replacement. |
9. Warranty and Support
For warranty information, technical assistance, or spare parts, please contact Hanicks Heating & Spares directly. Ensure you have your product model number (UPM3 Auto 25-70 H130) and purchase details available when contacting support.
You can visit the Hanicks Store for more information or to find contact details.
