VEVOR Sliding Gate Opener User Manual

1. Product Overview

The VEVOR Sliding Gate Opener is designed for automatic operation of sliding gates, providing convenience and security for residential and commercial properties. Featuring a powerful 370W copper motor, it can handle gates up to 1400 lbs (600 kg) with a movement speed of 43 feet per minute. The unit is built with a sturdy, waterproof casing to withstand various weather conditions and operates quietly, ensuring minimal disturbance.

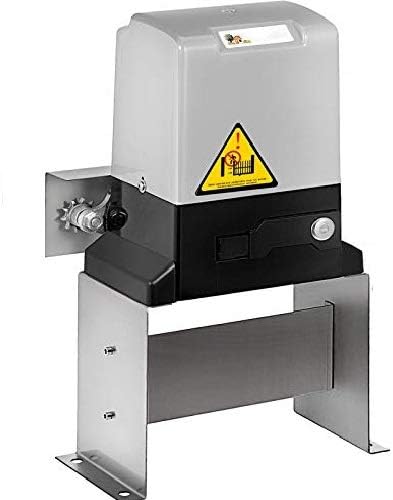

Image 1.1: The VEVOR Sliding Gate Opener main unit.

Image 1.2: The VEVOR Sliding Gate Opener installed, demonstrating high move speed.

Image 1.3: Illustration showing the quiet operation of the VEVOR Sliding Gate Opener, with noise levels below 56 dB.

2. Safety Instructions

Always read and understand all safety instructions before installation and operation. Failure to follow these instructions could result in serious injury or property damage.

• Ensure the gate area is clear of people and obstructions before operating.
• Do not allow children to play with or near the gate opener.
• Keep remote controls out of reach of children.
• In case of power failure, use the manual release keys to operate the gate.
• Regularly inspect the gate and opener for any signs of wear or damage.
• The motor features an obstruction detection system; the gate will stop and reverse if an obstacle is encountered during closing or opening.
• Disconnect power before performing any maintenance or repairs.

Image 2.1: Smart Obstruction Detection system, which stops and reverses the gate upon encountering obstacles.

3. Product Components

The VEVOR Sliding Gate Opener comes with all necessary components for installation and operation.

• Sliding Gate Opener Main Unit
• 2 x Wireless Remote Controls
• 2 x Manual Release Keys
• 2 x 10 ft (3m) Chains (total 20 ft / 6m)
• Installation Hardware (bolts, nuts, brackets, etc.)

Image 3.1: All included components: main unit, remote controls, keys, chains, and various installation hardware.

Image 3.2: The gate opener is compatible with additional accessories such as a warning light (sold separately).

4. Setup and Installation

The VEVOR Sliding Gate Opener is designed for easy installation. Follow the detailed instructions provided in the installation manual included with your product. Ensure proper mounting and chain alignment for optimal performance.

• Mount the gate opener securely on a stable base, ensuring the 9-inch height base prevents submersion during heavy rain.
• Install the provided chains along the gate, connecting them to the opener's sprocket.
• Connect the power supply according to local electrical codes.
• Install open and close limit blocks to define the gate's travel range.

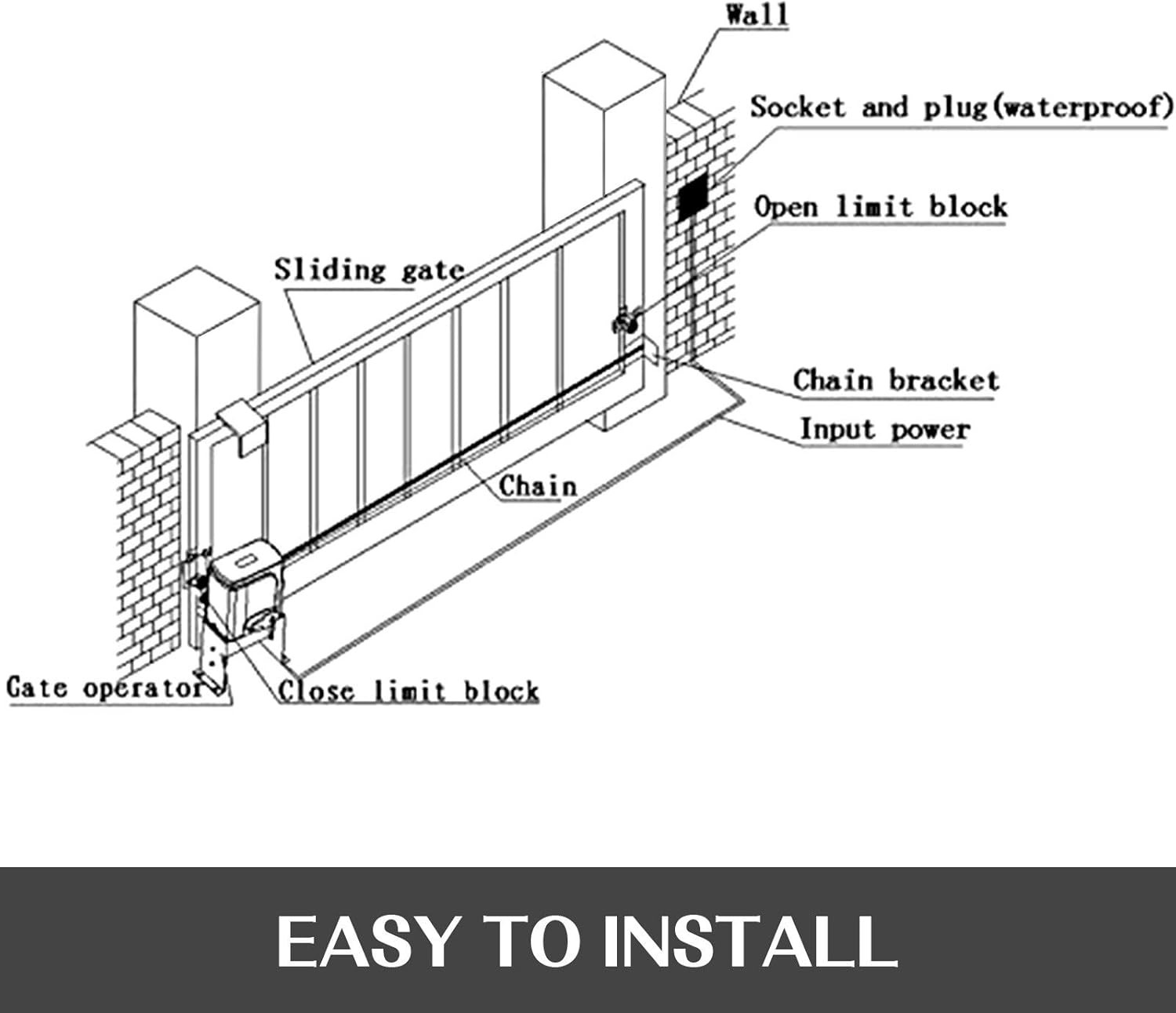

Image 4.1: Detailed diagram illustrating the installation process, including gate operator, chain, limit blocks, and power input.

5. Operating Instructions

The gate opener can be controlled using the included wireless remote controls.

• Remote Control: Use the remote to open, close, or stop the gate from up to 100 feet away.
• Manual Release: In case of a power outage, insert the manual release key into the lock on the unit and turn it to disengage the motor, allowing the gate to be operated manually.

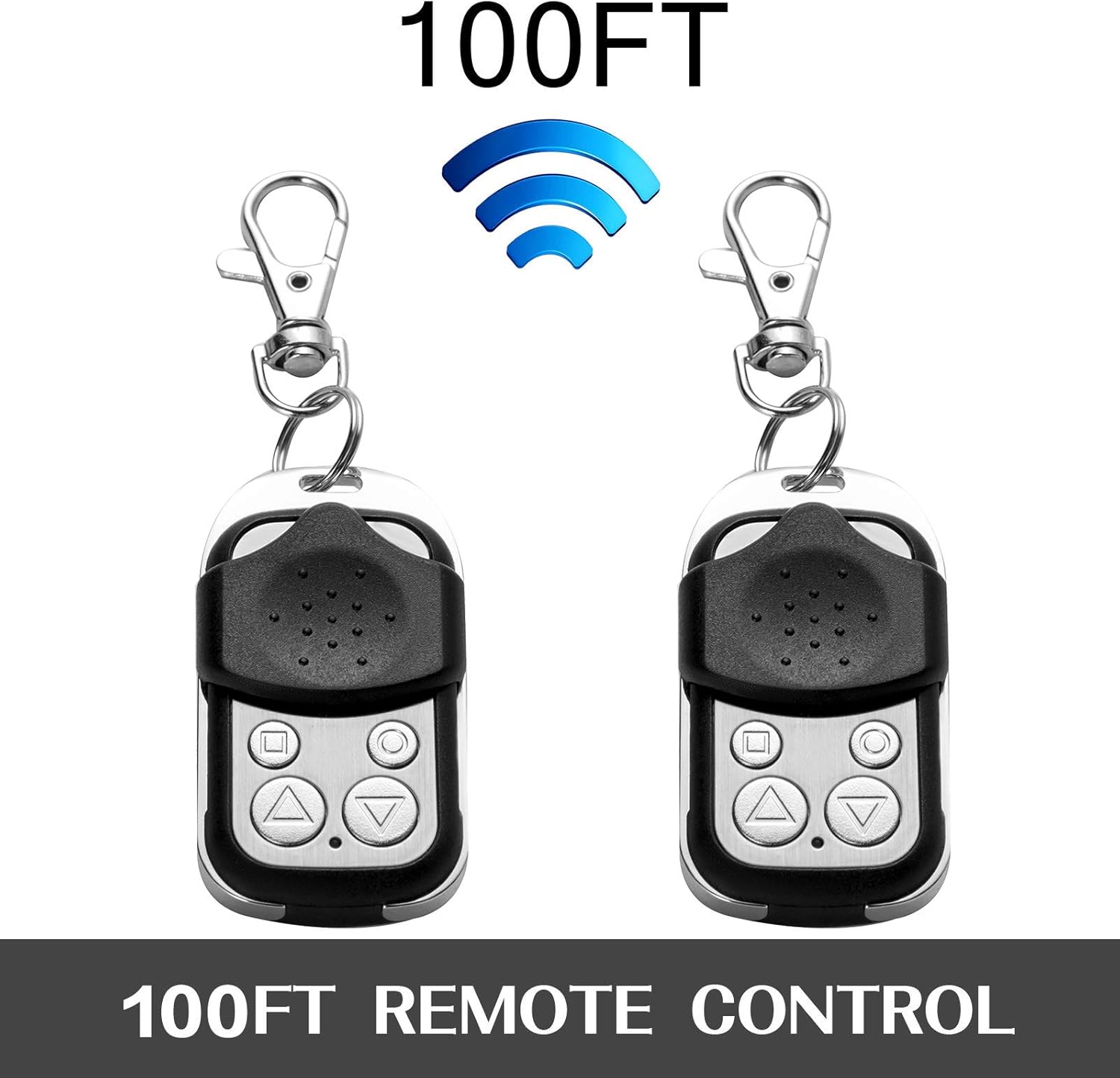

Image 5.1: Two wireless remote controls included for convenient operation of the gate opener from a distance of up to 100 feet.

6. Maintenance

Regular maintenance ensures the longevity and reliable operation of your VEVOR Sliding Gate Opener.

• Cleaning: Keep the main unit and surrounding area clean from debris, dirt, and leaves.
• Lubrication: Periodically lubricate the gate chain and any moving parts as recommended in the full installation manual.
• Inspection: Check the chain tension regularly. Inspect all mounting hardware and electrical connections for tightness and wear.
• Weather Protection: The unit features a sturdy, waterproof shell and rainproof cover, but ensure proper drainage around the base.

Image 6.1: The gate opener is designed to be durable in various weather conditions, featuring a waterproof casing.

7. Troubleshooting

If you encounter issues with your gate opener, refer to the following common troubleshooting steps:

• Gate not moving: Check power supply, ensure manual release is engaged, and verify remote control battery.
• Gate stops or reverses unexpectedly: This indicates the obstruction detection system is active. Check for any physical obstructions in the gate's path. The motor also has a temperature protector to prevent overheating.
• Remote control not working: Check remote battery. Ensure you are within the 100 ft operating range.
• Unusual noises: Inspect the chain and gears for any foreign objects or excessive wear. Lubricate if necessary.

For persistent issues, please contact VEVOR customer support.

8. Specifications

Image 8.1: Detailed dimensions of the VEVOR Sliding Gate Opener unit.

Image 8.2: Key specifications of the 370W copper motor, including max gate weight and move speed.

9. Warranty and Support

For warranty information, technical support, or service inquiries, please refer to the warranty card included with your product or visit the official VEVOR website. You can also contact VEVOR customer service directly for assistance.

VEVOR is committed to providing quality products and customer satisfaction.
