1. Introduction
Thank you for purchasing the Boxlood 120W LED Outdoor Flood Light. This manual provides essential information for the safe installation, operation, and maintenance of your flood light. Please read this manual thoroughly before use and retain it for future reference.
Figure 1: Boxlood 120W LED Outdoor Flood Light overview.
2. Safety Instructions
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury.
- Electrical Safety: Ensure power is disconnected at the circuit breaker before installation or servicing. All wiring must comply with local electrical codes.
- Qualified Personnel: Installation should be performed by a qualified electrician.
- Grounding: The fixture must be properly grounded to prevent electric shock.
- Voltage: Verify that the supply voltage is compatible with the flood light's requirements.
- Outdoor Use: This product is rated IP66 waterproof for outdoor applications. However, ensure all wiring connections are properly sealed and waterproofed, especially at joints, to maintain integrity.
- Heat: Do not touch the light fixture immediately after operation as it may be hot.
- Light Source: Do not stare directly into the LED light source when illuminated.
3. Package Contents
Carefully unpack the box and ensure all items are present and undamaged. If any items are missing or damaged, contact customer support.
- Boxlood 120W LED Outdoor Flood Light (2 units)
- Mounting Bracket (pre-attached)
- Instruction Manual
- Mounting Hardware (screws, anchors)

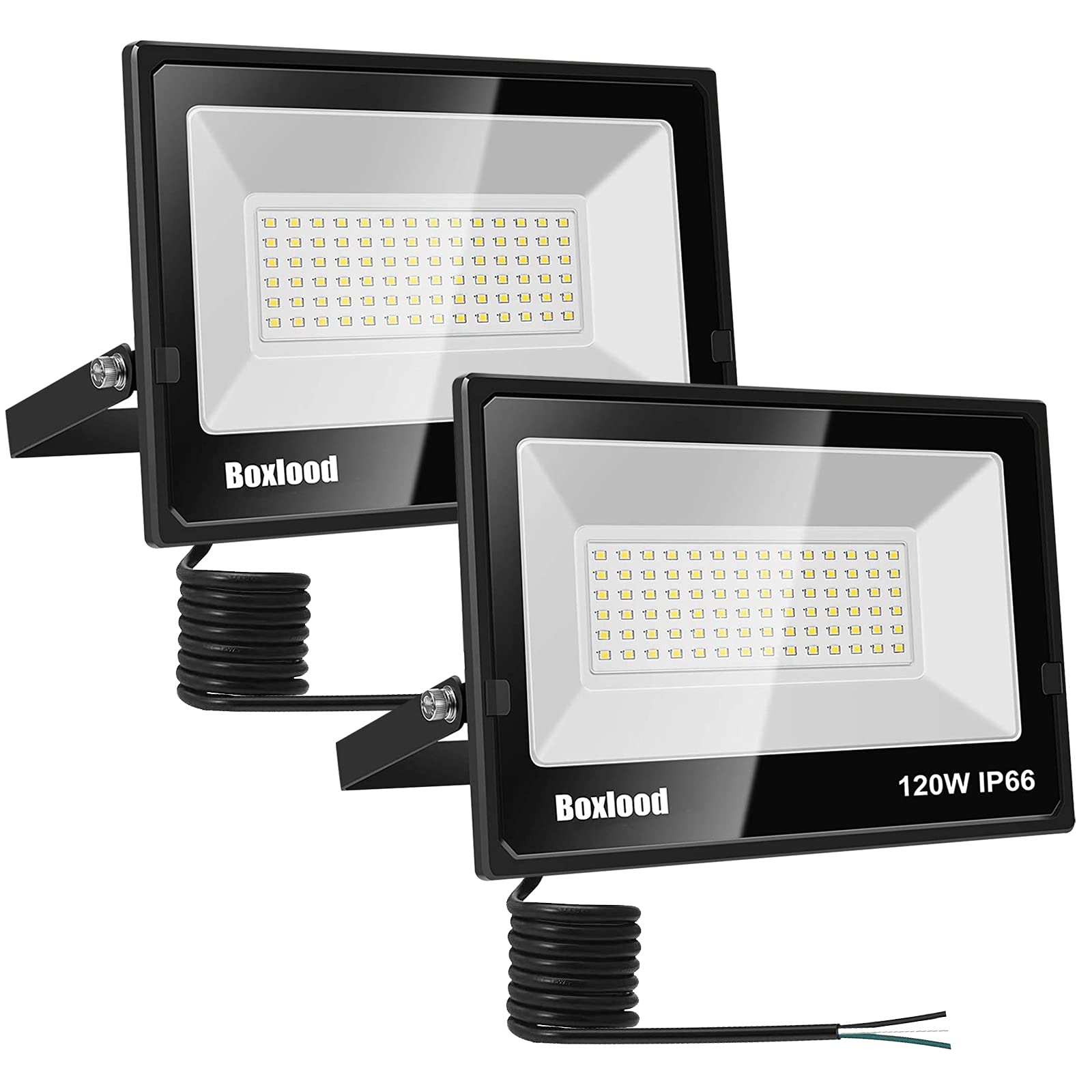

Figure 2: Example of product packaging (2-pack).
4. Product Features
The Boxlood 120W LED Outdoor Flood Light is designed for high performance and durability in various outdoor settings.
- High Brightness: 120W LED provides 12000LM of super bright 6000K cool white light.
- IP66 Waterproof: Suitable for outdoor applications, resistant to dust and powerful water jets.
- Durable Construction: Features high-quality aluminum housing and tempered glass cover for anti-drop and anti-break protection.
- Efficient Heat Dissipation: Advanced heatsink design ensures stable performance and extended lifespan.
- Adjustable Angle: 180° adjustable bracket allows for flexible lighting direction.
- Wide Beam Angle: 120° beam angle illuminates a broad area.
- Versatile Use: Ideal for basketball courts, stadiums, playgrounds, garages, yards, and other large outdoor spaces.
Figure 3: Advanced heatsink system for efficient heat dissipation.
Figure 4: Key features: High Quality LED, Tempered Glass, 120° Wide Beam Angle, 180° Adjustable Angle, Flexible Adjustment, Advanced Heatsink.
5. Specifications
| Feature | Detail |
|---|---|
| Brand | Boxlood |
| Model Number | BL-120W-6000K-2P |
| Wattage | 120 watts |
| Light Source | LED |
| Color Temperature | 6000K (Cool White) |
| Luminous Flux | 12000LM |
| Beam Angle | 120° |
| Adjustable Angle | 180° |
| IP Rating | IP66 Waterproof |
| Material | Aluminum, Tempered Glass |
| Power Source | Corded Electric |
| Control Method | Remote (if included, check packaging) |
| Mounting Type | Ceiling Mount, Ground Mount, Wall Mount |
| Special Features | Dawn-To-Dusk, Motion Sensor (features may vary by specific model/package) |
| Unit Count | 2.0 Count |
6. Setup & Installation
Follow these steps for proper installation of your flood light. Ensure power is OFF before beginning.
6.1. Mounting
- Choose Location: Select a suitable mounting location (wall, ceiling, or ground) that provides the desired illumination area and is structurally sound.
- Mark Drilling Points: Use the pre-attached mounting bracket as a template to mark the drilling points on the surface.
- Drill Holes: Drill appropriate holes for the mounting hardware (screws and anchors, if needed).
- Secure Bracket: Attach the mounting bracket securely to the surface using the provided hardware.
- Adjust Angle: Once mounted, the bracket allows for 180° adjustment. Loosen the side screws, adjust the light to the desired angle, and then tighten the screws firmly.
6.2. Wiring
The flood light comes with a three-wire cable. Connect these wires to your main power supply according to the following color code:
- Black (L): Live/Hot Wire
- White (N): Neutral Wire
- Green (G): Ground Wire
Warning: For outdoor use, ensure all wiring connections are properly sealed and waterproofed at the joints to prevent water ingress and electrical hazards.

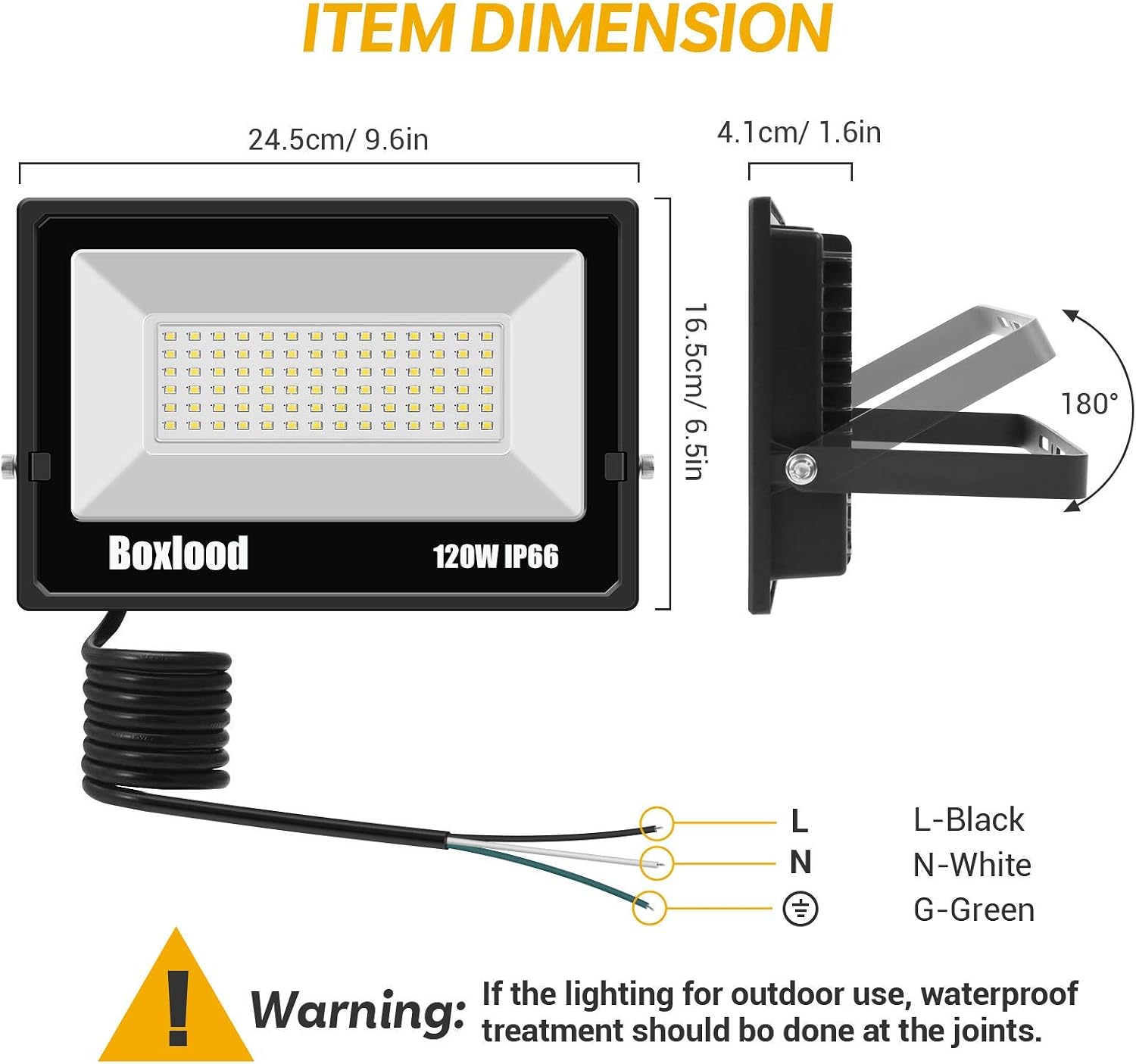

Figure 5: Item dimensions and wiring color code (L-Black, N-White, G-Green).
7. Operating Instructions
7.1. Power On/Off
After successful installation and wiring, restore power at the circuit breaker. The flood light will illuminate. Use the connected wall switch or remote control (if applicable) to turn the light on or off.
7.2. Remote Control (If Applicable)
If your model includes a remote control, refer to the separate remote control guide for specific functions such as brightness adjustment, timer settings, or mode selection (e.g., Dawn-To-Dusk, Motion Sensor).
7.3. Special Features (If Applicable)
- Dawn-To-Dusk Sensor: If equipped, the light will automatically turn on at dusk and turn off at dawn. Ensure the sensor is not obstructed.
- Motion Sensor: If equipped, the light will activate when motion is detected within its range. Adjust sensitivity and duration settings as per the remote control guide.
Figure 6: Examples of wide application areas for the flood light.
8. Maintenance
The Boxlood LED Flood Light requires minimal maintenance. Regular cleaning and inspection will ensure optimal performance and longevity.
- Cleaning: Periodically clean the tempered glass cover with a soft, damp cloth to remove dirt, dust, or debris that may obstruct light output. Do not use abrasive cleaners or solvents.
- Inspection: Annually inspect the mounting bracket and wiring for any signs of wear, corrosion, or damage. Ensure all connections remain secure and waterproof.
- LEDs: The LED light source is non-replaceable. Do not attempt to open the fixture or replace individual LEDs.
9. Troubleshooting
If you encounter issues with your flood light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power supply Faulty wiring connection Defective light fixture | Check circuit breaker and wall switch. Verify all wiring connections are secure and correct. If power is confirmed and wiring is correct, contact customer support. |
| Light flickers | Loose wiring connection Unstable power supply Internal component issue | Check and secure all wiring connections. Ensure stable power supply. Consult an electrician if power fluctuations are suspected. If flickering persists, contact customer support. |
| Light turns on/off unexpectedly (for models with sensors) | Sensor obstruction Incorrect sensor settings Environmental interference | Ensure the Dawn-To-Dusk or Motion Sensor is not blocked. Adjust sensor sensitivity and duration settings via remote control (if applicable). Minimize sources of interference (e.g., moving branches, reflective surfaces for motion sensors). |
10. Warranty & Support
Boxlood products are manufactured to high-quality standards. This product is covered by a limited warranty against defects in materials and workmanship from the date of purchase. Please refer to the warranty card included in your package for specific terms and conditions.
For technical support, warranty claims, or any questions regarding your Boxlood 120W LED Outdoor Flood Light, please contact our customer service team through the retailer where the product was purchased or visit the official Boxlood website for contact information.
Please have your model number (BL-120W-6000K-2P) and proof of purchase ready when contacting support.
