Banjo HB050-90 Polypropylene Barbed x MNPT 90-Degree Elbow Instruction Manual

Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of the Banjo HB050-90 Barbed x MNPT 90-Degree Elbow. This fitting is designed for fluid transfer applications, connecting a 1/2-inch barbed hose to a 1/2-inch Male National Pipe Taper (MNPT) threaded connection. Constructed from durable polypropylene, it offers resistance to various chemicals and environments within specified temperature and pressure limits.

Setup and Installation

Proper installation is crucial for the reliable performance of the Banjo HB050-90 elbow. Follow these steps carefully:

1. Inspect the Fitting: Before installation, visually inspect the elbow for any signs of damage, cracks, or manufacturing defects. Ensure both the barbed end and the MNPT threads are clean and free of debris.
2. Prepare the Threaded Connection: For the MNPT threaded end, apply an appropriate thread sealant (e.g., PTFE tape or pipe thread compound) to the male threads of the mating component. Ensure the sealant is compatible with the fluid being transferred and the polypropylene material of the elbow.
3. Connect the MNPT End: Carefully thread the MNPT end of the Banjo HB050-90 elbow into the female NPT port. Hand-tighten first, then use a wrench to tighten until a secure, leak-free seal is achieved. Avoid over-tightening, which can damage the threads or the fitting.
4. Prepare the Barbed Hose: Select a hose with an inner diameter that matches the 1/2-inch barb size. Ensure the hose end is cut cleanly and is free of burrs. For easier installation, the hose end can be briefly warmed in hot water (not boiling) or lubricated with a compatible, non-petroleum-based lubricant.
5. Connect the Barbed Hose: Push the hose firmly over the barbed end of the elbow until it is fully seated past all barbs. For high-pressure applications or added security, a hose clamp (not included) should be installed over the hose and tightened securely just behind the last barb.
6. Verify Connections: After installation, visually inspect all connections to ensure they are tight and properly seated.

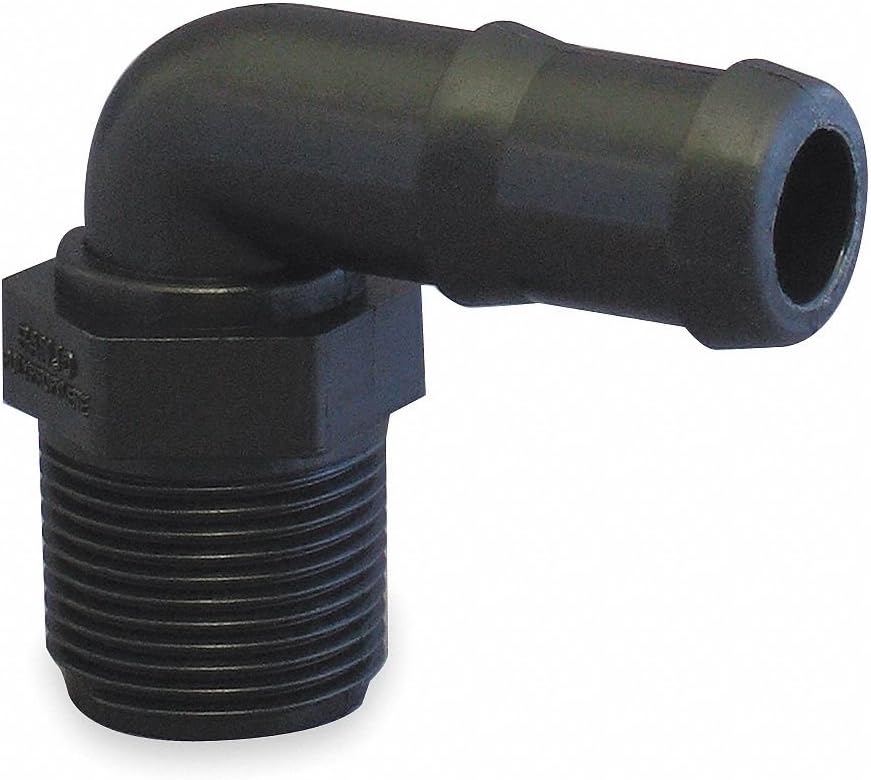

Figure 1: Overview of the Banjo HB050-90 elbow, highlighting its 90-degree angle and connection types.

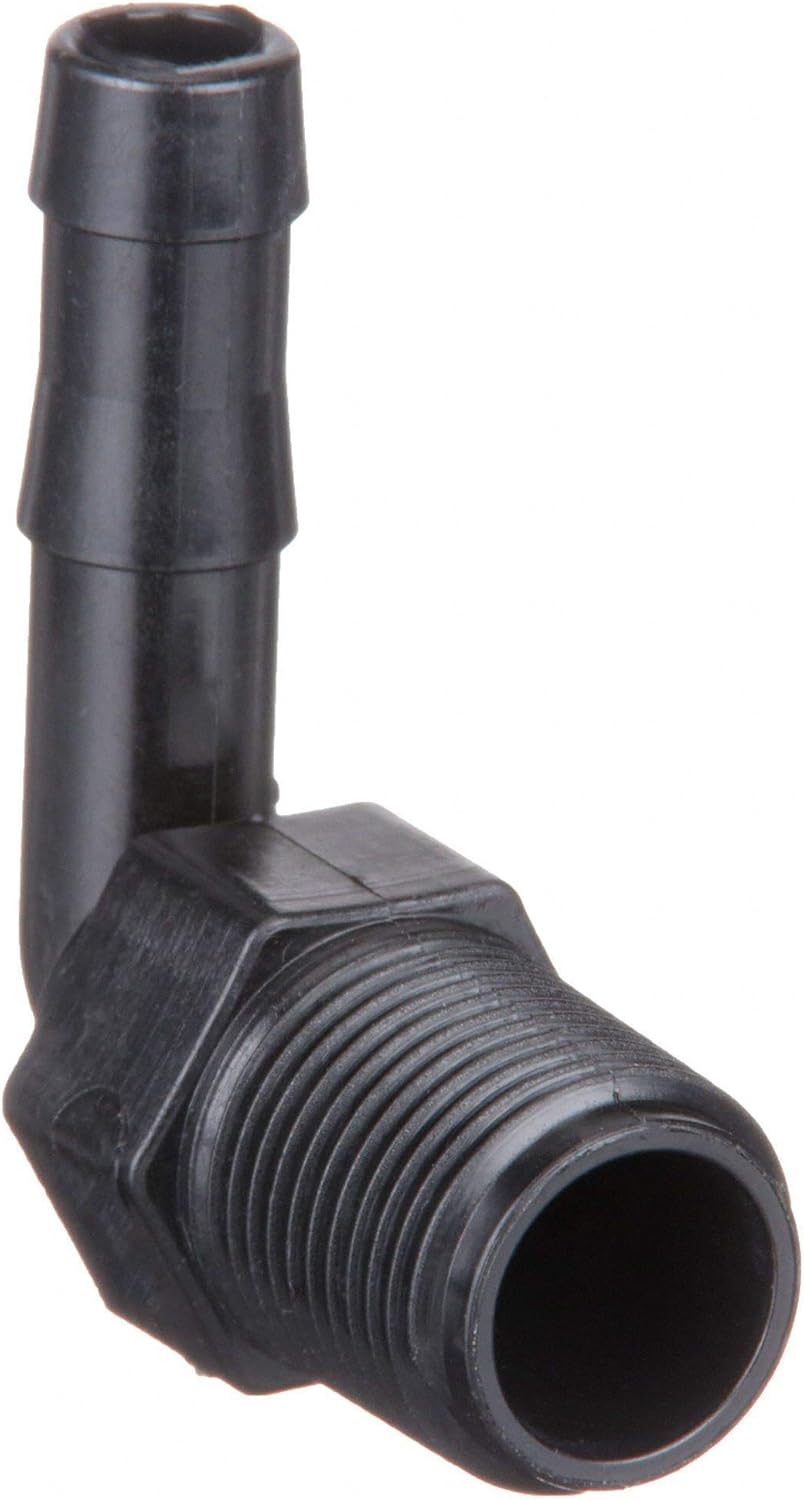

Figure 2: Detailed view of the barbed and MNPT ends, illustrating the connection points.

Operating Instructions

Once installed, the Banjo HB050-90 elbow functions as a passive component within a fluid transfer system. Proper operation primarily involves ensuring the system parameters remain within the fitting's specified limits:

• Pressure Limits: Do not exceed the maximum pressure rating of 150 psi at 70°F. Operating above this pressure can lead to fitting failure and system leaks.
• Temperature Limits: Ensure the fluid temperature and ambient temperature remain within the range of -20°F to 150°F. Extreme temperatures outside this range can compromise the integrity of the polypropylene material.
• Leak Check: After initial installation and before full operation, pressurize the system gradually and carefully check all connections for leaks. Address any leaks immediately by re-tightening or re-sealing as necessary.
• Chemical Compatibility: Verify that the fluid being transferred is compatible with polypropylene to prevent material degradation over time.

Maintenance

The Banjo HB050-90 elbow requires minimal maintenance, but regular inspection is recommended to ensure continued reliable performance:

• Regular Inspection: Periodically inspect the fitting and its connections for any signs of wear, cracks, discoloration, or damage. Pay close attention to the barbed area and threaded connections.
• Check for Leaks: Routinely check for any signs of leakage around the fitting, especially after system pressure fluctuations or temperature changes.
• Cleaning: If cleaning is necessary, use mild soap and water. Avoid harsh chemicals or abrasive cleaners that could damage the polypropylene material.
• Replacement: If any damage, significant wear, or persistent leaks are observed, the fitting should be replaced immediately to prevent system failure.

Troubleshooting

This section addresses common issues that may arise with the Banjo HB050-90 elbow:

• Issue: Leaks at the MNPT Connection
  Possible Cause: Insufficient thread sealant, damaged threads, or improper tightening.
  Solution: Disassemble the connection, clean the threads, reapply thread sealant (e.g., fresh PTFE tape), and re-tighten the fitting. Ensure not to over-tighten. If threads are damaged, replace the fitting or the mating component.
• Issue: Leaks at the Barbed Hose Connection
  Possible Cause: Incorrect hose size, hose not fully seated, damaged barb, or missing/loose hose clamp.
  Solution: Verify the hose inner diameter matches the 1/2-inch barb. Ensure the hose is pushed completely over all barbs. Install or tighten a hose clamp for a more secure connection. Inspect the barb for damage; if damaged, replace the elbow.
• Issue: Difficulty Connecting Hose to Barb
  Possible Cause: Hose is too stiff or cold.
  Solution: Briefly warm the end of the hose in hot water (not boiling) to make it more pliable. A small amount of compatible, non-petroleum-based lubricant can also assist.
• Issue: Fitting Does Not Thread Properly into NPT Port
  Possible Cause: Mismatched thread type (e.g., not NPT), cross-threading, or damaged threads.
  Solution: Ensure the mating port is indeed a 1/2-inch Female NPT thread. Carefully align the threads before attempting to turn. If resistance is felt immediately, stop and re-align. Never force the connection. If threads appear damaged on either component, replacement is necessary.

Specifications

Warranty Information

Warranty information for the Banjo HB050-90 Barbed x MNPT 90-Degree Elbow is not available in the provided product data. Please refer to the manufacturer's official website or contact Banjo customer service for details regarding product warranties.

Support

For further assistance, technical support, or inquiries regarding the Banjo HB050-90 elbow, please contact Banjo Corporation directly through their official channels. Specific contact information is not provided in this manual.
