Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Bediffer 12V Windscreen Wiper Motor. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
Safety Information
Always observe the following safety precautions:
- Ensure the vehicle's power is disconnected before attempting any installation or maintenance.
- Wear appropriate personal protective equipment, such as safety glasses and gloves.
- Verify the motor's voltage (12V DC) matches your vehicle's electrical system.
- Do not operate the motor if it appears damaged or if wiring is exposed.
- Seek professional assistance if you are unsure about any installation steps.
Product Overview
The Bediffer 12V Windscreen Wiper Motor is designed for reliable operation in various applications, particularly suitable for Willys Tractors. It features a durable iron construction and a simple 12V DC power input.
Figure 1: Front view of the Bediffer 12V Windscreen Wiper Motor. This image shows the main body of the motor, the output shaft, and the electrical connection terminals labeled 'S', '-', and '+', indicating the 12V DC input.
Figure 2: Side view of the wiper motor, highlighting the integrated ON/OFF switch and the mounting bracket. The switch allows for direct control of the wiper function.
Specifications
| Feature | Specification |
|---|---|
| Brand | Bediffer |
| Model | B08KT77B1L |
| Voltage | 12 Volts DC |
| Material | Iron |
| UPC | 886108847392 |
Installation
Follow these steps for proper installation of the wiper motor:
- Prepare the Vehicle: Ensure the vehicle's ignition is off and the battery is disconnected to prevent electrical hazards.
- Remove Old Wiper Motor (if applicable): Carefully detach the existing wiper arm and motor assembly. Note the wiring connections before removal.
- Mount the New Motor: Position the Bediffer wiper motor in the desired location on the windscreen frame or mounting bracket. Secure it using appropriate fasteners. The motor is designed to fit Willys Tractors.
- Connect Wiring:
- Connect the positive (+) terminal of the motor to the 12V DC power source (e.g., ignition switch or dedicated wiper circuit).
- Connect the negative (-) terminal of the motor to a suitable ground point on the vehicle chassis.
- The 'S' terminal is typically for the automatic stopper function, if utilized. Consult your vehicle's wiring diagram for specific connections.
- Install Wiper Arm: Attach the wiper arm to the motor's output shaft. Ensure it is securely fastened and positioned correctly for optimal sweep.
- Test Functionality: Reconnect the battery. Turn on the ignition and test the wiper motor's operation using the integrated switch or vehicle's wiper control.

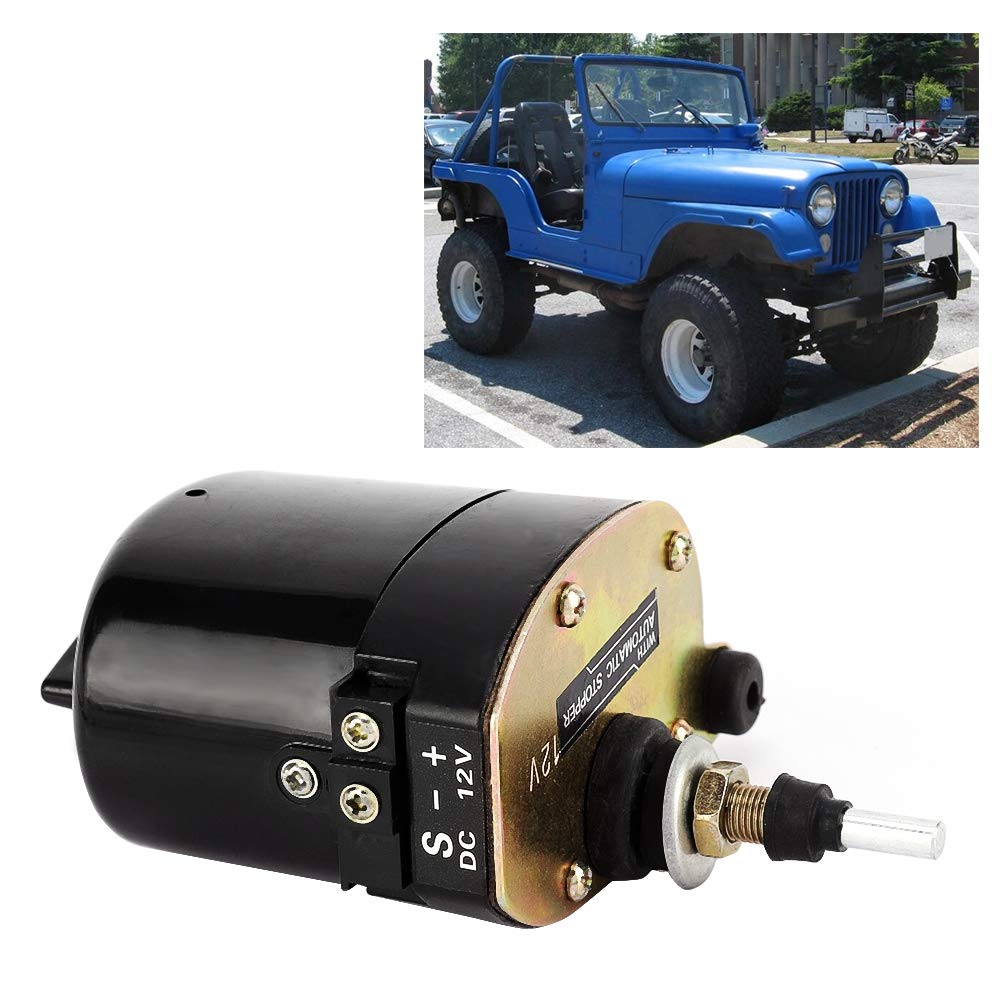

Figure 3: Example of the wiper motor's application, shown alongside a blue Willys Jeep. This illustrates the type of vehicle the motor is compatible with.
Figure 4: Another view demonstrating the motor's suitability for Willys Jeep Tractors, with two classic vehicles in the background.
Figure 5: This image shows a comparison between an "Old Type" and "New Type" of the wiper motor. While both are functionally similar, minor aesthetic differences in the casing or bracket finish may exist. Both types are shipped randomly.
Operation
The Bediffer wiper motor is designed for straightforward operation:
- Power On: Once installed and wired, the motor receives power when the vehicle's ignition is on and the wiper circuit is activated.
- Using the Integrated Switch: If your motor features an integrated ON/OFF switch (as shown in Figure 2), simply toggle it to the 'ON' position to activate the wiper and 'OFF' to stop it.
- Vehicle's Wiper Control: If the motor is connected to the vehicle's existing wiper control system, operate it as you would the original wiper system.
Figure 6: Close-up top view of the wiper motor, clearly showing the integrated ON/OFF switch for manual control of the wiper function.
Maintenance
Minimal maintenance is required for the Bediffer wiper motor:
- Regular Inspection: Periodically check the motor and wiring for any signs of wear, corrosion, or damage.
- Cleanliness: Keep the motor housing free from excessive dirt, mud, and debris. Use a damp cloth for cleaning.
- Lubrication: The motor is factory-lubricated. No additional lubrication is typically required for the internal components. Ensure the wiper arm pivot points are free-moving.
Troubleshooting
If you encounter issues with your wiper motor, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Motor does not operate. | No power, loose wiring, blown fuse, faulty switch. | Check battery connection, inspect wiring for secure connections, check vehicle's fuse box, test the wiper switch. |
| Wiper moves slowly or intermittently. | Low voltage, excessive friction, motor nearing end of life. | Verify 12V power supply, ensure wiper arm pivots are clean and lubricated, consider motor replacement if issues persist. |
| Wiper arm does not return to park position. | Faulty park switch (if applicable), incorrect wiring of 'S' terminal. | Check wiring to the 'S' terminal and ensure it's correctly connected for the park function. |
If troubleshooting steps do not resolve the issue, contact customer support or a qualified technician.
Warranty and Support
For warranty information or technical support, please refer to the Bediffer official website or contact your retailer. Keep your purchase receipt as proof of purchase.
