1. Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your Harper & Bright Designs House Bunk Beds. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
2. Safety Information
WARNING: Failure to follow these warnings and instructions could result in serious injury or death.
- Always supervise children when they are using the bunk bed.
- Ensure the bunk bed is assembled correctly and is stable before allowing children to use it.
- Do not allow children to climb on the top bunk unless they are old enough and tall enough to do so safely.
- Keep the area around the bunk bed clear of toys and other objects that could cause a child to trip or fall.
- Do not exceed the maximum weight capacity of the bunk bed.
- Only use mattresses that are the correct size for the bunk bed.
- Periodically check and ensure that all connectors are tight.
3. Product Features and Dimensions
This house bunk bed features a unique playhouse design for the top bunk, providing an interactive sleeping space. The bottom bed is a low-profile full size, suitable for younger children. The bed is constructed from solid wood and artificial wood, ensuring durability and stability.
Key Features:
- Twin over Full Bunk Bed configuration.
- Playhouse design with semi-roof on the top bunk.
- Low-profile bottom bunk for enhanced safety.
- Solid wood and artificial wood construction.
- No box spring needed; includes solid pine wood slats.
- Convertible design with two assembly options for lower bunk placement (left or right).
Product Specifications:
| Size | Twin Over Full |

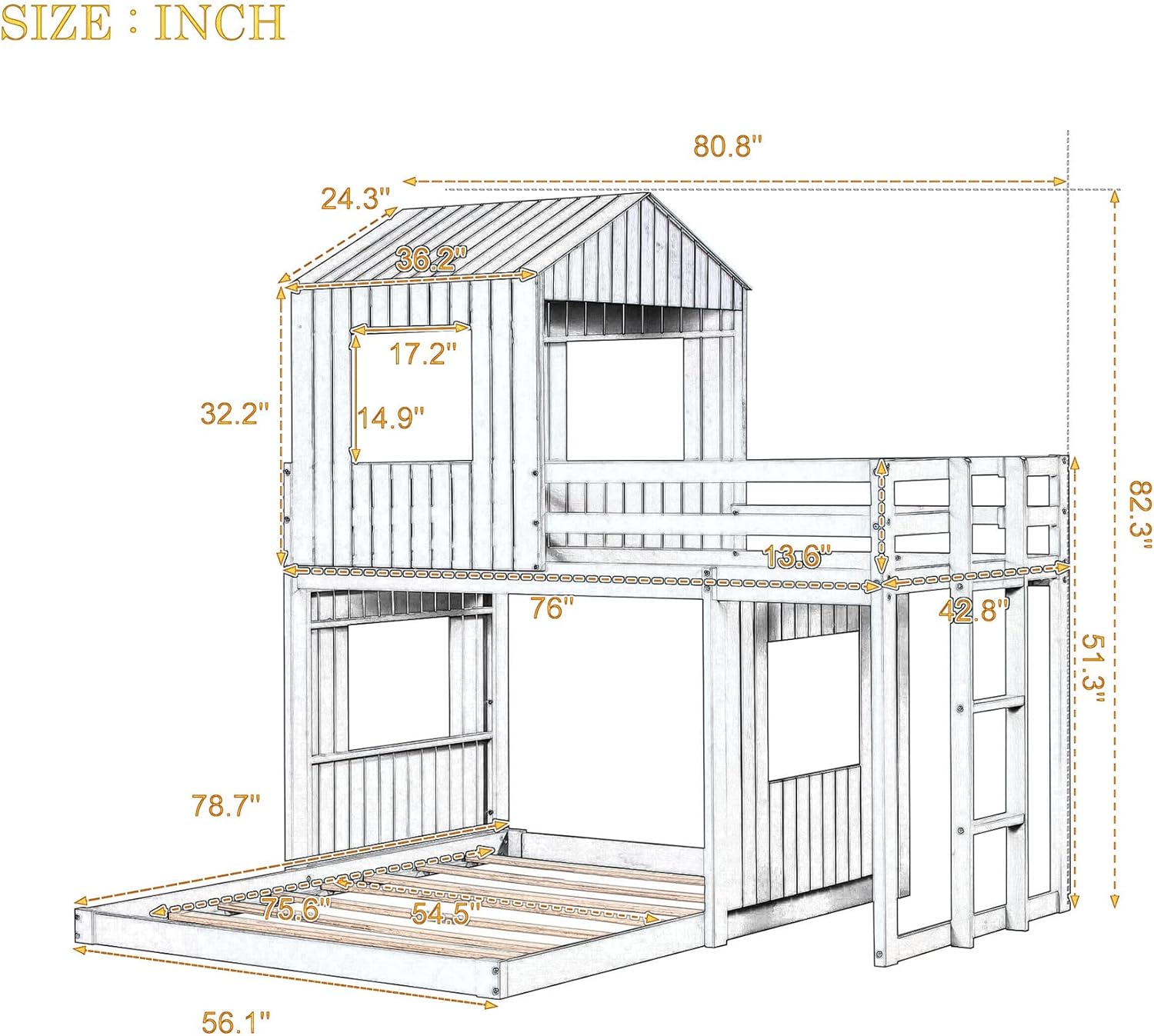

| Product Dimensions | 80.8"L x 78.7"W x 82.3"H |
| Color | Antique Gray |
| Finish Type | Wood |
| Compatible Mattress Size | Twin, Full |
| Top Bunk Weight Capacity | 175 lbs |
| Lower Bunk Weight Capacity | 300 lbs |
| Assembly Required | Yes |
4. Components List
Please verify that all components are present before beginning assembly. Refer to the detailed parts list provided in your product packaging for a complete inventory. The bed includes an installation manual and slats.
5. Setup and Assembly
Assembly of the Harper & Bright Designs House Bunk Bed is required. Please follow the step-by-step instructions provided in the included Installation Manual. It is recommended to have at least two adults for assembly. Ensure all hardware is securely tightened before use.
The lower half of the bunk can be assembled on either the left or right side to accommodate various room layouts. Refer to the "Two Assembly Methods" section in your physical manual for detailed diagrams.
Assembly Video:
Video demonstrating the assembly process for the Grey House Bunk Beds. This video provides a visual guide to assist with setup.
6. Operating Instructions
Once assembled, the bunk bed is ready for use. Ensure mattresses are placed correctly on the slats. The top bunk is designed for a twin-size mattress, and the bottom bunk for a full-size mattress. Always adhere to the specified weight capacities for each bunk.
- Mattress Compatibility: Use a standard twin mattress for the top bunk and a standard full mattress for the bottom bunk.
- Weight Limits: The top bunk has a weight capacity of 175 lbs, and the lower bunk has a capacity of 300 lbs. Do not exceed these limits.

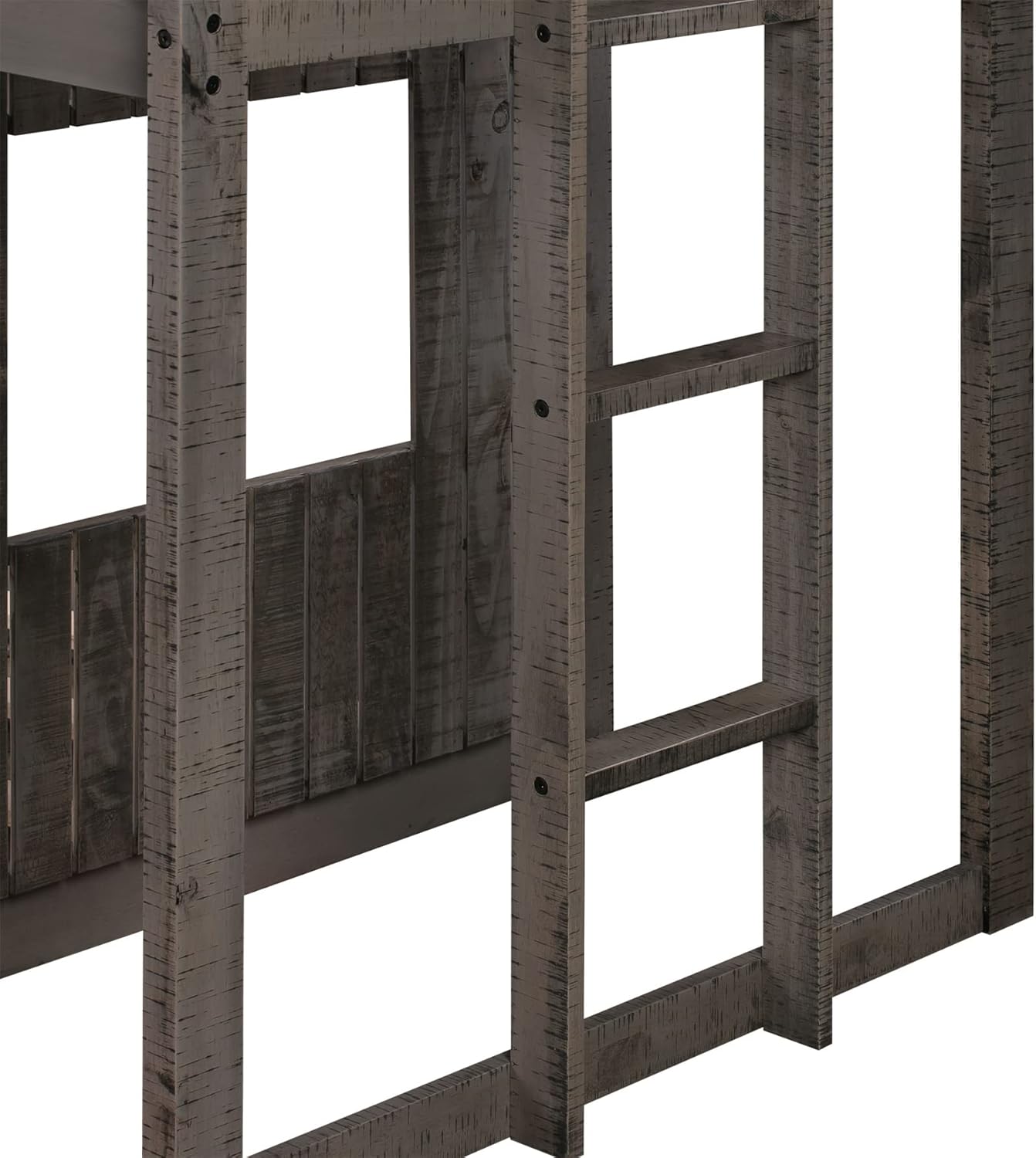

- Ladder Use: Always use the provided ladder for accessing the top bunk. Do not jump on or off the bed.
7. Maintenance
To maintain the quality and longevity of your bunk bed, follow these simple care instructions:
- Cleaning: Wipe with a dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners, as these may damage the wood finish.
- Hardware Check: Periodically check all bolts and screws to ensure they remain tight. Re-tighten if necessary to maintain structural integrity.
- Ventilation: Ensure adequate air circulation around the bed to prevent moisture buildup.
8. Troubleshooting
If you encounter any issues with your bunk bed, consider the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed feels wobbly or unstable. | Loose hardware. | Check and tighten all bolts and screws. Ensure all connections are secure. |
| Squeaking noises. | Loose connections or friction between wood parts. | Tighten all hardware. If squeaking persists, apply a small amount of furniture wax or silicone spray to contact points. |
| Missing parts upon delivery. | Shipping discrepancy (product ships in 3 boxes). | Wait 2-3 more days for all boxes to arrive. If still missing, contact customer support immediately with your order details. |
For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact Harper & Bright Designs customer support.
9. Warranty and Customer Support
Harper & Bright Designs stands behind the quality of its products. For information regarding warranty coverage, claims, or to obtain replacement parts, please visit the official Harper & Bright Designs website or contact their customer service department directly.
Contact Information: Refer to the contact details provided in your product packaging or on the Harper & Bright Designs official website.
Online Store: Harper & Bright Designs Store on Amazon
