1. Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your TOSHIBA 1 Ton 3 Star Split Air Conditioner. Please read this manual thoroughly before using your air conditioner and retain it for future reference.
2. Safety Information
Always observe the following safety precautions to reduce the risk of fire, electric shock, or injury.
- Ensure the air conditioner is installed by a qualified technician.
- Do not attempt to repair or modify the unit yourself. Contact authorized service personnel.
- Do not insert fingers or objects into the air inlet/outlet.
- Ensure the power supply is disconnected before cleaning or maintenance.
- Keep the remote control out of reach of children.
- Use only the specified refrigerant (R32) for this unit.
3. Product Overview
Your TOSHIBA Split AC system consists of an indoor unit and an outdoor unit, designed for efficient cooling. Key features include a dust filter, turbo cool function, energy saver mode, and sleep mode.
Indoor Unit
Image: The indoor unit of the TOSHIBA Split AC, typically mounted on a wall, responsible for circulating cool air within the room.
Outdoor Unit
Image: Front view of the outdoor unit, which houses the compressor and condenser coil, dissipating heat to the outside environment.
Key Features
Image: Icons illustrating key features: 100% Copper Coil for efficient heat exchange, Ambient Operation up to 50°C for effective cooling in high temperatures, and Turbo Cool for rapid cooling.
4. Setup and Installation
The TOSHIBA Split AC requires professional installation. The package includes one indoor unit, one outdoor unit, one remote control, a user manual, a warranty card, and a 3-meter copper wire/interconnecting pipe.
Indoor Unit Dimensions
Image: Diagram showing the dimensions of the indoor unit: Height (H) 29.5cm, Width (W) 23cm, Length (L) 80cm.

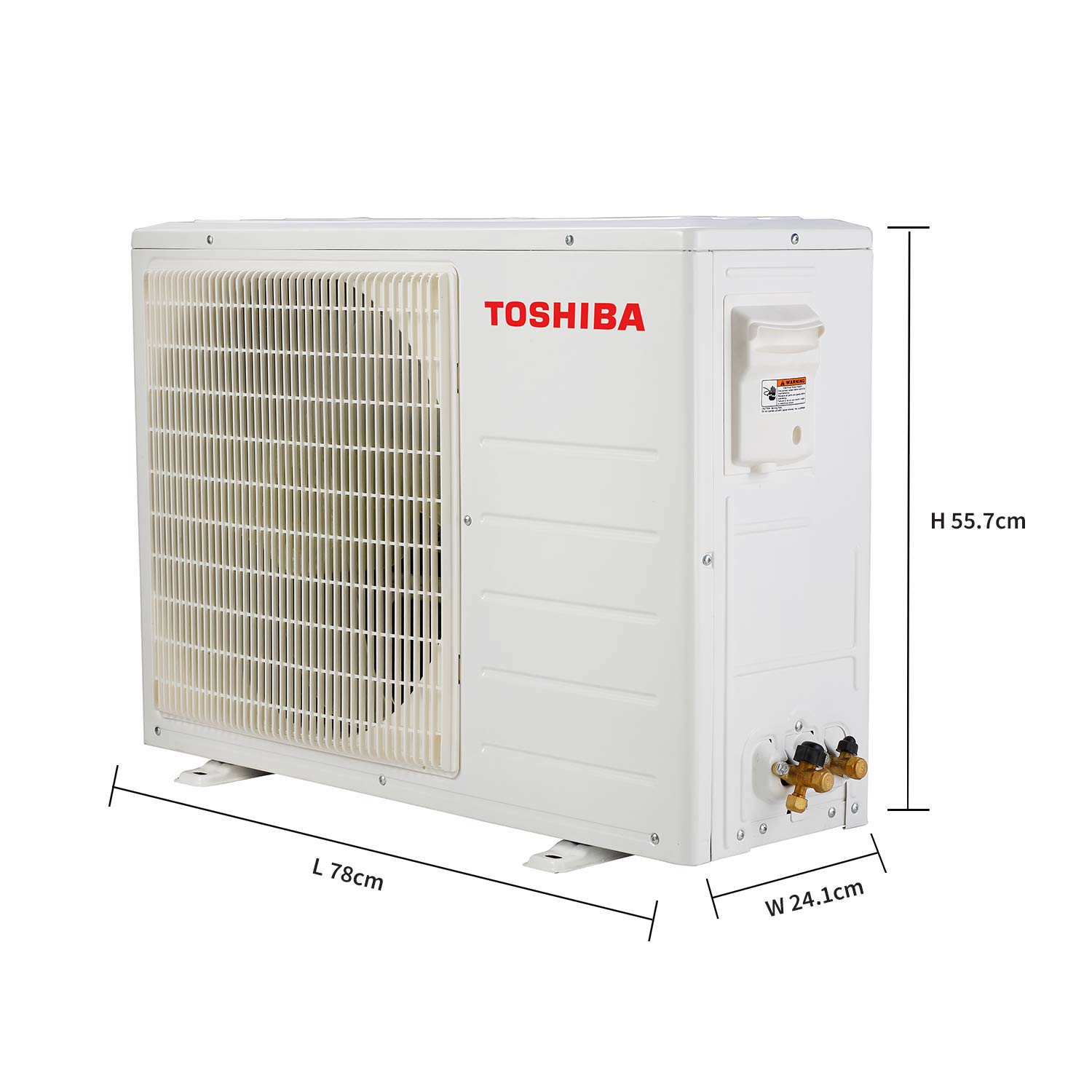

Outdoor Unit Dimensions
Image: Diagram showing the dimensions of the outdoor unit: Height (H) 55.7cm, Width (W) 24.1cm, Length (L) 78cm.
Ensure proper placement of both units for optimal performance and accessibility for maintenance.
5. Operating Instructions
Operate your TOSHIBA AC using the provided remote control. Familiarize yourself with the buttons and their functions.

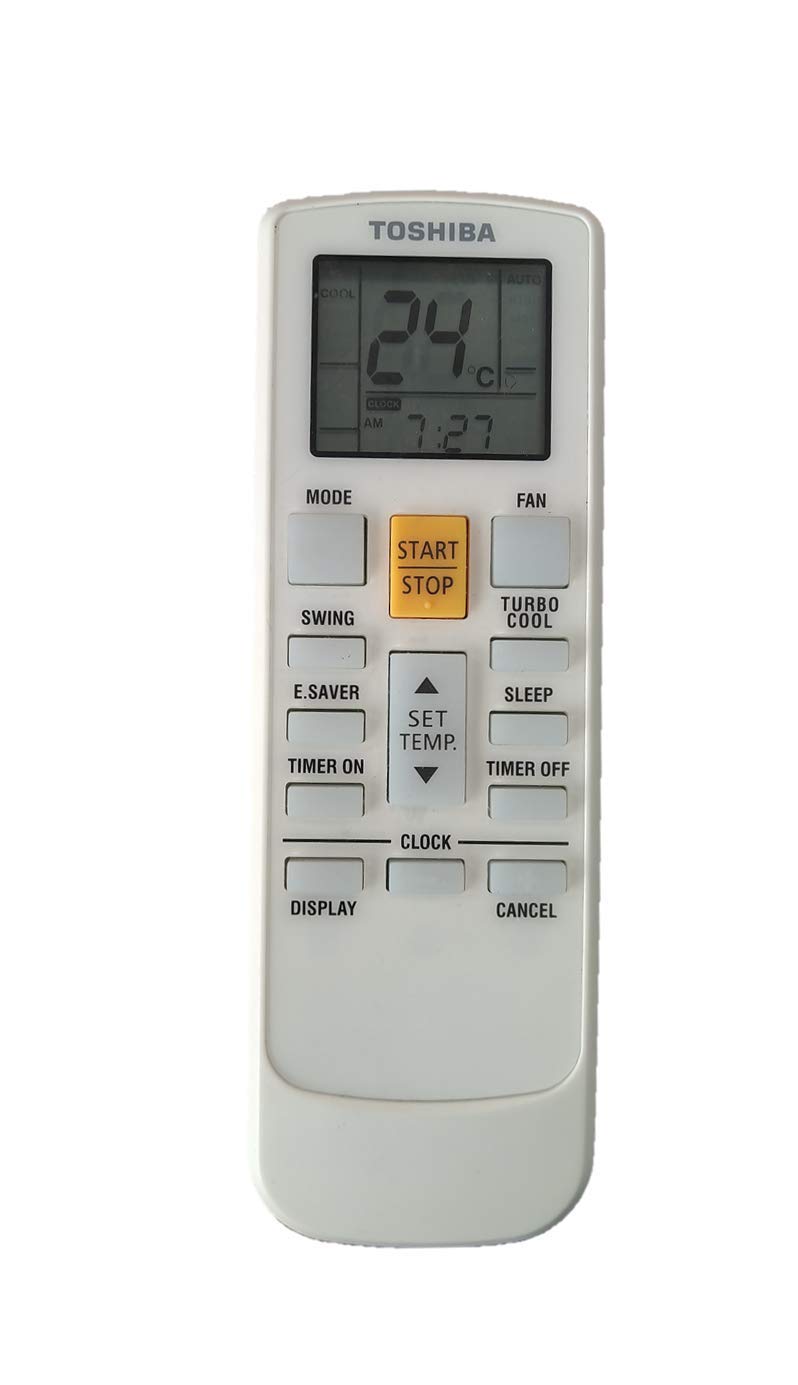

Remote Control Functions
Image: The remote control for the TOSHIBA AC, displaying buttons for various functions such as Mode, Fan, Swing, Timer, Turbo Cool, Sleep, E.Saver, and Display.
- START/STOP: Powers the unit on or off.
- MODE: Cycles through operating modes (e.g., Cool, Fan, Dry).
- SET TEMP. (Up/Down Arrows): Adjusts the desired temperature.
- FAN: Selects fan speed (e.g., Low, Medium, High, Auto).
- SWING: Activates or deactivates the louver swing function.
- TURBO COOL: Provides rapid cooling for a short period.
- SLEEP: Adjusts temperature and fan speed for comfortable sleep.
- E.SAVER: Activates energy-saving operation.
- TIMER ON/OFF: Sets a specific time for the unit to turn on or off.
- DISPLAY: Toggles the display on the indoor unit.
6. Maintenance
Regular maintenance ensures optimal performance and longevity of your air conditioner.
Air Filter Cleaning
The unit is equipped with a dust filter. Clean the air filter regularly (every two weeks or as needed) to maintain air quality and cooling efficiency.
- Turn off the air conditioner and disconnect the power supply.
- Open the front panel of the indoor unit.
- Remove the air filters.
- Clean the filters with a vacuum cleaner or wash them with lukewarm water and mild detergent.
- Allow filters to dry completely before reinstalling.
- Close the front panel and restore power.
General Cleaning
Wipe the indoor and outdoor units with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
7. Troubleshooting
If you encounter issues with your AC, refer to the following common problems and solutions before contacting service.
- Unit does not start: Check if the power plug is securely inserted and the circuit breaker has not tripped. Ensure the remote control batteries are not depleted.
- Insufficient cooling: Verify that the temperature setting is appropriate. Clean the air filters if they are dirty. Ensure no obstructions block the indoor or outdoor unit's airflow.
- Unusual noise: A slight gurgling sound is normal due to refrigerant flow. If the noise is loud or unusual, turn off the unit and contact service.
- Water leakage: Check if the drain hose is clogged or improperly installed.
For persistent issues, contact TOSHIBA customer support.
8. Specifications
Detailed technical specifications for your TOSHIBA Split AC.
| Specification | Value |
|---|---|
| Brand | TOSHIBA |
| Model Name/Number | RAS-13J2KG-IN/RAS-13J2AG-IN |
| Capacity | 1 Ton |
| Energy Rating | 3 Star (as per BEE guidelines on or before 30th June 2022) |
| Seasonal Energy Efficiency Ratio (SEER) | 3.75 |
| Annual Energy Consumption | 945 Kilowatt Hours |
| Refrigerant | R32 |
| Compressor Type | Rotary Scroll |
| Core Material | Copper |
| Noise Level | 37 Decibels |
| Voltage | 230 Volts |
| Item Weight | 9000 Grams (Indoor Unit) |
| Included Components | 1 Indoor Unit, 1 Outdoor Unit, 1 Remote Control, User manual, Warranty Card & 3m Copper wire/ Interconnecting pipe |
Energy Efficiency Label
Image: The BEE (Bureau of Energy Efficiency) Star Rating label for the TOSHIBA AC, indicating a 3-star rating and an ISEER of 3.75, with an annual energy consumption of 731.53 units per year (based on 2020 data).
9. Warranty Information
Your TOSHIBA Air Conditioner comes with the following warranty:
- 1 year on the product.
- 5 years on the condenser.
- 5 years on the compressor.
Please refer to the warranty card included with your product for full terms and conditions.
10. Support and Contact Information
For any service, support, or inquiries regarding your TOSHIBA Air Conditioner, please contact the manufacturer:
Manufacturer: Toshiba
Toll-Free Number: 180030003545
Importer/Packer: Carrier Airconditioning & Refrigeration Limited, Khekri Daula Post, Gurgaon – 122004 (Haryana)
