Cecotec Juice&Live 2500 EasyClean Cold Press Juicer

Introduction

The Cecotec Juice&Live 2500 EasyClean is an advanced cold press juicer designed for efficient and nutrient-rich juice extraction from various fruits and vegetables. Utilizing a slow juicing system, it operates at a low speed of 70 RPM, which helps to preserve the natural vitamins, minerals, and enzymes by minimizing oxidation and heat generation. Its innovative EasyClean filter, designed without stainless steel mesh, significantly simplifies the cleaning process. The appliance also features an extra-large feeding chute, allowing for the processing of whole fruits and vegetables, and a quiet motor for a more pleasant user experience.

Image: The Cecotec Juice&Live 2500 EasyClean Cold Press Juicer, showcasing its compact design and included collection cups.

Important Safety Instructions

To ensure safe operation and prevent damage to the appliance, please read and adhere to the following safety guidelines:

• Always read all instructions before using the appliance.
• Keep the appliance out of reach of children and individuals with reduced physical, sensory, or mental capabilities.
• Do not immerse the motor unit, power cord, or plug in water or any other liquid.
• Unplug the appliance from the power outlet before cleaning, assembling, or disassembling any parts.
• Do not operate the juicer if the power cord or plug is damaged, or if the appliance malfunctions or has been dropped.
• Use only original Cecotec replacement parts and accessories to avoid voiding the warranty and ensure proper function.
• Never push food into the feeding chute with your fingers or other utensils. Always use the provided food pusher.
• Ensure all parts are correctly and securely assembled before turning on the appliance. The safety system prevents operation if not properly assembled.
• Avoid placing the appliance near hot surfaces, such as stoves or ovens.
• Do not process frozen fruits or vegetables directly without thawing them first, as this can damage the auger and filter.

Product Components

Familiarize yourself with the various parts of your Cecotec Juice&Live 2500 EasyClean juicer:

1. Motor Unit: The base containing the motor and control switch.
2. Feeding Chute (XL): The wide opening for inserting fruits and vegetables.
3. Pusher: Used to guide ingredients into the feeding chute.
4. Drum: The transparent chamber where juicing takes place.
5. Auger (Pressing Screw): The spiral component that crushes and presses ingredients.
6. EasyClean Filter: The strainer that separates juice from pulp.
7. Juice Outlet: Spout from which the extracted juice flows.
8. Pulp Outlet: Opening for the expelled pulp.
9. Anti-drip Cap: A stopper for the juice outlet to prevent drips.
10. Juice Carafe: Container for collecting the extracted juice (500 ml capacity).
11. Pulp Carafe: Container for collecting the separated pulp.
12. Cleaning Brush: Tool for assisting with cleaning, especially the filter.

Setup and Assembly

Follow these steps to correctly assemble your juicer before first use:

1. Place the motor unit on a clean, stable, and flat surface. Ensure it is away from the edge of the counter.
2. Align the drum with the motor unit base and rotate it clockwise until it locks securely into place.
3. Insert the EasyClean filter into the drum, ensuring it sits firmly.
4. Place the auger (pressing screw) into the center of the filter, pushing it down until it clicks into position.
5. Attach the feeding chute assembly onto the top of the drum, aligning the arrows and twisting until it locks. The safety system will prevent operation if not correctly aligned.
6. Position the juice carafe under the juice outlet and the pulp carafe under the pulp outlet.
7. Ensure the anti-drip cap on the juice outlet is in the closed position before starting to juice.

Image: Demonstrating the large feeding chute, capable of accommodating whole fruits like an apple.

Operating Instructions

Follow these steps to extract juice from your ingredients:

1. Prepare Ingredients: Wash all fruits and vegetables thoroughly. For ingredients with hard pits (e.g., peaches, cherries) or large seeds (e.g., apples), remove them before juicing. While the XL chute can handle whole items, cutting larger or fibrous ingredients into smaller pieces (e.g., celery, leafy greens) can improve efficiency and juice yield.
2. Position Containers: Ensure the juice carafe is placed under the juice outlet and the pulp carafe under the pulp outlet.
3. Plug In: Connect the power cord to a suitable electrical outlet.
4. Start Juicing: Turn the control switch to the "ON" position. The motor will start.
5. Feed Ingredients: Slowly feed the prepared fruits and vegetables into the feeding chute. Use the provided pusher to gently guide the ingredients down. Do not force ingredients or apply excessive pressure, as this can strain the motor.
6. Reverse Function: If ingredients become jammed or the juicer appears to be struggling, switch the control to the "REVERSE" position for a few seconds. This will rotate the auger in the opposite direction to clear blockages. Then, switch back to "ON" to resume juicing.
7. Collect Juice: The fresh juice will flow into the juice carafe, and the dry pulp will be expelled into the pulp carafe.
8. Finish Juicing: Once all ingredients have been processed, turn the control switch to the "OFF" position and unplug the appliance from the power outlet.

Image: The juicer in operation, producing fresh orange juice.

Image: The juicer processing green ingredients to create a vibrant green juice.

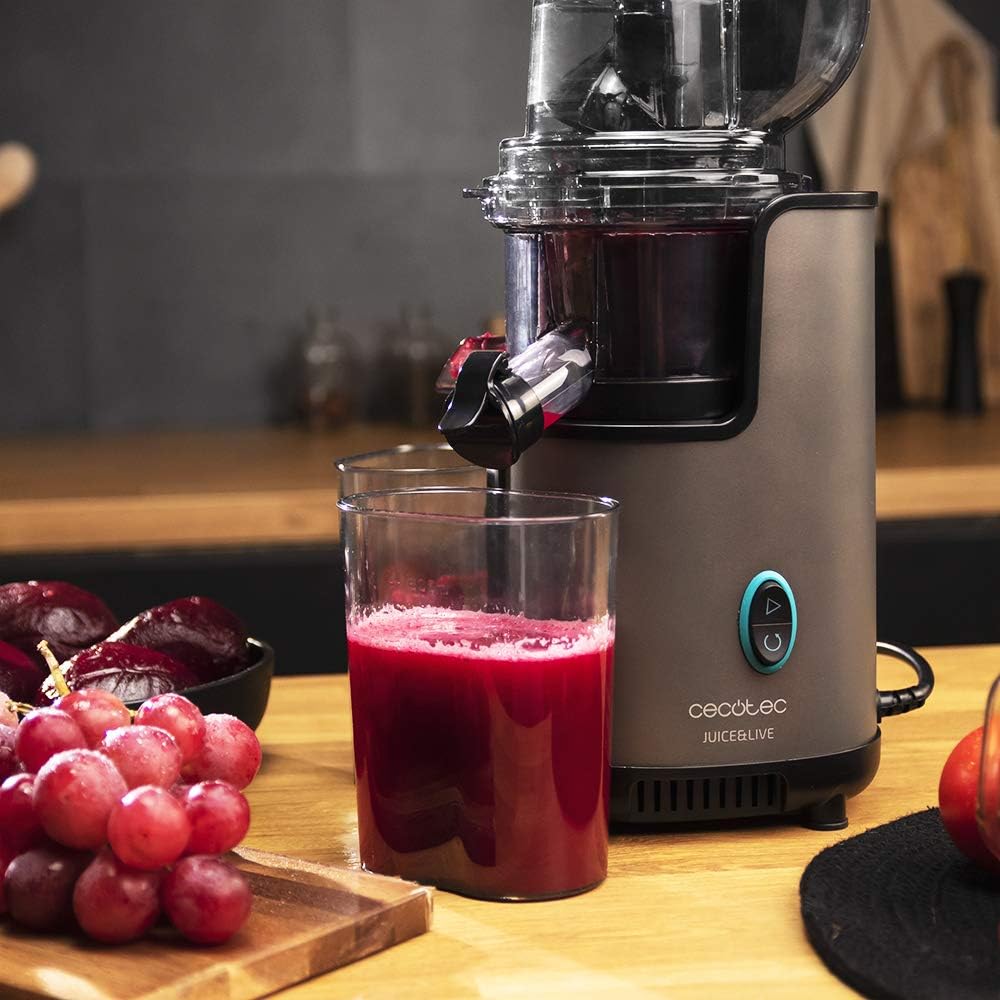

Image: The juicer producing a rich red juice from various fruits.

Image: A detailed view of the juice extraction process, showing the clear juice flowing.

Maintenance and Cleaning

Regular cleaning ensures the longevity and optimal performance of your juicer. The EasyClean filter design makes this process simpler:

1. Immediate Cleaning: After each use, unplug the appliance and disassemble all removable parts (feeding chute, drum, filter, auger, juice/pulp carafes).
2. Rinsing: Rinse all disassembled parts under running water.
3. Filter Cleaning: Use the provided cleaning brush to remove any pulp residue from the EasyClean filter. Its design without fine mesh makes it easier to clean compared to traditional filters.
4. Dishwasher Safe: All removable parts are dishwasher safe, making cleaning even more convenient. Place them on the top rack of your dishwasher.
5. Motor Unit: Wipe the motor unit with a damp cloth. Never immerse the motor unit in water or spray it with water.
6. Drying and Storage: Ensure all parts are completely dry before reassembling or storing the appliance. Store the juicer in a clean, dry place.

Image: The EasyClean filter being rinsed, highlighting its simplified cleaning process.

Troubleshooting

If you encounter any issues with your Cecotec Juice&Live 2500 EasyClean, refer to the following common problems and solutions:

Specifications

Warranty and Support

Cecotec is committed to providing quality products. This appliance is designed for household use and comes with a commitment to spare parts availability for 10 years.

For warranty claims, technical support, or inquiries regarding spare parts, please contact your retailer or the official Cecotec customer service in your region. Keep your proof of purchase for any warranty-related requests.

For more information, visit the official Cecotec website or refer to the contact details provided with your purchase.
