Hansgrohe Talis M54 Kitchen Faucet with Pull-Out Spray, Chrome, Model 72808000

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Hansgrohe Talis M54 kitchen faucet. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product. Keep this manual for future reference.

Image: The Hansgrohe Talis M54 kitchen faucet in chrome finish, showcasing its sleek design and pull-out spray feature.

Setup and Installation

The Hansgrohe Talis M54 kitchen faucet is designed for easy, single-hole, deck-mounted installation. It uses standard thread measurements for compatibility with most plumbing systems.

Before Installation:

• Ensure all necessary components are present as listed in the packaging.
• Turn off the main water supply before beginning installation.
• Clear the installation area and ensure sufficient space under the sink.

Installation Steps:

1. Insert the faucet into the pre-drilled hole on your sink or countertop.
2. Secure the faucet from underneath using the provided mounting hardware.
3. Connect the hot and cold water supply lines to the corresponding connections. Ensure all connections are tight to prevent leaks.
4. Attach the pull-out spray hose and counterweight as per the diagram.
5. Once installed, slowly turn on the main water supply and check for any leaks.

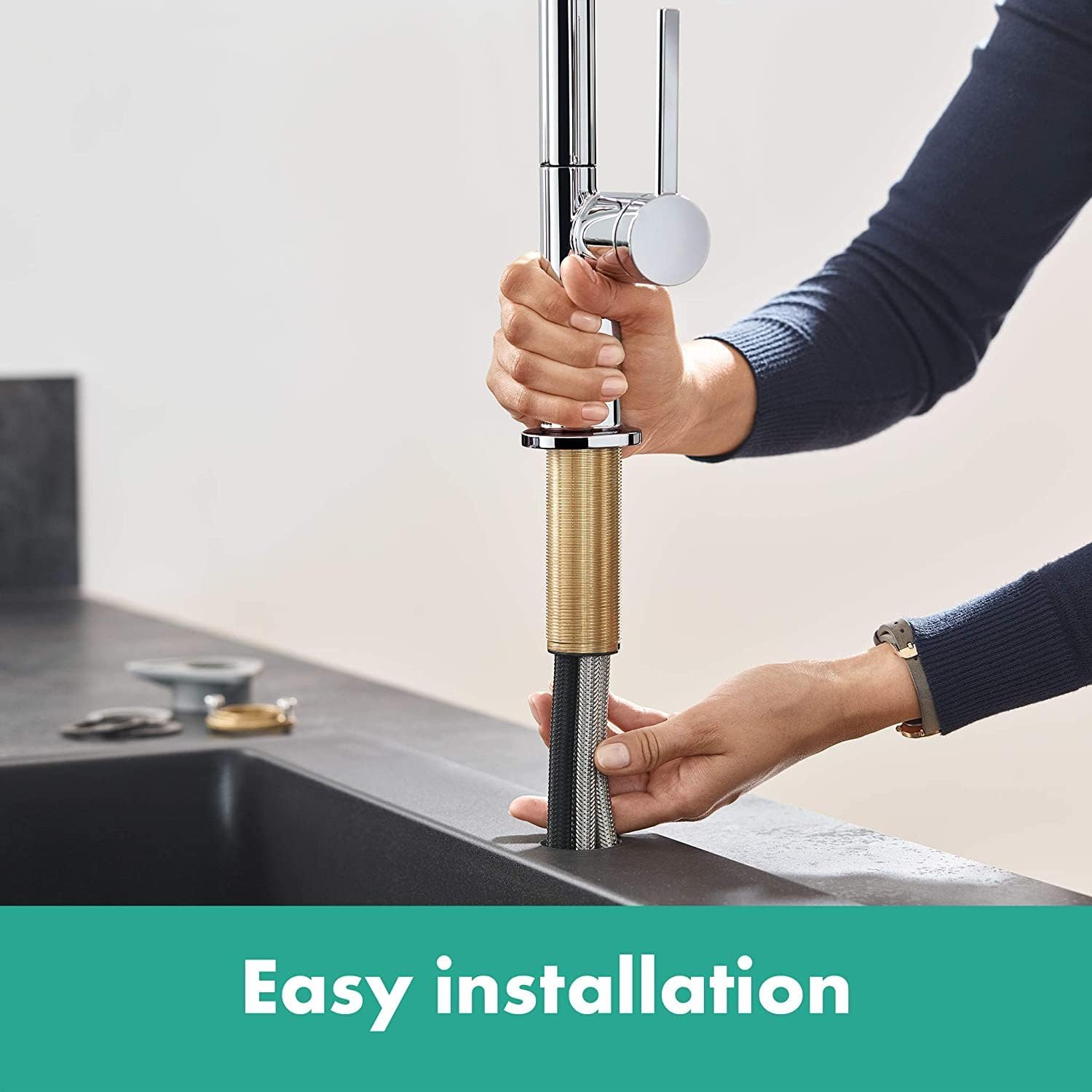

Image: A person demonstrating the ease of installation by securing the faucet to the countertop.

Image: Detailed technical drawing providing precise dimensions and installation specifications for the Hansgrohe Talis M54 faucet.

Operating Instructions

The Talis M54 faucet features a single-lever mixer for easy control of water flow and temperature, a pull-out spray, and a swivel spout for enhanced flexibility.

Water Flow and Temperature Control:

• The single lever controls both water flow and temperature. Move the lever up to increase flow and down to decrease.
• Move the lever left for hot water and right for cold water.
• The faucet is equipped with a ceramic cartridge for smooth and precise operation.

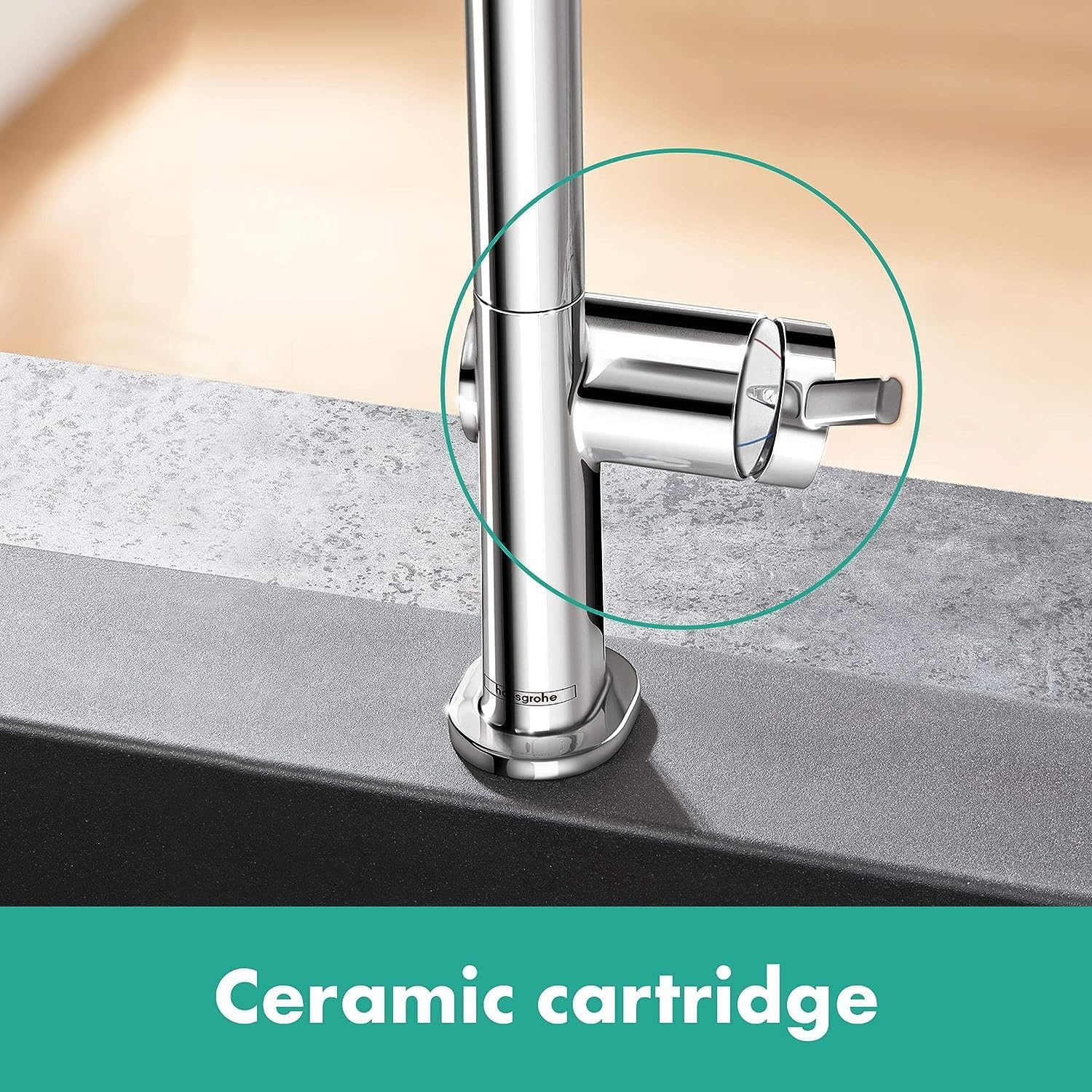

Image: A close-up view of the Hansgrohe Talis M54 faucet handle, highlighting the ceramic cartridge mechanism for smooth control.

Pull-Out Spray Function:

• Gently pull the spray head from the spout to extend the hose. This provides a larger radius of action for rinsing and cleaning.
• The spray head offers one jet type, suitable for various kitchen tasks, including rinsing fruits and vegetables.
• After use, the spray head retracts securely into the spout thanks to the Hansgrohe MagFit magnetic attachment system.

Image: A woman demonstrating the extended reach and flexibility of the pull-out spray feature of the Hansgrohe Talis M54 faucet.

Image: A visual representation of the magnetic attachment point (MagFit) on the faucet spout, ensuring the pull-out spray securely docks after use.

Swivel Spout and ComfortZone:

• The faucet features a swivel spout with adjustable angles (60°, 110°, 150°, or 360°) to provide maximum flexibility and reach within your sink area.
• The ComfortZone 270mm design offers a generous 265mm clearance between the spout and the sink, allowing for easy filling of large pots and improved maneuverability.
• The maximum flow rate is 7 liters per minute, enabling quick filling of containers.

Image: The Hansgrohe Talis M54 faucet in a kitchen setting, illustrating the ComfortZone feature which provides ample space and flexibility under the spout.

Care and Maintenance

Regular cleaning and proper maintenance will ensure the lasting beauty and functionality of your Hansgrohe Talis M54 faucet.

Cleaning the Chrome Finish:

• Clean the chrome surface with a soft cloth and a mild, non-abrasive cleaning agent.
• Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
• Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.

QuickClean Feature:

• The faucet is equipped with Hansgrohe QuickClean technology, allowing for easy removal of limescale deposits.
• Simply rub the silicone nozzles on the spout with your finger to dislodge any limescale buildup.
• This helps maintain an even water spray and optimal performance.

Image: The Hansgrohe Talis M54 faucet in use, with an overlay highlighting the QuickClean feature on the spout for easy limescale removal.

Troubleshooting

If you encounter any issues with your Hansgrohe Talis M54 faucet, please refer to the following common solutions. For problems not listed here or if issues persist, contact Hansgrohe customer support.

Common Issues:

• Reduced Water Flow: Check if the aerator is clogged with debris or limescale. Clean the aerator using the QuickClean feature or by unscrewing and rinsing it. Ensure water supply valves are fully open.
• Leaking from Spout: Ensure all connections are tight. If leaking persists, the ceramic cartridge may need inspection or replacement.
• Spray Head Not Retracting: Check if the counterweight on the pull-out hose is obstructed or if the hose is tangled under the sink. Ensure the MagFit system is clean.
• Temperature Fluctuations: Verify that both hot and cold water supplies are functioning correctly. If the issue persists, the ceramic cartridge might require adjustment or replacement.

Specifications

Warranty and Support

Hansgrohe products are manufactured to high-quality standards. Your Hansgrohe Talis M54 kitchen faucet comes with a 5-year warranty, ensuring peace of mind regarding its quality and durability.

For warranty claims, technical support, or further assistance, please contact Hansgrohe customer service or visit the official Hansgrohe brand store:

• Hansgrohe Brand Store: Visit Hansgrohe Store

Please retain your proof of purchase for any warranty-related inquiries.
