P & I Home 505A Mini Sewing Machine User Manual

1. Important Safety Instructions

Please read all instructions carefully before using the sewing machine. Keep this manual for future reference.

• Always disconnect the machine from the power supply when cleaning, making adjustments, or when not in use.
• Keep fingers away from the needle, especially during operation.
• Do not allow children to operate the machine without supervision.
• Use only the recommended power adapter and accessories.
• Never operate the machine if it has a damaged cord or plug, or if it is not working properly.
• Ensure the machine is placed on a stable, flat surface during use.

2. Package Contents

Verify that all items are present in the package:

• P & I Home 505A Mini Sewing Machine
• Foot Pedal
• AC/DC Power Adapter
• Bobbins (pre-wound and empty)
• Needles
• Threader
• Instruction Manual

Image: The P & I Home 505A Mini Sewing Machine shown with its included accessories, including the foot pedal, power adapter, bobbins, and instruction manual.

3. Product Overview

Familiarize yourself with the various parts and functions of your sewing machine.

Image: A detailed diagram illustrating the key components of the P & I Home 505A sewing machine, including the take-up lever, tension dial, pattern selection dial, thread cutter, light, needle clamp screw, bottom bobbin, handwheel, reverse button, power/speed switch, bobbin winder, presser foot lifter, presser foot, drawer, AC/DC input, and foot pedal input.

Key Features:

• 12 Built-in Stitch Patterns: Select from various stitches for different sewing needs.
• LED Night Light: Illuminates the sewing area for better visibility.
• Replaceable Presser Foot: Allows for specialized sewing tasks.
• Overlock Function: For finishing fabric edges.
• Sew Sleeves Function: Designed for sewing cylindrical items like sleeves and cuffs.
• Reverse Sewing Function: For reinforcing stitches.
• Adjustable Needle Distance: Controls stitch length.
• Winding Function: For winding thread onto bobbins.
• Two Speeds & On/Off Switch: Provides control over sewing speed.
• Two Power Supply Methods: Operates via AC/DC adapter or 4 AA batteries.

Image: A diagram highlighting the main features of the P & I Home 505A sewing machine, including 10 built-in stitch patterns (note: product description states 12), replaceable presser foot, overlock capability, sleeve sewing, reverse function, adjustable needle distance, winding function, 2 speeds, and an LED night light.

4. Setup

4.1 Power Supply

The machine can be powered by either the included AC/DC adapter or 4 AA batteries (not included).

1. Using AC/DC Adapter: Insert the adapter plug into the AC/DC input jack on the back of the machine. Plug the adapter into a standard wall outlet.
2. Using Batteries: Open the battery compartment on the bottom of the machine. Insert 4 AA batteries, ensuring correct polarity. Close the compartment.

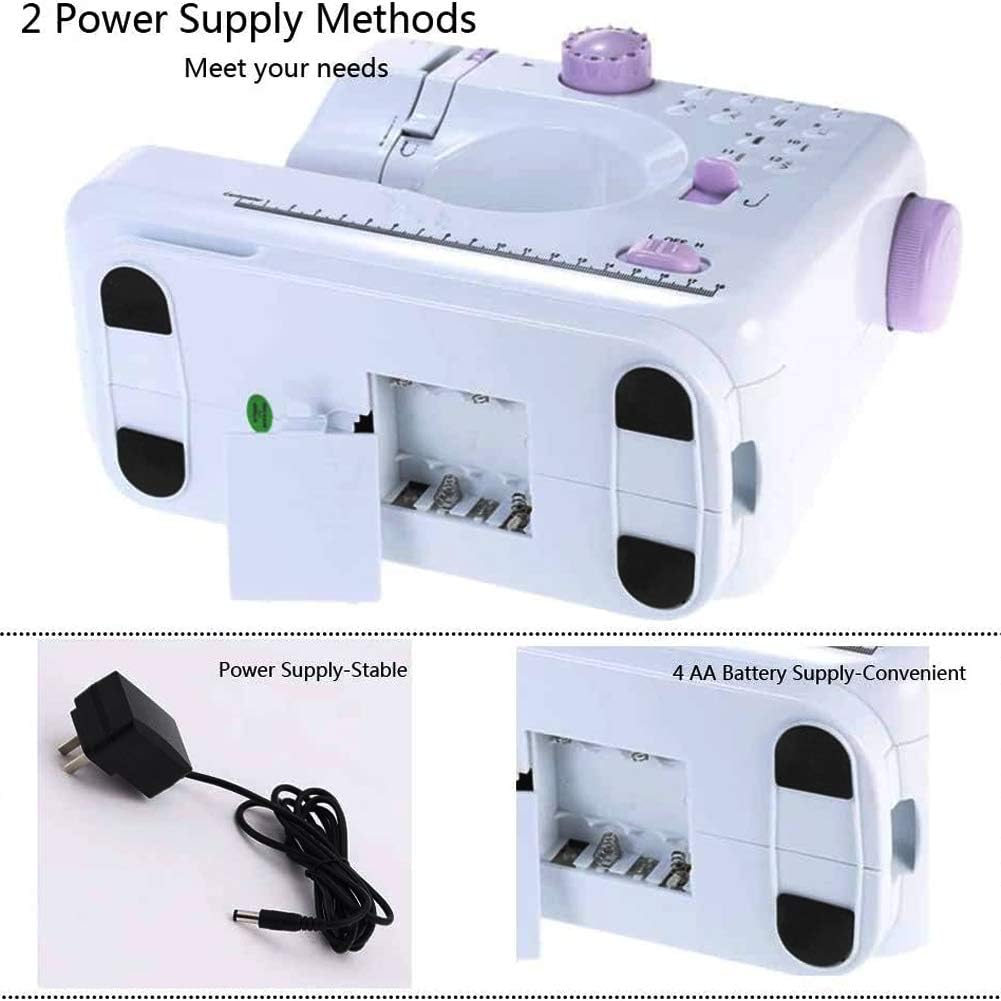

Image: This image displays the two power supply methods for the P & I Home 505A sewing machine: connection via the AC/DC power adapter and installation of 4 AA batteries in the battery compartment.

4.2 Foot Pedal Connection

For hands-free speed control, connect the foot pedal to the foot pedal input jack on the machine.

4.3 Threading the Machine

Proper threading is crucial for correct stitch formation.

Upper Threading:

1. Place a spool of thread on the spool pin.
2. Guide the thread through the first thread guide.
3. Pass the thread down and around the upper thread tension dial.
4. Bring the thread up and through the take-up lever (ensure the take-up lever is at its highest position).
5. Guide the thread down through the remaining thread guides to the needle.
6. Thread the needle from front to back. Pull about 15 cm (6 inches) of thread through the needle eye.

Bobbin Threading:

1. Raise the needle to its highest position using the handwheel.
2. Slide open the bobbin cover plate.
3. Insert a wound bobbin into the bobbin case, ensuring the thread unwinds in the correct direction (usually counter-clockwise).
4. Guide the bobbin thread through the tension spring slot.
5. Close the bobbin cover plate.
6. Hold the upper thread lightly and turn the handwheel towards you to lower and raise the needle. The needle will catch the bobbin thread, bringing it up through the needle plate.
7. Pull both upper and bobbin threads under the presser foot and towards the back of the machine.

5. Operating Instructions

5.1 Stitch Selection

Turn the pattern selection dial to choose one of the 12 available stitch patterns. Refer to the stitch guide on the machine for visual reference.

Image: Front view of the P & I Home 505A Mini Sewing Machine, showing the stitch selection dial and various stitch patterns printed on the machine body.

5.2 Speed Control

The machine has two speed settings: Low (L) and High (H). Use the 'Power Off & Speed Switch' to select your desired speed. For beginners, it is recommended to start with the Low speed setting.

5.3 Starting to Sew

1. Place the fabric under the presser foot.
2. Lower the presser foot lifter.
3. Turn the handwheel towards you to lower the needle into the fabric at the starting point.
4. Press the foot pedal or slide the speed switch to 'L' or 'H' to begin sewing.
5. Guide the fabric gently as it feeds through the machine. Do not pull or push the fabric forcefully.

5.4 Reverse Sewing

To reinforce stitches at the beginning and end of a seam, press and hold the reverse button while sewing. Release the button to resume forward sewing.

5.5 Winding a Bobbin

1. Place an empty bobbin onto the bobbin winder pin.
2. Place a spool of thread on the spool pin.
3. Guide the thread through the bobbin winder tension disk.
4. Wrap the thread around the empty bobbin a few times.
5. Push the bobbin winder pin to the right (towards the bobbin winder stop).
6. Start the machine (using the foot pedal or speed switch). The bobbin will begin to wind.
7. Once the bobbin is full, stop the machine, cut the thread, and push the bobbin winder pin back to the left.

5.6 Sewing Sleeves and Cuffs

The free arm design allows for easy sewing of cylindrical items. Simply remove the accessory drawer to expose the free arm, then slide the sleeve or cuff onto it.

5.7 Overlock Function

Select an overlock stitch pattern from the dial to finish raw fabric edges, preventing fraying.

5.8 Replacing the Presser Foot

To change the presser foot, raise the needle and presser foot to their highest positions. Locate the presser foot release lever at the back of the presser foot holder. Press the lever to release the current foot. Align the new presser foot with the holder and lower the presser foot lifter until it snaps into place.

6. Maintenance

6.1 Cleaning

Regular cleaning helps maintain optimal performance.

• Always unplug the machine before cleaning.
• Use a soft brush to remove lint and dust from the bobbin area and under the needle plate.
• Wipe the exterior of the machine with a soft, damp cloth. Do not use harsh chemicals.

6.2 Needle Replacement

Replace bent or dull needles to prevent skipped stitches and fabric damage.

1. Raise the needle to its highest position.
2. Loosen the needle clamp screw.
3. Remove the old needle.
4. Insert a new needle with the flat side facing the back of the machine, pushing it up as far as it will go.
5. Tighten the needle clamp screw securely.

7. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

Image: A close-up demonstrating the P & I Home 505A sewing machine's capability to sew through multiple layers of denim fabric, indicating its suitability for various material thicknesses.

8. Specifications

• Model: 505A
• Brand: P & I Home
• Built-in Stitches: 12
• Power Supply: AC/DC Adapter (included) or 4 x AA Batteries (not included)
• Item Weight: Approximately 5.09 pounds (2.31 kg)
• Package Dimensions: Approximately 12.36 x 11.81 x 6.1 inches (31.4 x 30 x 15.5 cm)
• UPC: 609792389265

9. Warranty and Support

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official P & I Home website. Keep your proof of purchase for any warranty claims.
