1. Introduction and Overview
This manual provides instructions for the MONSIATUG Replacement Remote Control, designed for various Haier TV models. This remote control operates using infrared technology and requires no programming; simply insert batteries for immediate use.
Key Features:
- No programming required.
- Infrared connectivity for reliable operation.
- Compatible with a wide range of Haier TV models.
Compatible Haier TV Models include:
- 24E2000, 32E3000, 32E2000, 32D3005F, 32F2000, LE32F2220, 40E2500, 48DR3505, 50E3500, 55DA5550, 55UGX3500, 55UGX3200C, 65E3550, 65UGX3500, 75UGX3550
- LE55F32800, 240602000472, 65d3550, LE58F3281, 32D3000, LE32M600M20, 24D2000, LE24F33800, LE32F32200, 32F2000B, LE39M600M80, 55D3550, 55E5550, 50D3505, 50UG6550G, 65UF2505, 28E2000, 32D2000, 32D3005, 39D3005, 40D2500, 40D3500M, 42E3500, LE39F32800, LE40D3281, LE46H3280
2. Setup
2.1 Battery Installation
- Locate the battery compartment on the back of the remote control.
- Slide the battery compartment cover downwards or outwards to open it.
- Insert two (2) AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Slide the battery compartment cover back into place until it clicks securely.
Note: Batteries are not included with the remote control. Please use new AAA batteries for optimal performance.
2.2 Initial Use
Once batteries are installed, the remote control is ready for use. Point the remote directly at your Haier TV and press the Power button to turn on the television.
Image: A hand holding the MONSIATUG replacement remote control, demonstrating how it is held for operation.
3. Operating Instructions
The MONSIATUG replacement remote control functions identically to your original Haier TV remote. Ensure there is a clear line of sight between the remote control and the TV's infrared receiver.
Image: The MONSIATUG replacement remote control, highlighting its upgraded chip for extended signal range.
3.1 Common Button Functions
| Button | Function |
|---|---|
| Power (⏻) | Turns the TV on or off. |
| Input | Selects the input source (HDMI, AV, etc.). |
| Number Buttons (0-9) | Direct channel selection. |
| VOL (+/-) | Adjusts the volume level. |
| CH (+/-) | Changes the TV channel. |
| Mute | Mutes or unmutes the TV audio. |
| Menu | Accesses the TV's main menu. |
| Navigation (▲▼◄►) & OK | Navigates through menus and confirms selections. |
| Back / Exit | Returns to the previous screen or exits the current menu. |
| Recall | Switches between the current and previously viewed channel. |

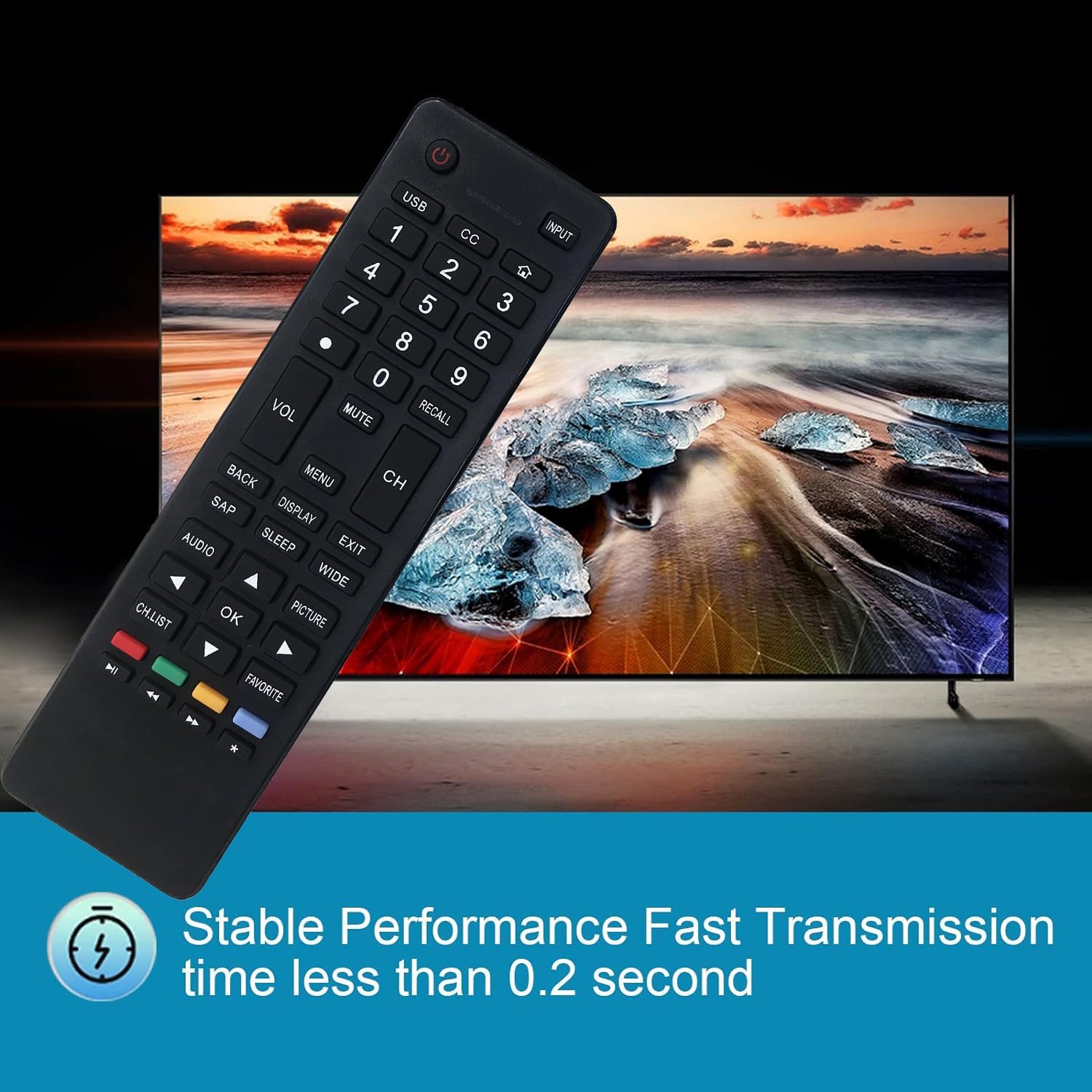

Image: The MONSIATUG replacement remote control positioned in front of a television, illustrating its stable performance and quick response time.
4. Maintenance
4.1 Battery Replacement
Replace batteries when the remote control's response becomes sluggish or stops working. Always replace both AAA batteries at the same time with new ones. Do not mix old and new batteries, or different types of batteries.
4.2 Cleaning
To clean the remote control, gently wipe its surface with a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the remote.
4.3 Storage
Store the remote control in a cool, dry place away from direct sunlight and extreme temperatures. If the remote will not be used for an extended period, remove the batteries to prevent leakage and potential damage.
Image: A top-down view of the MONSIATUG replacement remote control, showcasing its button layout and design.
5. Troubleshooting
5.1 Remote Not Responding
- Check Batteries: Ensure batteries are inserted correctly with the correct polarity (+/-). Replace old batteries with new AAA batteries.
- Line of Sight: Make sure there are no obstructions between the remote control and the TV's infrared sensor. Point the remote directly at the TV.
- Distance: Ensure you are within the effective operating range of the remote (typically up to 40 feet).
- TV Sensor: Verify that the TV's infrared sensor is not blocked or dirty.
5.2 Specific Buttons Not Working
- If only certain buttons are unresponsive, try cleaning the remote as described in Section 4.2.
- Ensure the remote is compatible with your specific Haier TV model. Refer to the compatibility list in Section 1.
Image: A side view of the MONSIATUG replacement remote control, showing its ergonomic profile.
6. Specifications
- Brand: MONSIATUG
- Model Number: 748303988181
- Connectivity Technology: Infrared
- Power Source: 2 x AAA Batteries (not included)
- Special Feature: No Programming Required
- Compatible Devices: Haier Televisions
- Package Dimensions: 7.91 x 4.65 x 1.02 inches
- Item Weight: 2.85 ounces
7. Warranty and Support
7.1 Warranty Information
This MONSIATUG replacement remote control comes with a 90-day warranty from the date of purchase. This warranty covers manufacturing defects under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or battery leakage.
7.2 Customer Support
If you encounter any issues not covered in the troubleshooting section or require further assistance, please contact the seller or MONSIATUG customer support. When contacting support, please provide your product model number (748303988181) and a detailed description of the issue.
