1. Introduction
The MOESAPU K-100A H2 Gas Detector is a portable, high-precision device designed for continuous detection of hydrogen (H2) gas. It features an electrochemical sensor known for its sensitivity, accuracy, stability, and repeatability, allowing for timely measurement of gas concentration and alarm activation. This handheld gas tester is equipped with adjustable sound, light, and vibration alarms to ensure user safety in various environments.
The device is built with high-quality ABS plastic, making it durable, fall-resistant, waterproof, dustproof, and explosion-proof, suitable for use in confined spaces and demanding industrial settings.
Figure 1.1: MOESAPU K-100A H2 Gas Detector in an industrial environment.
2. Safety Information
Always read and understand this manual before operating the K-100A H2 Gas Detector. Failure to follow safety instructions may result in injury or damage to the device.
- Environmental Conditions: Use the detector within specified operating humidity and temperature ranges.
- Sensor Life: Electrochemical sensors have a limited lifespan, typically around 18 months. Regular calibration and timely sensor replacement are crucial for accurate readings and reliable safety.
- Calibration: Perform zero and span calibration regularly as per industry standards and specific application requirements to maintain accuracy.
- Battery Safety: Use only the provided charging cable and adapter. Do not expose the battery to extreme temperatures or puncture it.
- Maintenance: Do not attempt to repair the device yourself. Refer to qualified personnel for service.
Figure 2.1: The K-100A H2 Gas Detector is suitable for various industrial applications including coal mines, petrochemical industries, animal husbandry, and gas pipelines.
3. Product Overview
The MOESAPU K-100A H2 Gas Detector is a compact and robust device designed for ease of use and reliability.
3.1. Components
Figure 3.1: Labeled diagram of the K-100A H2 Gas Detector showing its main components.
- Back Clamp: For attaching the detector to clothing or a belt for hands-free operation.
- LCD Panel: Displays gas concentration, temperature, time, and battery status.
- Light Alarm: Visual indicator for gas detection and alerts.
- USB Charging Port: For recharging the internal battery.
- Buttons: Control device functions and settings.
- Buzzer Hole: Emits audible alarms.
- Sensor Hole: Where gas enters for detection.
3.2. Key Features
- Three Alarm Methods: The detector provides adjustable audio, visual (light), and vibration alarms when preset gas levels are reached.
- Low Battery Alarm: A slow, short alarm sounds every minute when the battery is low, reminding the user to recharge.
- Portability: Features a back clip design and comes with a padded case for easy carrying.
- Durability: Constructed from high-quality ABS plastic, offering waterproof, dustproof, explosion-proof, and fall-resistant properties.

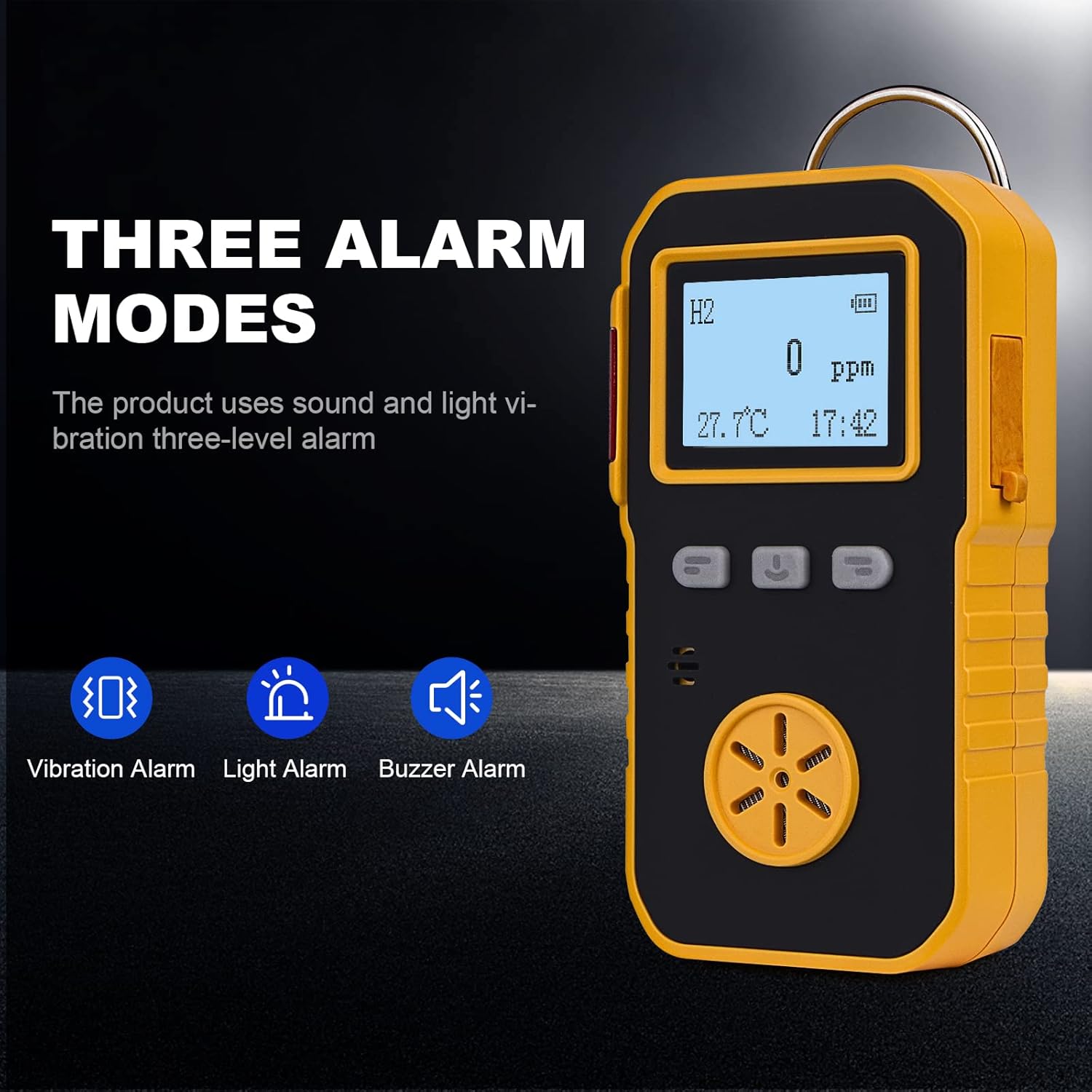

Figure 3.2: The detector features three distinct alarm modes: vibration, light, and buzzer.
Figure 3.3: The robust design ensures the detector is waterproof, dustproof, and shatter-resistant.
4. Setup
4.1. Unboxing and Initial Inspection
Upon receiving your K-100A H2 Gas Detector, carefully unbox all components and inspect for any signs of damage. The package should include:
- K-100A H2 Gas Detector
- USB Charging Cable
- Power Adapter
- Operation Manual
- Qualified Certificate
- Padded Carrying Case
Figure 4.1: Contents of the K-100A H2 Gas Detector package.
4.2. Charging the Device
Before first use, fully charge the detector. The device is equipped with a 1500mAh lithium-ion battery, providing over 8 hours of continuous operation on a full charge.
- Connect the USB charging cable to the detector's USB port.
- Plug the other end of the USB cable into the provided power adapter.
- Plug the power adapter into a standard electrical outlet.
- The battery indicator on the LCD screen will show charging status.
- Once fully charged, disconnect the charger.
5. Operating Instructions
5.1. Powering On/Off
- To Power On: Press and hold the power button (usually the middle button) for a few seconds until the LCD screen illuminates and the device performs a self-test.
- To Power Off: Press and hold the power button again until the screen turns off. Confirm power off if prompted.
5.2. Understanding the Display
Figure 5.1: The LCD display provides real-time information.
The LCD screen displays critical information:
- H2: Indicates the gas being detected (Hydrogen).
- ppm: Parts per million, the unit for gas concentration.
- Temperature: Current ambient temperature.
- Time: Current time.
- Battery Indicator: Shows remaining battery life.
5.3. Alarm Settings
The detector features adjustable alarm thresholds for sound, light, and vibration. Refer to the detailed operation manual for specific instructions on how to access and modify these settings. It is crucial to set alarm levels appropriate for your working environment and safety regulations.
Figure 5.2: The detector utilizes visual LED, buzzer, and vibratory indicators for alarms.
5.4. Calibration
The K-100A H2 Gas Detector supports zero and span calibration options. Regular calibration is essential for maintaining the accuracy and reliability of the sensor. Consult the full operation manual for detailed calibration procedures, including required calibration gases and equipment.
6. Maintenance
6.1. Cleaning
Wipe the exterior of the detector with a soft, damp cloth. Do not use abrasive cleaners or solvents. Ensure the sensor opening is clear of dust and debris.
6.2. Battery Care
Recharge the battery when the low battery alarm activates. Avoid completely draining the battery frequently to prolong its lifespan. Store the device in a cool, dry place when not in use for extended periods, ensuring it has some charge.
6.3. Sensor Replacement
The electrochemical sensor has a typical lifespan of 18 months. Beyond this period, the sensor's accuracy and responsiveness may degrade, compromising safety. It is recommended to replace the sensor periodically or when calibration fails. Contact customer support for sensor replacement services or guidance.
Figure 6.1: Ensure the sensor hole remains clear for accurate detection.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device does not power on | Low or depleted battery | Charge the device fully. |
| Inaccurate gas readings | Sensor requires calibration or replacement; Sensor hole blocked | Perform zero and span calibration. Clean the sensor hole. If issues persist, consider sensor replacement. |
| Alarm not sounding/vibrating/lighting | Alarm settings disabled or too low; Device malfunction | Check alarm settings. Ensure volume and vibration are enabled. If problem persists, contact support. |
| Low battery alarm constantly active | Battery not holding charge; Faulty battery | Ensure proper charging. If battery life is significantly reduced, the battery may need replacement. |
8. Specifications
| Feature | Specification |
|---|---|
| Model Number | K-100A |
| Gas Detected | Hydrogen (H2) |
| Sensor Type | Electrochemical |
| Detection Error | ≤±5% FS |
| Response Time (T90) | <30 seconds |
| Alarm Methods | Audible, Visual (Light), Vibration |
| Battery | 1500mAh Lithium Ion (rechargeable) |
| Working Time | More than 8 hours (continuous) |
| Charging Type | USB Charging |
| Product Dimensions | 10 x 5.8 x 3 cm |
| Item Weight | 130 g |
| Operating Humidity | Up to 95% (non-condensing) |
| Durability | Waterproof, Dustproof, Explosion-proof, Fall resistant |
9. Warranty and Support
9.1. Warranty Information
The MOESAPU K-100A H2 Gas Detector comes with an 18-month warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims.
9.2. Customer Support
For technical assistance, troubleshooting, calibration services, or inquiries regarding other types of gas detectors, please contact MOESAPU customer support. Refer to the contact information provided with your product packaging or on the official MOESAPU website.
