1. Introduction

This instruction manual provides essential information for the safe and efficient operation and maintenance of your VEVOR Alcohol Still. Please read this manual thoroughly before initial use to ensure proper setup and to maximize the lifespan of your equipment.

The VEVOR Alcohol Still is designed for home brewing and distillation purposes, capable of processing various raw materials to produce fruit wine, water, whisky, plant extracts, and more. Its robust stainless steel construction and efficient cooling system ensure reliable performance.

2. Safety Information

WARNING: Distillation of alcohol may be subject to legal restrictions in your region. Ensure compliance with all local, state, and federal laws before operating this equipment for alcohol production.

• Always operate the still in a well-ventilated area to prevent the accumulation of flammable vapors.
• Keep away from open flames, sparks, and other ignition sources.
• Ensure all connections are secure and leak-free before heating. Steam and hot liquids can cause severe burns.
• Do not leave the still unattended during operation.
• Allow the still to cool completely before disassembling or cleaning.
• Keep out of reach of children and pets.
• Use appropriate personal protective equipment (PPE) such as heat-resistant gloves and eye protection.
• Ensure the heating source is compatible with the still's thickened bottom and is used safely.

3. Product Components

The VEVOR Alcohol Still kit includes the following main components:

• Fermentor (Boiler Pot): The main vessel where the raw material is heated. Made of food-grade stainless steel.
• Condenser Keg: The upper chamber containing the cooling coil, where vapor condenses back into liquid.
• Copper Condenser Tube (Coil): A coiled red copper tube inside the condenser keg for efficient heat exchange.
• Circulating Water Pump: An external pump to facilitate the flow of cooling water through the condenser.
• Built-in Thermometer: Located on the lid, providing real-time temperature monitoring in both Celsius and Fahrenheit.
• One-Way Air Evacuation Valve: Used during fermentation to release gas.
• Silicone Gasket & Quick Buckles: For secure sealing of the lid to the fermentor.
• Hoses: For water circulation and distillate collection.

Figure 3.1: Labeled Components of the VEVOR Alcohol Still. Key components include (1) Exhaust Valve, (2) Copper Coil, (3) Water Outlet, (4) Water Inlet, (5) Mental Thermometer, (6) Handle, (7) Copper Coil (part of condenser), (8) Condenser, (9) Liquid Outlet, (10) Buckle, (11) Barrel (Fermentor).

Figure 3.2: Detailed view of sealing and structural components, highlighting the built-in sealing ring, one-way air evacuation valve, thickened boiler barrel, sealing bucket, and portable handle for secure and convenient operation.

4. Setup and Assembly

Follow these steps to assemble your VEVOR Alcohol Still:

1. Initial Cleaning: Before first use, thoroughly wash all components that will come into contact with your product (fermentor, condenser, copper tubes, hoses) with warm soapy water. Rinse thoroughly to remove any manufacturing residues.
2. Place Fermentor: Position the fermentor (main pot) on a stable, heat-resistant surface. Ensure it is level.
3. Install Thermometer: Insert the thermometer into its designated port on the fermentor lid. Ensure it is securely fastened.
4. Attach Condenser: Place the condenser keg onto the fermentor lid. The copper tube from the fermentor should connect to the inlet of the condenser.
5. Connect Cooling System:
   • Connect one end of a hose to the water inlet of the condenser (lower port) and the other end to the outlet of the circulating water pump.
   • Connect another hose to the water outlet of the condenser (upper port) and direct it back to your water reservoir (e.g., a bucket of cold water) to create a circulating cooling system.
   • Ensure the water pump is submerged in the cooling water reservoir.
6. Connect Distillate Outlet: Attach a hose to the liquid outlet of the condenser and direct it to your collection vessel.
7. Secure Lid: Place the silicone gasket around the rim of the fermentor. Carefully place the lid with the assembled condenser onto the fermentor. Secure the lid using the four quick buckles, ensuring a tight, leak-proof seal.
8. Install Air Evacuation Valve (if fermenting): If using the still for fermentation, install the one-way air evacuation valve into its designated port on the lid. Add water to the valve as instructed (typically 2/3 full) to allow gas to escape while preventing air entry.

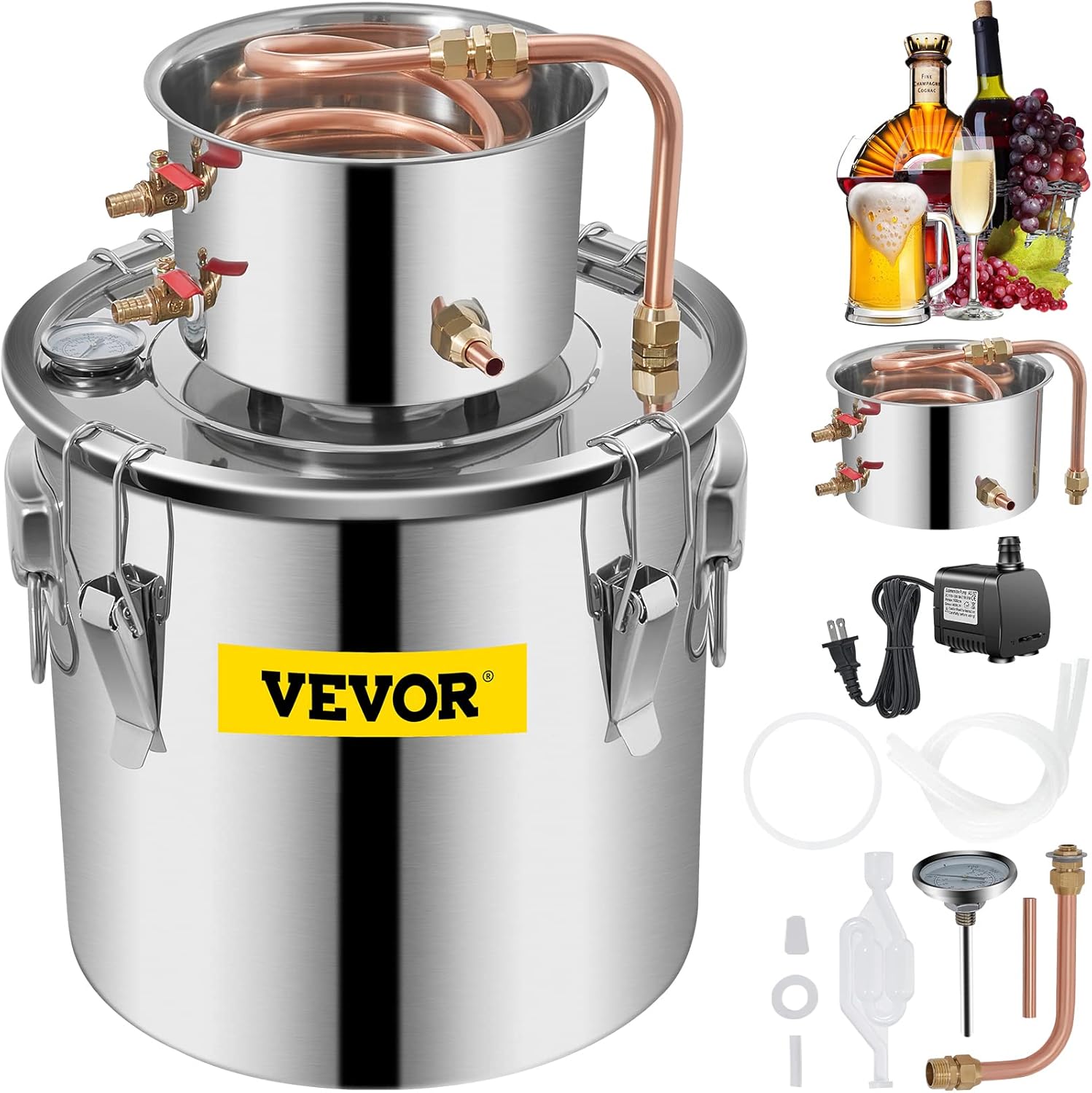

Figure 4.1: Fully assembled VEVOR Alcohol Still, ready for operation. This image displays the complete setup including the main fermentor, condenser, and associated tubing and pump.

5. Operating Instructions

Once assembled, follow these steps for distillation:

1. Prepare Raw Material: Fill the fermentor with your desired raw material (e.g., fruit mash, water for distillation). Do not overfill; leave adequate headspace for boiling. The 5.5 US Gal (21L) capacity is designed for efficient distillation.
2. Initiate Cooling Water Flow: Before applying heat, turn on the circulating water pump to ensure a steady flow of cold water through the condenser. This is critical for efficient condensation and to prevent vapor escape.
3. Apply Heat: Place the fermentor on your chosen heat source (gas stove, ceramic stove, electric coil stove, etc.). Begin heating the raw material. The thickened bottom ensures compatibility with various heating methods.
4. Monitor Temperature: Continuously monitor the temperature using the built-in thermometer. The dual display (Celsius and Fahrenheit) allows for precise control.


   Figure 5.1: The precise built-in thermometer allows for real-time temperature monitoring, crucial for controlling the distillation process. It displays temperatures up to 200°C or 400°F.
5. Observe Distillation: As the raw material heats, vapor will rise into the condenser. The cold water circulating through the copper coil will cool the vapor, causing it to condense into liquid. This liquid will then drip from the liquid outlet into your collection vessel.
6. Adjust Cooling: If the distillate is warm or steam is escaping, increase the flow of cooling water or add more ice to your water reservoir to ensure optimal condensation.
7. Collection: Collect the distillate in appropriate containers. Be aware of different fractions if distilling alcohol (heads, hearts, tails).
8. Completion: Once distillation is complete (e.g., no more liquid is being produced, or the desired volume is collected), turn off the heat source and the water pump.

Figure 5.2: Working Principle Diagram. Red arrows indicate alcohol vapor rising, blue arrows show cooling water flow (inlet and outlet), and black arrows represent cooling liquor and distillate collection.

Figure 5.3: High Cooling Performance and Versatile Heating Methods. The open-typed cooling method with a coiled copper tube ensures efficient condensation. The thickened bottom supports various heating sources including gas stoves, firewood, induction cookers, and coal stoves.

6. Maintenance and Cleaning

Proper maintenance ensures the longevity and hygiene of your still.

• Cool Down: Always allow the still to cool completely before disassembling or cleaning.
• Disassembly: Carefully unbuckle the lid and remove the condenser. Disconnect all hoses.
• Cleaning:
  • Wash the fermentor, condenser, copper coils, and all hoses with warm water and a mild detergent. Use a brush if necessary to remove any residues.
  • For stubborn residues, especially after distilling certain materials, a more rigorous cleaning agent (e.g., a solution of lye or other appropriate cleaning chemicals) may be required. Always rinse thoroughly multiple times with clean water after using strong cleaners.
  • Ensure no odors or tastes remain from previous distillations, especially if switching between different types of products (e.g., alcohol to water).
• Drying: Dry all components thoroughly to prevent water spots or corrosion.
• Storage: Store the still in a clean, dry place, away from direct sunlight and extreme temperatures.
• Inspect Seals: Regularly inspect the silicone gasket and hose connections for any signs of wear, cracks, or damage. Replace them if necessary to maintain a secure seal.

7. Troubleshooting

8. Product Specifications

Figure 8.1: Product Specifications and Applications. This image details the dimensions of the fermentor and condenser, along with a visual representation of various applications such as distilling wine, whisky, fruit wine, craft beer, distilled water, alcohol, and essential oils.

Figure 8.2: Capacity and Dimensions. The still has a 5-gallon capacity, suitable for 19L of raw material, with a fermentor dimension of 11.8 inches (30 cm) in both height and diameter.

9. Warranty and Support

Specific warranty information for the VEVOR Alcohol Still is not provided within this manual. For warranty details, product support, or to inquire about replacement parts, please refer to the official VEVOR website or contact VEVOR customer service directly.

An official User Manual (PDF) is available for download at: https://manuals.plus/m/39e1d93f001c7f7078ef6036cca835156b1da971d039e5d325a288f9b42fca10
