MISSMIN 55/64 Male to Male Faucet Adapter Instruction Manual

Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of your MISSMIN 55/64 Male to Male Faucet Adapter. Please read this manual thoroughly before installation and retain it for future reference.

Product Features

• Designed for connecting faucets with removable aerators only.
• Adapts faucets with a 55/64 inch female/internal thread.
• Converts a 55/64 male thread to another 55/64 male fine thread.
• Constructed from solid brass for durability and corrosion resistance.
• Easy to install.

Specifications

Setup and Installation

This adapter is designed to convert a faucet's 55/64 inch female thread to a 55/64 inch male thread, allowing connection to various accessories. Ensure your faucet has a removable aerator and the correct female thread size before proceeding.

1. Prepare the Faucet: Ensure the water supply to the faucet is turned off. Remove the existing aerator from your faucet by unscrewing it counter-clockwise. Clean any debris from the faucet's internal threads.
2. Inspect the Adapter: Verify that the adapter threads are clean and free of damage.
3. Apply Thread Sealant (Optional but Recommended): For a leak-free seal, apply a small amount of plumber's tape (PTFE tape) clockwise around the threads of the adapter that will connect to the faucet.
4. Attach the Adapter: Screw the 55/64 Male to Male Faucet Adapter into the female threaded opening of your faucet. Turn clockwise by hand until snug.
5. Tighten Securely: Use an appropriate wrench (e.g., a 1/2 inch Allen wrench, as suggested by some users for similar adapters) to gently tighten the adapter. Do not overtighten, as this can damage the threads or the faucet.
6. Connect Accessory: Once the adapter is securely installed, you can connect your desired accessory (e.g., a portable dishwasher hose, water filter) to the exposed 55/64 male thread of the adapter.
7. Check for Leaks: Turn on the water supply slowly and check for any leaks around the adapter connections. If leaks occur, tighten slightly or reapply thread sealant.

Image 1: The MISSMIN 55/64 Male to Male Faucet Adapter. This image shows the chrome-finished brass adapter with male threads on both ends, designed for connecting to a faucet with a 55/64 inch female thread.

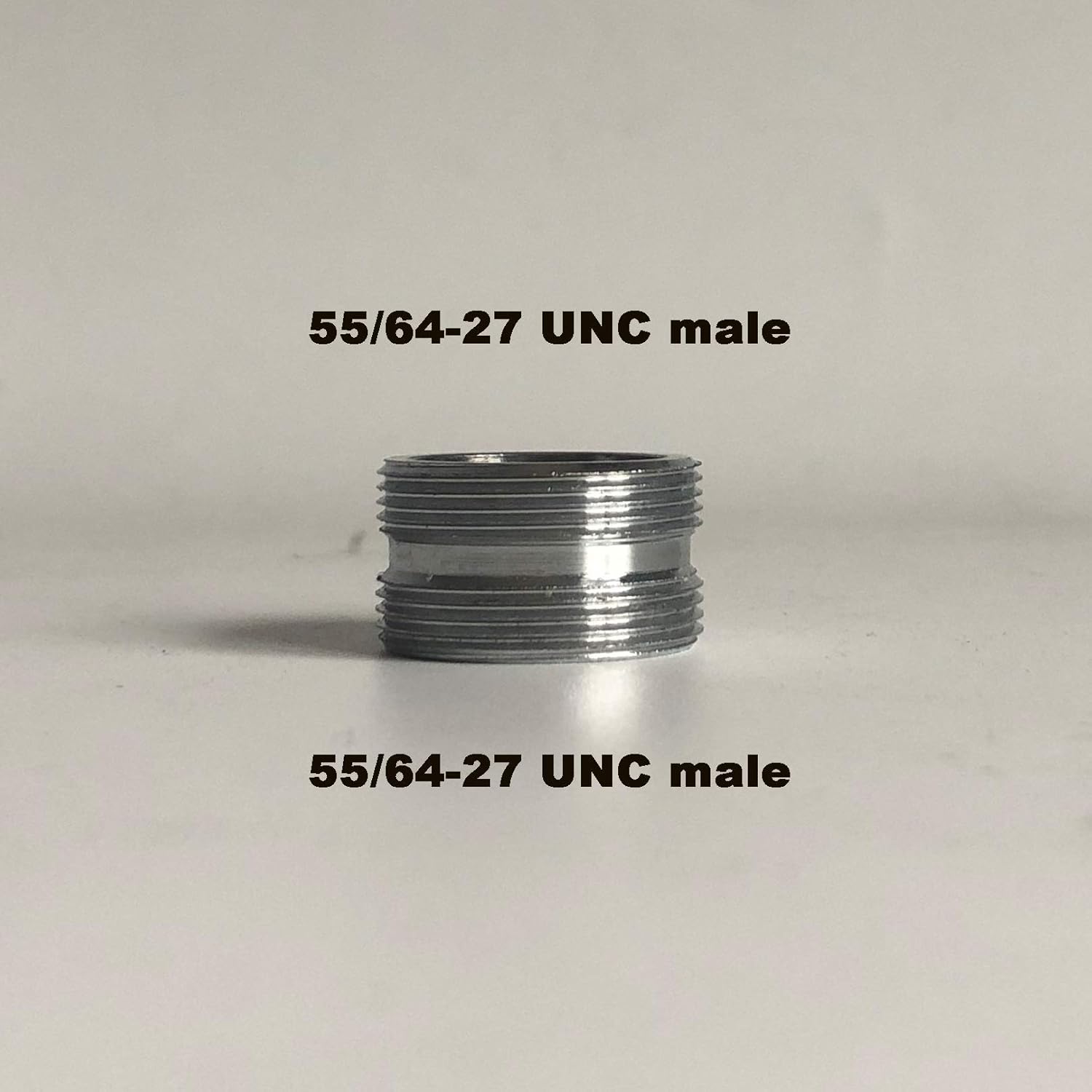

Image 2: Close-up view of the 55/64-27 UNC male threads on the adapter. This image highlights the specific thread type and size, confirming its compatibility for connections requiring this standard.

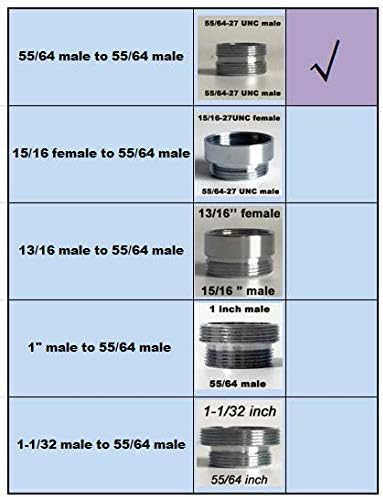

Image 3: A compatibility chart illustrating various faucet adapter types. The top row specifically indicates the 55/64 male to 55/64 male adapter, confirming its design for specific connection needs.

Operation

Once installed, the MISSMIN 55/64 Male to Male Faucet Adapter functions as a permanent or temporary connection point for various water-related devices. Its operation is passive, simply providing the correct thread type for your accessory.

• Ensure all connections are tight before turning on the water supply.
• Always check for leaks after connecting or disconnecting any accessory.
• When not in use, ensure any connected hoses or devices are properly secured or disconnected to prevent accidental water flow.

Maintenance

The MISSMIN 55/64 Male to Male Faucet Adapter is constructed from durable brass and requires minimal maintenance.

• Cleaning: Periodically inspect the adapter for mineral buildup or corrosion. Clean with a soft cloth and mild soap and water if necessary. Avoid abrasive cleaners that could damage the chrome finish.
• Inspection: Regularly check the threads for any signs of wear or damage. If the threads appear stripped or damaged, replace the adapter to ensure a proper seal.
• Storage: If removing the adapter for extended periods, clean it thoroughly and store it in a dry place to prevent oxidation.

Troubleshooting

If you encounter issues with your faucet adapter, refer to the following common problems and solutions:

• Leakage at Connection Point:
  • Ensure the adapter is tightened sufficiently.
  • Verify that plumber's tape (PTFE tape) was applied correctly and adequately. Reapply if necessary.
  • Check for damaged threads on either the faucet or the adapter. Replace damaged components.
  • Ensure a rubber washer is present and properly seated if required by the connected accessory.
• Adapter Does Not Fit Faucet:
  • Confirm that your faucet has a 55/64 inch female thread. This adapter is specifically for that size.
  • Ensure the faucet's aerator is removable. This adapter is not for non-removable aerator faucets.
• Difficulty Tightening:
  • Use an appropriate wrench (e.g., 1/2 inch Allen wrench) for better leverage.
  • Ensure threads are aligned correctly to prevent cross-threading.

Warranty and Support

Specific warranty information for the MISSMIN 55/64 Male to Male Faucet Adapter is not provided in this manual. For warranty details or technical support, please refer to the product packaging or contact MISSMIN customer service directly through their official channels or the retailer where the product was purchased.
