Macally Wireless Bluetooth Keyboard User Manual

Introduction

This manual provides comprehensive instructions for the setup, operation, maintenance, and troubleshooting of your Macally Wireless Bluetooth Keyboard (Model: ACEBTKEYSG). Designed for multi-device compatibility, this keyboard offers a seamless typing experience across various operating systems including Mac, PC, iOS, and Android devices. Please read this manual thoroughly to ensure optimal performance and longevity of your device.

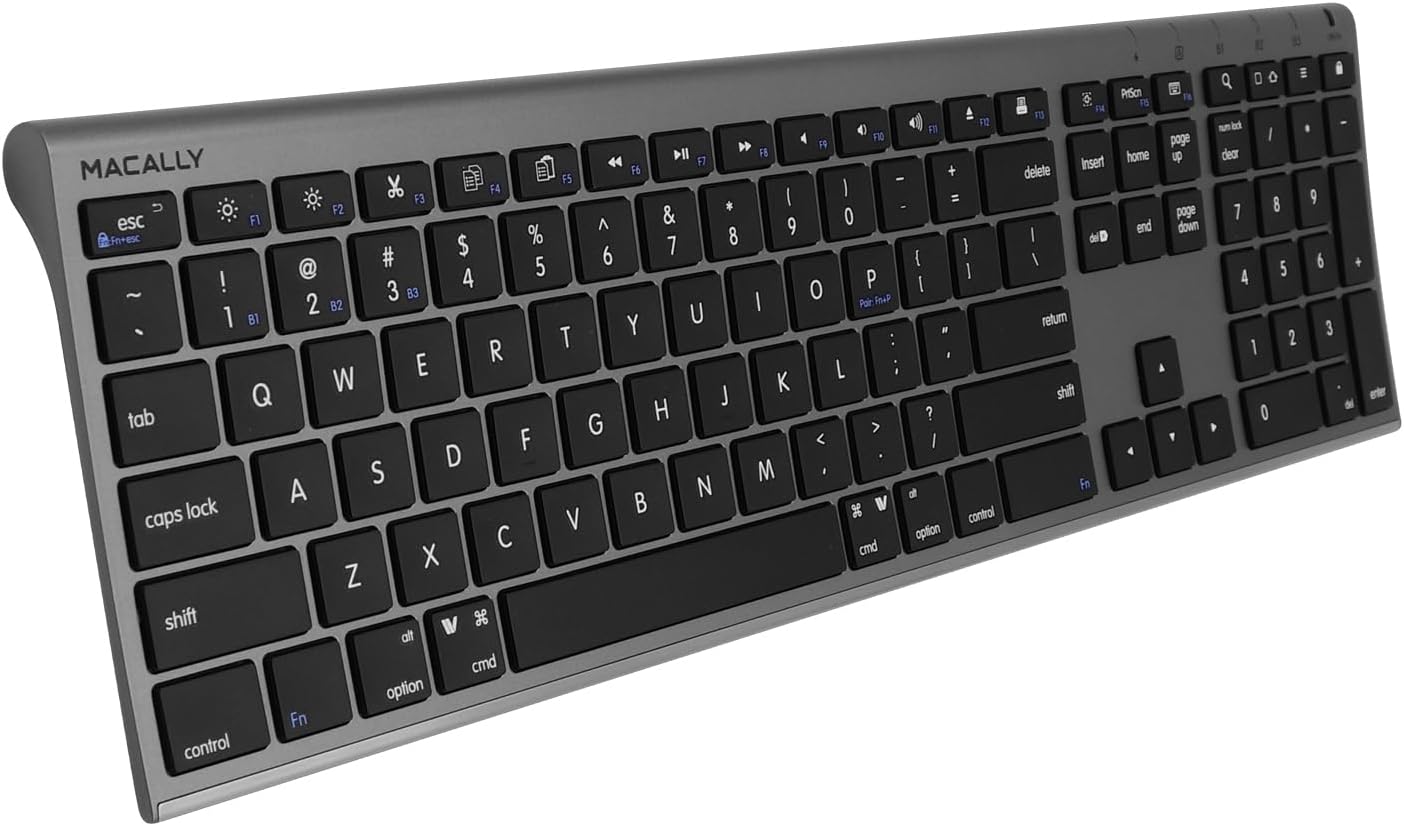

Image: Top-down view of the Macally Wireless Bluetooth Keyboard, highlighting its full layout with numeric keypad and function keys.

Setup

1. Charging the Keyboard

Before initial use, fully charge the keyboard. The keyboard features a built-in rechargeable battery that provides approximately 3 months of use on a single charge with average daily usage of 3 hours. A full charge typically takes about 1 hour.

• Connect the included USB charging cable to the micro USB port on the keyboard (located on the right side).
• Connect the other end of the cable to a USB power source (e.g., computer USB port, USB wall adapter).
• The charging LED indicator will illuminate during charging and change color (or turn off) when fully charged.

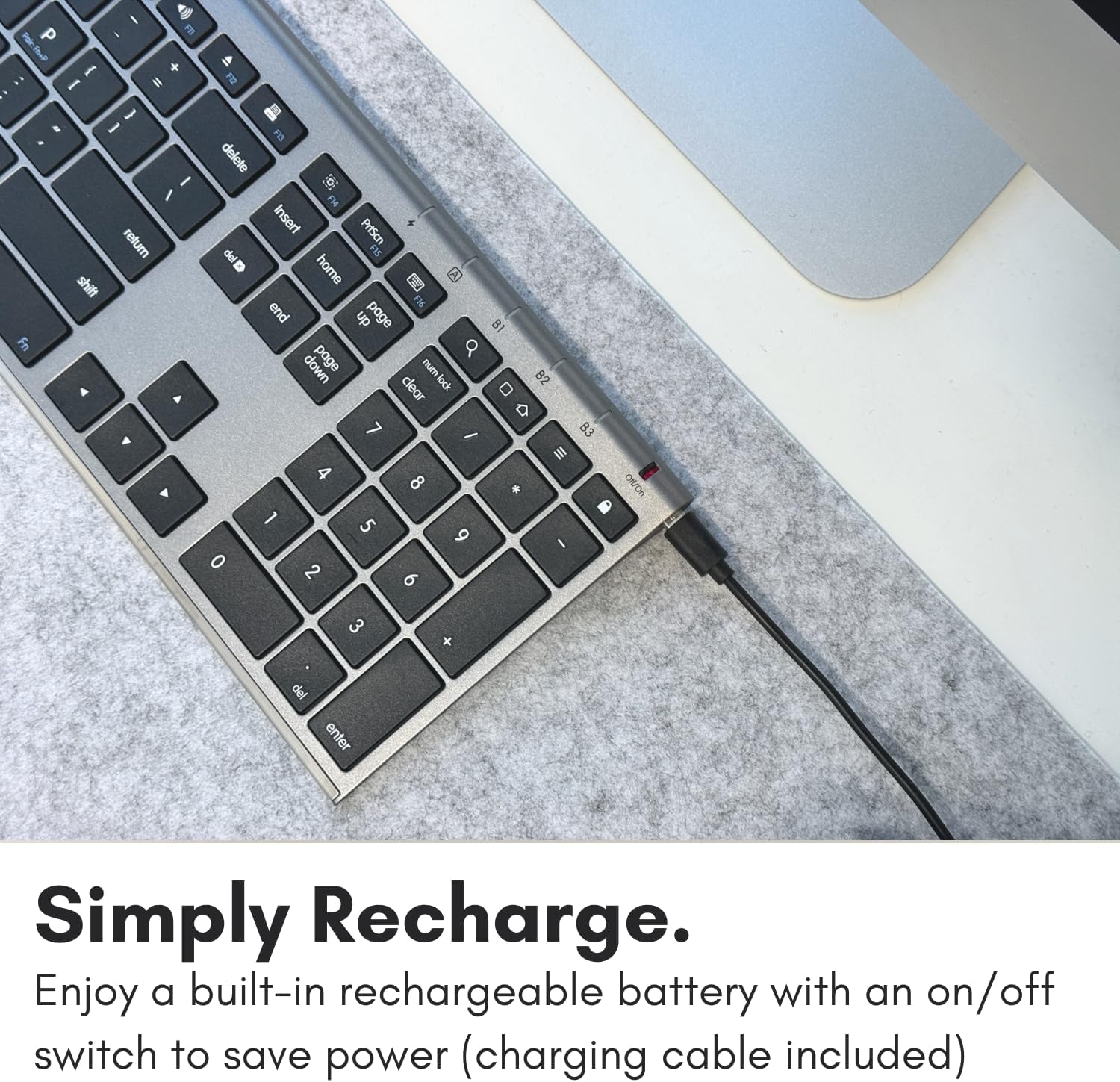

Image: Close-up view of the Macally Wireless Bluetooth Keyboard showing the micro USB charging port on the right side, with a charging cable connected.

2. Bluetooth Pairing

The Macally Wireless Bluetooth Keyboard supports pairing with up to three devices simultaneously, allowing for quick switching between them.

1. Ensure the keyboard is charged and the power switch (located near the charging port) is in the ON position.
2. On the keyboard, press and hold the Fn key and one of the Bluetooth device keys (B1, B2, or B3) for 3-5 seconds until the corresponding Bluetooth LED indicator above the key starts blinking rapidly. This indicates the keyboard is in pairing mode.
3. On your device (Mac, PC, iOS, Android), navigate to the Bluetooth settings.
4. Search for available Bluetooth devices. The keyboard should appear as "Macally Keyboard" or similar.
5. Select the keyboard from the list to initiate pairing. Follow any on-screen prompts, such as entering a pairing code.
6. Once successfully paired, the Bluetooth LED indicator on the keyboard will stop blinking and remain solid for a few seconds before turning off, indicating a successful connection.
7. Repeat steps 2-5 for additional devices, using a different Bluetooth device key (B1, B2, or B3) for each.

Image: The Macally Wireless Bluetooth Keyboard positioned between a MacBook and an iPad, illustrating its multi-device pairing capability.

Operating the Keyboard

1. Switching Between Devices

To switch between paired devices, simply press and hold the Fn key and the corresponding Bluetooth device key (B1, B2, or B3) for the desired device. The switch is quick, taking approximately half a second.

2. Key Functions and Shortcuts

The keyboard features 110 scissor-flex keys designed for quiet and smooth keystrokes, along with a full numeric keypad. It includes 20 MacOSX shortcuts for enhanced productivity. These shortcuts are typically activated by pressing the Fn key in combination with the relevant function key (F1-F12) or other designated keys.

• F1-F12 Keys: These keys often have dual functions. The primary function (e.g., brightness, volume) is typically activated directly, while the secondary function (e.g., F1 for undo) requires pressing Fn + F-key. Refer to your operating system's settings for specific shortcut configurations.
• Numeric Keypad: Provides a dedicated section for numerical input, essential for data entry and calculations.

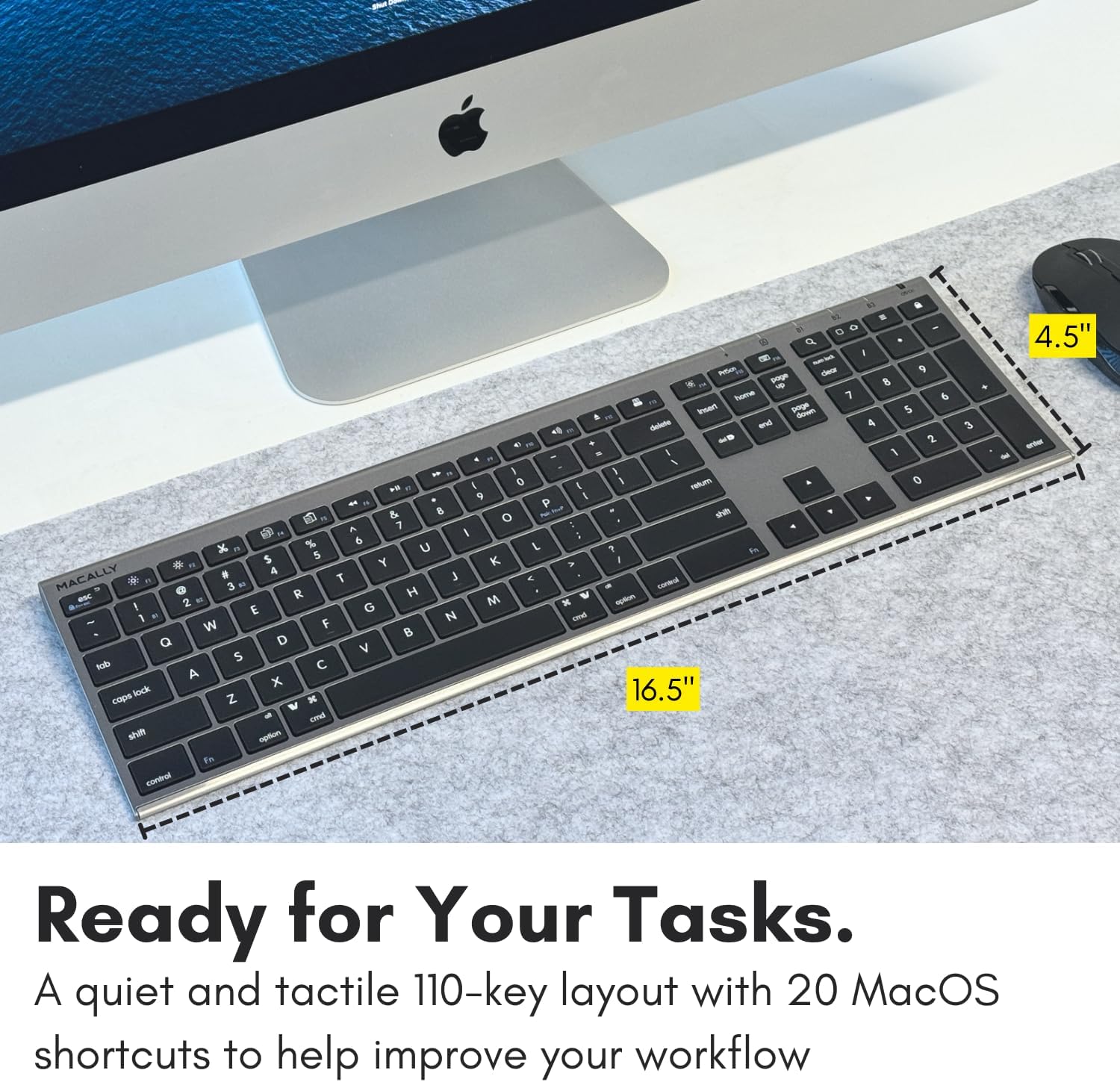

Image: The Macally Wireless Bluetooth Keyboard highlighting its full 110-key layout, including the numeric keypad and dedicated MacOS shortcuts.

3. Compatibility

This keyboard is designed for broad compatibility, working seamlessly with:

• Mac (macOS)
• PC (Windows)
• iOS devices (iPhone, iPad)
• Android devices
• Smart TVs with Bluetooth keyboard support

Image: Graphic illustrating the Macally Wireless Bluetooth Keyboard's compatibility with Mac, PC, iOS, and Android operating systems.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your keyboard.

• Cleaning: Use a soft, lint-free cloth slightly dampened with water or a mild cleaning solution to wipe the surface of the keyboard. Avoid excessive moisture. Do not spray cleaners directly onto the keyboard.
• Dust Removal: Use compressed air to remove dust and debris from between the keys.
• Battery Care: To maximize battery life, avoid fully discharging the keyboard frequently. Recharge the keyboard when the battery indicator suggests low power. If storing the keyboard for an extended period, ensure it is partially charged (around 50%) and turn off the power switch.
• Storage: Store the keyboard in a cool, dry place away from direct sunlight and extreme temperatures.

Troubleshooting

If you encounter issues with your Macally Wireless Bluetooth Keyboard, refer to the following common solutions:

Keyboard Not Responding or Lagging

• Check Battery: Ensure the keyboard is sufficiently charged. Connect it to a power source and allow it to charge for at least 15 minutes before attempting to use it again.
• Re-establish Connection:
  1. Turn off the keyboard using the power switch.
  2. On your device, remove or "forget" the keyboard from your Bluetooth device list.
  3. Turn the keyboard back on and put it into pairing mode (Fn + B1/B2/B3).
  4. Re-pair the keyboard with your device as described in the "Bluetooth Pairing" section.
• Interference: Move the keyboard closer to your device. Ensure there are no large metal objects or other wireless devices causing interference between the keyboard and your computer/device.

Function (Fn) Key Lock Issue

If your function keys are not behaving as expected (e.g., F1-F12 acting as standard function keys instead of media controls or vice-versa), the Fn lock might be engaged.

Image: Text graphic detailing the solution for the Fn lock issue: "On the top right there should be a lock symbol with an FN in the lock. See if there is a Blue LED light on the panel which is on the top right. If there is a Blue LED light on, then press and hold Fn and press ESC to shut off the Fn lock."

To toggle the Fn lock: On the top right of the keyboard, locate the lock symbol with "FN" inside. If a blue LED light is on near this symbol, press and hold the Fn key and then press the Esc key to disable the Fn lock. This will switch the behavior of the function keys.

Unexpected Mouse Pointer Movement or Input

If your keyboard seems to be controlling the mouse pointer or producing unexpected input, check your system's accessibility settings.

Image: Text graphic detailing the solution for unexpected mouse movement: "Go to System Preferences, then click on accessibilities. After that scroll to pointer controls and disable enable mouse keys."

On Mac: Go to System Preferences > Accessibility > Pointer Control. Ensure "Enable Mouse Keys" is disabled.

Specifications

Warranty and Support

Macally products are designed for quality and reliability. For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official Macally website. For technical support or further assistance, please contact Macally customer service through their official channels.

You can often find support resources, FAQs, and contact information on the Macally Store on Amazon or their official company website.
