AOLISHENG Drawer Slides User Manual

1. Product Overview

This manual provides detailed instructions for the installation, operation, and maintenance of your AOLISHENG Full Extension Drawer Slides. Designed for durability and smooth operation, these slides are suitable for various home drawers, offering a reliable solution for your furniture needs.

The product includes 5 pairs (10 pieces) of drawer slides and necessary fixing screws. Each slide is 450mm in length and constructed from 1.2mm thick high-density steel, ensuring a robust load capacity of up to 45 kg (100 pounds).

Image: Five pairs of AOLISHENG full extension drawer slides, ready for installation.

2. Key Features

• Full Extension Design: 3-fold full extension allows the drawer to be fully pulled out, providing complete access to contents.
• High Load Capacity: Made from 1.2mm high-density thickened steel, supporting up to 45 kg (100 pounds).
• Smooth & Quiet Operation: Utilizes 4.76mm double row solid steel balls and end rubber bumpers for smooth and quiet drawer movement (≤30 dB).
• Durable & Rust-Resistant: Electrophoresis surface treatment prevents rust, ensuring a normal lifespan of over 30 years and passing over 100,000 opening and closing tests.
• Detachable Mechanism: Features a black plastic buckle for easy removal of the drawer by pressing down, simplifying installation and maintenance.

Image: Detail of the drawer slide highlighting the double row solid steel balls for smooth and quiet operation.

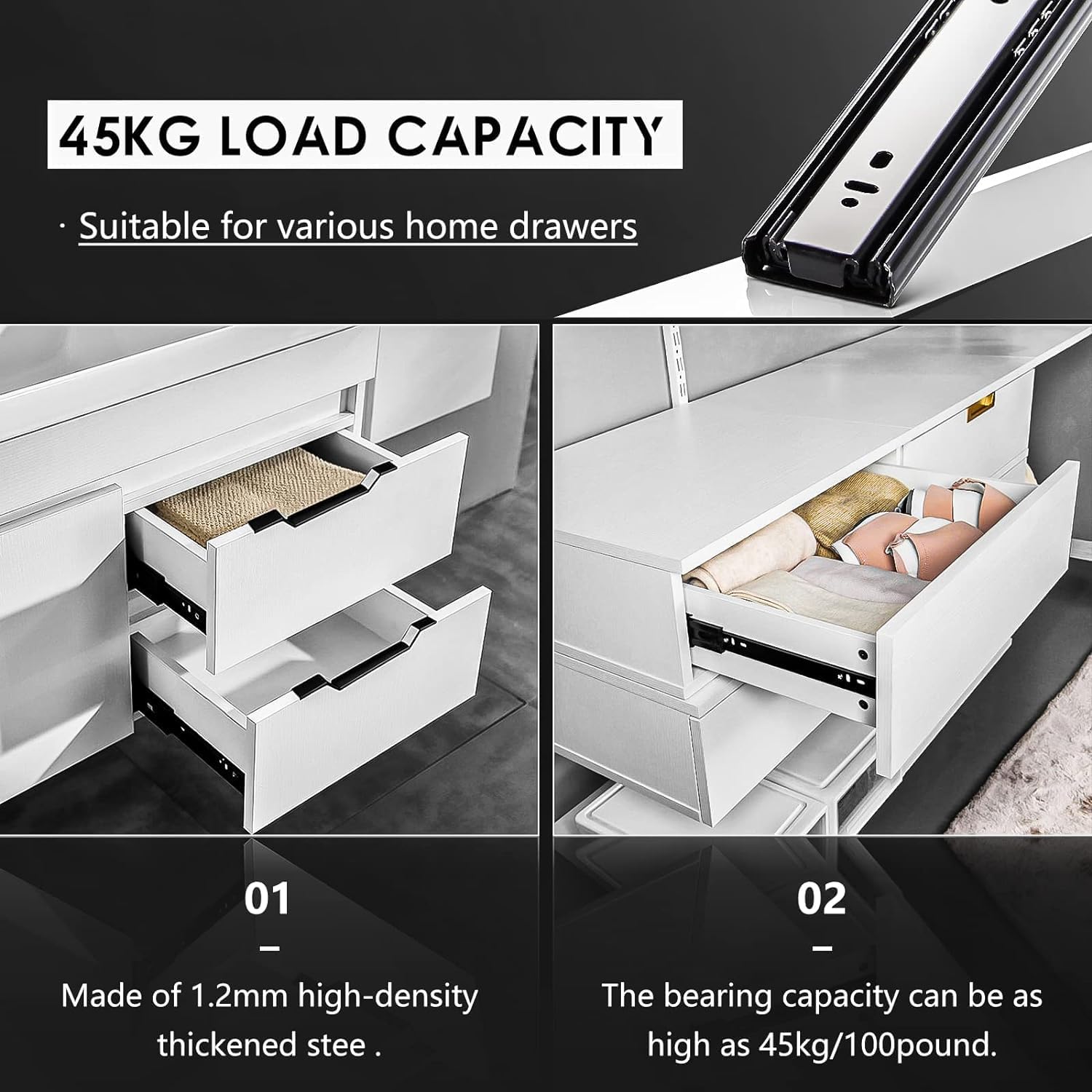

Image: Illustration of a drawer filled with various items, demonstrating the 45 kg load capacity of the slides.

Image: Diagram illustrating the 3-fold full extension feature, allowing the drawer to open completely.

Image: Step-by-step guide on how to detach the drawer slide using the black plastic buckle for easy removal.

3. Choosing the Right Size

Selecting the correct drawer slide size is crucial for proper function. The slide length should be less than or equal to the drawer length. Consider the drawer depth and desired pull-out length.

Image: A comprehensive guide with a table and diagram to help determine the appropriate drawer slide size based on various measurements.

General Guidelines:

• The slide length must be ≤ the drawer length.
• Installation distance (gap between drawer and cabinet side) is 12.5 mm for each slide.

4. Installation Instructions

AOLISHENG drawer slides are designed for side mounting. While installation is generally straightforward, it requires careful measurement and attention to detail. It is recommended to wear gloves during installation as these are metal products.

Tools Required:

• Measuring tape or ruler
• Pencil
• Drill
• Screwdriver (Phillips head recommended)
• Level
• Safety gloves

Installation Steps:

1. Separate the Slides: Fully extend the drawer slide and locate the black plastic buckle at the back. Press down on the buckle to separate the inner rail from the main slide body.
2. Mount Cabinet Member: Attach the main slide body (the longer part) to the inside of the cabinet. Ensure it is level and positioned correctly for the drawer. Use the provided screws. The installation distance is 12.5 mm on each side.
3. Mount Drawer Member: Attach the inner rail (the shorter part) to the side of the drawer. Ensure it is flush with the bottom edge of the drawer and parallel to the cabinet member.
4. Insert Drawer: Align the inner rail on the drawer with the main slide body in the cabinet. Gently push the drawer in until the slides engage and click into place.
5. Test Operation: Open and close the drawer several times to ensure smooth movement and full extension. Adjust if necessary.

Image: Example of drawer slides installed in a cabinet, demonstrating their functionality.

5. Operation

Once installed, your AOLISHENG drawer slides will provide smooth and quiet operation. The solid steel balls ensure effortless gliding, while the rubber bumpers minimize noise upon closing.

• To open the drawer, gently pull it outwards. The 3-fold full extension design allows the drawer to extend completely, providing full access to its contents.
• To close the drawer, gently push it inwards until it is fully recessed.

Image: Drawer slides in a vehicle application, showcasing their smooth operation even with heavy loads.

6. Maintenance

AOLISHENG drawer slides are designed for long-term durability with minimal maintenance. The electrophoresis surface treatment provides excellent rust protection.

• Cleaning: Periodically wipe the slides with a clean, dry cloth to remove dust and debris. Avoid using abrasive cleaners or solvents.
• Lubrication: Under normal conditions, the slides do not require additional lubrication. If movement becomes stiff over time, a small amount of silicone-based lubricant can be applied to the ball bearings.
• Inspection: Regularly check the mounting screws to ensure they are tight. Re-tighten if necessary.

7. Troubleshooting

Most issues with drawer slides can be resolved with simple adjustments.

8. Specifications

9. Safety Information

Please observe the following safety precautions:

• Wear Gloves: Drawer slides are metal products. Always wear safety gloves during handling and installation to protect your hands from sharp edges or pinches.
• Weight Limit: Do not exceed the maximum supported weight of 45 kg (100 pounds) per drawer. Overloading can lead to damage to the slides or the drawer structure.
• Secure Installation: Ensure all screws are securely tightened during installation to prevent the drawer from detaching or wobbling.
• Child Safety: Keep small components and packaging materials away from children to prevent choking hazards.

10. Warranty and Support

AOLISHENG products are manufactured to high-quality standards and are designed for long-lasting performance. For specific warranty details or technical support, please refer to the product packaging or contact AOLISHENG customer service directly through their official channels.

For further assistance, you may visit the AOLISHENG brand page on Amazon or consult the FAQs provided by the manufacturer.
