1. Product Overview
The Globo 15345-3 is a modern pendant lamp designed for indoor use, featuring a matte black metal structure and three suspended smoked glass spheres. This fixture is ideal for illuminating living rooms and dining areas, providing ambient light when paired with suitable E14 bulbs.
Image 1.1: The Globo 15345-3 pendant lamp in a dining room environment.
2. Safety Information
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Electrical Safety: Always disconnect power at the main circuit breaker before installing, cleaning, or servicing the lamp.
- Qualified Electrician: Installation should be performed by a qualified electrician in accordance with local electrical codes.
- Bulb Requirements: Use only E14 bulbs with a maximum wattage of 40W per socket. Do not exceed the specified wattage.
- Indoor Use Only: This lamp is designed for indoor use in dry locations. Do not expose to moisture or water.
- Handling Glass: Handle glass components with care to prevent breakage.
3. Package Contents
Verify that all components are present before beginning installation. If any parts are missing or damaged, do not proceed with installation and contact your retailer.
- 1 x Globo 15345-3 Pendant Lamp (pre-assembled fixture)
- Note: Light bulbs are not included and must be purchased separately.
4. Setup and Installation
Follow these steps for safe and proper installation of your pendant lamp. Ensure power is disconnected at the circuit breaker before starting.
4.1 Pre-Installation
- Turn off the main power supply to the installation area at the circuit breaker.
- Unpack the lamp carefully and inspect for any damage.
- Ensure you have the necessary tools: screwdriver, wire strippers, electrical tape, and a ladder.
4.2 Mounting the Fixture
The lamp is designed for ceiling mounting. Refer to the dimensional diagrams for precise measurements.
Image 4.1: Overall dimensions of the pendant lamp.

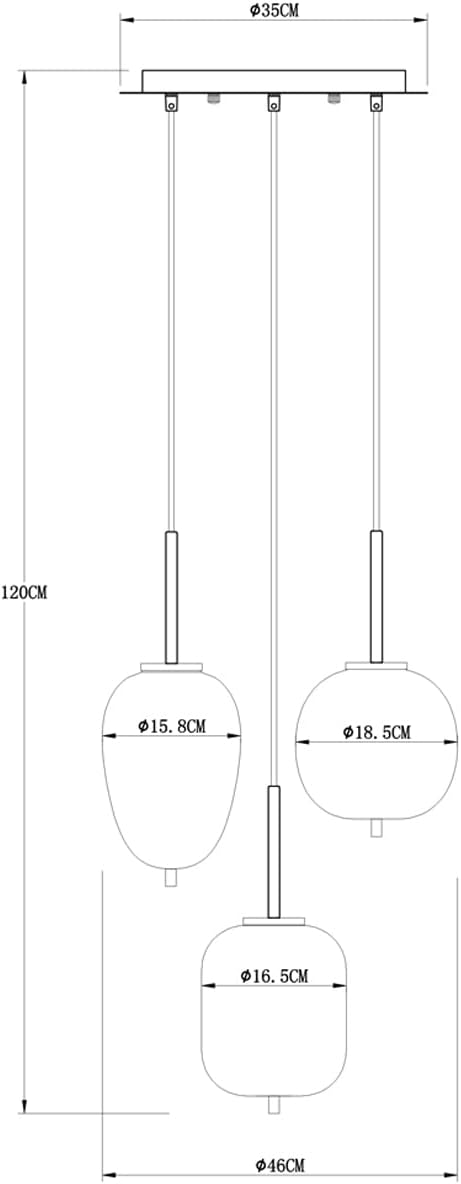

Image 4.2: Detailed dimensions of the glass spheres.
- Attach the mounting bracket (located inside the canopy) to the ceiling junction box using appropriate screws. Ensure it is securely fastened.
- Connect the electrical wires: connect the live wire (usually brown or black) from the ceiling to the live wire of the lamp, the neutral wire (usually blue) from the ceiling to the neutral wire of the lamp, and the ground wire (usually green/yellow) from the ceiling to the ground wire of the lamp. Use wire connectors to secure connections.
- Carefully tuck the wires into the junction box.
- Align the lamp canopy with the mounting bracket and secure it with the provided screws or nuts.
4.3 Bulb Installation
This lamp requires three E14 bulbs, maximum 40W each.
Image 4.3: Close-up of the E14 bulb sockets within the glass shades.
- Gently screw the E14 bulbs into each of the three sockets. Do not overtighten.
- Ensure the bulbs are securely seated.
4.4 Final Steps
- Once installation is complete, restore power at the main circuit breaker.
- Test the lamp by turning on the wall switch.
5. Operating Instructions
The Globo 15345-3 pendant lamp operates via a standard wall switch connected to its electrical circuit.
- Turning On/Off: Use the wall switch to turn the lamp on or off.
- Bulb Replacement: To replace a bulb, first disconnect power at the circuit breaker. Allow the old bulb to cool completely before unscrewing it. Install a new E14 bulb (max 40W) by gently screwing it into the socket. Restore power after replacement.
6. Maintenance
Regular cleaning and proper care will ensure the longevity and appearance of your lamp.
- Cleaning: Disconnect power before cleaning. Use a soft, dry cloth to wipe the metal parts. For the glass shades, use a soft, damp cloth with a mild glass cleaner if necessary, then dry immediately. Avoid abrasive cleaners or solvents.
- Inspection: Periodically check all connections and mounting hardware to ensure they remain secure.
7. Troubleshooting
If you encounter issues with your lamp, refer to the following common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Lamp does not light up | No power supply Loose wiring Faulty bulb | Check circuit breaker. Ensure all wire connections are secure (power off first). Replace bulb with a new, working E14 bulb. |
| Flickering light | Loose bulb Incompatible bulb Loose wiring | Tighten bulb. Ensure bulb is E14, max 40W. Try a different bulb. Check wiring connections (power off first). |
| Glass shade is loose | Mounting ring not tightened | Gently tighten the retaining ring that secures the glass shade. Do not overtighten. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 15345-3 |
| Brand | Globo |
| Type | Pendant Lamp (3-light) |
| Color | Matte Black (metal), Smoked (glass) |
| Material | Metal, Glass |
| Dimensions (Overall) | 46 cm (Diameter) x 120 cm (Height) |
| Canopy Diameter | 46 cm |
| Glass Sphere Diameter 1 | 15.5 cm (approx. 15.8 cm) |
| Glass Sphere Diameter 2 | 16.5 cm |
| Glass Sphere Diameter 3 | 18.5 cm |
| Weight | 3.28 Kilograms |
| Bulb Base | E14 |
| Max Wattage per Bulb | 40W |
| Number of Bulbs Required | 3 (not included) |
| Power Source | Electric Cable |
| Usage Environment | Indoor Use Only |
| Mounting Type | Ceiling Mount |
| Assembly Required | No (fixture is pre-assembled, installation required) |
| Energy Efficiency | Energy-efficient (depends on bulb used) |
| Luminous Efficacy | Up to 12000 Lumens (depends on bulbs used) |
9. Warranty and Support
This Globo product comes with a limited warranty. Please refer to the warranty documentation provided at the point of purchase for specific terms and conditions.
For technical support, missing parts, or warranty claims, please contact your retailer or the Globo customer service department. Keep your proof of purchase for warranty validation.
