1. Safety Information
Please read all instructions and safety warnings carefully before use. Failure to follow these instructions may result in electric shock, fire, property damage, or personal injury.
- Electrical Safety: Ensure the power outlet matches the voltage requirements of the appliance. Do not overload electrical circuits.
- Placement: Position the fireplace on a stable, level surface. Maintain adequate clearance from combustible materials.
- Ventilation: Do not block the air vents. Ensure proper airflow around the unit to prevent overheating. WARNING: DO NOT COVER.
- Hot Surfaces: The grill surface becomes hot when the heater is running. WARNING: GRILL SURFACE GETS HOT WHEN HEATER IS RUNNING. Avoid direct contact.
- Children and Pets: Keep children and pets away from the appliance, especially when in operation.
- Maintenance: Disconnect power before cleaning or performing any maintenance.
2. Package Contents
Verify that all components are present before beginning assembly:
- Electric Fireplace Insert Unit
- Remote Control
- Log Set (Faux Wood)
- Crystal Stones
- Mounting Hardware (Brackets, Screws, Wall Anchors)
- Freestanding Base (if applicable to your model)
- User Manual
3. Setup and Installation
The Maxhonor Electric Fireplace Insert offers three installation options: recessed, wall-mounted, and freestanding. Choose the method that best suits your space.
3.1. Installation Options Overview
Image: Three installation options for the electric fireplace: fully recessed, partially recessed, and freestanding.
3.2. Dimensions
Image: Detailed dimensions of the 30-inch electric fireplace insert (30"L x 17"H x 4.1"W).
3.3. Media Installation (Log Set or Crystal Stones)
Your fireplace comes with both a faux log set and crystal stones. Choose your preferred media for the ember bed.
Image: Faux fire log and glass crystals for the ember bed, offering two aesthetic options.
3.4. Installation Videos
For visual guidance on installation, please refer to the following seller-provided videos:
Video: Maxhonor Recessed & Wall Mounted Electric Fireplace installation guide. This video demonstrates how to install the fireplace in recessed and wall-mounted configurations.
Video: Fireplace Recessed, Wall Mount, Free-standing installation guide. This video provides instructions for recessed, wall-mount, and freestanding setups.
4. Operating Instructions
Your Maxhonor Electric Fireplace can be operated using the included remote control or the touch panel on the unit.
4.1. Remote Control Functions
Image: Remote control for the electric fireplace.
- Power Button: Turns the fireplace ON/OFF.
- Flame Brightness: Adjusts the intensity of the flame effect.
- Flame Color: Cycles through 12 different flame color options, including a special breathing flame effect.
- Heater Settings: Select between 750W (gentle warmth) and 1500W (strong heat).
- Temperature Control: Adjusts the desired room temperature from 62°F to 82°F.
- Timer: Sets an automatic shut-off timer from 1 hour to 8 hours.
4.2. Touch Panel Functions
Image: Touch control panel located on the fireplace unit.
The touch panel provides access to the same functions as the remote control. Simply touch the corresponding icons to adjust settings.
4.3. Flame Color Options
Image: Visual representation of the 12 available flame colors.

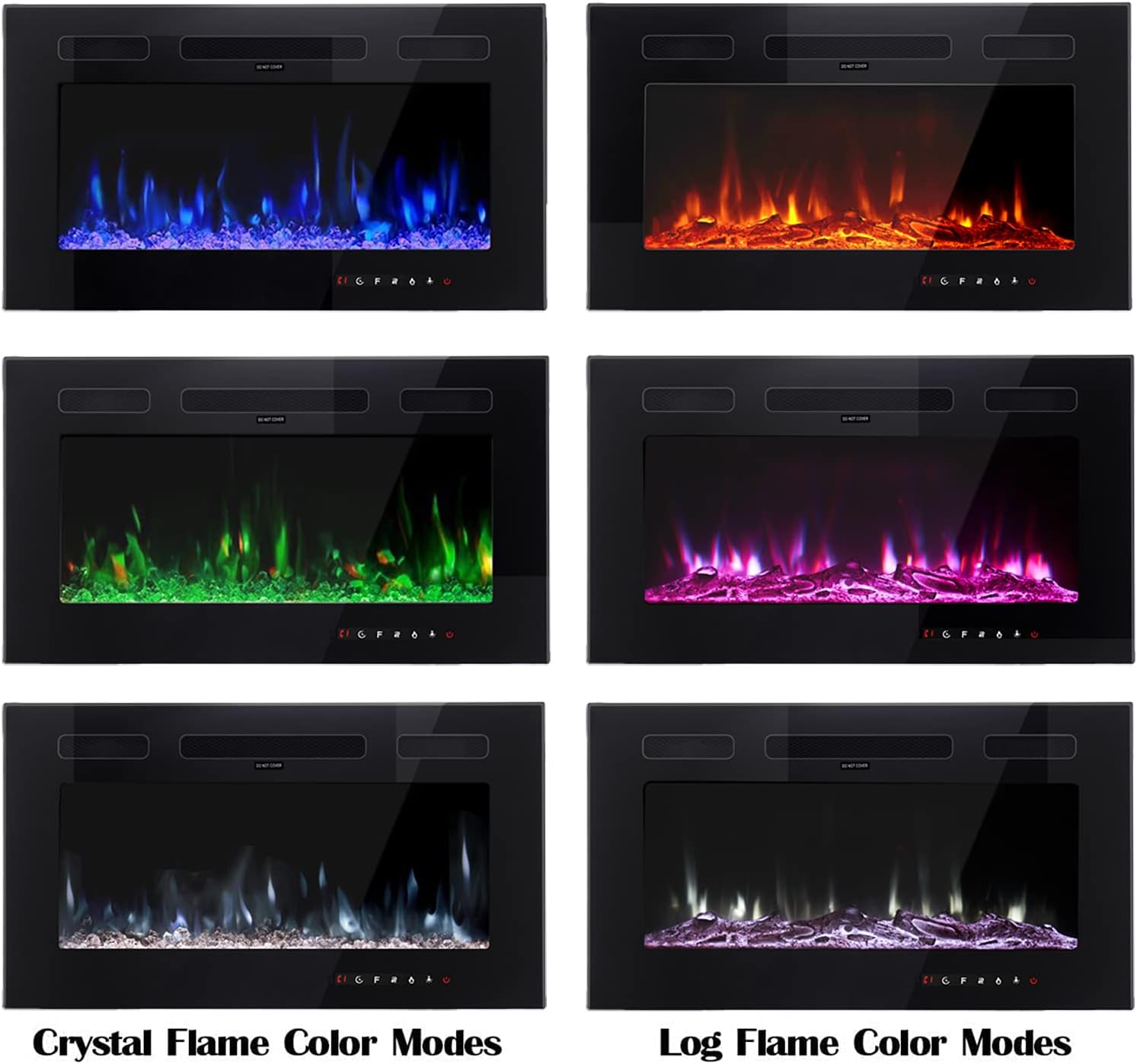

Image: Examples of crystal and log flame color modes.
The fireplace features 12 adjustable flame colors and a unique breathing flame effect that presents artistic gradient colors.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your electric fireplace.
- Cleaning: Dust the exterior surfaces and air vents periodically with a soft, dry cloth. Ensure the unit is unplugged before cleaning.
- Airflow: Keep the air intake and exhaust vents clear of obstructions to maintain proper heating efficiency and prevent overheating.
- Noise Level: The unit operates at less than 38 dB when blowing hot air. If unusual noises occur, discontinue use and contact customer service.
6. Troubleshooting
If you encounter issues with your fireplace, refer to the following common solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power/Unit not turning on | Power cord unplugged, circuit breaker tripped, power switch off. | Check power connection, reset circuit breaker, ensure main power switch is ON. |
| No heat output | Heater function not activated, temperature setting too low, air vents blocked. | Activate heater, increase temperature setting, clear any obstructions from vents. |
| Flame effect not working | Flame effect turned off, LED lights malfunction. | Ensure flame effect is activated. If issue persists, contact customer service. |
| Remote control not responding | Dead batteries, obstruction between remote and unit, remote sensor blocked. | Replace remote batteries, remove obstructions, ensure remote sensor is clear. |
If these solutions do not resolve the issue, please contact customer service.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Maxhonor |
| Model Name | IF-1330 |
| Item Model Number | IF-1330TCL |
| Product Dimensions | 4"D x 30"W x 17"H |
| Material | Metal |
| Color | Black |
| Power Source | Corded Electric |
| Heat Output | 5120 British Thermal Units |
| Heat Settings | 750W/1500W |
| Temperature Settings | 62°F to 82°F |
| Heating Coverage | Approximately 400 sq ft |
| Timer | 1H to 8H adjustable |
| Special Features | Flame Effect, Infrared, Timer, 12 LED Colors |
| Noise Level | Less than 38 dB |
| Installation Type | Freestanding, Wall Mount, Recessed |
| Item Weight | 32 Pounds |
8. Warranty and Support
Your Maxhonor Electric Fireplace comes with a Limited Warranty.
For any questions, concerns, or support needs, please contact our customer service team. We are committed to providing 24-HOUR CUSTOMER SERVICE and will respond to your inquiries in a timely manner.
Contact information can typically be found on the product packaging or the official Maxhonor website.
