1. Important Safety Information
Please read this manual carefully before installing, operating, or performing maintenance on your Ariston PRO1 ECO 50 L Electric Storage Water Heater. Retain this manual for future reference. Failure to follow these instructions could result in property damage, personal injury, or death.
- Installation must be performed by a qualified professional in accordance with all local and national regulations.
- Ensure the electrical supply matches the specifications of the water heater.
- Do not operate the water heater if it is damaged or malfunctioning.
- The appliance is equipped with an ABS safety package providing protection for both the product and its users.
- The integrated Anti Legionella system performs a heating cycle to 65°C periodically to sanitize the water and remove bacteria.
- Always disconnect power before performing any maintenance or service.
2. Product Overview
The Ariston PRO1 ECO 50 L is an electric storage water heater designed for energy efficiency and durability. It is suitable for domestic and light commercial environments.
Key Features:
- WaterPlus Technology: Reduces the mixing of incoming cold water with stored hot water, providing up to 16% more hot water availability.
- Eco Evo Function: Learns daily usage patterns to optimize heating and save up to 14% on energy bills.
- TitanShield Technology: The inner tank is enamelled with titanium for anti-corrosion and rust resistance, complemented by a large magnesium anode for extended product life.
- T-MAX Function: Boosts the heating process to quickly meet unexpected hot water demands.
- Unvented Kit: Supplied with a full unvented kit including an expansion vessel, tundish, and pressure reducing valve.
Figure 1: Ariston PRO1 ECO 50 L Electric Storage Water Heater, front view.
Figure 2: Internal and external features of the PRO1 ECO water heater, including TitanShield Technology, Absolute Safety System, Modern Curved Design, Electronic Control with Indicative LEDs, High Quality Heating Elements, Premium Insulation Material, Function Buttons, and Selection Buttons.
Figure 3: Energy efficiency label for the Ariston PRO1 ECO 50 L water heater, showing a B class ERP rating and annual energy consumption of 1292 kWh.
3. Setup and Installation
This water heater is designed and manufactured to comply with regulations for installation in the UK. Installation must be carried out by a qualified professional.
3.1 Unvented Kit Components
The PRO1 ECO 50 L is supplied with a complete unvented kit to ensure safe and compliant operation. This kit includes:
- Expansion Vessel & Non-Return Valve
- Combination Valve
- Discharge Tundish
Figure 4: Ariston PRO1 ECO 50L and 80L models shown alongside the included unvented kit components: expansion vessel & non-return valve, combination valve, and discharge tundish.
3.2 Dimensions
The PRO1 ECO 50 L has been designed with a compact width of 470mm to fit various spaces.
- Height: 605 mm
- Width: 470 mm
- Depth: 480 mm

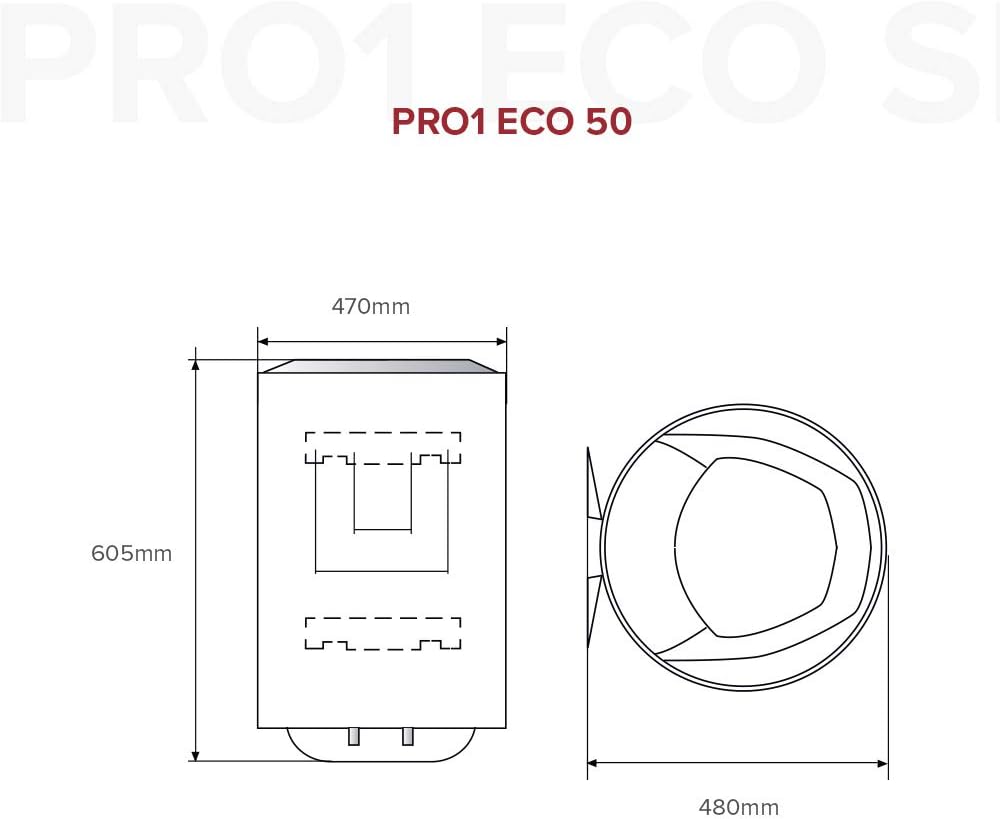

Figure 5: Technical drawing illustrating the dimensions of the Ariston PRO1 ECO 50 L water heater, showing a height of 605mm, width of 470mm, and depth of 480mm.
4. Operating Instructions
4.1 Control Panel
The water heater features a user-friendly control panel for setting temperature and activating special functions.
Figure 6: Close-up of the Ariston PRO1 ECO Hi-Tech Display Panel, highlighting the ECO EVO, T-MAX, and SHOWER READY indicators and controls.
- ECO EVO Function: This intelligent function learns your hot water requirements during the first week of use. It then automatically adjusts the temperature between 40°C and the maximum set temperature to efficiently supply the required hot water, optimizing energy consumption.
- T-MAX Function: Activate this boost function to rapidly raise the water temperature to 65°C. After reaching the desired temperature, it returns to the previously set temperature. This is useful for situations requiring a quick increase in hot water availability.
- SHOWER READY Indicator: This indicator illuminates when there is sufficient hot water available for a shower.
4.2 Temperature Adjustment
Use the '+' and '-' buttons on the control panel to adjust the desired water temperature. The display will show the current setting.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your water heater. Always disconnect the power supply before performing any maintenance.
- Anode Inspection: The TitanShield technology includes a magnesium anode that protects the tank from corrosion. This anode should be inspected and replaced periodically by a qualified technician, typically every 1-2 years, depending on water quality.
- Anti Legionella Cycle: The water heater automatically performs an Anti Legionella cycle by heating the water to 65°C to sanitize the tank. Ensure the unit remains powered for this function to operate.
- Pressure Relief Valve: Periodically check the pressure relief valve for proper operation. Consult a qualified professional for this inspection.
- Cleaning: Clean the exterior of the water heater with a soft, damp cloth. Do not use abrasive cleaners or solvents.
6. Troubleshooting
If you experience issues with your water heater, refer to the following common problems and solutions. For complex issues, contact a qualified technician.
- No Hot Water: Check the power supply to the unit. Ensure the circuit breaker has not tripped. Verify the temperature setting on the control panel.
- Insufficient Hot Water: The Eco Evo function may be learning your usage patterns. Allow time for it to adapt. Consider activating the T-MAX function for a temporary boost. Ensure the water heater capacity meets your household's demand.
- Water Leaks: Immediately turn off the water supply and power to the unit. Contact a qualified professional for inspection and repair.
- Unusual Noises: Minor noises during heating are normal. Persistent or loud noises may indicate sediment buildup or other issues. Contact a technician.
7. Specifications
Technical data for the Ariston PRO1 ECO 50 L Electric Storage Water Heater.
Figure 7: Detailed technical data sheet for Ariston PRO1 ECO electric storage water heaters, including specifications for 50L, 80L, and 100L models.
| Parameter | Value (50 L Model) |
|---|---|
| Model | PRO1 ECO 50 V UK EU |
| Capacity | 50 Liters |
| Power / Wattage | 2000 W |
| Voltage | 230-240 V |
| Max Working Temperature | 80 °C |
| Max Working Pressure | 8 bar |
| Heat Dispersion at 65°C | 0.92 kWh/24h |
| IP Protection | IPX3 |
| ERP Class | B |
| Weight Empty | 17 kg |
| Weight Full | 67 kg |
| Dimensions (H x W x D) | 605 x 470 x 480 mm |
| Material | Titanium finished steel |
| Energy Efficiency Class | A to G |
| Special Features | Eco Evo Function, WaterPlus Technology, TitanShield Technology, Anti Legionella System |
8. Warranty and Support
8.1 Warranty Information
The Ariston PRO1 ECO 50 L Electric Storage Water Heater typically comes with a 5-year warranty. Please refer to your purchase documentation or the official Ariston website for specific warranty terms and conditions applicable to your region.
Figure 8: Image indicating a 5-year warranty available for Ariston PRO1 ECO water heaters.
8.2 Customer Support
For technical assistance, spare parts, or warranty claims, please contact Ariston customer support.
- Official Website: www.aristonthermo.com or www.ariston.com
- Product Database Email: info.product.db@ariston.com
- Telephone: +39073260011
- EPREL Product Information: https://eprel.ec.europa.eu/qr/798936
