1. Introduction
This manual provides essential information for the safe and efficient use of your Philips Airfryer XL HD9270/90. Please read it thoroughly before first use and retain it for future reference.
The Philips Airfryer XL utilizes Rapid Air Technology to cook your favorite foods with little to no added oil, resulting in crispy textures and tender interiors. It features a 6.2-liter capacity basket, a 2000W heating element, an LED touch screen display with 7 presets, and connectivity with the HomeID app for an enhanced cooking experience.

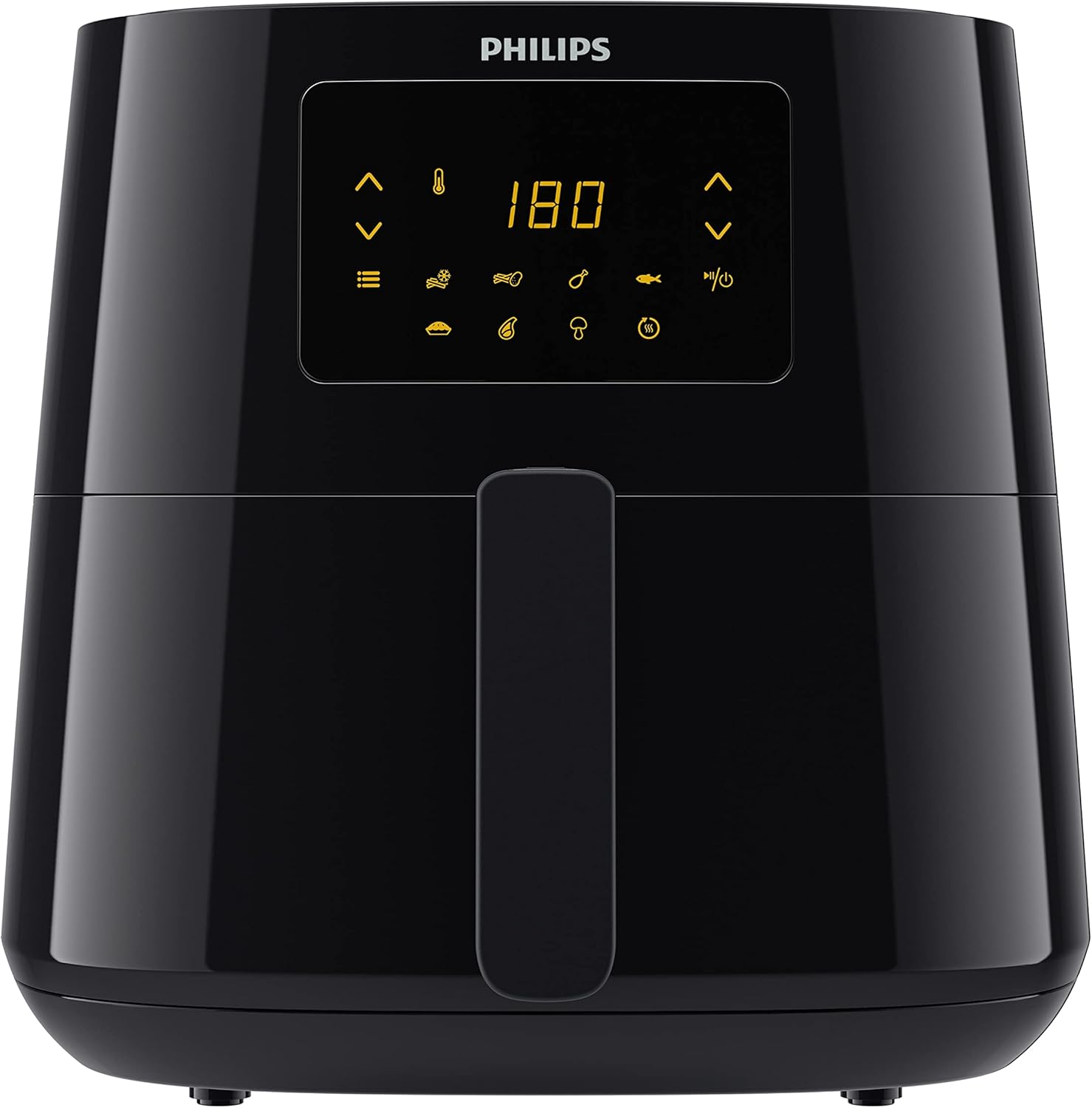

Image 1.1: Front view of the Philips Airfryer XL HD9270/90, showcasing its sleek black design and digital display.
2. Important Safety Information
Before using the appliance, carefully read this user manual and the separate safety leaflet. Keep both for future reference.
- Do not immerse the appliance in water or any other liquid.
- Ensure the voltage indicated on the appliance corresponds to your local mains voltage.
- Do not use the appliance if the plug, the main cord, or the appliance itself is damaged.
- Keep the main cord away from hot surfaces.
- This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities unless supervised or instructed.
- Children should be supervised to ensure they do not play with the appliance.
- Do not place the appliance against a wall or against other appliances. Leave at least 10 cm free space on the back and sides and 10 cm free space above the appliance.
- Never fill the pan with oil or other liquids.
- During hot air frying, hot steam is released through the air outlet openings. Keep your hands and face at a safe distance from the steam and from the air outlet openings.
- Unplug the appliance immediately if you see dark smoke coming out of it. Wait for the smoke emission to stop before you remove the pan from the appliance.
3. Product Overview
The Philips Airfryer XL HD9270/90 consists of several key components designed for optimal performance and ease of use.
Components:
- Main Unit: Houses the heating element and fan.
- Basket: Non-stick cooking basket for food.
- Pan: Collects fat and juices, holds the basket.
- Handle: For safely pulling out the pan and basket.
- LED Touch Screen Display: For setting temperature, time, and selecting presets.
- Air Inlet: Located at the top of the appliance.
- Air Outlet: Located at the back of the appliance.
Image 3.1: Side view of the Philips Airfryer XL, showing the handle and overall compact design.
Rapid Air Technology:
This technology creates a 'starfish' design on the bottom of the Airfryer, which circulates hot air rapidly, ensuring even cooking and crispy results without excessive oil.
Video 3.1: An animation demonstrating the Rapid Air Technology, showing how hot air circulates within the Philips Airfryer XL for efficient cooking.
4. Setup
Follow these steps to prepare your Airfryer for its first use:
- Unpack: Remove all packaging materials and any stickers or labels.
- Clean: Wash the pan and basket thoroughly with hot water, dish soap, and a non-abrasive sponge. Wipe the inside and outside of the appliance with a moist cloth.
- Placement: Place the appliance on a stable, horizontal, and level surface. Ensure there is at least 10 cm of free space around the appliance for proper ventilation.
- Pre-heat (Optional): For the first use, it is recommended to run the Airfryer empty for about 10 minutes at 180°C (350°F) to burn off any manufacturing residues. A slight odor may be present, which is normal.
Image 4.1: The Philips Airfryer XL positioned on a kitchen counter, ready for use with fresh ingredients nearby.
5. Operating Instructions
Your Philips Airfryer XL is designed for easy operation with its intuitive touch screen and smart features.
Basic Operation:
- Plug In: Connect the main plug to a grounded wall socket.
- Prepare Food: Place the ingredients in the basket. Do not exceed the MAX indication.
- Insert Pan: Slide the pan with the basket back into the Airfryer.
- Power On: Press the power button.
- Set Temperature and Time: Use the temperature and time control buttons to set your desired cooking parameters. The Airfryer features a temperature range and a timer up to 60 minutes.
- Start Cooking: Press the start/pause button to begin the cooking process.
- Shake Basket: Some foods require shaking halfway through the cooking time. The appliance may beep to remind you.
- Finish: When the timer reaches zero, the cooking process is complete. Carefully pull out the pan and remove the food.
Image 5.1: A user interacting with the LED touch screen display to set cooking parameters on the Philips Airfryer XL.
Using Presets:
The Airfryer comes with 7 pre-programmed settings for common dishes. Simply select the desired preset on the touch screen, and the appliance will automatically adjust the time and temperature.
Image 5.2: A close-up view of a hand selecting one of the 7 available presets on the Airfryer's digital control panel.
HomeID App Connectivity:
Connect your Airfryer to the HomeID app for access to a wide range of recipes, cooking tips, and remote control functionalities. Follow the instructions in the app to pair your device.
Image 5.3: The HomeID app logo, indicating smart connectivity features for the Airfryer.
Image 5.4: A person browsing recipes on the HomeID app, which connects with the Philips Airfryer XL.
Video 5.1: A brief product showcase highlighting the Philips Airfryer XL's features, including its touch screen display, capacity, and ease of cleaning.
6. Maintenance and Cleaning
Regular cleaning ensures optimal performance and extends the lifespan of your Airfryer.
- Unplug: Always unplug the appliance and let it cool down completely before cleaning.
- Clean Pan and Basket: The pan and basket are dishwasher safe. Alternatively, wash them with hot water, dish soap, and a non-abrasive sponge. For stubborn food residues, soak the pan and basket in hot water with dish soap for about 10 minutes.
- Clean Inside: Wipe the inside of the appliance with a hot water and non-abrasive sponge. Clean the heating element with a cleaning brush to remove any food residues.
- Clean Outside: Wipe the outside of the appliance with a moist cloth.
Image 6.1: The Airfryer basket being placed into a dishwasher, demonstrating its dishwasher-safe feature for easy cleaning.
7. Troubleshooting
If you encounter issues with your Philips Airfryer XL, consult the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| The Airfryer does not work. | The appliance is not plugged in. | Plug the main plug into a grounded wall socket. |
| Food is not cooked evenly. | Too much food in the basket; food not shaken. | Reduce batch size; shake the basket halfway through cooking. |
| White smoke comes out of the appliance. | Fat from fatty ingredients or oil residue. | Clean the pan and basket thoroughly after each use. |
| Fresh fries are not crispy. | Not enough oil used; incorrect potato type. | Add a little oil to the fries; use fresh, firm potatoes. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | HD9270/90 |
| Brand | Philips |
| Capacity | 6.2 Liters (1.2 KGs food capacity) |
| Power / Wattage | 2000 Watts |
| Voltage | 220 Volts |
| Material | Plastic |
| Product Dimensions (D x W x H) | 40.3 x 31.5 x 30.7 cm |
| Item Weight | 5.55 Kilograms |
| Special Features | Automatic Shut-Off, Dishwasher Safe, Programmable, Temperature Control, Timer, HomeID App Connectivity, 7 Presets |
| Recommended Uses | Bake, Defrost, Fry, Reheat, Roast |
Image 8.1: A diagram illustrating the physical dimensions of the Philips Airfryer XL HD9270/90.
9. Warranty and Support
For detailed warranty information, please refer to the warranty card included with your product or visit the official Philips website. If you require support, have questions, or need to arrange a repair, please contact Philips customer service in your region. Keep your purchase receipt as proof of purchase for warranty claims.
You can also find additional support and FAQs on the Philips website or through the HomeID app.
