1. Introduction
The LEKATO Wireless Page Turner Pedal is a versatile foot pedal designed to enhance the experience of musicians, performers, and presenters. It allows for hands-free control of digital music scores, lyrics, guitar tabs, and teleprompters on various devices. Additionally, it functions as an external pedal for LEKATO looper stations, providing seamless control over loop switching and tuner functions.
Figure 1.1: LEKATO Wireless Page Turner Pedal in use with a tablet.
2. Key Features
- Hands-Free Operation: Enables effortless page turning or scrolling with a simple foot tap, freeing hands for playing instruments or presenting.
- Multi-functional Compatibility: Works with various applications for reading music scores, scrolling lyrics, guitar tabs, and teleprompting. Compatible with iOS systems (version 13.4 and above) and Android systems.
- External Looper Control: Connects wirelessly to LEKATO looper stations for convenient last/next loop switching and tuner assistance.
- Long Battery Life: Features a built-in rechargeable lithium battery providing over 48 hours of continuous use on a single charge.
- Robust and Stable Design: Constructed with a solid metal enclosure and equipped with four anti-slip pads for stability during use.
- Wide Wireless Range: Offers a stable wireless connection up to 60 feet away, ensuring reliable performance.
3. Package Contents
- LEKATO Wireless Page Turner Pedal
- USB Charging Cable (Type-C)
- User Manual (this document)
4. Setup
4.1 Charging the Device
Before first use, fully charge the pedal. Connect the provided USB Type-C cable to the charging port on the pedal and to a standard USB power adapter (not included) or a computer USB port. The indicator light will show charging status and turn off when fully charged.

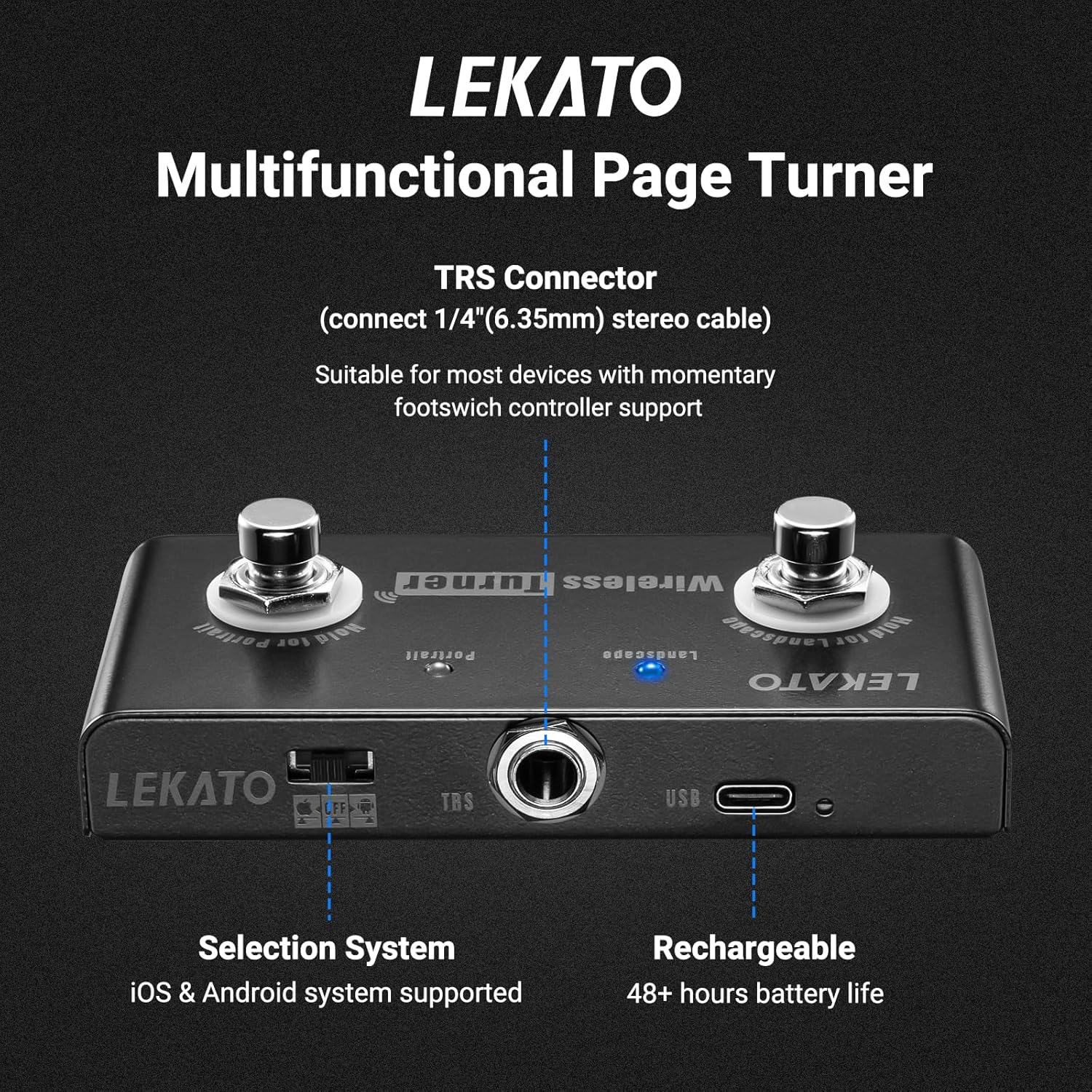

Figure 4.1: Charging port and other interfaces.
4.2 Bluetooth Connection (for Tablets/Phones)
- Ensure the pedal is charged.
- Locate the operating system switch on the side of the pedal. Slide it to the appropriate position for your device: iOS (Apple icon) for iPhones/iPads or Android (Android icon) for Android tablets/phones.
- Turn on the pedal by sliding the power switch to the desired OS mode. The Bluetooth indicator light will begin to blink, indicating it's in pairing mode.
- On your tablet or phone, go to Bluetooth settings and search for available devices.
- Select "LEKATO_TURNER" (or similar name) from the list to pair. Once connected, the Bluetooth indicator light on the pedal will become solid.

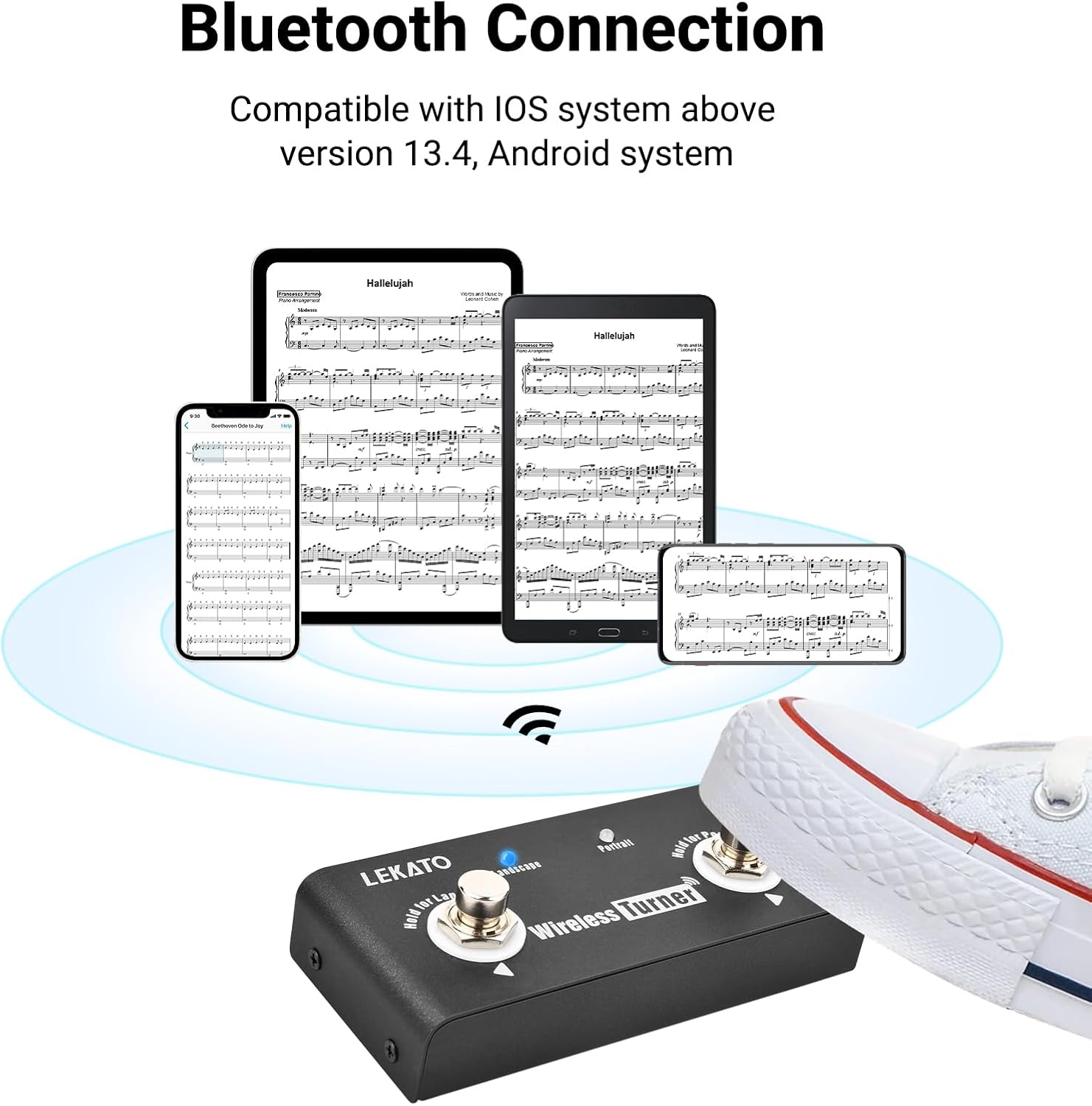

Figure 4.2: Bluetooth connection to various devices.
Video 4.1: Demonstrates Bluetooth connection of the LEKATO Page Turner to an iPad.
4.3 Connecting to LEKATO Looper Station (External Pedal Function)
The pedal can also function as an external control for compatible LEKATO looper stations (e.g., LOOP STAGE & LOOP AUTO) via Bluetooth or a TRS cable connection.
- Ensure both the page turner pedal and the looper station are powered on.
- For wireless connection, ensure the page turner is in the correct OS mode (iOS/Android) and the looper station's Bluetooth is active. They should automatically connect. The indicator lights on both devices will turn blue when linked.
- Alternatively, connect the page turner to the looper station using a 1/4" (6.35mm) TRS stereo cable via the dedicated TRS output interface on the page turner.

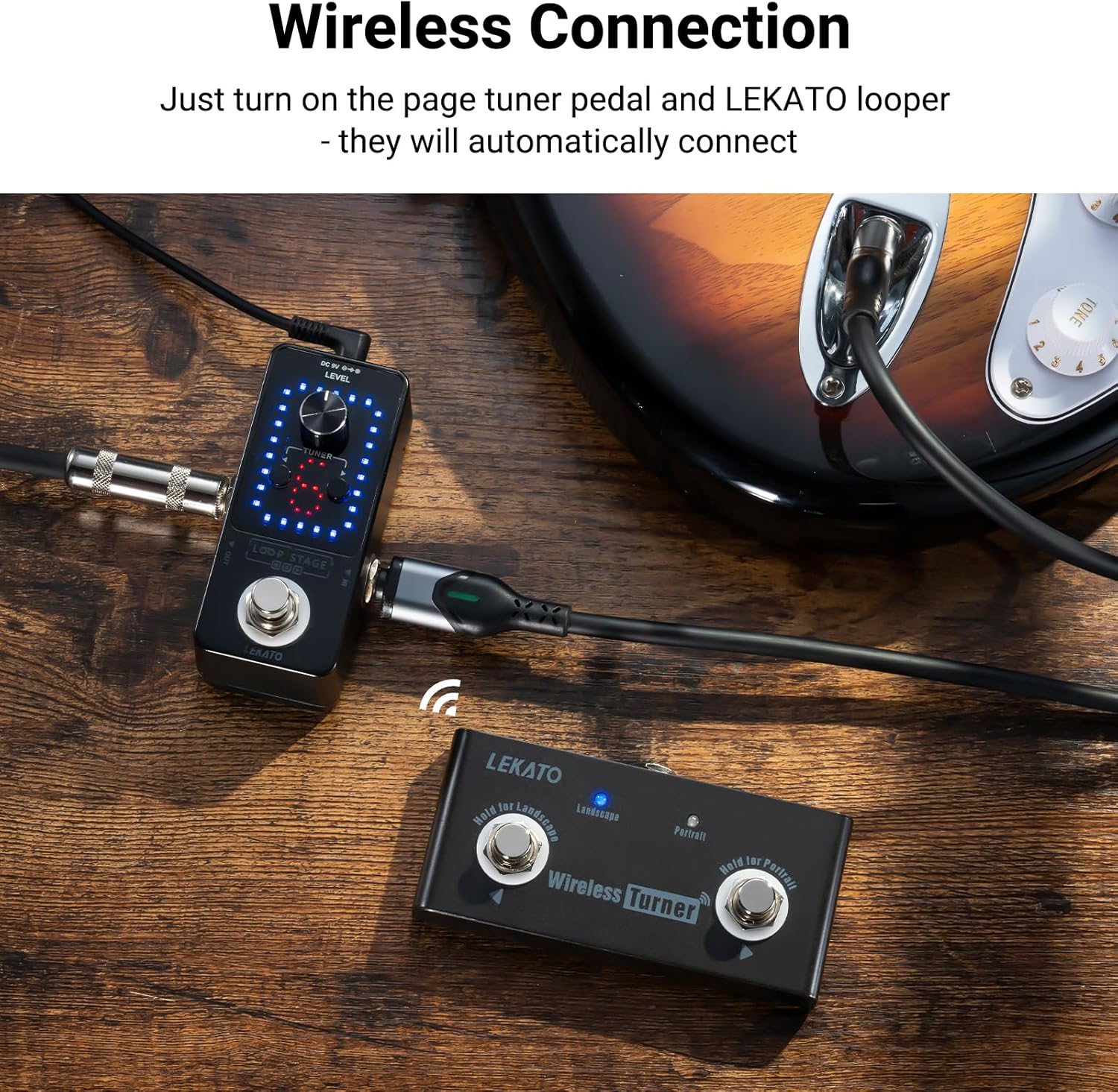

Figure 4.3: Wireless connection to a LEKATO Looper Station.
Video 4.2: Short demonstration of the LEKATO Page Turner as an external pedal for a guitar effect pedal.
5. Operation
5.1 Page Turning/Scrolling
The pedal features two footswitches, typically used for "next" and "previous" actions. The functionality depends on the application and the selected mode (Landscape or Portrait).
- Landscape Mode: Pressing the left footswitch typically moves to the previous page/section (left arrow). Pressing the right footswitch moves to the next page/section (right arrow).
- Portrait Mode: Pressing the left footswitch typically scrolls up (up arrow). Pressing the right footswitch scrolls down (down arrow).
To switch between Landscape and Portrait modes, press and hold the corresponding footswitch for a few seconds until the indicator light changes. The "Landscape" and "Portrait" indicator lights on the pedal will show the currently active mode.

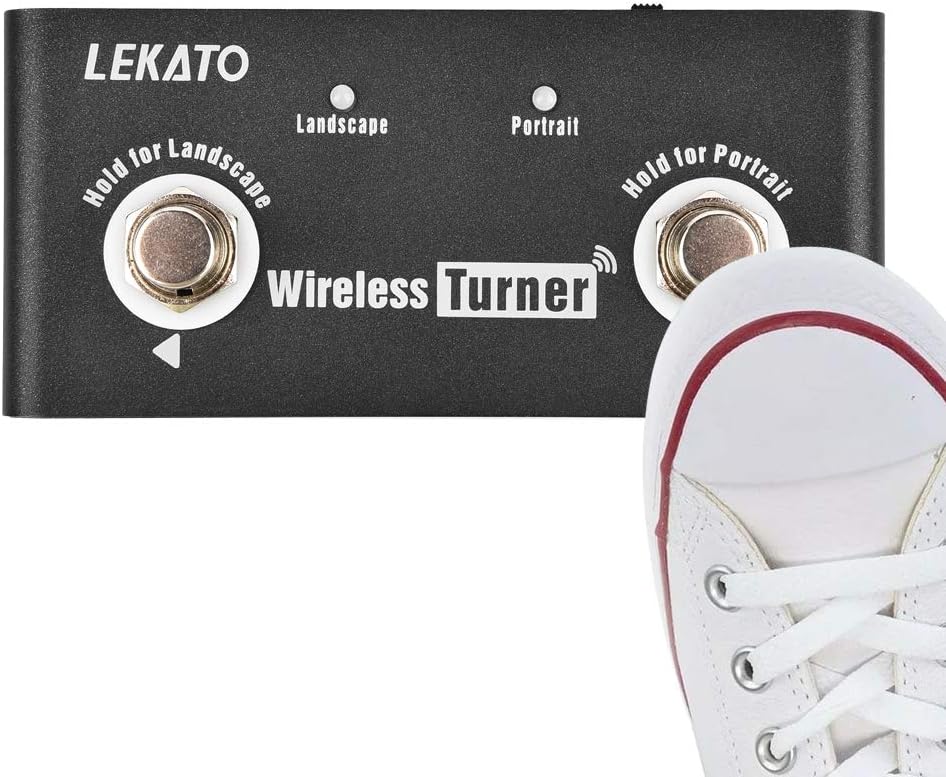

Figure 5.1: Landscape and Portrait mode indicators.
Figure 5.2: Hands-free operation with the foot pedal.
5.2 Looper Control (External Pedal)
When connected to a compatible LEKATO looper station, the footswitches can control specific functions:
- Next/Previous Loop: Typically, one footswitch will advance to the next loop, and the other will go back to the previous loop. Refer to your looper station's manual for specific assignments.
- Tuner Control: The pedal can assist with looper tuning functions. Consult your looper station's manual for details on how to activate and use this feature with an external pedal.
6. Maintenance
- Cleaning: Use a soft, dry cloth to clean the pedal. Avoid using abrasive cleaners or solvents.
- Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: To prolong battery life, avoid fully discharging the battery frequently. Recharge regularly, especially if the device will not be used for an extended period.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Pedal does not connect via Bluetooth. | Incorrect OS switch setting, low battery, device not in pairing mode, or interference. | Ensure OS switch matches your device (iOS/Android). Charge the pedal. Turn the pedal off and on again to re-enter pairing mode. Move closer to the device or away from other wireless interference. |
| Page turning/scrolling does not work. | Incorrect mode (Landscape/Portrait) for the application, or application not compatible. | Switch between Landscape and Portrait modes by holding down the respective footswitch. Verify your application supports external keyboard/Bluetooth input for page turning. Some apps may require specific settings. |
| Pedal does not control LEKATO looper. | Incorrect connection method, looper not powered, or compatibility issue. | Ensure both devices are powered on. Verify Bluetooth connection or proper TRS cable connection. Check looper manual for external pedal compatibility and setup. |
| Short battery life. | Frequent deep discharges, or aging battery. | Charge the pedal regularly and avoid letting the battery fully drain. If battery life significantly degrades, contact customer support. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 793811871647 |
| Item Weight | 7 ounces (approx. 198g) |
| Product Dimensions | 4.72 x 2.36 x 1.57 inches (approx. 12 x 6 x 4 cm) |
| Country of Origin | China |
| Batteries | 1 Lithium Polymer battery (included) |
| Battery Life | 48+ hours on a single charge |
| Wireless Connection | Bluetooth, up to 60 feet range |
| Compatibility | iOS (version 13.4+), Android |
| Hardware Interface | USB Type-C (charging), TRS 1/4" (6.35mm) (external control) |
| Color | Black |
9. Warranty and Support
LEKATO products are manufactured with high-quality materials and undergo strict quality control. This product is covered by a standard manufacturer's warranty against defects in materials and workmanship. For specific warranty terms and conditions, please refer to the product packaging or contact LEKATO customer support.
For further assistance, troubleshooting, or to inquire about warranty claims, please visit the official LEKATO website or contact their customer service team. You may also refer to the User Manual (PDF) for additional information.
