1. Introduction and Overview
Welcome to the instruction manual for your new Bosch SMV4HVX31E Serie 4 Smart Dishwasher. This appliance is designed to provide efficient and thorough cleaning for your dishes, integrating seamlessly into your kitchen. Please read this manual carefully to ensure safe and optimal operation of your dishwasher.
2. Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the appliance:
- Ensure the dishwasher is properly installed and grounded by a qualified technician.
- Do not allow children to play with, on, or inside the dishwasher.
- Use only detergents and rinse aids specifically designed for automatic dishwashers.
- Do not open the door during operation, especially during the hot water cycle.
- In case of a malfunction, disconnect the appliance from the power supply before attempting any repairs. Contact authorized service personnel.
- The AquaStop system provides protection against water damage. In case of a leak, the system automatically shuts off the water supply.
3. Setup and Installation

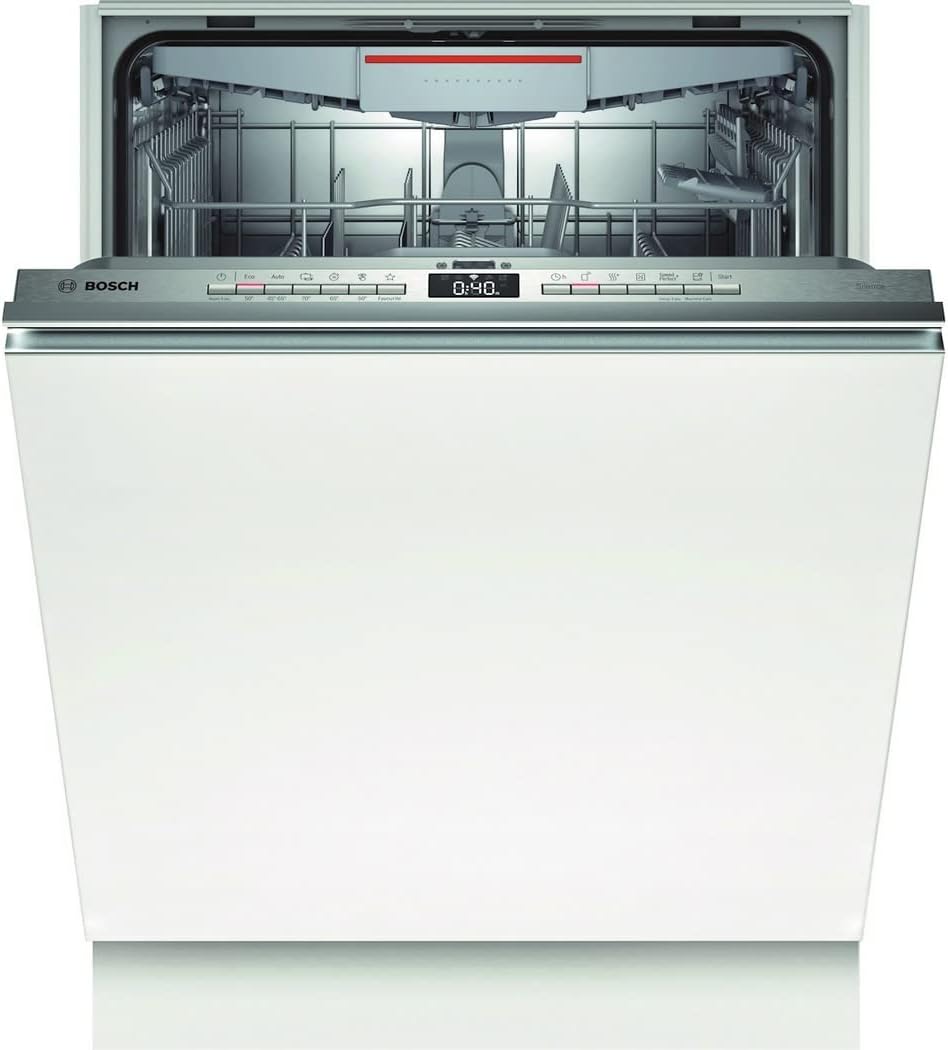

The Bosch SMV4HVX31E is a fully integrated dishwasher designed for seamless installation into your kitchen cabinetry. Proper installation is crucial for performance and safety.
3.1 Dimensions and Niche Requirements
Before installation, ensure your kitchen niche meets the required dimensions:
- Appliance Dimensions (H x W x D): 81.5 cm x 59.8 cm x 55 cm
- Niche Dimensions (H x W x D): 81.5-87.5 cm x 60 cm x 55 cm
3.2 Installation Type

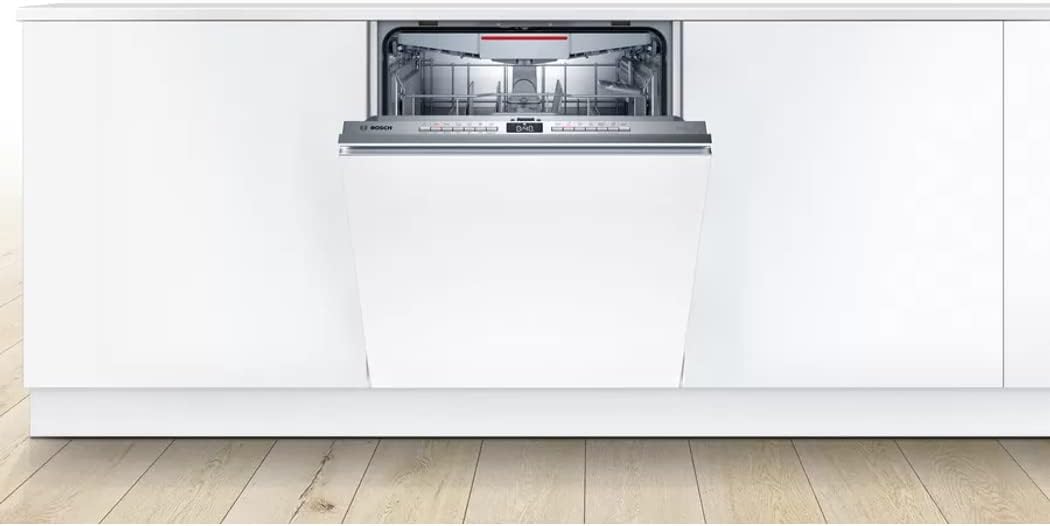

This model is a Built-in, Fully Integrated dishwasher. This means it is designed to be completely concealed behind a custom cabinet panel, matching your kitchen's aesthetic. The appliance features a VarioHinge for flexible installation, suitable for kitchens with low plinth heights or high-built installations.
4. Operating Instructions
Your Bosch dishwasher offers a range of programs and features to ensure optimal cleaning and convenience.
4.1 Control Panel

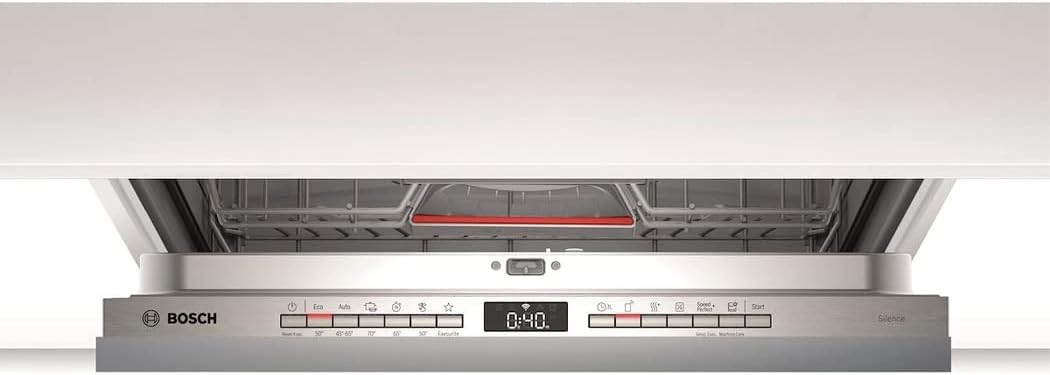

The control panel is located on the top edge of the dishwasher door, accessible when the door is open.
4.2 Loading the Dishwasher

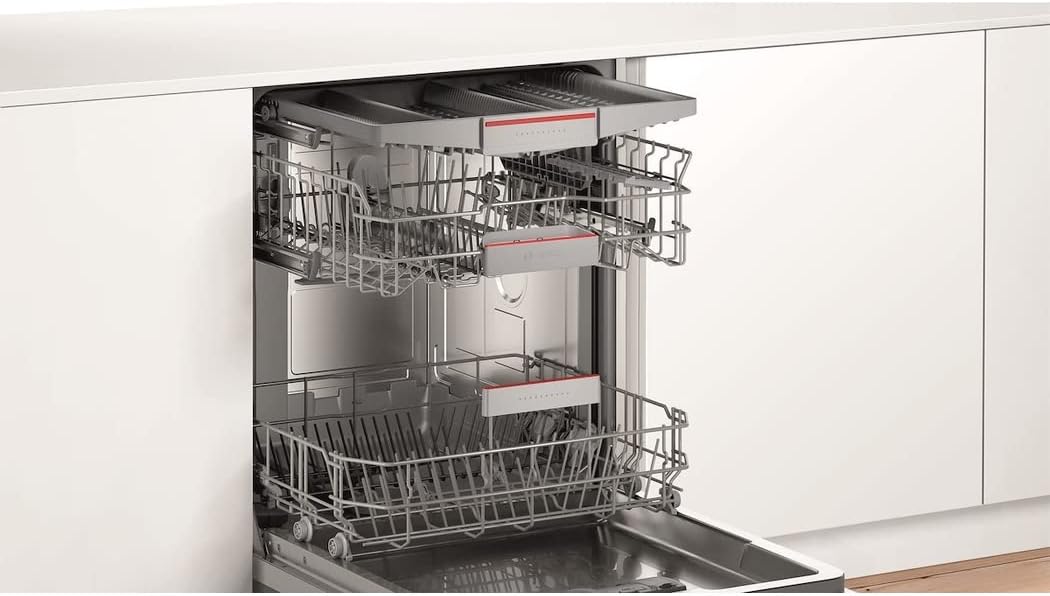

Proper loading ensures the best cleaning results and prevents damage to dishes.
- Cutlery Drawer: The top cutlery drawer provides a dedicated space for knives, forks, and spoons, ensuring thorough cleaning and preventing scratches.
- Upper Basket: The Rackmatic height-adjustable upper basket allows you to easily adjust its height to accommodate taller items in the lower basket or larger items in the upper basket. Ideal for glasses, cups, and small bowls.

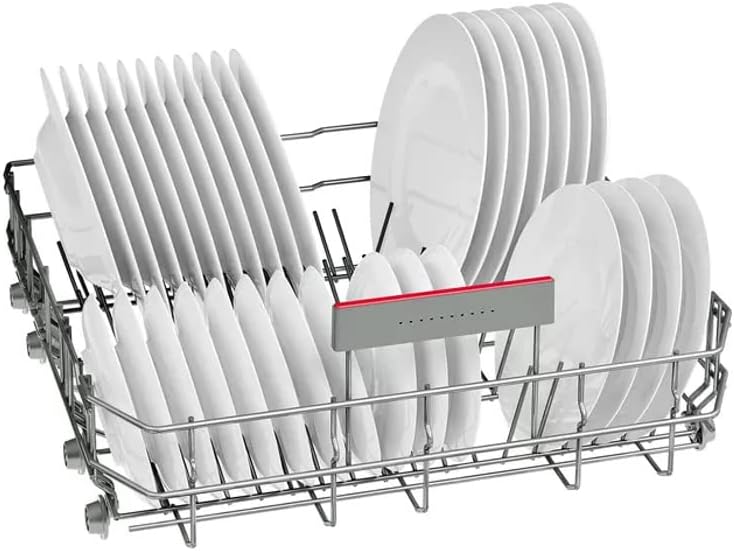

- Lower Basket: Designed for plates, large bowls, pots, and pans.
4.3 Programs and Options
Select the appropriate program and options based on your load's soil level and type of dishes.
- Cycle Options: Intensive program, Automatic program, Pre-rinse.
- Extra Dry: This selectable option provides extra thorough drying, especially beneficial for difficult-to-dry items like plasticware.
- Favorite Program: Personalize and save your preferred settings for quick access with just one touch.
4.4 Smart Features
- Home Connect: Connect your dishwasher to your home network for remote control and monitoring via the Home Connect app. This allows for an easier everyday life by managing your appliance from anywhere.

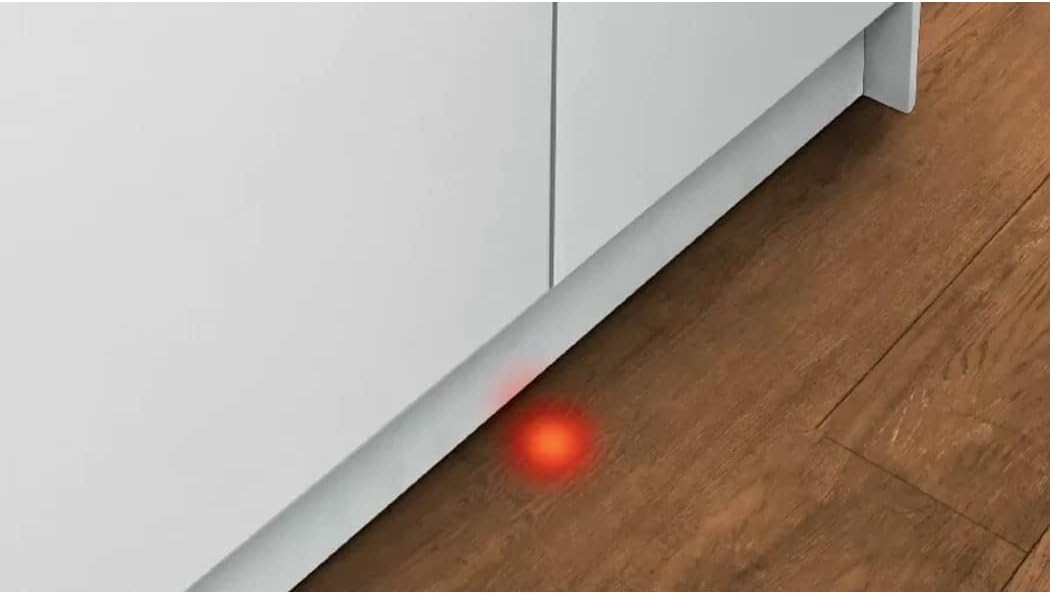

- InfoLight: A red light projected onto the floor indicates whether the dishwasher is currently operating (on) or has finished its cycle (off). This is particularly useful for fully integrated models where the control panel is not visible during operation.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your dishwasher.
- Cleaning Filters: Regularly check and clean the filter system at the bottom of the dishwasher to remove food particles.
- Cleaning Spray Arms: Ensure the spray arm nozzles are not clogged. Remove and rinse if necessary.
- Salt and Rinse Aid: Refill dishwasher salt and rinse aid as indicated by the appliance's indicators.
- Exterior Cleaning: Wipe down the exterior with a soft, damp cloth. Do not use abrasive cleaners.
6. Troubleshooting
Before contacting service, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishes not clean | Improper loading, clogged spray arms, insufficient detergent | Reload dishes correctly, clean spray arms, add more detergent |
| Dishwasher not starting | Door not closed properly, power supply issue, program not selected | Ensure door is latched, check power, select a program |
| Water remaining in tub | Clogged filter, kinked drain hose | Clean filter, straighten drain hose |
| Excessive noise | Dishes rattling, foreign object in pump | Rearrange dishes, check pump area for obstructions |
7. Specifications
Detailed technical specifications for the Bosch SMV4HVX31E dishwasher:
| Specification | Value |
|---|---|
| Model Name | SMV4HVX31E |
| Installation Type | Built-in, Fully Integrated |
| Dimensions (H x W x D) | 81.5 x 59.8 x 55 cm |
| Item Weight | 36.28 kg |
| Capacity | 13 Place Settings |
| Noise Level | 46 dB |
| Energy Efficiency Class | E |
| Annual Energy Consumption | 262 kWh/year |
| Water Consumption (per cycle) | 9.5 Liters |
| Voltage | 240 V |
| Wattage | 2400 W |
| Display Type | LED |
| Interior Material | Plastic |
| Special Features | Adjustable Rack, Home Connect, InfoLight, Extra Dry, AquaStop |
| Included Components | 1 x Dishwasher |
8. Warranty and Support
Your Bosch SMV4HVX31E dishwasher comes with a manufacturer's warranty. Please refer to the warranty card included with your appliance for specific terms and conditions.
- AquaStop Guarantee: The AquaStop system provides a lifetime warranty against water damage caused by a faulty appliance.
- For technical support, spare parts, or service requests, please contact Bosch customer service. You can find contact information on the official Bosch website or in your appliance documentation.
- When contacting support, please have your model number (SMV4HVX31E) and serial number ready.
