Product Overview
The TALOYA 15.8inch Dimmable Flush Mount LED Ceiling Light is designed for modern living spaces, offering versatile lighting with three selectable color temperatures. Its ultra-thin design and energy-efficient LED technology provide bright, long-lasting illumination while ensuring safety with its insulated construction. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your ceiling light.
Figure 1: TALOYA 15.8inch Dimmable Flush Mount LED Ceiling Light and packaging.
Key Features
- Three Color Temperatures: Easily switch between 3000K (Warm White), 4000K (Neutral White), and 6500K (Cool White) to suit your preference and room ambiance.
- Safe and Insulated Design: Constructed with a high-quality refractory plastic shell, providing absolute insulation to prevent leakage hazards and ensuring user safety. No ground wire connection is required during installation.
- Durable and Colorfast: The lampshade's shell color is designed to resist corruption or decay over time, ensuring long-term aesthetic appeal. With normal usage, the light has a lifespan of over 3 years.
- Bright and Energy-Saving: Equipped with a 24W LED, this fixture delivers brightness equivalent to a traditional 240W incandescent light, offering significant energy savings (up to 80%). No additional bulbs are needed.
Figure 2: The light offers three distinct color temperature settings to match various moods and environments.
Figure 3: Smooth dimming capability from 10% to 100% with compatible Triac dimmers.
Setup and Installation
Before beginning installation, ensure the power supply to the circuit is turned off at the circuit breaker to prevent electrical shock. This fixture is designed for flush mount installation and is compatible with most standard junction boxes.
- Prepare the Mounting Plate: The included mounting plate is designed for easy installation. Ensure the side marked "Note: this side must face downwards" is oriented correctly towards the floor when attaching to the ceiling junction box.
- Secure the Base Plate: Use the provided screws to attach the base plate to your electrical junction box. For solid ceilings, use tapered tapping screws. For wire boxes, use flat head screws.
- Connect AC Cables: Connect the AC cables (Live/Line and Neutral) from your ceiling to the corresponding wires on the light fixture using the supplied wire nuts or push wire connectors. This lamp is made of insulating plastic, so no ground wire connection is needed.
- Select Color Temperature (Pre-Installation): Before mounting the light completely, locate the small switch on the back side of the light fixture. Slide this switch to select your desired color temperature (3000K, 4000K, or 6500K). This setting can be changed later by unscrewing the fixture.
- Mount the Light Fixture: Once wiring is complete and the color temperature is set, align the light fixture with the secured base plate. Rotate the lamp clockwise until it snaps securely into place.
Figure 4: Step-by-step guide for installing the ceiling light.
Figure 5: The light's base is designed for universal compatibility with most junction boxes.
Operating Instructions
- Power On/Off: Use your standard wall switch to turn the light fixture on or off.
- Changing Color Temperature: The color temperature (3000K, 4000K, or 6500K) is selected via a small slide switch located on the back of the light fixture. To change the setting after installation, you will need to carefully unscrew the fixture from the base plate, adjust the switch, and then re-mount it.
- Dimming Function: This light fixture is dimmable. To utilize the dimming feature, ensure you have a compatible Triac dimmer switch installed in your electrical circuit. Adjust the dimmer switch to achieve your desired brightness level from 10% to 100%.

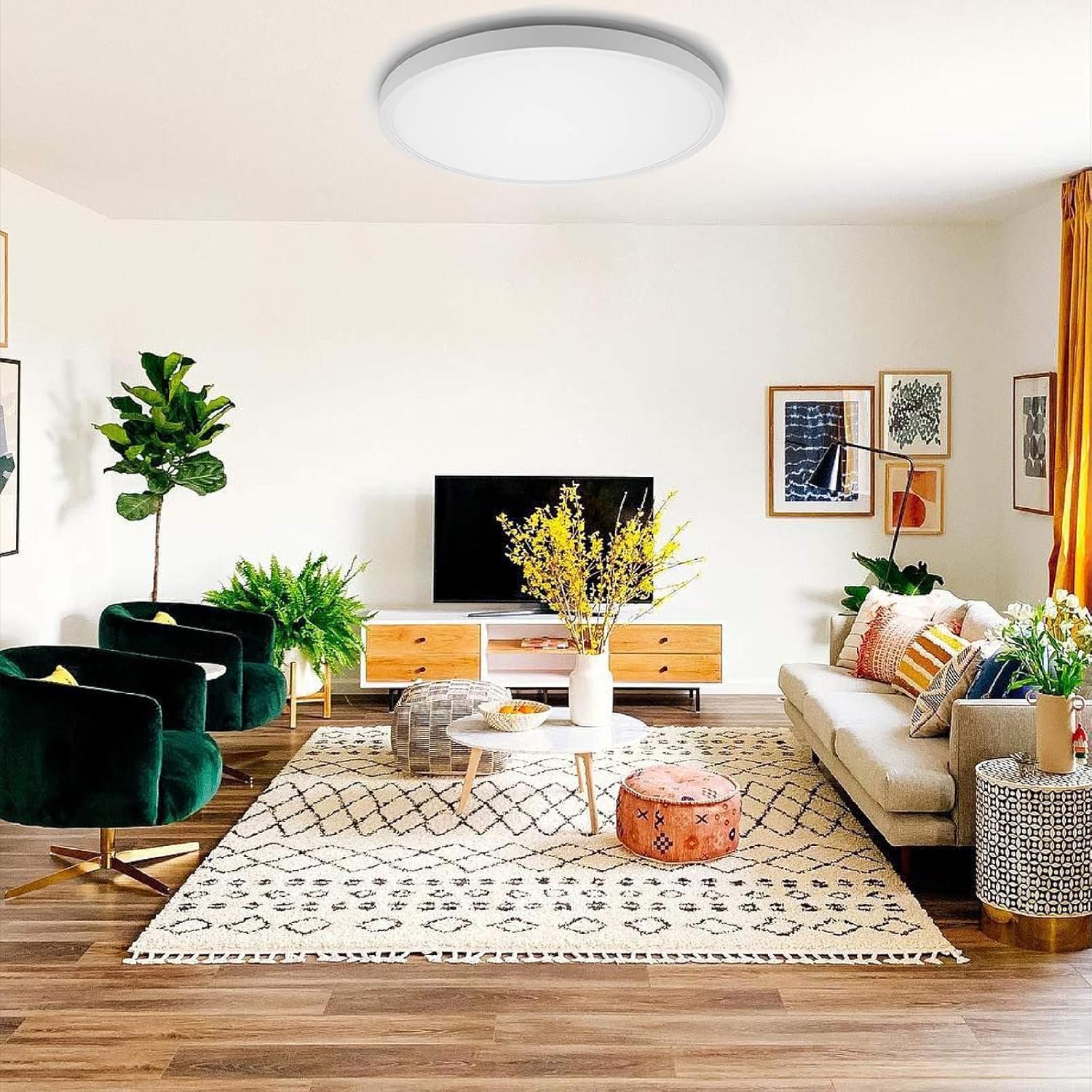

Figure 6: The installed light fixture seamlessly blends into a modern living room setting.
Maintenance
To ensure the longevity and optimal performance of your TALOYA LED Ceiling Light, follow these simple maintenance guidelines:
- Cleaning: Before cleaning, always ensure the power to the light fixture is turned off. Use a soft, dry cloth to wipe down the surface of the light. For stubborn dirt, a slightly damp cloth with mild soap can be used, followed by a dry cloth. Avoid abrasive cleaners, solvents, or harsh chemicals as they may damage the finish or electrical components.
- No Bulb Replacement: As this is an integrated LED fixture, there are no bulbs to replace. The LEDs are designed for a long lifespan.
- Regular Inspection: Periodically check the fixture for any signs of damage or loose connections. If any issues are observed, consult a qualified electrician.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; Loose wiring; Faulty switch. | Check circuit breaker. Ensure all wire connections are secure. Test the wall switch. |
| Light flickers or dims unexpectedly. | Incompatible dimmer switch; Loose wiring; Overload on circuit. | Ensure dimmer is compatible with LED fixtures (Triac dimmer recommended). Check wire connections. Reduce load on the circuit. |
| Light color is not as desired. | Incorrect color temperature setting. | Unscrew the fixture from the base plate and adjust the slide switch on the back to your preferred color temperature. Re-mount the fixture. |
| Light is not bright enough. | Dimmer setting too low; Room size too large for single fixture. | Adjust dimmer to 100% brightness. Consider adding more fixtures for larger spaces. |
Specifications
| Brand | TALOYA |
| Model Number | 8293 |
| Size | 15.8inch-white |
| Product Dimensions | 15.75"L x 15.75"W x 0.94"H |
| Color | White |
| Material | Plastic |
| Wattage | 24 watts |
| Voltage | 120 Volts |
| Brightness | 2400 Lumen |
| Efficiency | 100 LM/W |
| Light Source Type | LED |
| Special Feature | Dimmable |
| Installation Type | Flush Mount |
| Indoor/Outdoor Usage | Indoor |
| Item Weight | 3.29 pounds (1.5 Kilograms) |
Warranty and Support
TALOYA provides a 2-year warranty for this product, as stated in the product specifications. For any questions, concerns, or issues during the usage of your light fixture, please do not hesitate to contact the TALOYA After-sales service team.
For quick solutions and support, you can reach out to the TALOYA friendly support team. Replacement will be arranged for quality-related issues based on the original purchasing proof.
Please refer to your purchase documentation for specific contact details and the most up-to-date warranty information.
