1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your CasterHQ Hamilton Cush-N-Aire S-7008-PRB Rigid Caster. Please read these instructions thoroughly before use to ensure proper function and longevity of the product.
2. Safety Information
- Always ensure the caster is securely mounted to the equipment before use.
- Do not exceed the maximum load capacity of 330 lbs per caster. Overloading can lead to product failure and injury.
- Maintain proper tire inflation pressure as specified in the 'Specifications' section. Under-inflation or over-inflation can affect performance and safety.
- Inspect casters regularly for wear, damage, or loose components. Replace damaged casters immediately.
- Avoid exposing casters to extreme temperatures or harsh chemicals that may degrade materials.
3. Product Overview
The Hamilton Cush-N-Aire S-7008-PRB is a heavy-duty rigid caster designed for industrial applications requiring cushioning and floor protection. It features an 8-inch pneumatic (air-filled) tire with a 17mm sealed precision ball bearing, mounted on a robust forged steel rig with a crimson powder coat finish.

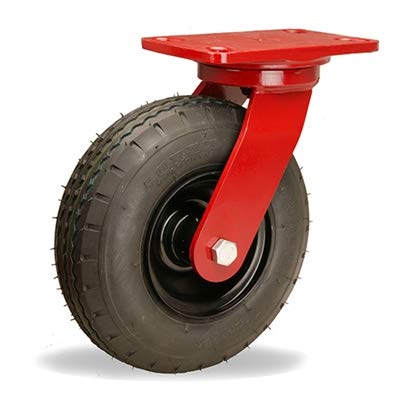

Image 3.1: The Hamilton Cush-N-Aire S-7008-PRB Rigid Caster, featuring an 8-inch pneumatic tire and a red forged steel rig.
4. Setup and Installation
This rigid caster is designed for plate mounting. Follow these steps for secure installation:
- Prepare Mounting Surface: Ensure the mounting surface on your equipment is flat, clean, and strong enough to support the caster's load capacity.
- Align Mounting Plate: Position the caster's mounting plate (4 1/2 x 6 1/2 inches) onto the desired location.
- Mark Bolt Holes: Use the caster's bolt holes as a template to mark the drilling locations on your equipment. The bolt holes are slotted, accommodating patterns from 2 3/8 x 4 15/16 inches to 3 3/8 x 5 1/4 inches.
- Drill Holes: Drill holes appropriate for 1/2-inch mounting bolts.
- Secure Caster: Place the caster and secure it using four 1/2-inch mounting bolts, washers, and nuts (not included). Tighten all fasteners firmly to prevent loosening during operation.

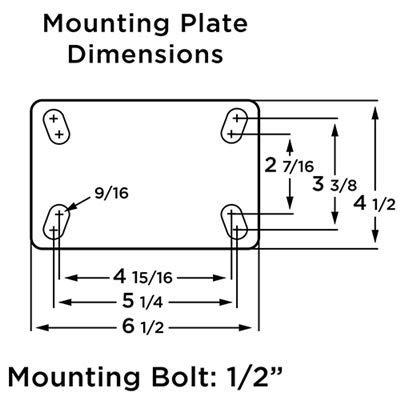

Image 4.1: Diagram illustrating the mounting plate dimensions and bolt hole patterns for the caster.
5. Operation
The Hamilton Cush-N-Aire S-7008-PRB rigid caster is designed for straight-line movement and provides excellent cushioning for delicate loads or uneven surfaces. Due to its pneumatic tire, it offers superior floor preservation and quiet operation compared to hard-tread casters.
- Load Distribution: Distribute loads evenly across all casters to maximize stability and prevent premature wear.
- Surface Considerations: While pneumatic tires perform well on various surfaces, avoid sharp objects or debris that could puncture the tire.
- Speed: Operate equipment at speeds appropriate for the load and surface conditions. The caster is rated for a load capacity of 330 lbs at 3 mph.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your caster.
- Tire Pressure: Check tire pressure regularly. Maintain a maximum air pressure of 50 PSI. Under-inflated tires can increase rolling resistance and wear; over-inflated tires can reduce cushioning and increase the risk of blowouts.
- Bearing Inspection: The caster features sealed precision ball bearings, which generally require minimal maintenance. However, periodically check for smooth rotation and any signs of binding or excessive play.
- Hardware Check: Periodically inspect all mounting bolts and nuts for tightness. Re-tighten as necessary.
- General Cleaning: Keep the caster free from dirt, debris, and corrosive substances. Clean with a mild detergent and water if necessary.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Difficulty rolling / High rolling resistance | Low tire pressure; Damaged bearing; Obstruction in wheel | Check and adjust tire pressure; Inspect/replace bearing; Remove obstruction |
| Excessive noise during movement | Damaged bearing; Loose mounting hardware | Inspect/replace bearing; Tighten mounting bolts |
| Tire losing air quickly | Puncture; Valve stem issue | Inspect tire for damage and repair/replace; Check valve stem for leaks |
| Caster wobbles or feels unstable | Loose mounting hardware; Damaged rig | Tighten mounting bolts; Inspect rig for damage and replace if necessary |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | HD-S-7008-PRB |
| Caster Type | Rigid Plate Caster |
| Wheel Diameter | 8 inches |
| Wheel Face | 3 inches |
| Tire Type | Pneumatic Air-Filled (2.80-2.50-4) |
| Bearing Type | 17mm Sealed Precision Ball Bearing |
| Load Capacity @ 3 mph | 330 lbs per caster |
| Overall Height | 10.625 inches |
| Mounting Plate Dimensions | 4 1/2 x 6 1/2 inches |
| Bolt Hole Spacing | 2 3/8 x 4 15/16 inches slotted to 3 3/8 x 5 1/4 inches |
| Mounting Bolt Diameter | 0.5 inches (1/2 inch) |
| Max Air Pressure | 50 PSI |
| Caster Rig Type | Forged Steel |
| Caster Color/Finish | Crimson Powder |
| Wheel Color/Finish | Black Tire on Black Rim |
| Item Weight | 12 lbs |
| Low Temperature Range | -30°F |
| High Temperature Range | 120°F |
9. Warranty and Support
This product is manufactured by Hamilton Caster and sold by CasterHQ. For specific warranty information, please refer to the terms and conditions provided at the time of purchase or contact CasterHQ directly. For technical support or inquiries, please visit the CasterHQ Store on Amazon or their official website.
