Coodss Neato Botvac D Series D3, D4, D5, D6, D7, D75, D80, D85

Instruction Manual

Coodss Replacement Parts for Neato Botvac D Series Robot Vacuum Cleaners

Model Compatibility: D3, D4, D5, D6, D7, D75, D80, D85

1. Product Overview and Compatibility

This accessory kit provides essential replacement parts for your Neato Botvac D Series robot vacuum cleaner, ensuring continued optimal performance. The kit includes a main brush, HEPA filters, and side brushes.

Compatibility: These replacement parts are specifically designed for Neato Botvac D series models D70, D75, D80, D85, Connected D3, D4, D5, D6, and D7 robotic vacuum cleaners. They are not compatible with other Botvac models (e.g., 70e, 75, 80, 85).

Neato Botvac D Series robot vacuum cleaner with a replacement roller brush in the foreground, indicating compatible models.

Image 1.1: Compatible Models. This image illustrates the Neato Botvac D Series robot vacuum cleaner alongside a replacement roller brush, highlighting the specific models these parts are designed for.

2. Kit Contents

Your Coodss Replacement Parts kit includes the following components:

  • 1 x Spiral Combo Brush (Main Brush)
  • 3 x Ultra Performance HEPA Filters
  • 6 x 5-Arm Side Brushes
  • 1 x Cleaning Tool (small brush)
  • 1 x Screwdriver
Complete Coodss replacement kit for Neato Botvac D Series, showing one main brush, three HEPA filters, six side brushes, a cleaning tool, and a screwdriver.

Image 2.1: Kit Contents. This image displays all components included in the Coodss replacement kit: one main brush, three HEPA filters, six side brushes, a small cleaning brush, and a screwdriver.

3. Setup and Installation

Follow these steps to replace the components in your Neato Botvac D Series robot vacuum cleaner.

3.1. Main Brush Installation

  1. Turn off your robot vacuum cleaner and place it upside down on a clean, flat surface.
  2. Locate the brush guard or cover on the bottom of the vacuum.
  3. Unlatch or unscrew the brush guard to remove it.
  4. Carefully remove the old main brush.
  5. Insert the new Coodss Spiral Combo Brush, ensuring it clicks securely into place.
  6. Reattach the brush guard and secure it.
Close-up of the Coodss Spiral Combo Brush, showing its design and bristles.

Image 3.1: Spiral Combo Brush. This image provides a detailed view of the main brush, highlighting its spiral design and bristles.

3.2. HEPA Filter Installation

  1. Open the dust bin compartment of your robot vacuum cleaner.
  2. Remove the dust bin.
  3. Locate the filter within the dust bin and remove the old filter.
  4. Insert a new Coodss Ultra Performance HEPA Filter into the designated slot, ensuring it fits snugly.
  5. Reinsert the dust bin into the vacuum cleaner until it locks into place.
Close-up of a Coodss HEPA filter, showing its pleated filter media.

Image 3.2: HEPA Filter. This image shows a close-up of the HEPA filter, detailing its pleated structure designed for efficient air filtration.

3.3. Side Brush Installation

  1. Turn off your robot vacuum cleaner and place it upside down.
  2. Locate the side brush(es). Depending on your model, you may need to use the provided screwdriver to remove the screw holding the old side brush in place.
  3. Remove the old side brush.
  4. Align the new Coodss 5-Arm Side Brush with the post and press it down firmly, or secure it with the screw if applicable.
Close-up of a Coodss 5-arm side brush, showing its five bristles.

Image 3.3: 5-Arm Side Brush. This image provides a detailed view of the side brush, emphasizing its five-arm design for effective corner and edge cleaning.

4. Maintenance

Regular maintenance of your robot vacuum's parts is crucial for maintaining its cleaning efficiency and extending the lifespan of the components.

4.1. Cleaning Frequency

  • Main Brush: It is recommended to clean the main brush frequently, ideally after every few cleaning cycles, to remove tangled hair and debris.
  • HEPA Filters: Clean filters regularly by tapping them over a trash can to dislodge dust. Avoid washing HEPA filters unless explicitly stated as washable.
  • Side Brushes: Check side brushes regularly for tangled hair or debris and clean as needed.

4.2. Replacement Frequency

To ensure your robot vacuum cleaner continues to run at high performance, it is recommended to change the brushes and filters every 2-3 months, depending on usage and household environment (e.g., pets, high traffic).

A Coodss main brush being rinsed under splashing water, illustrating its washable and reusable nature.

Image 4.1: Washable & Reusable. This image demonstrates the washability of the main brush, indicating that it can be cleaned with water for better performance and reusability.

4.3. Tangle-Free Design

The main brush features a Tangle-Free Disk design, which simplifies daily maintenance. This design makes it convenient to remove hair and debris that may accumulate around the brush head, preventing tangles and ensuring smooth operation.

Close-up of the end of the main brush, showing the orange tangle-free disk design.

Image 4.2: Tangle-Free Disk Design. This image highlights the orange disk at the end of the main brush, which is designed to prevent hair tangles and facilitate easy cleaning.

5. Troubleshooting

If you encounter issues after replacing parts, consider the following:

  • Reduced Suction: Ensure the HEPA filter is clean and correctly installed. A clogged filter can significantly reduce suction power.
  • Brush Not Spinning: Check if the main brush or side brushes are free of tangled hair or debris. Ensure they are properly seated and secured.
  • Unusual Noises: Inspect all brushes for any foreign objects or damage. Ensure all parts are installed correctly and securely.
  • Incomplete Cleaning: Verify that side brushes are intact and spinning correctly to sweep debris into the main brush path. Ensure the main brush is clean and rotating freely.

If problems persist, refer to your Neato Botvac D Series robot vacuum cleaner's original manual or contact Coodss customer support.

6. Specifications

ComponentDescriptionMaterial
Main BrushSpiral Combo Brush, 11.10 inches longABS Plastic, Rubber Blade
HEPA FilterUltra Performance Filter, 7.92 x 2.14 inchesHEPA Filter Media, ABS Plastic
Side Brush5-Arm Sweeping BrushABS Plastic, Nylon Bristles
Total Pieces9 (1 Main Brush, 3 HEPA Filters, 6 Side Brushes, 1 Cleaning Tool, 1 Screwdriver)
ReusabilityReusable (Main Brush, Side Brushes)
Detailed diagram of the roller brush with dimensions, showing its 11.10 inch length and materials (ABS Plastic, Rubber Blade).

Image 6.1: Roller Brush Dimensions. This image provides a detailed view of the roller brush, including its length of 11.10 inches and the materials used in its construction.

Detailed diagram of the HEPA filter with dimensions, showing its 7.92 inch length and 2.14 inch height, and materials (ABS Plastic, HEPA Filter).

Image 6.2: HEPA Filter Dimensions. This image shows the HEPA filter with its dimensions of 7.92 inches in length and 2.14 inches in height, along with its material composition.

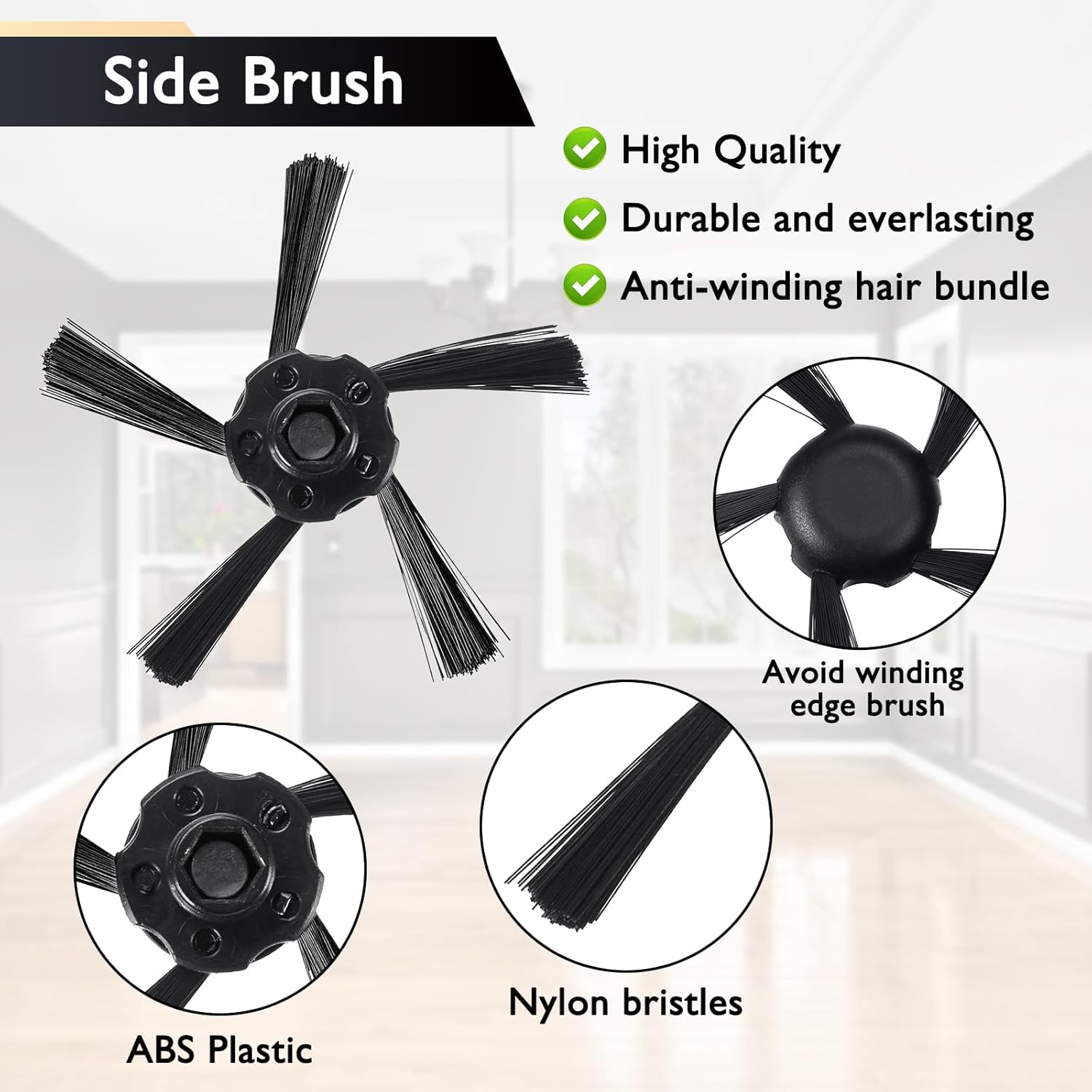

Detailed view of the 5-arm side brush, highlighting its high quality, durability, anti-winding hair bundle feature, ABS plastic, and nylon bristles.

Image 6.3: Side Brush Features. This image details the features of the 5-arm side brush, including its high quality, durability, anti-winding design, and the materials used (ABS plastic and nylon bristles).

7. Customer Support

If you have any questions or require further assistance regarding your Coodss replacement parts, please do not hesitate to contact us. We are committed to providing satisfactory service and support for your purchase.

For contact information, please refer to the seller details on the platform where you made your purchase or visit the official Coodss brand store.
